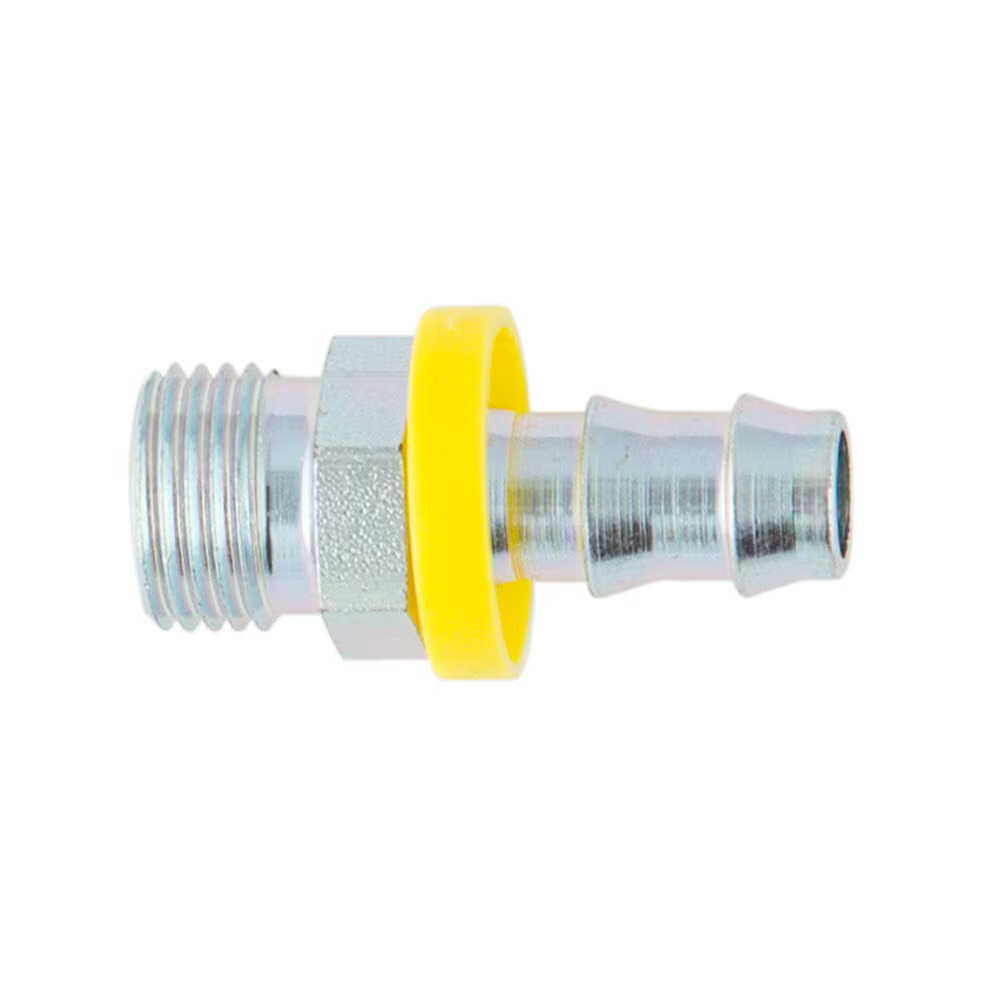

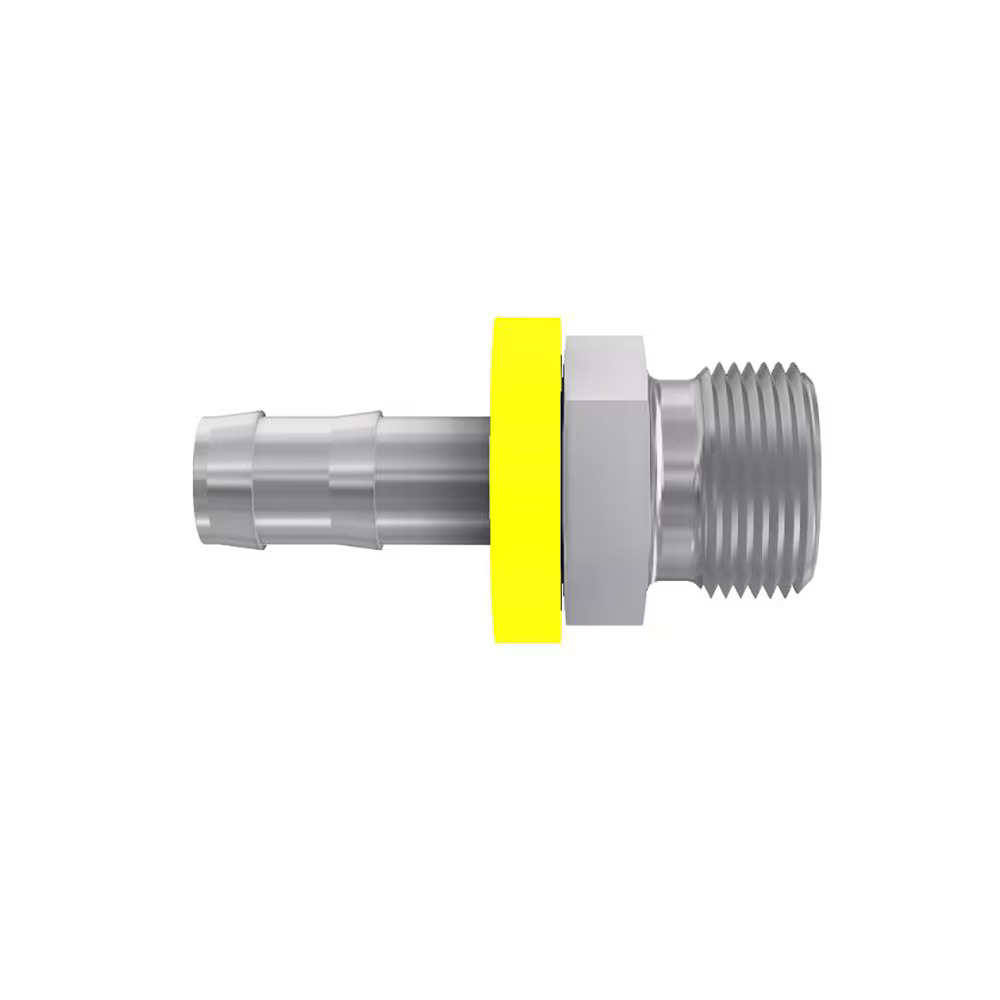

DIN - Metric Straight Insert - Metric Male (Flare 24°)

ISO 12151-2-S-L – CEL

Datasheets
3D082
End type D0, D0
Size Range (mm) 6 - 19 mm
Hose fitting type Push Lok
Size Range (inch) 1/4" inches - 3/4" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Push-Lok Hose Fittings
Product Program Low Pressure - Push-Lok
Pressure Series L
Web Article
Push-Lok
Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
Hose Size
Weight
TariffNumber
Country of origin
Note
End 1 Thread Size
End 1 Tube Sizes
End 1 Pressure Series
Unit price
Stock status
Favorite Sort Order
H00387380 3D082-10-4C Stainless steel 1/4" | 6.3 mm | DN: 6 0.0001, KG 73072910 DE, Germany Not in stock 2147483647
H00387381 3D082-10-6C Stainless steel 3/8" | 10 mm | DN: 10 0.0265, KG 73072910 DE, Germany Not in stock 2147483647
H00387382 3D082-12-6C Stainless steel 3/8" | 10 mm | DN: 10 0.0359, KG 73072910 DE, Germany 113.91 EUR Not in stock
Minimum 5
 2147483647
H00387383 3D082-15-8C Stainless steel 1/2" | 12.5 mm | DN: 12 0.06, KG 73072910 DE, Germany 104.38 EUR Not in stock
Minimum 10
 2147483647
H00387384 3D082-18-10C Stainless steel 5/8" | 16 mm | DN: 16 0.094, KG 73072910 DE, Germany 144.43 EUR Not in stock
Minimum 2
 2147483647
H00387385 3D082-18-8C Stainless steel 1/2" | 12.5 mm | DN: 12 0.0714, KG 73072910 DE, Germany 130.55 EUR Not in stock
Minimum 10
 2147483647
H00387386 3D082-22-12C Stainless steel 3/4" | 19 mm | DN: 19 0.1381, KG 73072910 DE, Germany 125.03 EUR Not in stock
Minimum 2
 2147483647
H00387387 3D082-8-4C Stainless steel 1/4" | 6.3 mm | DN: 6 0.0201, KG 73072910 DE, Germany 78.21 EUR Not in stock
Minimum 5
 2147483647
H00387198 3D082-10-10K Steel, Brass 5/8" | 16 mm | DN: 16 NIPPEL CEL DN10 E Not in stock 2147483647
H00387199 3D082-10-6BK Steel, Brass 3/8" | 10 mm | DN: 10 Male Metric 24° L series - Not in stock 2147483647
H00387201 3D082-6-10K Steel, Brass 5/8" | 16 mm | DN: 16 Push-Lok® Union - straight E Not in stock 2147483647
H00386583 3D082-18-8B Brass 1/2" | 12.5 mm | DN: 12 0.076, KG 74122000 DE, Germany 303.32 EUR Not in stock
Minimum 10
 2147483647
H00071673 3D082-6-4 Steel 1/4" | 6.3 mm | DN: 6 0.014, KG 73079910 DE, Germany 3D082 - 1/4" Insert (ST) - 6 L (M12) DIN M M12 x 1.5 6 mm L 50.99 EUR Not in stock
Minimum 25
 2147483647
H00071674 3D082-8-4 Steel 1/4" | 6.3 mm | DN: 6 0.0172, KG 73079910 DE, Germany 3D082 - 1/4" Insert (ST) - 8 L (M14) DIN M M14 x 1.5 8 mm L 10.03 EUR Not in stock
Minimum 25
 2147483647
H00071675 3D082-10-6 Steel 3/8" | 10 mm | DN: 10 0.028, KG 73079910 DE, Germany 3D082 - 3/8" Insert (ST) - 10 L (M16) DIN M M16 x 1.5 10 mm L 52.01 EUR Not in stock
Minimum 25
 2147483647
H00071676 3D082-12-6 Steel 3/8" | 10 mm | DN: 10 0.0312, KG 73079910 DE, Germany 3D082 - 3/8" Insert (ST) - 12 L (M18) DIN M M18 x 1.5 12 mm L 25.25 EUR Not in stock
Minimum 25
 2147483647
H00071677 3D082-15-8 Steel 1/2" | 12.5 mm | DN: 12 0.058, KG 73079910 DE, Germany 3D082 - 1/2" Insert (ST) - 15 L (M22) DIN M M22 x 1.5 15 mm L 12.02 EUR Not in stock
Minimum 20
 2147483647
H00071678 3D082-18-8 Steel 1/2" | 12.5 mm | DN: 12 0.0695, KG 73079910 DE, Germany 3D082 - 1/2" Insert (ST) - 18 L (M26) DIN M M26 x 1.5 18 mm L 78.74 EUR Not in stock
Minimum 10
 2147483647
H00071679 3D082-22-12 Discontinued from standard assortment when sold out Steel 3/4" | 19 mm | DN: 19 0.1251, KG 73079910 DE, Germany 3D082 - 3/4" Insert (ST) - 22 L (M30) DIN M M30 x 2.0 22 mm L 28.63 EUR In stock
2147483647
H00071680 3D082-10-6B Brass 3/8" | 10 mm | DN: 10 0.0322, KG 74122000 DE, Germany 3D082 - 3/8" Insert (B) - 10 L (M16) DIN M M16 x 1.5 10 mm L 59.11 EUR Not in stock
Minimum 25
 2147483647
H00071681 3D082-12-6B Brass 3/8" | 10 mm | DN: 10 0.0332, KG 74122000 DE, Germany 3D082 - 3/8" Insert (B) - 12 L (M18) DIN M M18 x 1.5 12 mm L 142.52 EUR Not in stock
Minimum 25
 2147483647
H00071682 3D082-15-8B Brass 1/2" | 12.5 mm | DN: 12 0.061, KG 74122000 DE, Germany 3D082 - 1/2" Insert (B) - 15 L (M22) DIN M M22 x 1.5 15 mm L 40.43 EUR At central warehouse
Minimum 20
 2147483647
H00071683 3D082-15-8BK Brass 1/2" | 12.5 mm | DN: 12 KG 3D082 - 1/2" Insert (B) - 15 L (M22) DIN M M22 x 1.5 15 mm L Not in stock 2147483647
H00071684 3D082-18-10 Steel 5/8" | 16 mm | DN: 16 0.0832, KG 73079910 DE, Germany 3D082 - 5/8" Insert (ST) - 18 L (M26) DIN M M26 x 1.5 18 mm L 17.76 EUR Not in stock
Minimum 25
 2147483647
H00071685 3D082-22-12B Brass 3/4" | 19 mm | DN: 19 0.136, KG 74122000 DE, Germany 3D082 - 3/4" Insert (B) - 22 L (M30) DIN M M30 x 2.0 22 mm L 92.75 EUR Not in stock
Minimum 10
 2147483647
H00071686 3D082-22-12BK Brass 3/4" | 19 mm | DN: 19 3D082 - 3/4" Insert (B) - 22 L (M30) DIN M M30 x 2.0 22 mm L Not in stock 2147483647
