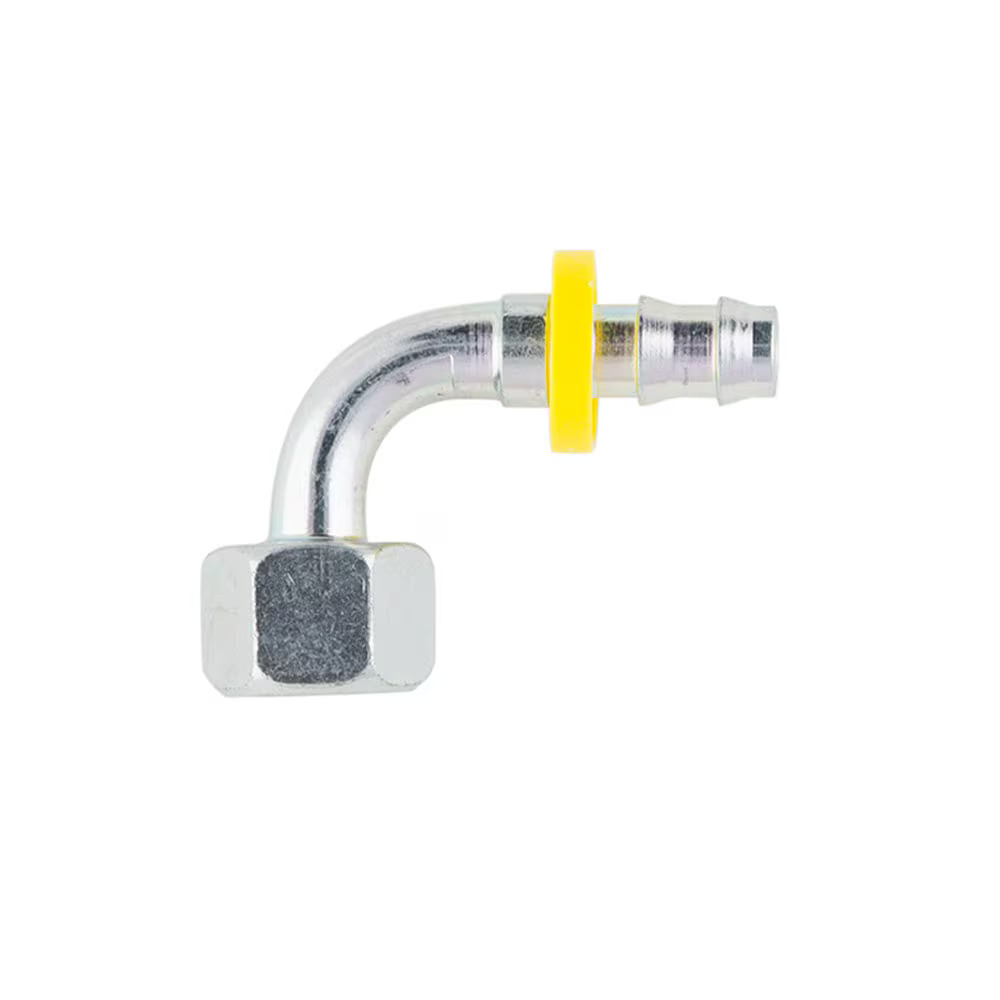

DIN - Metric Elbow 90° Insert - Metric Female Swivel (Cone w/O-ring 24°)

ISO 12151-2-SWE-L – DKOL 90°

Datasheets
3CF82
End type CF, CF
Size Range (mm) 6 - 19 mm
Hose fitting type Push Lok
Size Range (inch) 1/4" inches - 19" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Push-Lok Hose Fittings
Product Program Low Pressure - Push-Lok
Pressure Series L
Web Article
Push-Lok
Show fullscreen image
Hymatik number Supplier Item Number
Note
End 1 Thread Size
End 1 Tube Sizes
End 1 Pressure Series
Material
Hose Size
Weight
TariffNumber
Country of origin
Unit price
Stock status
Favorite Sort Order
H00071662 3CF82-6-4 3CF82 - 1/4" Insert 90° (ST) - 6 L (M12) DIN FSW M12 x 1.5 6 mm L Steel 1/4" | 6.3 mm | DN: 6 0.0324, KG 73079290 DE, Germany 59.72 EUR Not in stock
Minimum 25
 2147483647
H00071663 3CF82-8-4 3CF82 - 1/4" Insert 90° (ST) - 8 L (M14) DIN FSW M14 x 1.5 8 mm L Steel 1/4" | 6.3 mm | DN: 6 0.0369, KG 73079290 DE, Germany 58.29 EUR Not in stock
Minimum 10
 2147483647
H00071664 3CF82-10-4 3CF82 - 1/4" Insert 90° (ST) - 10 L (M16) DIN FSW M16 x 1.5 10 mm L Steel 1/4" | 6.3 mm | DN: 6 0.0431, KG 73079290 DE, Germany 43.79 EUR Not in stock
Minimum 10
 2147483647
P0433449 3CF82-12-6 3CF82 - 3/8" Insert 90° (ST) - 12 L (M18) DIN FSW M18 x 1.5 12 mm L Steel 3/8" | 10 mm | DN: 10 0.068, KG 73079290 DE, Germany 31.17 EUR In stock
2147483647
7290820350 3CF82-15-8 3CF82 - 1/2" Insert 90° (ST) - 15 L (M22) DIN FSW M22 x 1.5 15 mm L Steel 1/2" | 12.5 mm | DN: 12 0.12, KG 73079290 DE, Germany 52.75 EUR In stock
2147483647
7290820370 3CF82-22-12 3CF82 - 3/4" Insert 90° (ST) - 22 L (M30) DIN FSW M30 x 2.0 22 mm L Steel 3/4" | 19 mm | DN: 19 0.3, KG 73079290 DE, Germany 66.94 EUR In stock
2147483647
H00071668 3CF82-10-6 3CF82 - 3/8" Insert 90° (ST) - 10 L (M16) DIN FSW M16 x 1.5 10 mm L Steel 3/8" | 10 mm | DN: 10 0.057, KG 73079290 DE, Germany 46.30 EUR Not in stock
Minimum 20
 2147483647
H00071669 3CF82-10-6B 3CF82 - 3/8" Insert 90° (B) - 10 L (M16) DIN FSW M16 x 1.5 10 mm L Brass 3/8" | 10 mm | DN: 10 0.063, KG 74122000 DE, Germany 36.04 EUR Not in stock
Minimum 25
 2147483647
H00071670 3CF82-12-6B 3CF82 - 3/8" Insert 90° (B) - 12 L (M18) DIN FSW M18 x 1.5 12 mm L Brass 3/8" | 10 mm | DN: 10 0.075, KG 74122000 DE, Germany 126.02 EUR Not in stock
Minimum 12
 2147483647
H00071671 3CF82-15-8B 3CF82 - 1/2" Insert 90° (B) - 15 L (M22) DIN FSW M22 x 1.5 15 mm L Brass 1/2" | 12.5 mm | DN: 12 0.1363, KG 74122000 DE, Germany 86.03 EUR Not in stock
Minimum 6
 2147483647
H00071672 3CF82-18-10 3CF82 - 5/8" Insert 90° (ST) - 18 L (M26) DIN FSW M26 x 1.5 18 mm L Steel 5/8" | 16 mm | DN: 16 0.195, KG 73079290 DE, Germany 124.95 EUR Not in stock
Minimum 4
 2147483647
H00386550 3CF82-10-6V DKOL 90 DN10 E Steel, Brass 3/8" | 10 mm | DN: 10 0.0611, KG 73079290 DE, Germany Not in stock 2147483647
H00386553 3CF82-12-6B-V Brass 3/8" | 10 mm | DN: 10 0.0728, KG 74122000 DE, Germany 128.76 EUR Not in stock
Minimum 100
 2147483647
H00386554 3CF82-12-6-SL46-STB96 Female Metric Swivel Steel, Brass 3/8" | 10 mm | DN: 10 0.0756, KG 73079290 DE, Germany Not in stock 2147483647
H00386555 3CF82-12-6V DKOL 90 DN10 M18X1.5 FEM E Steel, Brass 3/8" | 10 mm | DN: 10 0.07, KG 73079290 DE, Germany Not in stock 2147483647
H00386556 3CF82-12-8 1/2" | 12.5 mm | DN: 12 0.1052, KG 73079290 DE, Germany Not in stock 2147483647
H00386559 3CF82-15-8B-V Brass 1/2" | 12.5 mm | DN: 12 0.134, KG 74122000 DE, Germany 150.03 EUR Not in stock
Minimum 10
 2147483647
H00386560 3CF82-15-8V DKOL 90 DN12 E Steel, Brass 1/2" | 12.5 mm | DN: 12 0.1201, KG 73079290 DE, Germany 44.64 EUR Not in stock
Minimum 20
 2147483647
H00386563 3CF82-22-12B Brass 3/4" | 19 mm | DN: 19 0.34, KG 74122000 DE, Germany 470.86 EUR Not in stock
Minimum 10
 2147483647
H00386564 3CF82-22-12V DKOL 90 DN20 E Steel, Brass 3/4" | 19 mm | DN: 19 0.2975, KG 73079290 DE, Germany 84.86 EUR Not in stock
Minimum 5
 2147483647
H00386565 3CF82-28-16 1" | 25 mm | DN: 25 0.493, KG 73079290 DE, Germany 136.90 EUR Not in stock
Minimum 5
 2147483647
H00386566 3CF82-28-16B Brass 1" | 25 mm | DN: 25 0.497, KG 74122000 DE, Germany Not in stock 2147483647
H00386568 3CF82-6-4V DKOL 90 DN06 E Steel, Brass 1/4" | 6.3 mm | DN: 6 0.0545, KG 73079290 DE, Germany Not in stock 2147483647
H00386570 3CF82-8-4V DKOL 90 DN06 E Steel, Brass 1/4" | 6.3 mm | DN: 6 0.0375, KG 73079290 DE, Germany Not in stock 2147483647
H00387371 3CF82-10-4C Stainless steel 1/4" | 6.3 mm | DN: 6 Not in stock 2147483647
H00387372 3CF82-10-6C Stainless steel 3/8" | 10 mm | DN: 10 0.0618, KG 73072290 DE, Germany 167.72 EUR Not in stock
Minimum 5
 2147483647
H00387373 3CF82-12-6C Stainless steel 3/8" | 10 mm | DN: 10 0.068, KG 73072290 DE, Germany 170.29 EUR Not in stock
Minimum 5
 2147483647
H00387374 3CF82-15-8C Stainless steel 1/2" | 12.5 mm | DN: 12 0.1366, KG 73072290 DE, Germany 211.54 EUR Not in stock
Minimum 5
 2147483647
H00387375 3CF82-18-10C Stainless steel 5/8" | 16 mm | DN: 16 0.196, KG 73072290 DE, Germany 218.49 EUR Not in stock
Minimum 10
 2147483647
H00387376 3CF82-22-12C Stainless steel 3/4" | 19 mm | DN: 19 0.319, KG 73072290 DE, Germany 225.61 EUR Not in stock
Minimum 10
 2147483647
H00387377 3CF82-28-16C Stainless steel 1" | 25 mm | DN: 25 0.0001, KG 73072290 DE, Germany Not in stock 2147483647
H00387378 3CF82-6-4C Stainless steel 1/4" | 6.3 mm | DN: 6 0.0324, KG 73072290 DE, Germany Not in stock 2147483647
H00387379 3CF82-8-4C-V Stainless steel 1/4" | 6.3 mm | DN: 6 0.038, KG 73072290 DE, Germany 192.14 EUR Not in stock
Minimum 10
 2147483647
