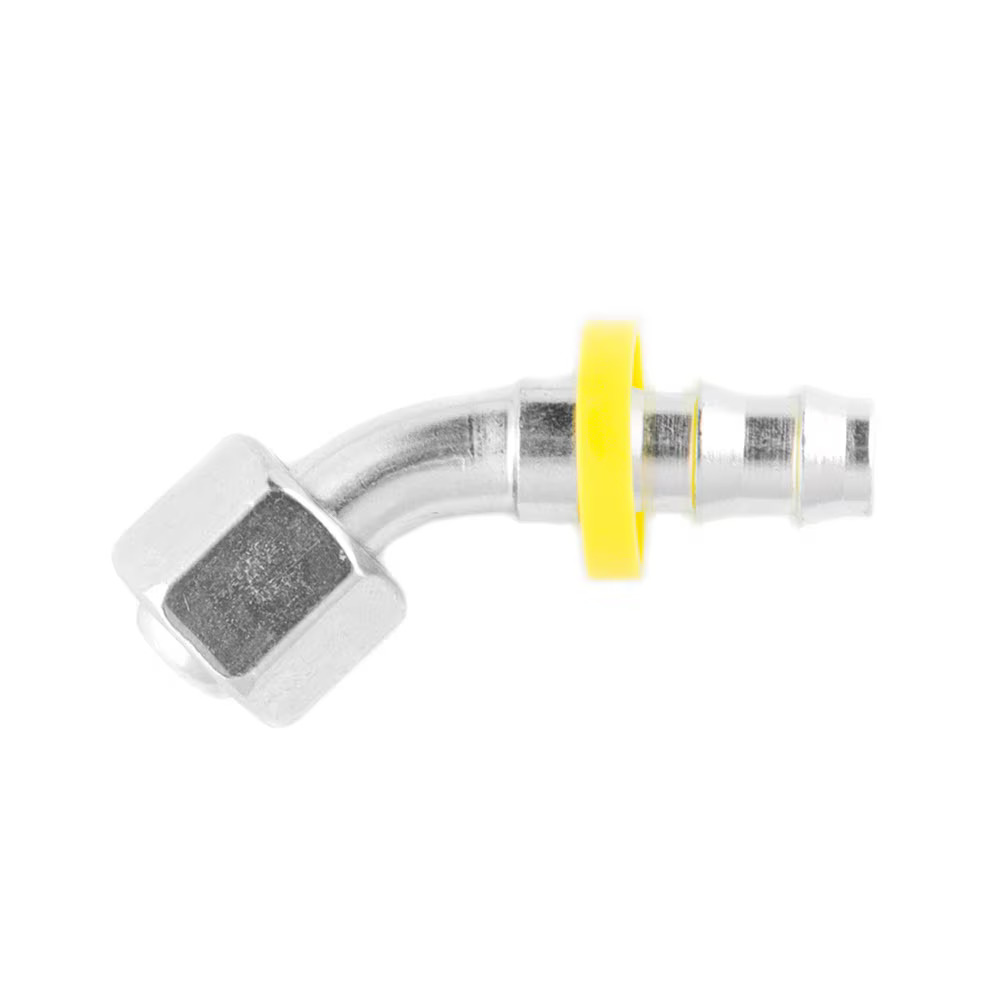

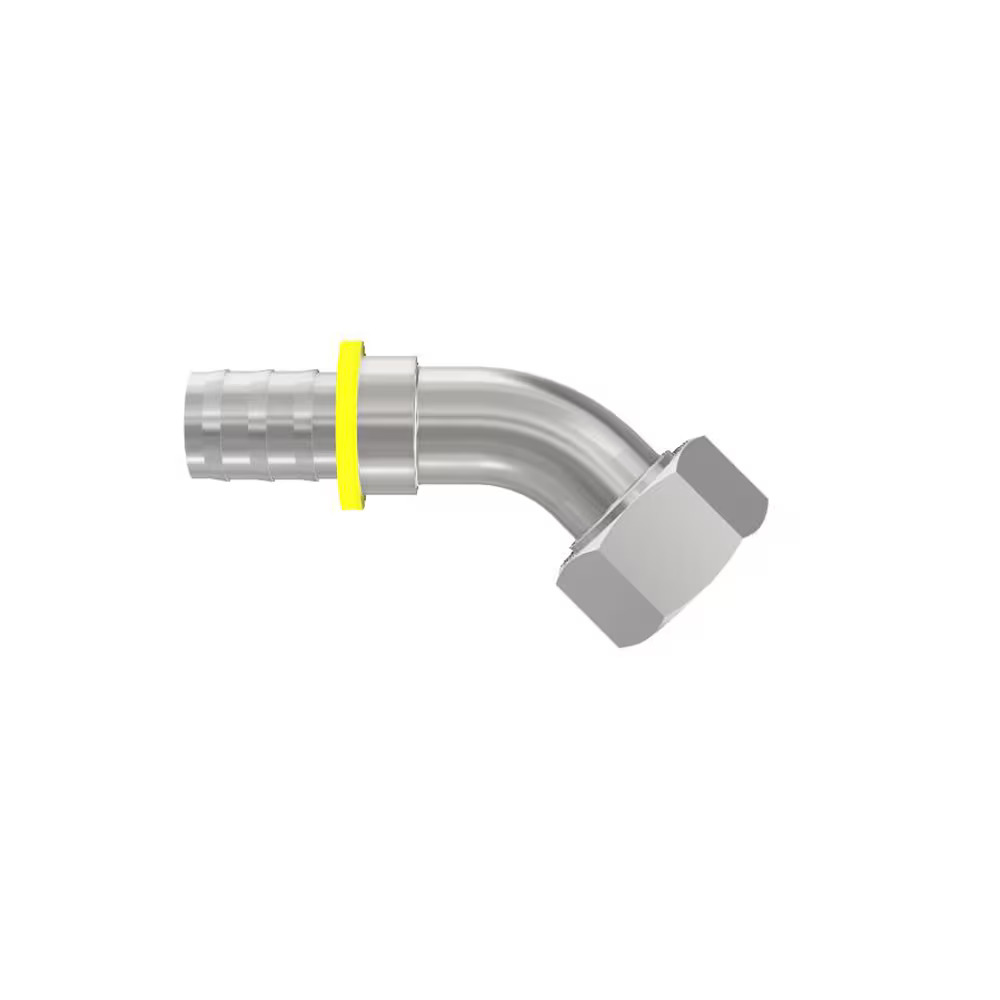

DIN - Metric Elbow 45° Insert - Metric Female Swivel (For 24°/60° Flare)

DKL 45°

Datasheets
3C482
End type C4, C4
Size Range (mm) 6 - 25 mm
Hose fitting type Push Lok
Size Range (inch) 1/4" inches - 1" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Push-Lok Hose Fittings
Product Program Low Pressure - Push-Lok
Pressure Series L
Web Article
Push-Lok
Show fullscreen image
Hymatik number Supplier Item Number
Material
Weight
TariffNumber
Country of origin
Note
Hose Size
End 1 Thread Size
End 1 Tube Sizes
End 1 Pressure Series
Unit price
Stock status
Favorite Sort Order
H01693602 3C482-28-16B Steel, Brass 0.4392, KG 74122000 DE, Germany 145.59 EUR Not in stock
Minimum 5
 2147483647
H00391348 3C482-22-12B-SP01 Steel, Brass DKL 45 DN20 E Not in stock 2147483647
H00387336 3C482-10-6C Stainless steel 0.0529, KG 73072290 DE, Germany 3/8" | 10 mm | DN: 10 193.16 EUR Not in stock
Minimum 10
 2147483647
H00387337 3C482-12-6C Stainless steel 0.068, KG 73072290 DE, Germany 3/8" | 10 mm | DN: 10 177.90 EUR Not in stock
Minimum 5
 2147483647
H00387338 3C482-15-8C Stainless steel 0.1259, KG 73072290 DE, Germany 1/2" | 12.5 mm | DN: 12 247.59 EUR Not in stock
Minimum 5
 2147483647
H00387339 3C482-18-10C Stainless steel 0.178, KG 73072290 DE, Germany 5/8" | 16 mm | DN: 16 190.66 EUR Not in stock
Minimum 10
 2147483647
H00387340 3C482-18-12C Stainless steel 0.2208, KG 73072290 DE, Germany 3/4" | 19 mm | DN: 19 Not in stock 2147483647
H00387341 3C482-22-12C Stainless steel 0.283, KG 73072290 DE, Germany 3/4" | 19 mm | DN: 19 378.13 EUR Not in stock
Minimum 10
 2147483647
H00387342 3C482-28-16C Stainless steel 0.417, KG 73072290 DE, Germany 1" | 25 mm | DN: 25 407.67 EUR Not in stock
Minimum 4
 2147483647
H00387343 3C482-8-4C Stainless steel 0.0329, KG 73072290 DE, Germany 1/4" | 6.3 mm | DN: 6 132.89 EUR Not in stock
Minimum 10
 2147483647
H00387187 3C482-10-6BK Steel, Brass DKL 45 DN10 E 3/8" | 10 mm | DN: 10 Not in stock 2147483647
H00387188 3C482-10-6BK-SP01 Steel, Brass DKL 45 DN10 E 3/8" | 10 mm | DN: 10 Not in stock 2147483647
H00387189 3C482-18-10BK Steel, Brass DKL 45 DN16 E 5/8" | 16 mm | DN: 16 Not in stock 2147483647
H00387190 3C482-18-12-K Steel, Brass Female Metric Swivel L series 3/4" | 19 mm | DN: 19 Not in stock 2147483647
H00387251 3C482-15-10BK Steel, Brass DKL45 DN16 E 5/8" | 16 mm | DN: 16 Not in stock 2147483647
H00386445 3C482-10-4 0.037, KG 73079290 DE, Germany 1/4" | 6.3 mm | DN: 6 Not in stock 2147483647
H00386451 3C482-15-10-BK Steel, Brass 0.287, KG 74122000 DE, Germany DKL 45 DN16 E 5/8" | 16 mm | DN: 16 Not in stock 2147483647
H00386454 3C482-15-8BK Steel, Brass DKL 45 DN12 E 1/2" | 12.5 mm | DN: 12 Not in stock 2147483647
H00386455 3C482-15-8B-SP01 Steel, Brass 0.138, KG 74122000 DE, Germany DKL 45 DN12 E 1/2" | 12.5 mm | DN: 12 51.43 EUR Not in stock
Minimum 10
 2147483647
H00386461 3C482-28-16 0.396, KG 73079290 DE, Germany 1" | 25 mm | DN: 25 86.41 EUR Not in stock
Minimum 10
 2147483647
H00386462 3C482-28-16BK Steel, Brass 0.433, KG 74122000 DE, Germany DKL 45 DN25 E 1" | 25 mm | DN: 25 5613.26 EUR Not in stock
Minimum 5
 2147483647
H00071713 3C482-6-4 Steel 0.025, KG 73079290 DE, Germany 3C482 - 1/4" Insert 45° (ST) - 6 L (M12) DIN FSW 1/4" | 6.3 mm | DN: 6 M12 x 1.5 6 mm L 22.36 EUR Not in stock
Minimum 20
 2147483647
H00071714 3C482-8-4 Steel 0.0312, KG 73079290 DE, Germany 3C482 - 1/4" Insert 45° (ST) - 8 L (M14) DIN FSW 1/4" | 6.3 mm | DN: 6 M14 x 1.5 8 mm L 23.09 EUR Not in stock
Minimum 25
 2147483647
H00071715 3C482-10-6 Steel 0.0506, KG 73079290 DE, Germany 3C482 - 3/8" Insert 45° (ST) - 10 L (M16) DIN FSW 3/8" | 10 mm | DN: 10 M16 x 1.5 10 mm L 24.25 EUR Not in stock
Minimum 25
 2147483647
H00071716 3C482-12-6 Steel 0.063, KG 73079290 DE, Germany 3C482 - 3/8" Insert 45° (ST) - 12 L (M18) DIN FSW 3/8" | 10 mm | DN: 10 M18 x 1.5 12 mm L 24.56 EUR Not in stock
Minimum 20
 2147483647
H00071717 3C482-15-8 Steel 0.1064, KG 73079290 DE, Germany 3C482 - 1/2" Insert 45° (ST) - 15 L (M22) DIN FSW 1/2" | 12.5 mm | DN: 12 M22 x 1.5 15 mm L 48.37 EUR At central warehouse
Minimum 25
 2147483647
H00071718 3C482-18-10 Steel 0.166, KG 73079290 DE, Germany 3C482 - 5/8" Insert 45° (ST) - 18 L (M26) DIN FSW 5/8" | 16 mm | DN: 16 M26 x 1.5 18 mm L 61.63 EUR Not in stock
Minimum 10
 2147483647
H00071719 3C482-22-12 Steel 0.2478, KG 73079290 DE, Germany 3C482 - 3/4" Insert 45° (ST) - 22 L (M30) DIN FSW 3/4" | 19 mm | DN: 19 M30 x 2.0 22 mm L 79.50 EUR Not in stock
Minimum 5
 2147483647
H00071720 3C482-28-16-K Steel 3C482 - 1" Insert 45° (ST) - 28 L (M36) DIN FSW 1" | 25 mm | DN: 25 M36 x 2.0 28 mm L Not in stock 2147483647
H00071721 3C482-6-4B Brass 0.0276, KG 74122000 DE, Germany 3C482 - 1/4" Insert 45° (B) - 6 L (M12) DIN FSW 1/4" | 6.3 mm | DN: 6 M12 x 1.5 6 mm L 44.50 EUR Not in stock
Minimum 25
 2147483647
H00071722 3C482-8-4B Brass 0.0352, KG 74122000 DE, Germany 3C482 - 1/4" Insert 45° (B) - 8 L (M14) DIN FSW 1/4" | 6.3 mm | DN: 6 M14 x 1.5 8 mm L 179.58 EUR Not in stock
Minimum 25
 2147483647
H00071723 3C482-10-6B Brass 0.0582, KG 74122000 DE, Germany 3C482 - 3/8" Insert 45° (B) - 10 L (M16) DIN FSW 3/8" | 10 mm | DN: 10 M16 x 1.5 10 mm L 35.76 EUR Not in stock
Minimum 10
 2147483647
H00071724 3C482-12-6B Brass 0.072, KG 74122000 DE, Germany 3C482 - 3/8" Insert 45° (B) - 12 L (M18) DIN FSW 3/8" | 10 mm | DN: 10 M18 x 1.5 12 mm L 53.53 EUR Not in stock
Minimum 10
 2147483647
H00071725 3C482-15-8B Brass 0.12, KG 74122000 DE, Germany 3C482 - 1/2" Insert 45° (B) - 15 L (M22) DIN FSW 1/2" | 12.5 mm | DN: 12 M22 x 1.5 15 mm L 41.19 EUR At central warehouse
Minimum 10
 2147483647
H00071726 3C482-15-10 Steel 0.1377, KG 73079290 DE, Germany 3C482 - 5/8" Insert 45° (ST) - 15 L (M22) DIN FSW 5/8" | 16 mm | DN: 16 M22 x 1.5 15 mm L 149.97 EUR Not in stock
Minimum 10
 2147483647
H00071727 3C482-15-10B Brass KG 3C482 - 5/8" Insert 45° (B) - 15 L (M22) DIN FSW 5/8" | 16 mm | DN: 16 M22 x 1.5 15 mm L Not in stock 2147483647
H00071728 3C482-18-10B Brass 0.193, KG 74122000 DE, Germany 3C482 - 5/8" Insert 45° (B) - 18 L (M26) DIN FSW 5/8" | 16 mm | DN: 16 M26 x 1.5 18 mm L 253.16 EUR Not in stock
Minimum 10
 2147483647
H00071729 3C482-18-12 Steel 0.2057, KG 73079290 DE, Germany 3C482 - 3/4" Insert 45° (ST) - 18 L (M26) DIN FSW 3/4" | 19 mm | DN: 19 M26 x 1.5 18 mm L 200.47 EUR Not in stock
Minimum 5
 2147483647
H00071730 3C482-22-12B Brass 0.27, KG 74122000 DE, Germany 3C482 - 3/4" Insert 45° (B) - 22 L (M30) DIN FSW 3/4" | 19 mm | DN: 19 M30 x 2.0 22 mm L 68.00 EUR Not in stock
Minimum 10
 2147483647
