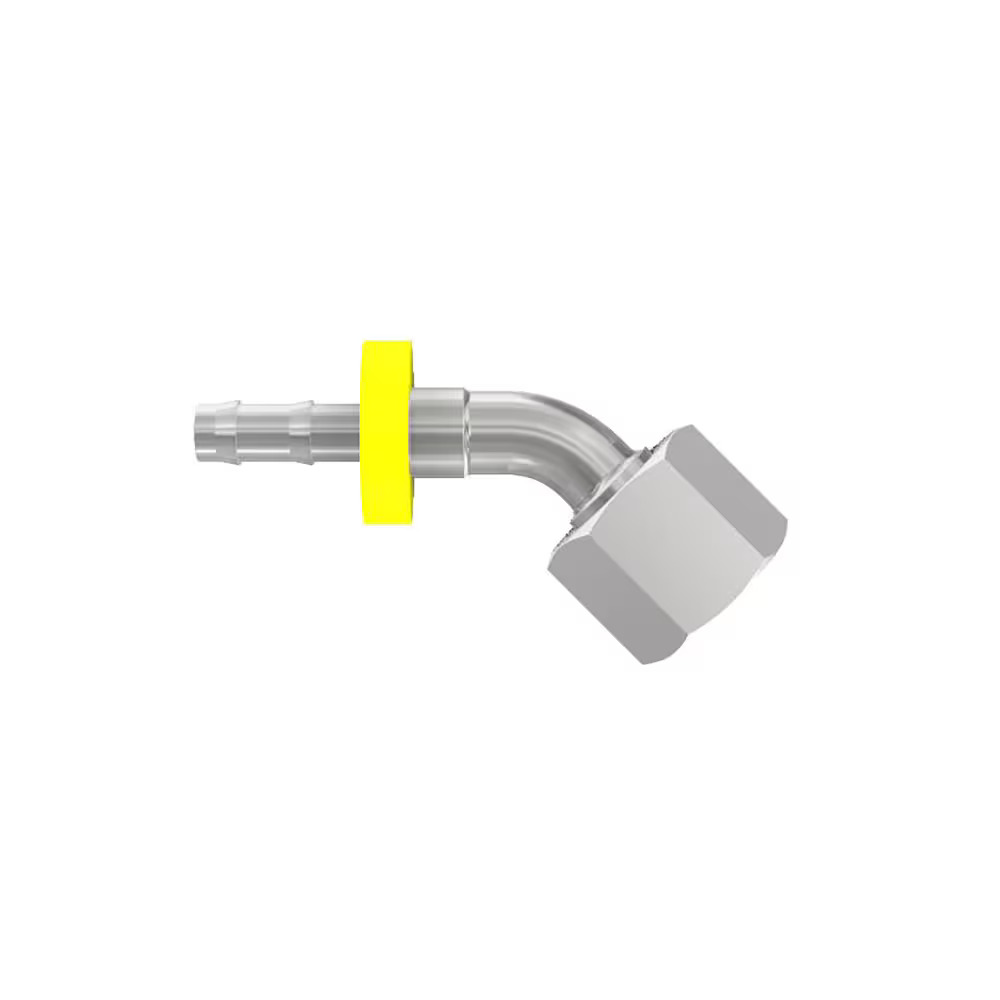

DIN - Metric Elbow 45° Insert - Metric Female Swivel (Cone w/O-ring 24°)

ISO 12151-2-SWE -L – DKOL 45°

Datasheets
3CE82
End type CE, CE
Size Range (mm) 6 - 19 mm
Hose fitting type Push Lok
Size Range (inch) 1/4" inches - 3/4" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Push-Lok Hose Fittings
Product Program Low Pressure - Push-Lok
Web Article
Push-Lok
Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
Hose Size
Weight
TariffNumber
Country of origin
Note
End 1 Thread Size
End 1 Tube Sizes
End 1 Pressure Series
Unit price
Stock status
Favorite Sort Order
H00387370 3CE82-10-6C Stainless steel 3/8" | 10 mm | DN: 10 0.0568, KG 73072290 DE, Germany 167.72 EUR Not in stock
Minimum 20
 2147483647
H00387180 3CE82-10-6K Steel 3/8" | 10 mm | DN: 10 NIPPEL DKOL 45 DN10 E Not in stock 2147483647
H00386527 3CE82-10-4 1/4" | 6.3 mm | DN: 6 0.0404, KG 73079290 DE, Germany 46.46 EUR Not in stock
Minimum 10
 2147483647
H00386528 3CE82-10-4B Brass 1/4" | 6.3 mm | DN: 6 Not in stock 2147483647
H00386530 3CE82-10-6V Steel 3/8" | 10 mm | DN: 10 0.0611, KG 73079290 DE, Germany DKOL 45 DN10 E Not in stock 2147483647
H00386532 3CE82-12-6V Steel 3/8" | 10 mm | DN: 10 0.0636, KG 73079290 DE, Germany DKOL 45 DN10 E Not in stock 2147483647
H00386534 3CE82-15-8V Steel 1/2" | 12.5 mm | DN: 12 0.1168, KG 73079290 DE, Germany DKOL 45 DN12 VITON E 151.43 EUR Not in stock
Minimum 10
 2147483647
H00386536 3CE82-18-12 3/4" | 19 mm | DN: 19 0.217, KG 73079290 DE, Germany Not in stock 2147483647
H00386538 3CE82-22-12B Brass 3/4" | 19 mm | DN: 19 0.2851, KG 74122000 DE, Germany Not in stock 2147483647
H00386540 3CE82-6-4V Steel 1/4" | 6.3 mm | DN: 6 0.0545, KG 73079290 DE, Germany DKOL 45 DN06 E Not in stock 2147483647
H00386542 3CE82-8-4V Steel 1/4" | 6.3 mm | DN: 6 0.0135, KG 73079290 DE, Germany DKOL 45 DN06 E Not in stock 2147483647
H00071655 3CE82-6-4 Steel 1/4" | 6.3 mm | DN: 6 0.0297, KG 73079290 DE, Germany 3CE82 - 1/4" Insert 45° (ST) - 6 L (M12) DIN FSW M12 x 1.5 6 mm L 118.26 EUR Not in stock
Minimum 25
 2147483647
H00071656 3CE82-8-4 Steel 1/4" | 6.3 mm | DN: 6 0.036, KG 73079290 DE, Germany 3CE82 - 1/4" Insert 45° (ST) - 8 L (M14) DIN FSW M14 x 1.5 8 mm L 87.39 EUR Not in stock
Minimum 10
 2147483647
H00071657 3CE82-10-6 Steel 3/8" | 10 mm | DN: 10 0.0541, KG 73079290 DE, Germany 3CE82 - 3/8" Insert 45° (ST) - 10 L (M16) DIN FSW M16 x 1.5 10 mm L 51.16 EUR Not in stock
Minimum 10
 2147483647
H00071658 3CE82-12-6 Discontinued from standard assortment when sold out Steel 3/8" | 10 mm | DN: 10 0.0631, KG 73079290 DE, Germany 3CE82 - 3/8" Insert 45° (ST) - 12 L (M18) DIN FSW M18 x 1.5 12 mm L 33.07 EUR In stock
2147483647
H00071659 3CE82-15-8 Discontinued from standard assortment when sold out Steel 1/2" | 12.5 mm | DN: 12 0.1121, KG 73079290 DE, Germany 3CE82 - 1/2" Insert 45° (ST) - 15 L (M22) DIN FSW M22 x 1.5 15 mm L 69.92 EUR In stock
2147483647
H00071660 3CE82-18-10 Steel 5/8" | 16 mm | DN: 16 0.1717, KG 73079290 DE, Germany 3CE82 - 5/8" Insert 45° (ST) - 18 L (M26) DIN FSW M26 x 1.5 18 mm L 80.78 EUR Not in stock
Minimum 10
 2147483647
H00071661 3CE82-22-12 Discontinued from standard assortment when sold out Steel 3/4" | 19 mm | DN: 19 0.264, KG 73079290 DE, Germany 3CE82 - 3/4" Insert 45° (ST) - 22 L (M30) DIN FSW M30 x 2.0 22 mm L 87.02 EUR In stock
2147483647
