Test Point Fitting With Pin-Lock - Series 1 - Male stud thread: BSP, metric

Datasheets
EMA1
Fitting ends
# End type group End form Thread Sealing
1 Test Point Male Pin Lock Cone w/O-ring
2 BSPP OR METRIC Male BSPP or METRIC O-Ring or Metal Seat
Fitting data
Shape Straight

Materials (Prod. Summary) Steel
Size Range (mm) 10 - 26 mm
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program Analytical Fittings

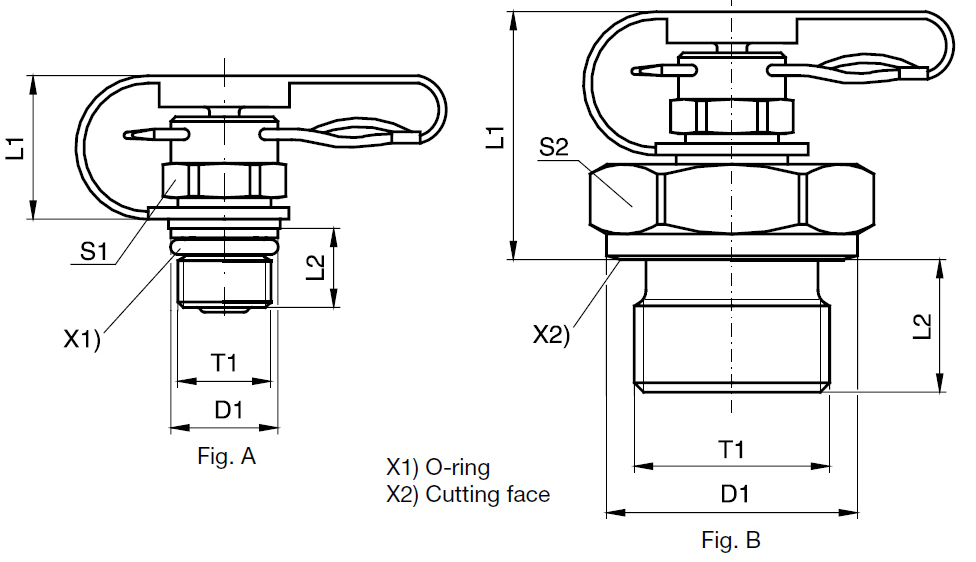

Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
Country of origin
TariffNumber
Weight
D1
T1
S1
S2
L1
L2
FORM
Unit price
Stock status
Favorite Sort Order
H00019350 EMA1/12X1.5CF Steel DE, Germany 84812010 0.0517, KG 17 M12x1,5 MIN 19 37 12 B 44.51 EUR Not in stock
Minimum 10
 2147483647
H00019351 EMA1/14X1.5CF Steel DE, Germany 84812010 0.0564, KG 19 M14x1,5 MIN 19 37 12 B 44.14 EUR Not in stock
Minimum 10
 2147483647
H00019352 EMA1/16X1.5CF Steel DE, Germany 84812010 0.048, KG 21 M16x1,5 MIN 22 37 12 B 45.14 EUR Not in stock
Minimum 10
 2147483647
H00019353 EMA1/1/8CF Steel DE, Germany 84812010 0.0435, KG 14 G1/8 MIN 17 37 8 B 42.98 EUR Not in stock
Minimum 10
 2147483647
P0049114 EMA1/1/4CF Discontinued from standard assortment when sold out Steel DE, Germany 84812010 0.054, KG 18 G1/4 MIN 19 37 12 B 38.85 EUR Not in stock
Minimum 10
 2147483647
H00019354 EMA1/3/8CF Obsolete Steel DE, Germany 84812010 0.0573, KG 22 G3/8 MIN 22 37 12 B Not in stock 2147483647
H00019355 EMA1/1/2CF Steel DE, Germany 84812010 0.0885, KG 26 G1/2 MIN 27 27 14 B 33.74 EUR Not in stock
Minimum 5
 2147483647
H00019356 EMA1/8X1ORCF Steel KG 9.50 M8x1 12 MIN 17.50 8.40 A Not in stock 2147483647
H00019357 EMA1/10X1ORCF Steel DE, Germany 84812010 0.018, KG 11.50 M10x1 12 MIN 17.50 8 A 26.57 EUR Not in stock
Minimum 10
 2147483647
H00019358 EMA1/10X1CF Steel DE, Germany 84812010 0.0435, KG 14 M10x1 MIN 17 37 8 B 47.02 EUR Not in stock
Minimum 10
 2147483647
