Test Point Connector - O-Lok® ORFS female swivel end / Metric female thread

Datasheets

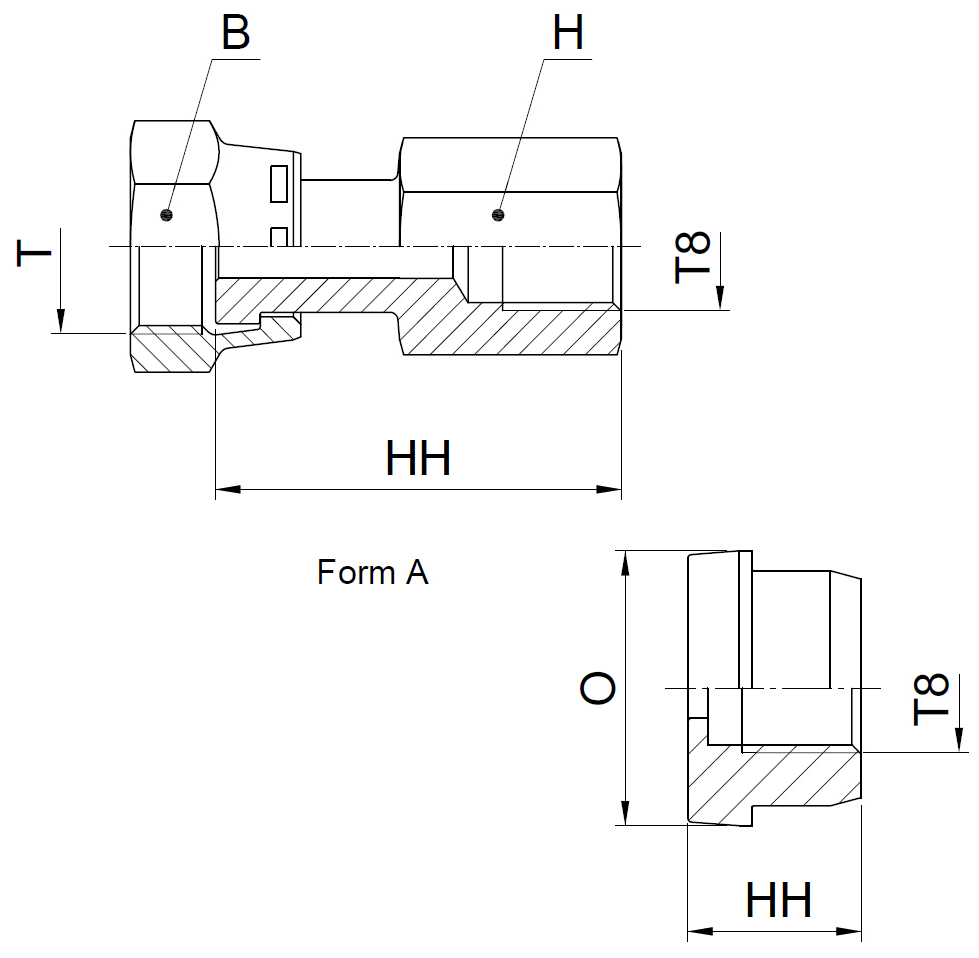

TT8ML O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Female Swivel UNF Flat Seat
2 Test Point Female (Rigid) Metric Seal from male part
Fitting data
Shape Straight

Materials (Prod. Summary) Stainless steel, Steel
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program ORFS / OLok / Flatface, Analytical Fittings
Product Subprogram Component
Show fullscreen image
Hymatik number Supplier Item Number
Material
Country of origin
TariffNumber
Weight
T
T8
H
FORM
Unit price
Stock status
Favorite Sort Order
H00010122 4TT8MLS Steel PL, Poland 73079910 0.068, KG 9/16-18 M10x1 17 A Not in stock 2147483647
H00010123 6TT8MLS Steel 11/16-16 M10x1 22 A Not in stock 2147483647
H00010124 8TT8MLS Steel PL, Poland 73079910 0.1055, KG 13/16-16 M10x1 24 A 59.21 EUR Not in stock
Minimum 5
 2147483647
H00010125 10TT8LS Steel M10x1 0 B Not in stock 2147483647
H00010126 12TT8LS Steel M10x1 0 B Not in stock 2147483647
H00010127 16TT8LS Steel M10x1 0 B Not in stock 2147483647
H00010128 20TT8LS Steel KG M10x1 0 B Not in stock 2147483647
H00010129 24TT8LS Steel KG M10x1 0 B Not in stock 2147483647
H00010130 4TT8MLSS Stainless steel KG 9/16-18 M10x1 17 A Not in stock 2147483647
H00010131 6TT8MLSS Stainless steel KG 11/16-16 M10x1 22 A Not in stock 2147483647
H00010132 8TT8MLSS Stainless steel KG 13/16-16 M10x1 24 A Not in stock 2147483647
H00010133 10TT8MLSS Stainless steel KG M10x1 0 B Not in stock 2147483647
H00010134 12TT8MLSS Stainless steel KG M10x1 0 B Not in stock 2147483647
H00010135 16TT8MLSS Stainless steel KG M10x1 0 B Not in stock 2147483647
H00010136 20TT8MLSS Stainless steel KG M10x1 0 B Not in stock 2147483647
H00010137 24TT8MLSS Stainless steel KG M10x1 0 B Not in stock 2147483647
