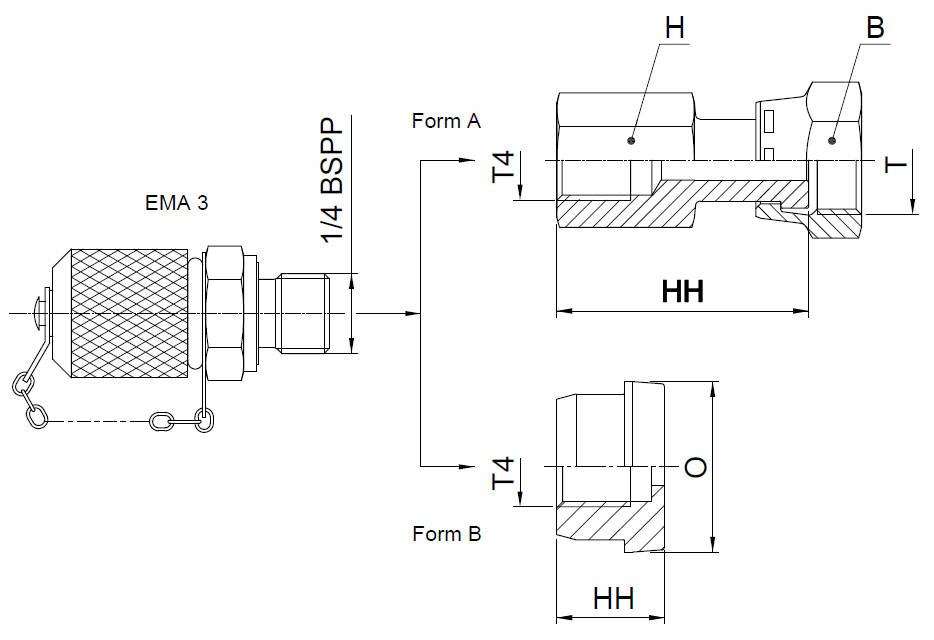

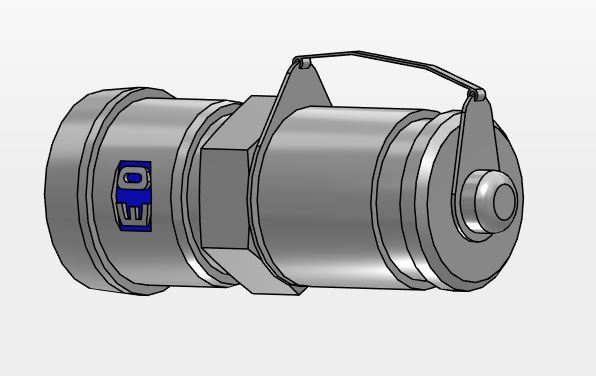

Test Point Connector - O-Lok® ORFS female swivel end / EMA3 test point

Datasheets
TTP4ML O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Female Swivel UNF Flat Seat
2 Test Point Female (Rigid) Metric Seal from male part
Fitting data
Shape Straight

Materials (Prod. Summary) Steel
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program ORFS / OLok / Flatface, Analytical Fittings
Show fullscreen image
Hymatik number Supplier Item Number
Material
Country of origin
TariffNumber
Weight
T
T4
D1
H
FORM
Unit price
Stock status
Favorite Sort Order
H00010138 4TTP4MLS Steel PL, Poland 73079910 0.14, KG 9/16-18 G1/4 0 17 A 107.91 EUR At central warehouse
Minimum 4
 2147483647
H00010139 6TTP4MLS Steel PL, Poland 73079910 0.165, KG 11/16-16 G1/4 0 22 A 104.88 EUR Not in stock
Minimum 5
 2147483647
H00010140 8TTP4MLS Steel PL, Poland 73079910 0.173, KG 13/16-16 G1/4 0 24 A 115.14 EUR Not in stock
Minimum 5
 2147483647
H00010141 10TTP4LS Steel PL, Poland 73079910 0.18, KG G1/4 23 0 B 133.41 EUR Not in stock
Minimum 5
 2147483647
H00010142 12TTP4LS Steel PL, Poland 73079910 0.2419, KG G1/4 28 0 B 144.74 EUR Not in stock
Minimum 5
 2147483647
H00010143 16TTP4LS Steel PL, Poland 73079910 0.3002, KG G1/4 34 0 B Not in stock 2147483647
H00010144 20TTP4LS Steel G1/4 41 0 B Not in stock 2147483647
H00010145 24TTP4LS Steel G1/4 49 0 B Not in stock 2147483647

Loading variant data
