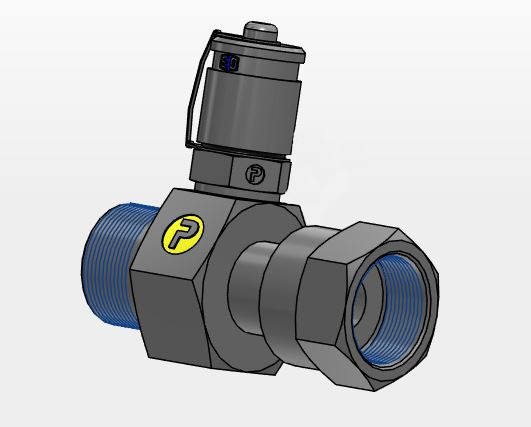

Test Point Connector - O-Lok® ORFS end / O-Lok® ORFS female swivel end / EMA3 test point

O-Lok
Datasheet
Fitting ends
# End type group End form Thread Sealing
1 ORFS Male UNF Flat Seat
2 ORFS Female Swivel UNF Flat Seat
3 Test Point Male Metric O-ring
Fitting data
Shape TEE

Materials (Prod. Summary) Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program ORFS / OLok / Flatface, Analytical Fittings
Show fullscreen image
Info Hymatik Part Number Supplier Item Number
End 1 - End form
End 1 - End Type Group
End 1 Tube Sizes
End 1 Thread Size
End 1 Thread Type
End 1 - Sealing
End 2 - End form
End 2 - End Type Group
End 2 Tube Sizes
End 2 Thread Size
End 2 Thread Type
End 2 - Sealing
End 3 - End form
End 3 - End Type Group
End 3 Thread Size
End 3 Thread Type
End 3 - Sealing
Material
Connection Combination
Country of origin
TariffNumber
Weight

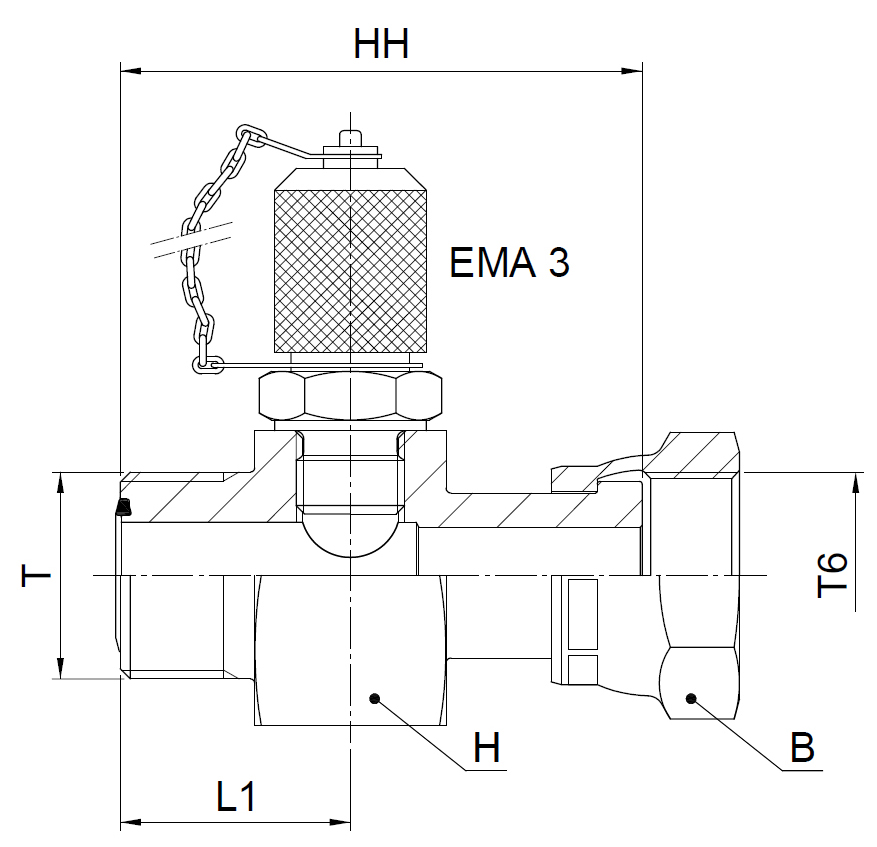

AD
OD
GEWT6
H
L1
Unit price          Favorite    Sort Order
