Single-Axis Servo Drive and Drive/Controllers - TPD-M Series : 30A / 325-680VDC (20kVA output)

Parker TPD-M Servo Drive – Flexible Multi-Axis Servo Drive System

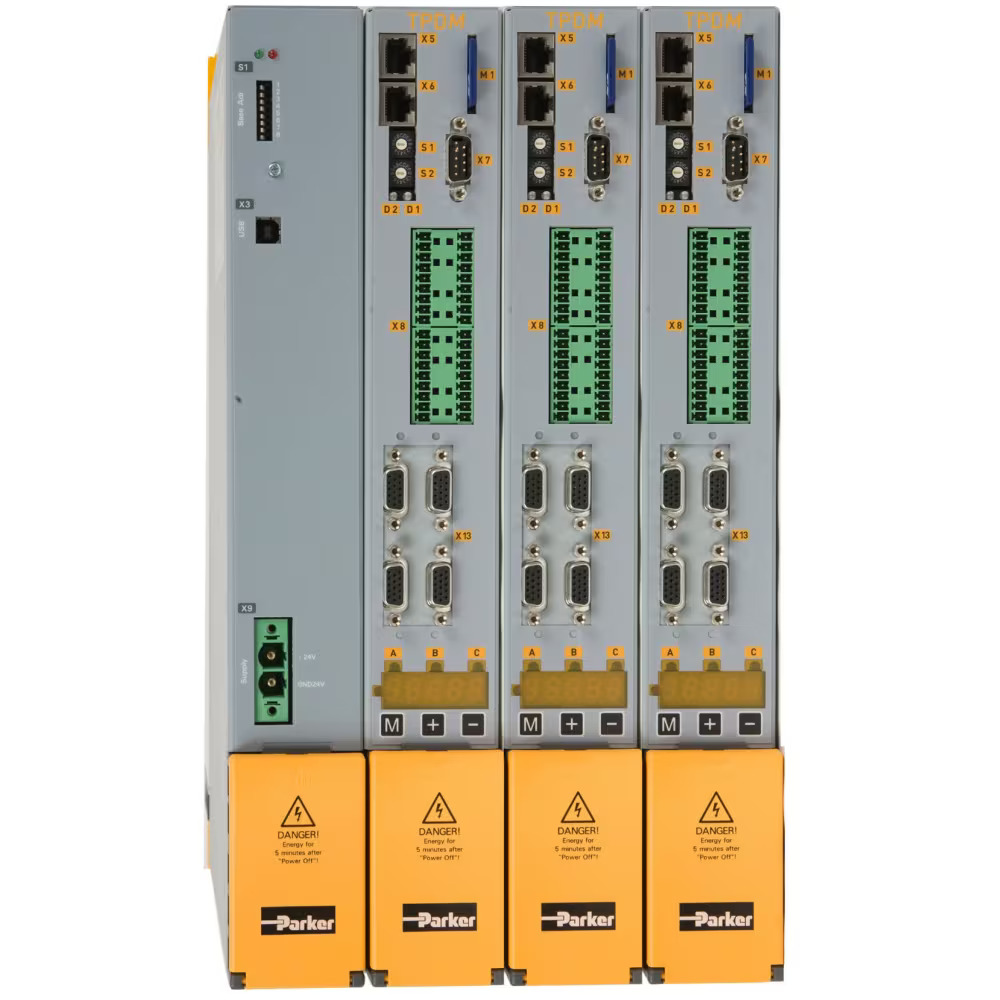

The TPD-M is a space-saving multi-axis servo drive system where each drive module can control up to three servo motors. The system configuration consists of a common DC bus power supply and multiple TPD-M drive modules, connected through DC bus bars. The drive modules are available as one, two, or three-axis versions, with output power ratings of up to 20 kVA, making the system highly flexible and customizable.

The TPD-M has been developed for all applications where multiple drives are normally used, providing both OEMs and end users the opportunity to reduce build, configuration, and operating costs, while boosting productivity and profitability.

Key Features:

• Common DC bus connection for energy exchange between drives
• Hiperface DSL feedback® with reduced cabling – only one cable connection between drive and motor
• Removable SD card
• Safety Technology (STO)
• CE + UL/cUL Listed

Technical Specifications:

• Power Output Rating: 20 kVA
• Continuous Output Current: 30A
• PSU Input Supply: 3x230-480VAC
• Drive Input Supply: 325...680 VDC
• Supported Feedback Types: Resolver, Hiperface + EnDat Interface, Hall Sensors, Rotary and Linear Encoders
• Programming: PicoPLC
• 4 Digital Inputs / 2 Digital Outputs / 1 Analog Input / 1 Analog Output (per axis)
• 1 Auxiliary Encoder Input / 1 Auxiliary Encoder Output (per axis)

Market Applications:

• Factory Automation
• Machine Tools
• Packaging Machinery
• Material Forming Machines
• Textile Machines
• Paper and Converting Lines
• Plastics Machines
