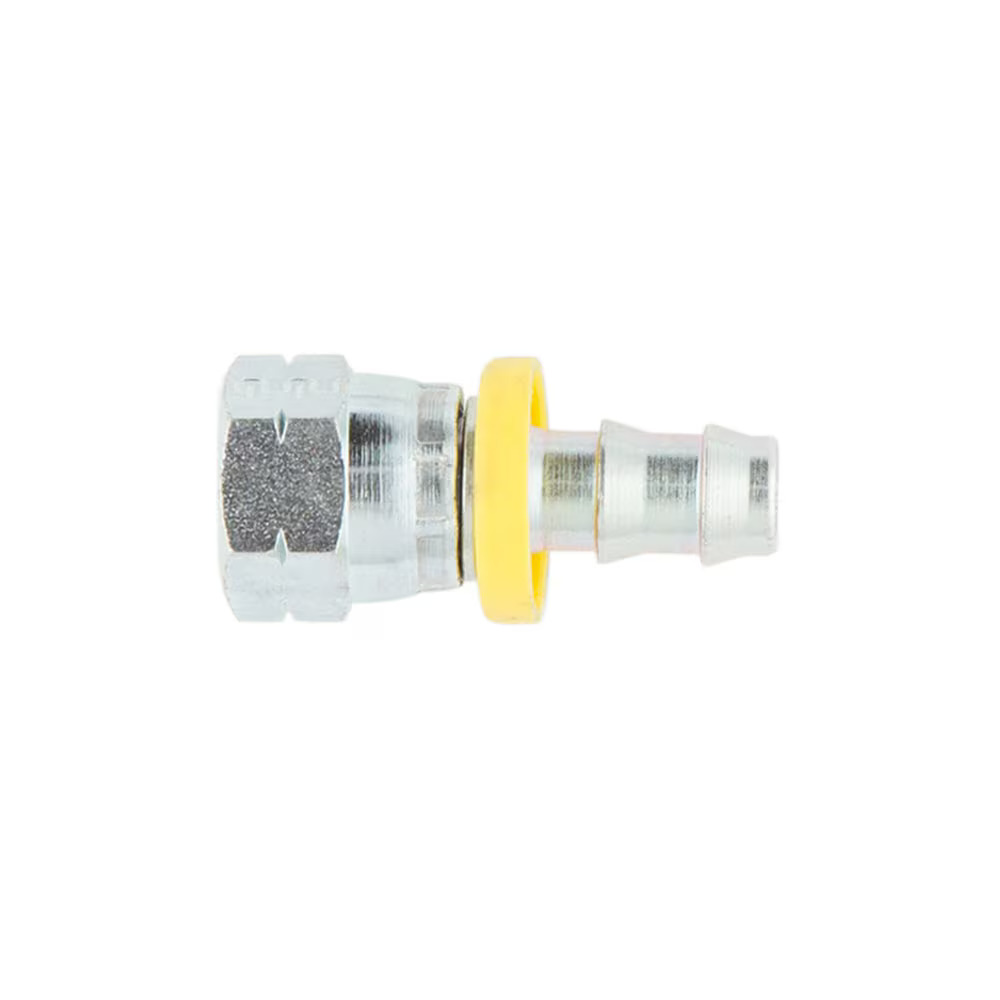

SAE 45° Straight Insert - UN/UNF Female Swivel (TBA)

SAE J516

Datasheets
30882
End type 08, 08
Size Range (mm) 6 - 19 mm
Hose fitting type Push Lok
Size Range (inch) 1/4" inches - 3/4" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Push-Lok Hose Fittings
Product Program Low Pressure - Push-Lok
Web Article
Push-Lok
Show fullscreen image
Hymatik number Supplier Item Number
Note
Material
End 1 Thread Size
End 1 Thread Type
End 1 Tube Sizes
Weight
Hose Size
TariffNumber
Country of origin
Unit price
Stock status
Favorite Sort Order
H00071872 30882-4-4 30882 - 1/4" Insert (ST) - 1/4" (7/16") UNF SAE 45 FSW Steel 7/16" x 20 UNF 1/4" KG 1/4" | 6.3 mm | DN: 6 Not in stock 2147483647
H00071873 30882-5-4B 30882 - 1/4" Insert (B) - 5/16" (1/2") UNF SAE 45 FSW Brass 1/2" x 20 UNF 5/16" KG 1/4" | 6.3 mm | DN: 6 Not in stock 2147483647
H00071874 30882-6-6-SM 30882 - 3/8" Insert (ST) - 3/8" (5/8") UNF SAE 45 FSW Steel 5/8" x 18 UNF 3/8" 3/8" | 10 mm | DN: 10 Not in stock 2147483647
H00071875 30882-8-8 30882 - 1/2" Insert (ST) - 1/2" (3/4") UNF SAE 45 FSW Steel 3/4" x 16 UNF 1/2" 1/2" | 12.5 mm | DN: 12 Not in stock 2147483647
H00071876 30882-10-10 30882 - 5/8" Insert (ST) - 5/8" (7/8") UNF SAE 45 FSW Steel 7/8" x 14 UNF 5/8" KG 5/8" | 16 mm | DN: 16 Not in stock 2147483647
H00071877 30882-12-12 30882 - 3/4" Insert (ST) - 3/4" (1 1/6") UNF SAE 45 FSW Steel 1 1/6" x 14 UNF 3/4" KG 3/4" | 19 mm | DN: 19 Not in stock 2147483647
H00071878 30882-4-4B 30882 - 1/4" Insert (B) - 1/4" (7/16") UNF SAE 45 FSW Brass 7/16" x 20 UNF 1/4" 1/4" | 6.3 mm | DN: 6 Not in stock 2147483647
H00071879 30882-6-6B 30882 - 3/8" Insert (B) - 3/8" (5/8") UNF SAE 45 FSW Brass 5/8" x 18 UNF 3/8" 0.0334, KG 3/8" | 10 mm | DN: 10 74122000 US, USA 14.08 EUR Not in stock
Minimum 25
 2147483647
H00071880 30882-8-8B 30882 - 1/2" Insert (B) - 1/2" (3/4") UNF SAE 45 FSW Brass 3/4" x 16 UNF 1/2" 0.0495, KG 1/2" | 12.5 mm | DN: 12 74122000 US, USA Not in stock 2147483647
H00071881 30882-10-10B 30882 - 5/8" Insert (B) - 5/8" (7/8") UNF SAE 45 FSW Brass 7/8" x 14 UNF 5/8" 0.081, KG 5/8" | 16 mm | DN: 16 74122000 US, USA 25.54 EUR Not in stock
Minimum 25
 2147483647
H00071882 30882-12-12B 30882 - 3/4" Insert (B) - 3/4" (1 1/6") UNF SAE 45 FSW Brass 1 1/6" x 14 UNF 3/4" 0.126, KG 3/4" | 19 mm | DN: 19 74122000 US, USA 31.60 EUR Not in stock
Minimum 25
 2147483647
H01693622 30882-6-6 Steel, Brass 0.034, KG 73079910 US, USA 16.07 EUR Not in stock
Minimum 25
 2147483647
