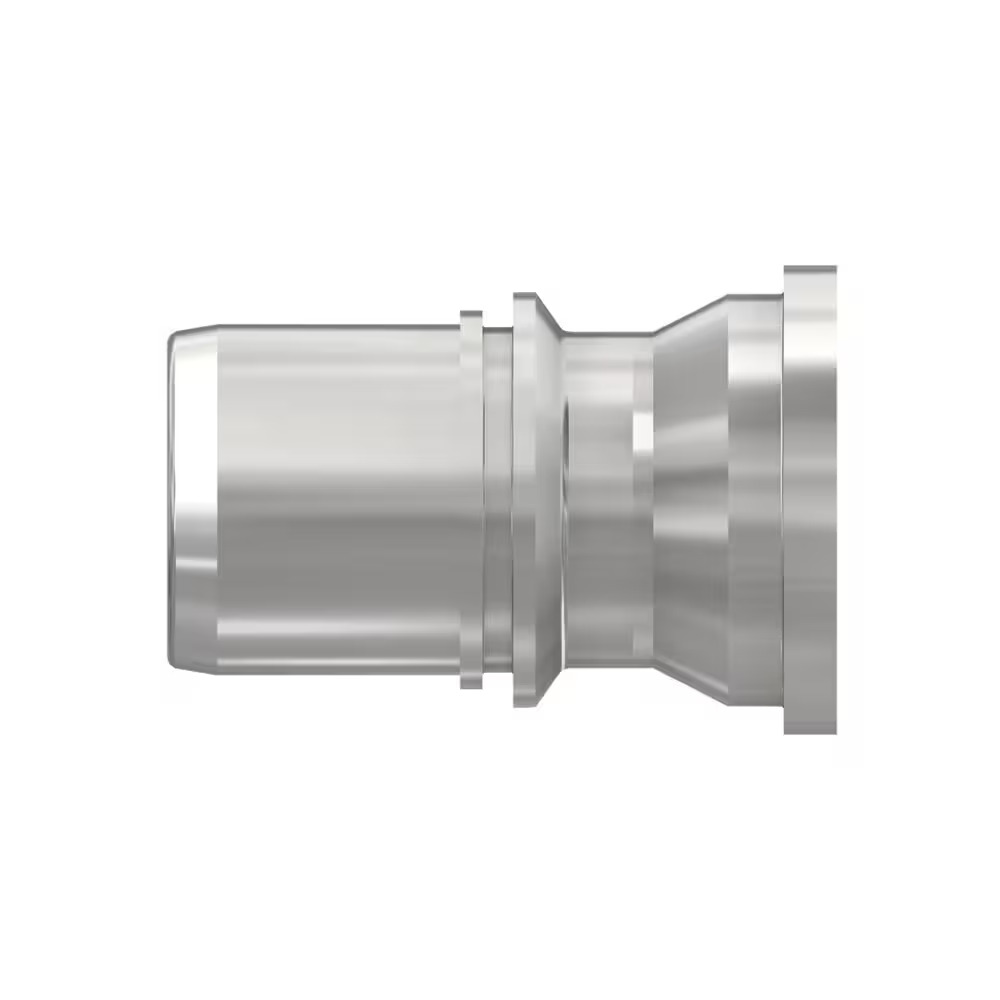

Flange Straight Insert - Flange (Flat Seat)

Fitting ends
# End type group End form Thread Sealing
1 Flange Flange O-ring
Fitting data
Shape Straight

End type 15, 15
Size Range (mm) 63 - 152 mm
Hose fitting type 2 Piece insert w/o shell
Size Range (inch) 2 1/2" inches - 6" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Crimp Fittings - Two Piece
Product Program Flange
Show fullscreen image
Hymatik number Supplier Item Number
Note
Material
End 1 Pressure Series
End 1 Flange Size
Weight
TariffNumber
Country of origin
Hose Size
Unit price
Stock status
Favorite Sort Order
H00025626 K15IF-32-40 K15IF - 2-1/2" Insert (ST) - 2" 5000 PSI Flange Steel 5000 PSI 2" 1.028, KG 73079980 DE, Germany 2 1/2" | 63 mm | DN: 63 707.08 EUR Not in stock
Minimum 20
 2147483647
H00025627 K15IF-40-40 K15IF - 2-1/2" Insert (ST) - 2 1/2" 5000 PSI Flange Steel 5000 PSI 2 1/2" 1.036, KG 73079980 DE, Germany 2 1/2" | 63 mm | DN: 63 388.39 EUR Not in stock
Minimum 5
 2147483647
H00025628 K15IF-40-48 K15IF - 3" Insert (ST) - 2 1/2" 5000 PSI Flange Steel 5000 PSI 2 1/2" 1.539, KG 73079980 DE, Germany 3" | 76.2 mm | DN: 76 677.17 EUR Not in stock
2147483647
H00025629 K15IF-48-48 K15IF - 3" Insert (ST) - 3" 5000 PSI Flange Steel 5000 PSI 3" 1.623, KG 73079980 DE, Germany 3" | 76.2 mm | DN: 76 675.16 EUR Not in stock
2147483647
H00025630 K15IF-56-56 K15IF - 3-1/2" Insert (ST) - 3 1/2" 5000 PSI Flange Steel 5000 PSI 3 1/2" 2.407, KG 73079980 DE, Germany 3 1/2" | 88.9 mm | DN: ? 948.06 EUR Not in stock
2147483647
H00025631 K15IF-64-64 K15IF - 4" Insert (ST) - 4" 5000 PSI Flange Steel 5000 PSI 4" 3.36, KG 73079980 DE, Germany 4" | 101.6 mm | DN: ? 1324.53 EUR Not in stock
Minimum 10
 2147483647
H00025632 K15IF-80-80 K15IF - ?" Insert (ST) - 5" 5000 PSI Flange Steel 5000 PSI 5" 0, KG 73079980 DE, Germany ?" | 127 mm | DN: ? 1788.59 EUR Not in stock
2147483647
H00025633 K15IF-80-96 K15IF - ?" Insert (ST) - 5" 5000 PSI Flange Steel 5000 PSI 5" 0, KG 73079980 DE, Germany ?" | 152.4 mm | DN: ? 2563.40 EUR Not in stock
2147483647
H01693932 K15IF-48-40 Steel 0, KG 73079980 DE, Germany 1073.08 EUR Not in stock
Minimum 2
 2147483647
