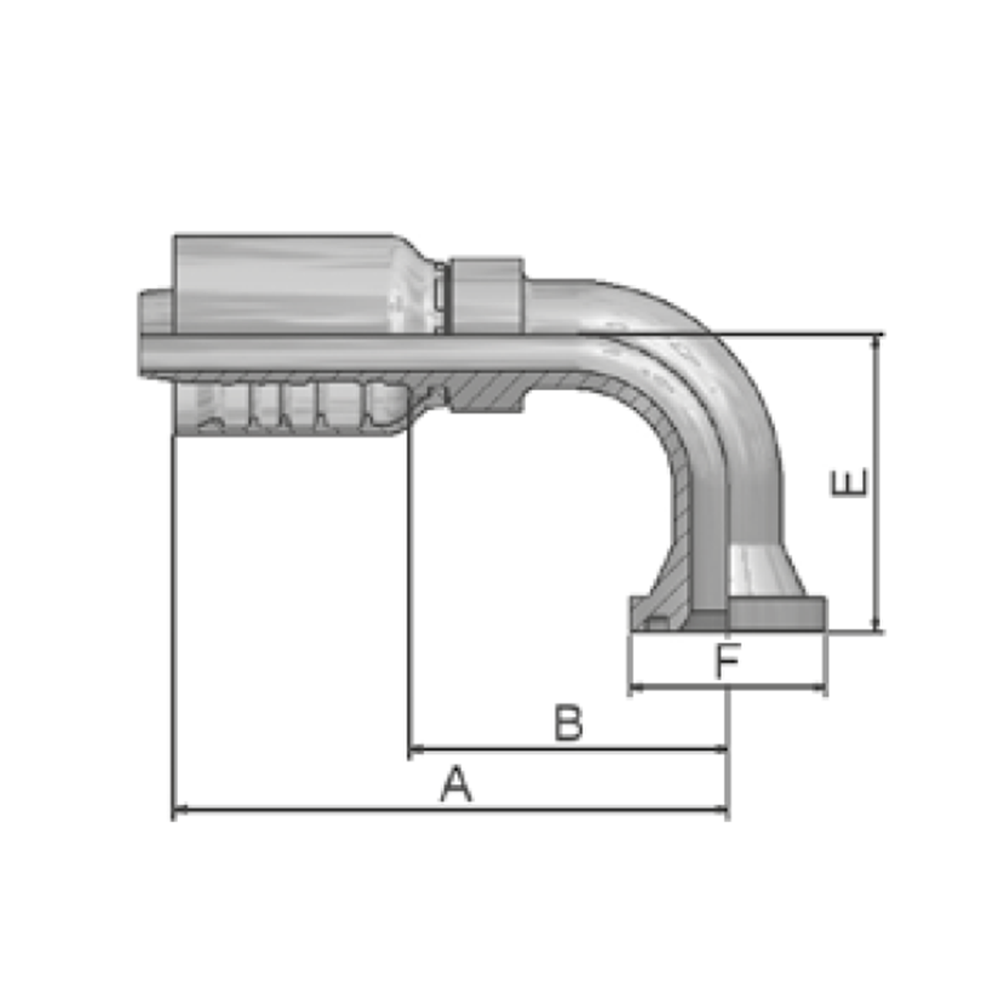

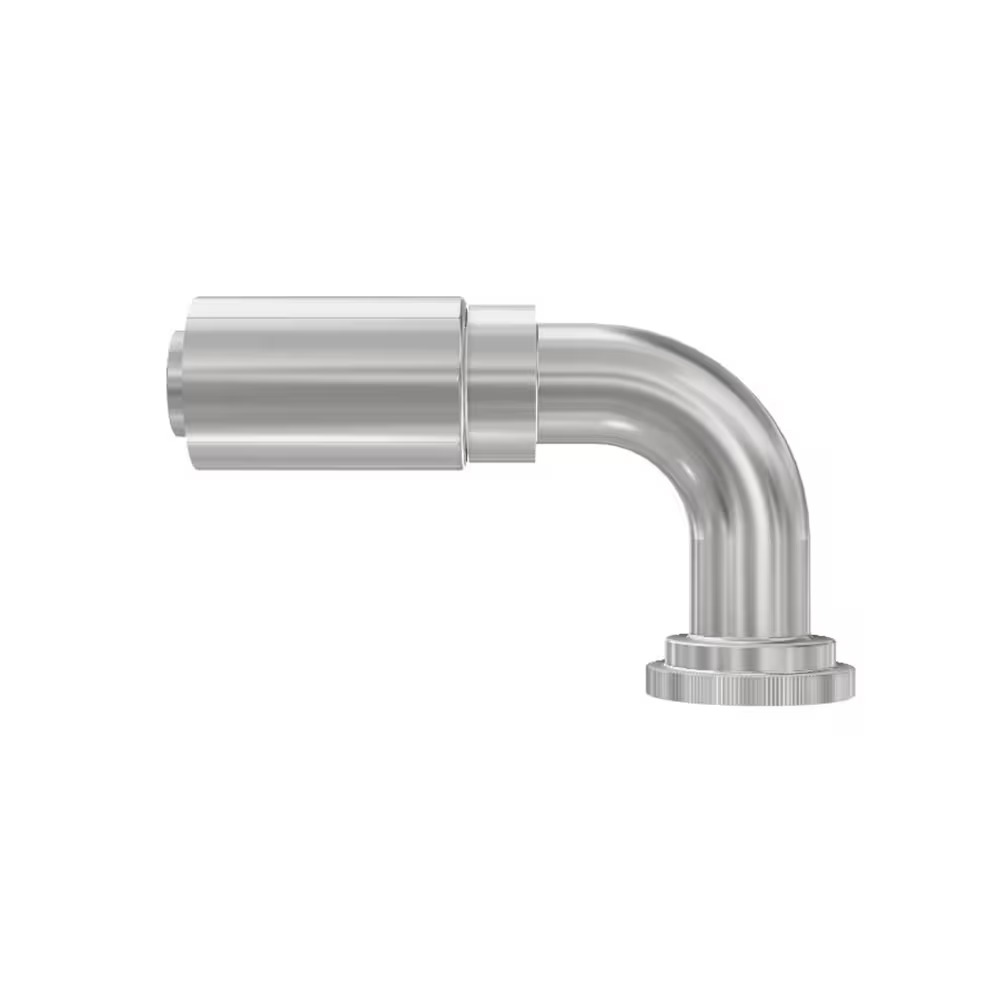

Flange Elbow 90° Insert - Flange (Flat Seat)

Datasheets
14N77
Fitting ends
# End type group End form Thread Sealing
1 Flange Flange O-ring
Fitting data
Shape Elbow 90°

End type 4N, 4N
Size Range (mm) 25 - 51 mm
Hose fitting type 1 Piece
Size Range (inch) 1" inches - 2" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Crimp Fittings - One Piece
Product Program Flange
Show fullscreen image
Hymatik number Supplier Item Number
Note
Material
End 1 Pressure Series
End 1 Flange Size
Weight
TariffNumber
Country of origin
Hose Size
Unit price
Stock status
Favorite Sort Order
7290770975 14N77-20-16 14N77 - 1" Insert 90° (ST) - 1 1/4" 5000 PSI Flange Steel 5000 PSI 1 1/4" 0.68, KG 73079980 DE, Germany 1" | 25 mm | DN: 25 109.01 EUR In stock
2147483647
7290770980 14N77-20-20 14N77 - 1-1/4" Insert 90° (ST) - 1 1/4" 5000 PSI Flange Steel 5000 PSI 1 1/4" 1.25, KG 73079980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 152.54 EUR In stock
2147483647
H00023952 14N77-20-20-MP 14N77 - 1-1/4" Insert 90° (ST) - 1 1/4" 5000 PSI Flange Steel 5000 PSI 1 1/4" 1.24, KG 73079980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 152.54 EUR Not in stock
Minimum 10
 2147483647
7290770982 14N77-24-20 14N77 - 1-1/4" Insert 90° (ST) - 1 1/2" 5000 PSI Flange Steel 5000 PSI 1 1/2" 1.34, KG 73079980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 211.58 EUR In stock
2147483647
7290770985 14N77-24-24 14N77 - 1-1/2" Insert 90° (ST) - 1 1/2" 5000 PSI Flange Steel 5000 PSI 1 1/2" 1.925, KG 73079980 DE, Germany 1 1/2" | 38 mm | DN: 38 221.17 EUR In stock
2147483647
H00023953 14N77-32-24 14N77 - 1-1/2" Insert 90° (ST) - 2" 5000 PSI Flange Steel 5000 PSI 2" 2.34, KG 73079980 DE, Germany 1 1/2" | 38 mm | DN: 38 346.55 EUR Not in stock
Minimum 3
 2147483647
H00023954 14N77-32-32 14N77 - 2" Insert 90° (ST) - 2" 5000 PSI Flange Steel 5000 PSI 2" 3.42, KG 73079980 DE, Germany 2" | 51 mm | DN: 51 348.10 EUR At central warehouse
Minimum 2
 2147483647
H00381433 14N77-24-24-SL150 SAE Code 61 - 90° Elbow Steel 2.1277, KG 73079980 DE, Germany 1 1/2" | 38 mm | DN: 38 Not in stock 2147483647
H00381434 14N77-24-32 Steel 2.982, KG 73079980 DE, Germany 2" | 51 mm | DN: 51 699.86 EUR Not in stock
2147483647
H00382589 14N77-20-16C Stainless steel 0.7845, KG 73072980 DE, Germany 1" | 25 mm | DN: 25 615.43 EUR Not in stock
Minimum 2
 2147483647
H00382590 14N77-20-20C Stainless steel 1.6, KG 73072980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 635.51 EUR Not in stock
Minimum 2
 2147483647
H00382591 14N77-24-20C Stainless steel 1.56, KG 73072980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 843.47 EUR Not in stock
2147483647
H00382592 14N77-24-24C Stainless steel 2.42, KG 73072980 DE, Germany 1 1/2" | 38 mm | DN: 38 840.51 EUR Not in stock
Minimum 2
 2147483647
H00382593 14N77-32-24C Stainless steel 2.56, KG 73072980 DE, Germany 1 1/2" | 38 mm | DN: 38 1497.15 EUR Not in stock
Minimum 4
 2147483647
H00382594 14N77-32-32C Stainless steel 4.42, KG 73072980 DE, Germany 2" | 51 mm | DN: 51 1536.91 EUR Not in stock
Minimum 2
 2147483647
