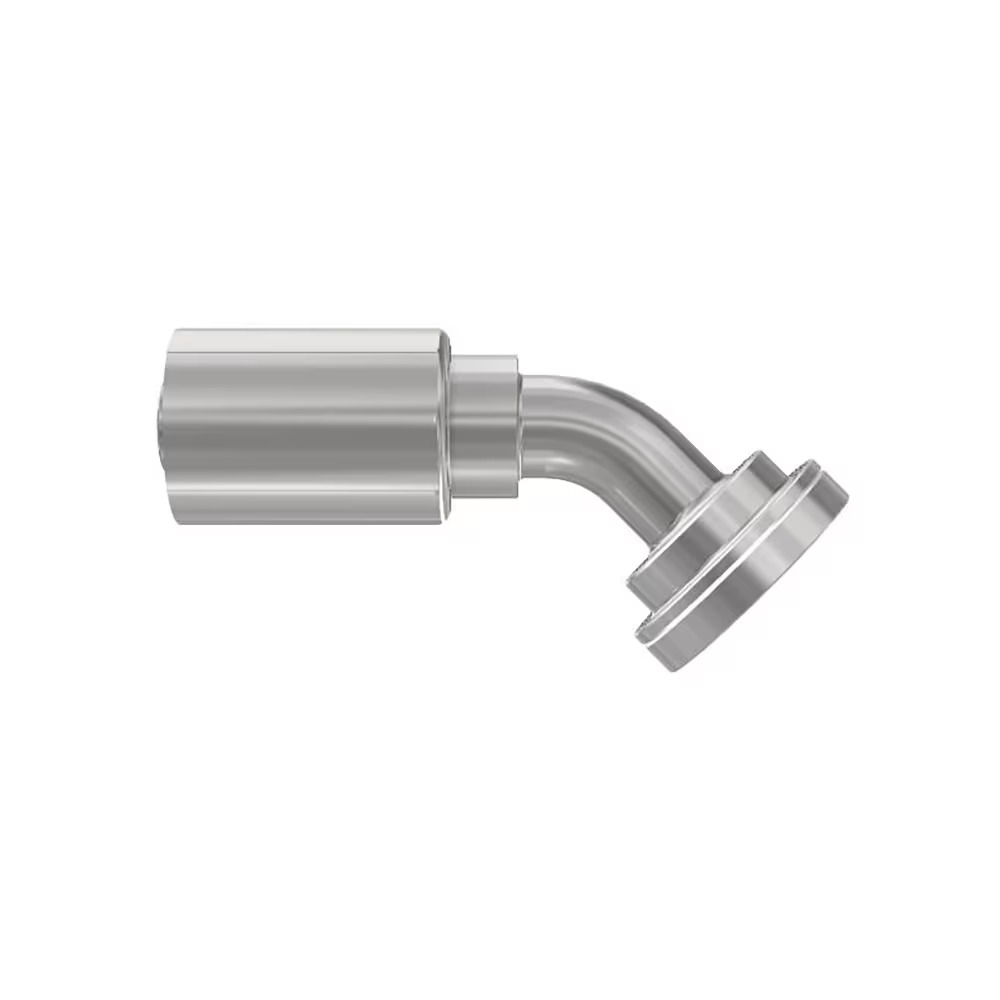

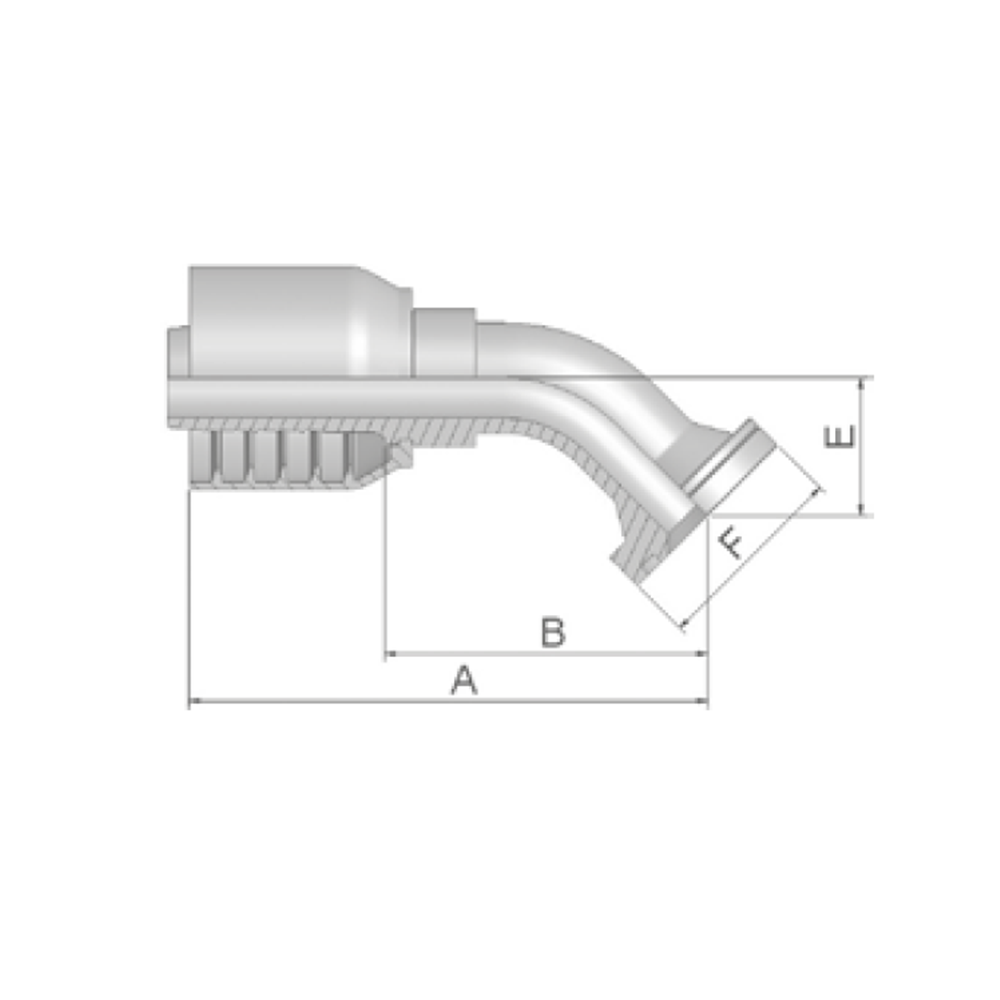

Flange Elbow 45° Insert - Flange (Flat Seat)

Datasheets

16F70

Description
Technical specifications

Fitting ends

#	End type group	End form	Thread	Sealing
1	Flange	Flange		O-ring

Fitting data

Shape	Elbow 45°

End type	6F, 6F
Size Range (mm)	19 - 25 mm
Hose fitting type	1 Piece
Size Range (inch)	3/4" inches - 1" inches
Product Classification	Hydraulics
Product Category	Hose Fittings
Product Group	Crimp Fittings - One Piece
Product Program	Flange

Show fullscreen image

Hymatik number	Supplier Item Number	Availability	Note	Material	End 1 Pressure Series	End 1 Flange Size	Hose Size	Weight	TariffNumber	Country of origin	Unit price	Stock status		Sort Order
H00024085	16F70-12-16		16F70 - 1" Insert 45° (ST) - 3/4" 6000 PSI Flange	Steel	6000 PSI	3/4"	1" \| 25 mm \| DN: 25					Not in stock		2147483647
H00024086	16F70-16-12		16F70 - 3/4" Insert 45° (ST) - 1" 6000 PSI Flange	Steel	6000 PSI	1"	3/4" \| 19 mm \| DN: 19	0.3922, KG	73079980	DE, Germany	98.68 EUR	Not in stock	Minimum 2	2147483647
H00024087	16F70-20-16		16F70 - 1" Insert 45° (ST) - 1 1/4" 6000 PSI Flange	Steel	6000 PSI	1 1/4"	1" \| 25 mm \| DN: 25					Not in stock		2147483647
7290701980	16F70-16-16-1P	Discontinued from Hymatik's standard stocked assortment when current stock is sold out	16F70-16-16-1P SAE6 FLANGE 45	Steel	6000 PSI	1"		0.595, KG	73079980	DE, Germany	111.76 EUR	In stock		2147483647
7290701955	16F70-8-10-1P	Discontinued from Hymatik's standard stocked assortment when current stock is sold out	16F70-8-10-1P SAE6 FLANGE 45 *	Steel	6000 PSI	1/2"		0.252, KG	73079980	DE, Germany	122.99 EUR	In stock		2147483647
H00403334	16F70-16-16C-1P		SAE Code 62 - 45° Elbow E	Steel			1" \| 25 mm \| DN: 25	0.5852, KG	73072980	DE, Germany		Not in stock		2147483647
H00403335	16F70-8-10C-1P		SAE Code 62 - 45° Elbow	Steel			5/8" \| 16 mm \| DN: 16	0.238, KG	73072980	DE, Germany		Not in stock		2147483647
7290701957	16F70-12-10-1P		SFS 45 DN16 E	Steel			5/8" \| 16 mm \| DN: 16	0.3143, KG	73079980	DE, Germany	114.55 EUR	Not in stock	Minimum 4	2147483647
7290701960	16F70-12-12-1P		SFS 45 DN20 E	Steel			3/4" \| 19 mm \| DN: 19	0.37, KG	73079980	DE, Germany	88.48 EUR	Not in stock	Minimum 4	2147483647
H00403665	16F70-12-12-1P-SL85		SFS 45 DN20 E	Steel			3/4" \| 19 mm \| DN: 19					Not in stock		2147483647
H00403666	16F70-12-12-1P-SL95		SFS 45 DN20 E	Steel			3/4" \| 19 mm \| DN: 19					Not in stock		2147483647
H00403667	16F70-12-16-1P		SFS 45 DN25 E	Steel			1" \| 25 mm \| DN: 25	0.55, KG	73079980	DE, Germany	171.58 EUR	Not in stock	Minimum 2	2147483647
H00403668	16F70-12-8-1P		SFS 45 DN12 E	Steel			1/2" \| 12.5 mm \| DN: 12	0.2725, KG	73079980	DE, Germany	129.25 EUR	Not in stock	Minimum 2	2147483647
H00403669	16F70-16-10			Steel			5/8" \| 16 mm \| DN: 16	1.084, KG	73079980	DE, Germany		Not in stock		2147483647
H00403672	16F70-16-20-1P		SFS 45 DN32 E	Steel			1 1/4" \| 31.5 mm \| DN: 31					Not in stock		2147483647
H00403673	16F70-20-16-1P		SFS 45 DN25 E	Steel			1" \| 25 mm \| DN: 25	0.625, KG	73079980	DE, Germany	129.00 EUR	Not in stock	Minimum 2	2147483647
H00403674	16F70-20-20-1P		SFS 45 DN32 E	Steel			1 1/4" \| 31.5 mm \| DN: 31					Not in stock		2147483647
H00403675	16F70-24-20-1P		SAE Code 62 - 45° Elbow E	Steel			1 1/4" \| 31.5 mm \| DN: 31					Not in stock		2147483647
H00403676	16F70-24-24-1P		SFS 45 DN40 E	Steel			1 1/2" \| 38 mm \| DN: 38	1.392, KG	73079980	DE, Germany		Not in stock		2147483647
H00403678	16F70-8-10-SL42		SFS 45 DN16 E	Steel			5/8" \| 16 mm \| DN: 16					Not in stock		2147483647
H00403679	16F70-8-12-1P		SFS 45 DN20 E	Steel			3/4" \| 19 mm \| DN: 19	0.3245, KG	73079980	DE, Germany	198.17 EUR	Not in stock	Minimum 5	2147483647
7290701950	16F70-8-8-1P		SFS 45 DN12 E	Steel			1/2" \| 12.5 mm \| DN: 12	0.204, KG	73079980	DE, Germany	75.18 EUR	Not in stock	Minimum 5	2147483647
