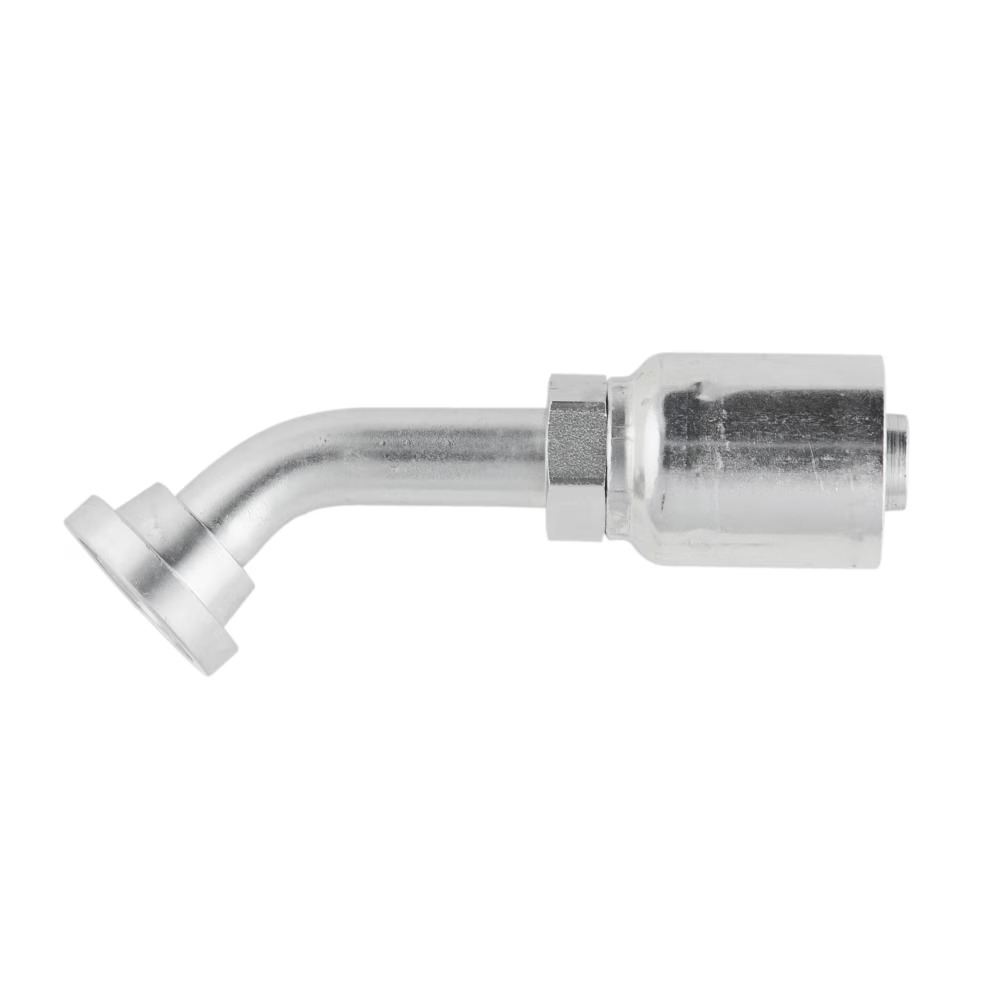

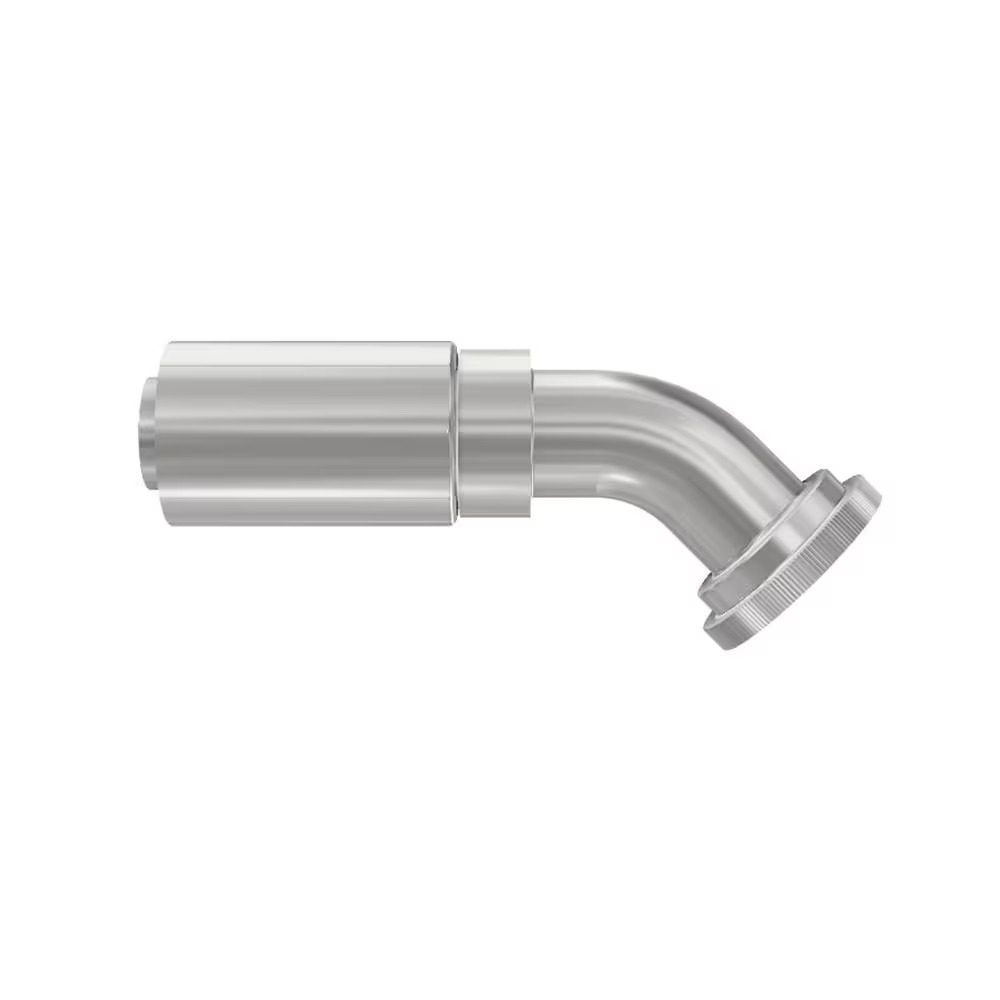

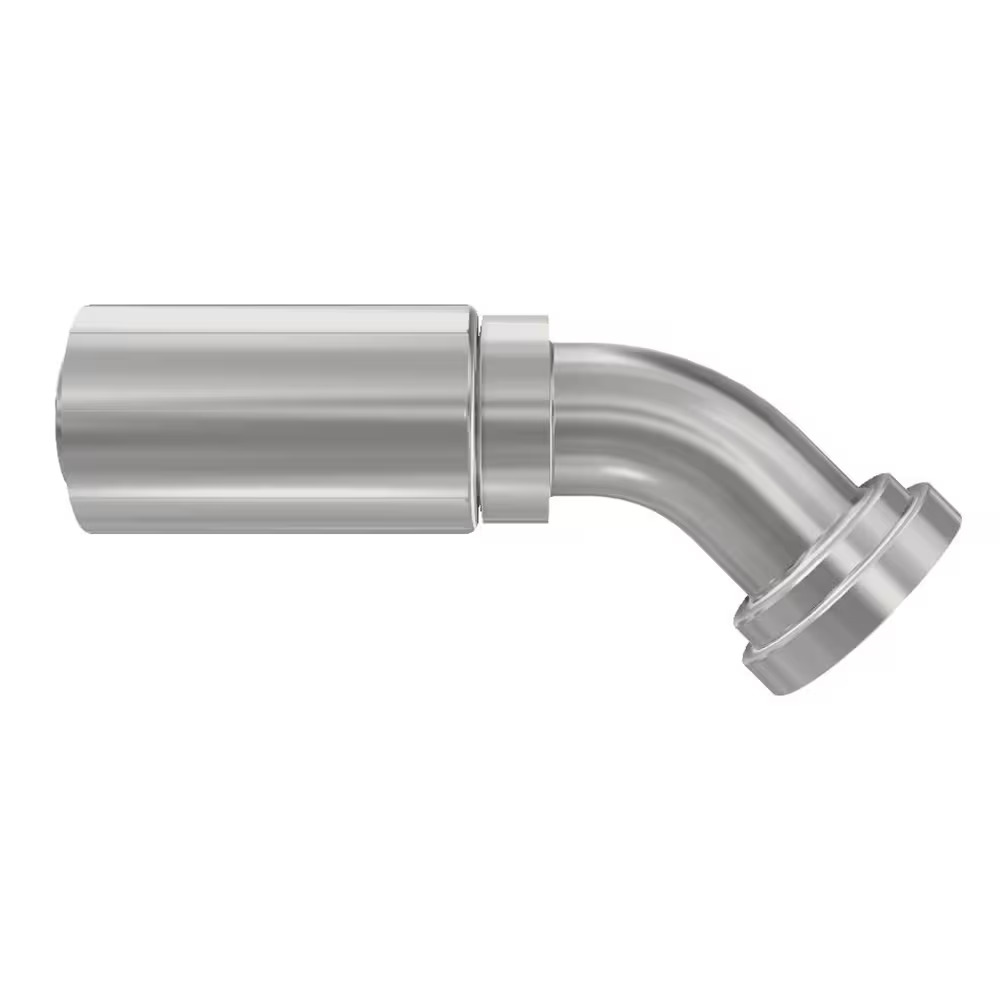

Flange Elbow 45° Insert - Flange (Flat Seat)

Datasheets
14F77
Fitting ends
# End type group End form Thread Sealing
1 Flange Flange O-ring
Fitting data
Shape Elbow 45°

End type 4F, 4F
Size Range (mm) 25 - 51 mm
Hose fitting type 1 Piece
Size Range (inch) 1" inches - 2" inches
Product Classification Hydraulics
Product Category Hose Fittings
Product Group Crimp Fittings - One Piece
Product Program Flange
Show fullscreen image
Hymatik number Supplier Item Number
Material
Weight
TariffNumber
Country of origin
Hose Size
Note
End 1 Pressure Series
End 1 Flange Size
Unit price
Stock status
Favorite Sort Order
H00382583 14F77-20-16C Stainless steel 0.6127, KG 73072980 DE, Germany 1" | 25 mm | DN: 25 Not in stock 2147483647
H00382584 14F77-20-20C Stainless steel 1.38, KG 73072980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 635.51 EUR Not in stock
Minimum 2
 2147483647
H00382585 14F77-24-20C Stainless steel 1.3177, KG 73072980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 Not in stock 2147483647
H00382586 14F77-24-24C Stainless steel 2.085, KG 73072980 DE, Germany 1 1/2" | 38 mm | DN: 38 840.51 EUR Not in stock
Minimum 2
 2147483647
H00382587 14F77-32-24C Stainless steel 2.215, KG 73072980 DE, Germany 1 1/2" | 38 mm | DN: 38 1497.15 EUR Not in stock
Minimum 4
 2147483647
H00382588 14F77-32-32C Stainless steel 3.5, KG 73072980 DE, Germany 2" | 51 mm | DN: 51 1536.91 EUR Not in stock
Minimum 2
 2147483647
7290770925 14F77-20-16 Steel 0.6, KG 73079980 DE, Germany 1" | 25 mm | DN: 25 14F77 - 1" Insert 45° (ST) - 1 1/4" 5000 PSI Flange 5000 PSI 1 1/4" 118.60 EUR In stock
2147483647
7290770930 14F77-20-20 Steel 1.1, KG 73079980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 14F77 - 1-1/4" Insert 45° (ST) - 1 1/4" 5000 PSI Flange 5000 PSI 1 1/4" 152.54 EUR In stock
2147483647
H00023945 14F77-20-20-MP Steel 1.094, KG 73079980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 14F77 - 1-1/4" Insert 45° (ST) - 1 1/4" 5000 PSI Flange 5000 PSI 1 1/4" 152.54 EUR Not in stock
Minimum 10
 2147483647
7290770932 14F77-24-20 Steel 1.14, KG 73079980 DE, Germany 1 1/4" | 31.5 mm | DN: 31 14F77 - 1-1/4" Insert 45° (ST) - 1 1/2" 5000 PSI Flange 5000 PSI 1 1/2" 181.67 EUR In stock
2147483647
7290770935 14F77-24-24 Steel 1.65, KG 73079980 DE, Germany 1 1/2" | 38 mm | DN: 38 14F77 - 1-1/2" Insert 45° (ST) - 1 1/2" 5000 PSI Flange 5000 PSI 1 1/2" 202.95 EUR In stock
2147483647
H00023946 14F77-24-32 Steel 2" | 51 mm | DN: 51 14F77 - 2" Insert 45° (ST) - 1 1/2" 5000 PSI Flange 5000 PSI 1 1/2" Not in stock 2147483647
H00023947 14F77-32-24 Steel 1.756, KG 73079980 US, USA 1 1/2" | 38 mm | DN: 38 14F77 - 1-1/2" Insert 45° (ST) - 2" 5000 PSI Flange 5000 PSI 2" 769.66 EUR Not in stock
Minimum 5
 2147483647
H00023948 14F77-32-32 Steel 2.7733, KG 73079980 DE, Germany 2" | 51 mm | DN: 51 14F77 - 2" Insert 45° (ST) - 2" 5000 PSI Flange 5000 PSI 2" 452.53 EUR At central warehouse
2147483647
