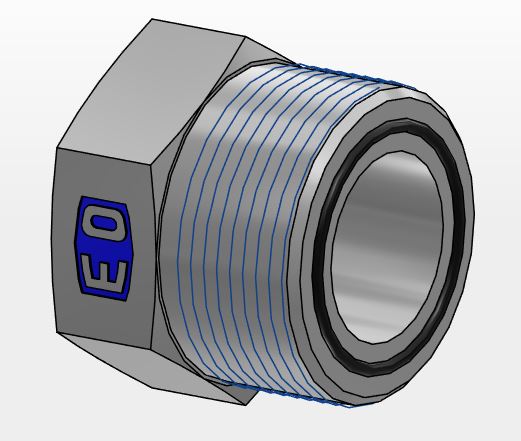

Braze Connector - O-Lok® ORFS tube end / Braze socket

SAE 520104 / SAE 52M0104, ISO 8434-3 BRS

Datasheets
LOHB3 O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Male UNF Flat Seat
Fitting data
Shape Straight

Materials (Prod. Summary) Stainless steel, Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program ORFS / OLok / Flatface
Product Subprogram Component
Show fullscreen image
Hymatik number Supplier Item Number Availability Substitute item
Material
Country of origin
TariffNumber
Weight
ROHRAD
ROHRADZ
T
D
DD
Unit price
Stock status
Favorite Sort Order
H01621215 8 LOHB3-S N1206 Steel CN, China 73079910 50.4, GM 1/2" 13/16-16 10 16 29.02 EUR Not in stock
Minimum 50
 2147483647
H00010383 4-6MMLOHB3S Steel 6 9/16-18 5 14 Not in stock 2147483647
H00010384 4LOHB3S Steel KG 1/4" 9/16-18 5 13 Not in stock 2147483647
H00010385 4-6LOHB3S Steel KG 3/8" 9/16-18 5 13 Not in stock 2147483647
H00010386 6 LOHB3-S Steel US, USA 73079910 0.0388, KG 3/8" 11/16-16 7 14 25.99 EUR Not in stock
Minimum 25
 2147483647
H00010387 6-4LOHB3S Steel KG 1/4" 11/16-16 7 14 Not in stock 2147483647
H00010388 6-8LOHB3S Steel KG 1/2" 11/16-16 7 14 Not in stock 2147483647
H00010389 6-10LOHB3S Steel KG 5/8" 11/16-16 7 15 Not in stock 2147483647
H00010390 8-12MMLOHB3S Steel PL, Poland 73079910 0.0548, KG 12 13/16-16 10 16 16.50 EUR Not in stock
Minimum 5
 2147483647
H00010391 8 LOHB3-S Obsolete H01621215
Steel KG 1/2" 13/16-16 10 16 Not in stock 2147483647
H00010392 8-4LOHB3S Steel KG 1/4" 13/16-16 10 16 Not in stock 2147483647
H00010393 8-6LOHB3S Steel KG 3/8" 13/16-16 10 16 Not in stock 2147483647
H00010394 8-10LOHB3S Steel KG 5/8" 13/16-16 10 16 Not in stock 2147483647
H00010395 8-12LOHB3S Steel KG 3/4" 13/16-16 10 17 Not in stock 2147483647
H00010396 10-16MMLOHB3S Steel 16 1-14 13 19 Not in stock 2147483647
H00010397 10 LOHB3-S Obsolete Steel US, USA 73079910 0.0782, KG 5/8" 1-14 13 19 Not in stock 2147483647
H00010398 10-6LOHB3S Steel KG 3/8" 1-14 13 19 Not in stock 2147483647
H00010399 10-8LOHB3S Steel KG 1/2" 1-14 13 19 Not in stock 2147483647
H00010400 10-12LOHB3S Steel KG 3/4" 1-14 13 19 Not in stock 2147483647
H00010401 12-20MMLOHB3S Steel PL, Poland 73079910 0.1464, KG 20 1 3/16-12 16 21 33.46 EUR Not in stock
Minimum 4
 2147483647
H00010402 12 LOHB3-S Steel US, USA 73079910 0.1453, KG 3/4" 1 3/16-12 16 21 33.41 EUR Not in stock
Minimum 10
 2147483647
H00010403 12-8LOHB3S Steel KG 1/2" 1 3/16-12 16 21 Not in stock 2147483647
H00010404 12-10LOHB3S Steel KG 5/8" 1 3/16-12 16 21 Not in stock 2147483647
H00010405 12-16LOHB3S Steel KG 1 1 3/16-12 16 21 Not in stock 2147483647
H00010406 16-25MMLOHB3S Steel PL, Poland 73079910 0.28, KG 25 1 7/16-12 21 25 41.10 EUR Not in stock
Minimum 3
 2147483647
H00010407 16LOHB3S Steel KG 1 1 7/16-12 21 25 Not in stock 2147483647
H00010408 16-8LOHB3S Steel KG 1/2" 1 7/16-12 21 25 Not in stock 2147483647
H00010409 16-12LOHB3S Steel KG 3/4" 1 7/16-12 21 25 Not in stock 2147483647
H00010410 16-20LOHB3S Steel KG 1 1/4" 1 7/16-12 21 25 Not in stock 2147483647
H00010411 20-30MMLOHB3S Steel PL, Poland 73079910 0.347, KG 30 1 11/16-12 26 25 Not in stock 2147483647
H00010412 20 LOHB3-S Steel US, USA 73079910 0.384, KG 1 1/4" 1 11/16-12 26 25 69.01 EUR Not in stock
Minimum 10
 2147483647
H00010413 20-16LOHB3S Steel KG 1 1 11/16-12 26 25 Not in stock 2147483647
H00010414 20-24LOHB3S Steel KG 1 1/2" 1 11/16-12 26 25 Not in stock 2147483647
H00010415 24-38MMLOHB3S Steel KG 38 2.12 32 25 Not in stock 2147483647
H00010416 24LOHB3S Steel KG 1 1/2" 2.12 32 25 Not in stock 2147483647
H00010417 24-20LOHB3S Steel KG 1 1/4" 2.12 32 25 Not in stock 2147483647
H00010418 4LOHB3SS Stainless steel KG 1/4" 9/16-18 5 13 Not in stock 2147483647
H00010419 4-6LOHB3SS Stainless steel KG 3/8" 9/16-18 5 13 Not in stock 2147483647
H00010420 6LOHB3SS Stainless steel KG 3/8" 11/16-16 7 14 Not in stock 2147483647
H00010421 6-4LOHB3SS Stainless steel KG 1/4" 11/16-16 7 14 Not in stock 2147483647
H00010422 6-8LOHB3SS Stainless steel KG 1/2" 11/16-16 7 14 Not in stock 2147483647
H00010423 6-10LOHB3SS Stainless steel KG 5/8" 11/16-16 7 15 Not in stock 2147483647
H00010424 8LOHB3SS Stainless steel KG 1/2" 13/16-16 10 16 Not in stock 2147483647
H00010425 8-4LOHB3SS Stainless steel KG 1/4" 13/16-16 10 16 Not in stock 2147483647
H00010426 8-6LOHB3SS Stainless steel KG 3/8" 13/16-16 10 16 Not in stock 2147483647
H00010427 8-10LOHB3SS Stainless steel KG 5/8" 13/16-16 10 16 Not in stock 2147483647
H00010428 8-12LOHB3SS Stainless steel KG 3/4" 13/16-16 10 17 Not in stock 2147483647
H00010429 10LOHB3SS Stainless steel KG 5/8" 1-14 13 19 Not in stock 2147483647
H00010430 10-6LOHB3SS Stainless steel KG 3/8" 1-14 13 19 Not in stock 2147483647
H00010431 10-8LOHB3SS Stainless steel KG 1/2" 1-14 13 19 Not in stock 2147483647
H00010432 10-12LOHB3SS Stainless steel KG 3/4" 1-14 13 19 Not in stock 2147483647
H00010433 12LOHB3SS Stainless steel KG 3/4" 1 3/16-12 16 21 Not in stock 2147483647
H00010434 12-8LOHB3SS Stainless steel KG 1/2" 1 3/16-12 16 21 Not in stock 2147483647
H00010435 12-10LOHB3SS Stainless steel KG 5/8" 1 3/16-12 16 21 Not in stock 2147483647
H00010436 12-16LOHB3SS Stainless steel KG 1 1 3/16-12 16 21 Not in stock 2147483647
H00010437 16LOHB3SS Stainless steel KG 1 1 7/16-12 21 25 Not in stock 2147483647
H00010438 16-8LOHB3SS Stainless steel KG 1/2" 1 7/16-12 21 25 Not in stock 2147483647
H00010439 16-12LOHB3SS Stainless steel KG 3/4" 1 7/16-12 21 25 Not in stock 2147483647
H00010440 16-20LOHB3SS Stainless steel KG 1 1/4" 1 7/16-12 21 25 Not in stock 2147483647
H00010441 20LOHB3SS Stainless steel KG 1 1/4" 1 11/16-12 26 25 Not in stock 2147483647
H00010442 20-16LOHB3SS Stainless steel KG 1 1 11/16-12 26 25 Not in stock 2147483647
H00010443 20-24LOHB3SS Stainless steel KG 1 1/2" 1 11/16-12 26 25 Not in stock 2147483647
H00010444 24LOHB3SS Stainless steel KG 1 1/2" 2.12 32 25 Not in stock 2147483647
H00010445 24-20LOHB3SS Stainless steel KG 1 1/4" 2.12 32 25 Not in stock 2147483647
