Bleed Adaptor - O-Lok® ORFS male end

Datasheets
PNLOBA O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Male UNF Flat Seat
2 Other Standard Hose Nipple/barb
Fitting data
Shape Straight

Materials (Prod. Summary) Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Bleed Adapters
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program ORFS / OLok / Flatface

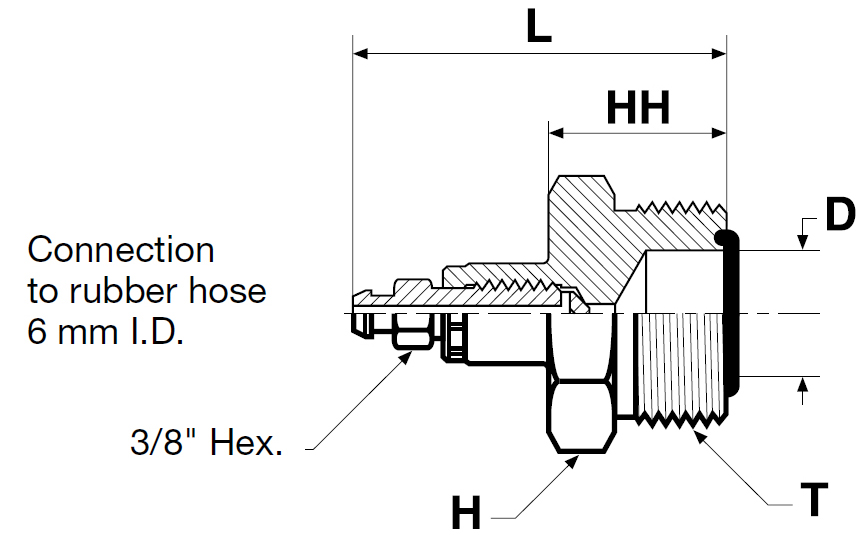

Show fullscreen image
Hymatik number Supplier Item Number
Material
Weight
ROHRAD
ROHRADZ
T
D
H
HH
L
Unit price
Stock status
Favorite Sort Order
H00010069 4PNLOBAS Steel KG 6 1/4" 9/16-18 5 17 20 48 Not in stock 2147483647
H00010070 6PNLOBAS Steel KG 8, 10 5/16, 3/8 11/16-16 7 19 22 50 Not in stock 2147483647
H00010071 8PNLOBAS Steel KG 12 1/2" 13/16-16 10 22 23 53 Not in stock 2147483647
H00010072 10PNLOBAS Steel KG 14, 15, 16 5/8" 1-14 13 27 26 56 Not in stock 2147483647
H00010073 12PNLOBAS Steel KG 18, 20 3/4" 1 3/16-12 16 32 27 58 Not in stock 2147483647
H00010074 16PNLOBAS Steel KG 22, 25 1 1 7/16-12 21 38 28 60 Not in stock 2147483647
H00010075 20PNLOBAS Steel KG 28, 30, 32 1 1/4 1 11/16-12 26 45 28 61 Not in stock 2147483647
H00010076 24PNLOBAS Steel KG 35, 38 1 1/2 2.12 32 54 28 63 Not in stock 2147483647
