Bleed Adaptor - O-Lok® ORFS female end

Datasheets
FNLBA O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Female Swivel UNF Flat Seat
2 Other Standard Hose Nipple/barb
Fitting data
Shape Straight

Materials (Prod. Summary) Stainless steel, Steel
Connection Combination Bleed Adapters
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program ORFS / OLok / Flatface
Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
T6
Country of origin
TariffNumber
Weight

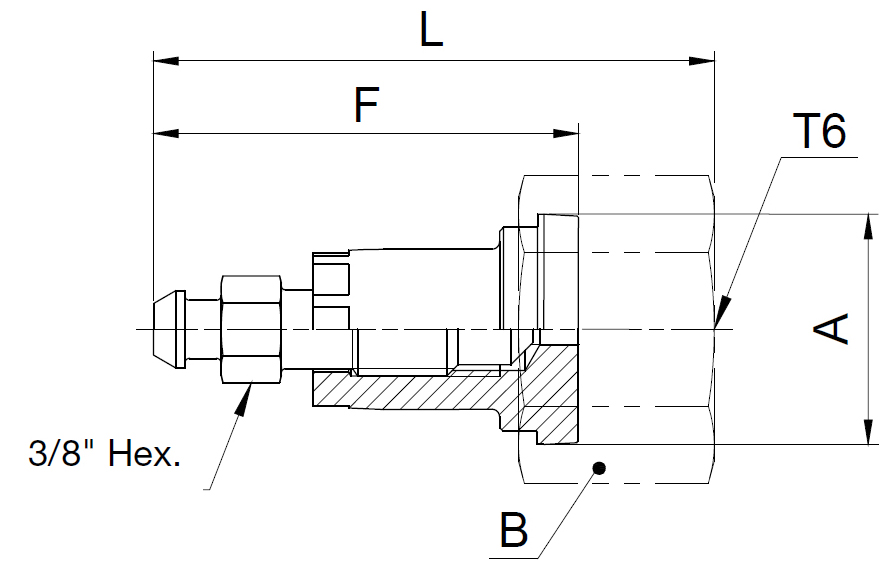

A
F
B
L
Unit price
Stock status
Favorite Sort Order
H00010055 8 FNLBA-S Obsolete Steel 13/16-16 19 41 5 53 Not in stock 2147483647
H00010056 8 FNLBA-SS Obsolete Stainless steel 13/16-16 US, USA 73072290 0.062, KG 19 41 5 53 190.27 EUR Not in stock
Minimum 5
 2147483647
H00010057 10FNLBAS Steel 1-14 KG 23 41 6 55 Not in stock 2147483647
H00010058 10FNLBASS Stainless steel 1-14 KG 23 41 6 55 Not in stock 2147483647
H00010059 12FNLBAS Steel 1 3/16-12 KG 27 41 6.50 56 Not in stock 2147483647
H00010060 12FNLBASS Stainless steel 1 3/16-12 KG 27 41 6.50 56 Not in stock 2147483647
H00010061 16FNLBAS Steel 1 7/16-12 KG 33 41 7 56 Not in stock 2147483647
H00010062 16FNLBASS Stainless steel 1 7/16-12 KG 33 41 7 56 Not in stock 2147483647
H00010063 20FNLBAS Steel 1 11/16-12 KG 40 41 7 56 Not in stock 2147483647
H00010064 20FNLBASS Stainless steel 1 11/16-12 KG 40 41 7 56 Not in stock 2147483647
H00010065 24 FNLBA-S Steel 2-12 48 41 7 56 Not in stock 2147483647
H00010066 24FNLBASS Stainless steel 2-12 KG 48 41 7 56 Not in stock 2147483647
