Bleed Adaptor - Bleed hose connection/Male UN/UNF thread – O-ring

ISO 11926

Datasheets
HPBA O Lok
Fitting ends
# End type group End form Thread Sealing
1 UNF/UN Male UNF O-ring
2 Other Standard Hose Nipple/barb
Fitting data
Shape Straight

Materials (Prod. Summary) Steel
Connection Combination Bleed Adapters
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program ORFS / OLok / Flatface

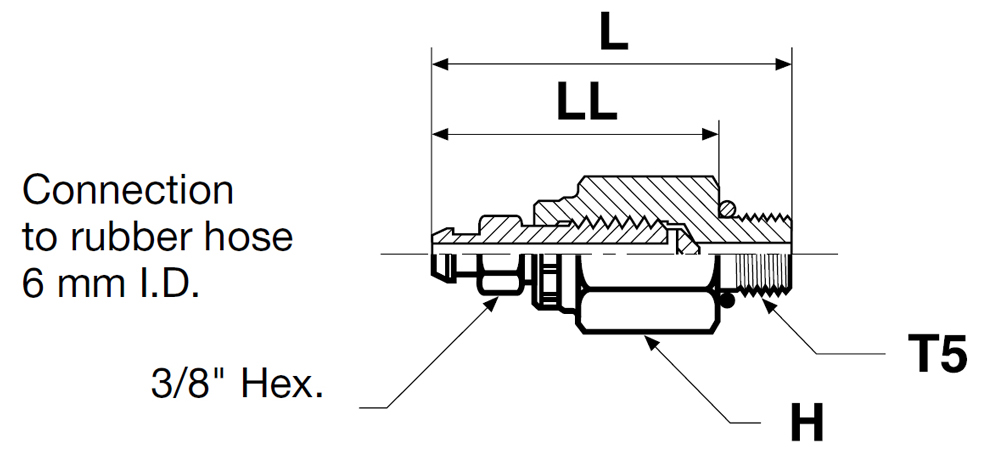

Show fullscreen image
Hymatik number Supplier Item Number
Material
Country of origin
TariffNumber
Weight
T5
H
L
LL
Unit price
Stock status
Favorite Sort Order
H00010068 4 P5ONBA-S Steel US, USA 73269098 0.0584, KG 7/16-20 18 56 47 Not in stock 2147483647
