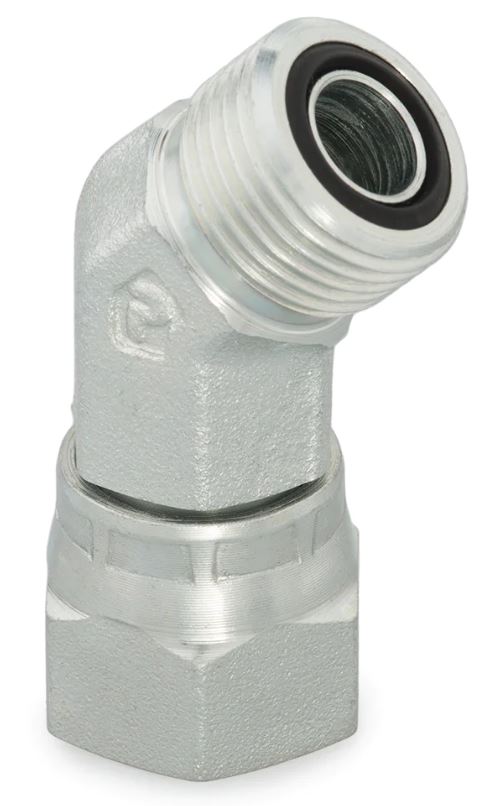

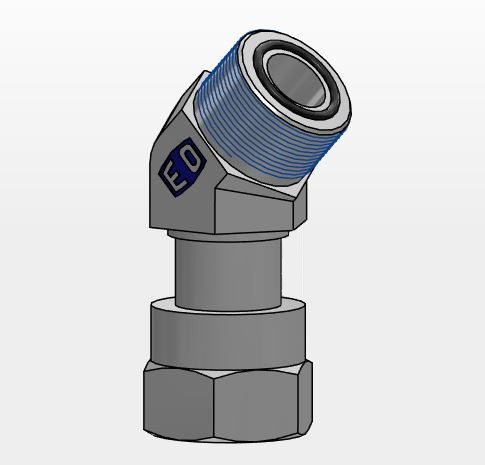

45° Swivel Nut Elbow - O-Lok® ORFS female swivel end / O-Lok® ORFS tube end

Datasheets
V6LO O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Male UNF Flat Seat
2 ORFS Female Swivel UNF Flat Seat
Fitting data
Shape Elbow 45°

Materials (Prod. Summary) Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Tube-To-Swivel
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program ORFS / OLok / Flatface
Item number Supplier item numbers Alternative item numbers
7290563950 8 V6LO-S A9B00012382
H00009904 10 V6LO-S A9B00012406
H00009906 16 V6LO-S A9B00012407
H00009907 20 V6LO-S A9B00012236
H00009908 24 V6LO-S A9B00012237
Show fullscreen image

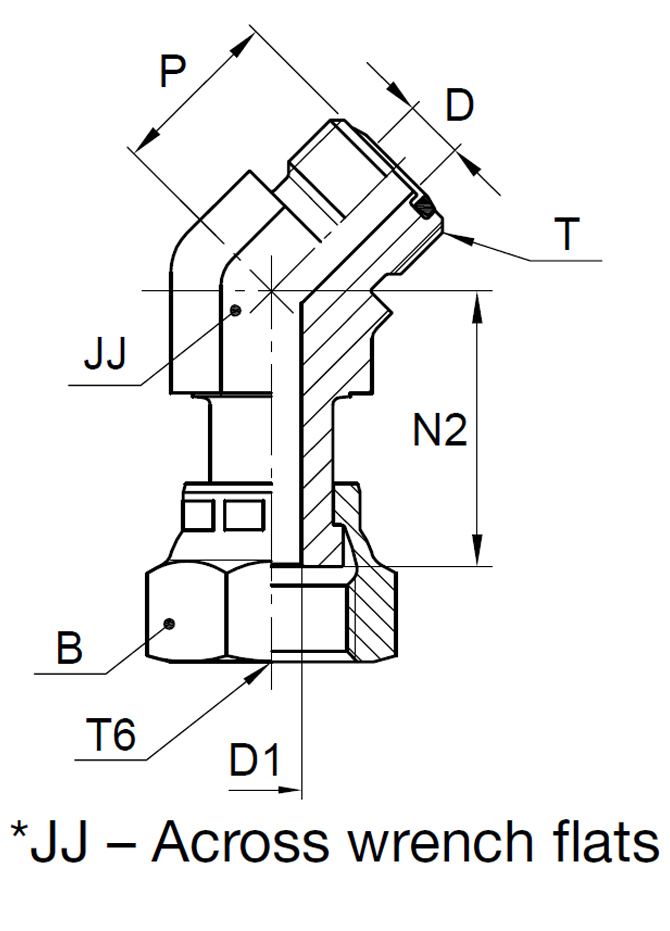

Hymatik number Supplier Item Number
Material
Country of origin
TariffNumber
Weight
ROHRAD
ROHRADZ
T
T6
B
D
D1
JJ
N2
P
Unit price
Stock status
Favorite Sort Order
H00009901 4 V6LO-S Steel US, USA 73079290 0.06, KG 6 1/4" 9/16-18 9/16-18 18 5 4 14 27 16 30.40 EUR Not in stock
Minimum 5
 2147483647
7290563945 6 V6LO-S Steel CN, China 73079290 0.0977, KG 8, 10 5/16, 3/8 11/16-16 11/16-16 21 7 7 19 28 19 21.99 EUR In stock
2147483647
7290563950 8 V6LO-S Steel CN, China 73079290 0.13, KG 12 1/2" 13/16-16 13/16-16 24 10 9 19 38 20 32.92 EUR In stock
2147483647
H00009904 10 V6LO-S Steel CN, China 73079290 0.216, KG 14, 15, 16 5/8" 1-14 1-14 29 13 12 27 39 23 45.84 EUR Not in stock
Minimum 10
 2147483647
H00009905 12V6LO-S Steel KG 18, 20 3/4" 1 3/16-12 1 3/16-12 35 16 14 30 44 26 Not in stock 2147483647
H00009906 16 V6LO-S Steel CN, China 73079290 0.464, KG 22, 25 1 1 7/16-12 1 7/16-12 42 21 20 36 48 30 103.24 EUR At central warehouse
Minimum 5
 2147483647
H00009907 20 V6LO-S Steel US, USA 73079290 0.612, KG 28, 30, 32 1 1/4 1 11/16-12 1 11/16-12 48 26 26 41 50 32 146.10 EUR Not in stock
Minimum 5
 2147483647
H00009908 24 V6LO-S Steel US, USA 73079290 0.91, KG 35, 38 1 1/2 2.12 2-12 58 32 32 48 52 37 250.01 EUR Not in stock
Minimum 5
 2147483647
P0363154 10V6MLOS Steel CN, China 73079290 0.2366, KG 45.41 EUR In stock
2147483647
