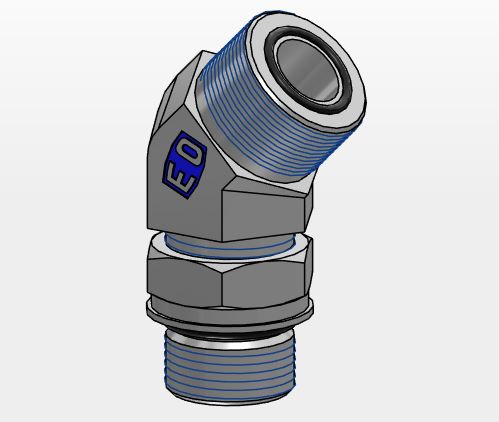

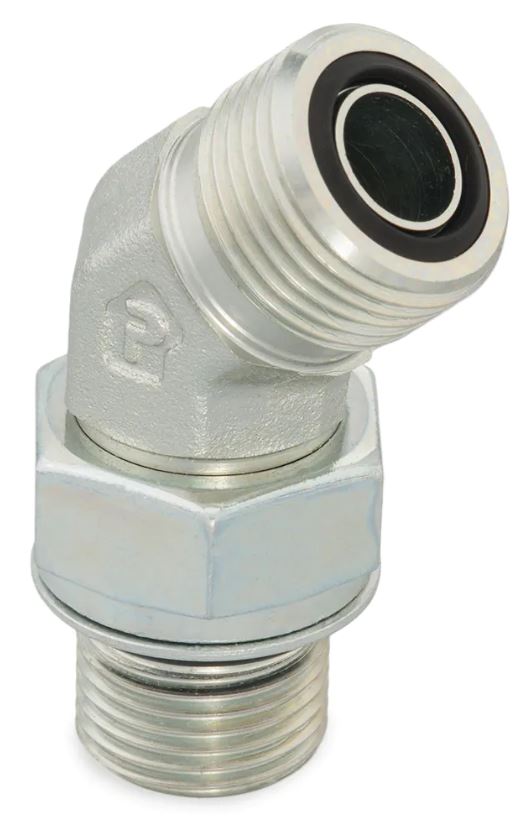

45° Male Stud Elbow - O-Lok® ORFS tube end / Male metric thread – O-ring

ISO 6149-2, SAE 52M0387, ISO 8434-3 SDE45

Datasheets
V87OMLO O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Male UNF Flat Seat
2 Metric Male Metric O-ring
Fitting data
Shape Elbow 45°

Materials (Prod. Summary) Stainless steel, Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Tube-To-Male Thread
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program ORFS / OLok / Flatface
Show fullscreen image
Hymatik number Supplier Item Number
Material
Country of origin
TariffNumber
Weight

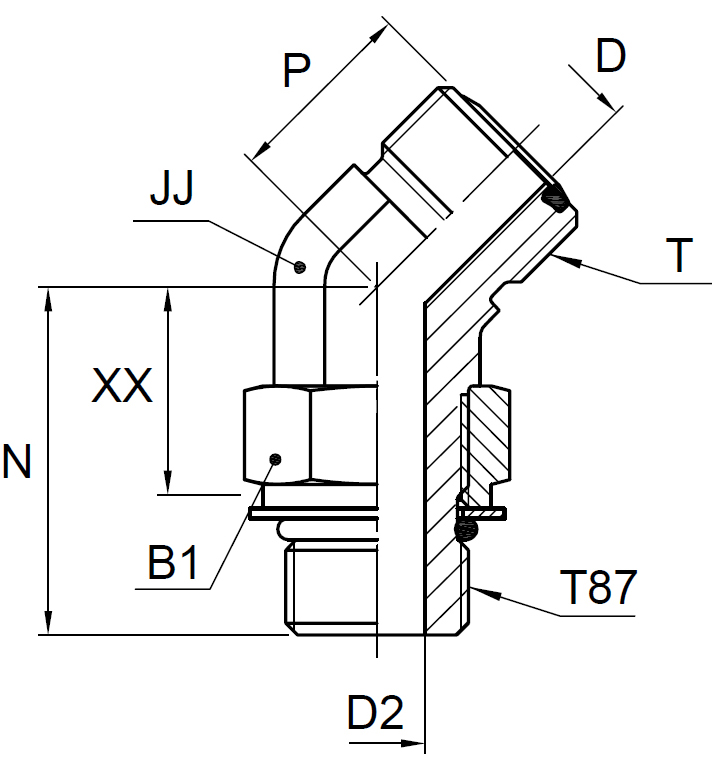

ROHRAD
ROHRADZ
T87
T
D
D2
B1
JJ
P
Q
XX
Unit price
Stock status
Favorite Sort Order
H00009766 4M12V87OMLOS Steel PL, Poland 73079290 0.0514, KG 6 1/4" M12x1,5 9/16-18 5 4 17 14 16 30 19 41.87 EUR Not in stock
Minimum 5
 2147483647
H00009767 4M12V87OMLOSS Stainless steel KG 6 1/4" M12x1,5 9/16-18 5 4 17 14 16 30 19 Not in stock 2147483647
H00009768 6M16V87OMLOS Steel KG 8, 10 5/16, 3/8 M16x1,5 11/16-16 7 7 22 19 19 33 19 Not in stock 2147483647
H00009769 6M16V87OMLOSS Stainless steel KG 8, 10 5/16, 3/8 M16x1,5 11/16-16 7 7 22 19 19 33 19 Not in stock 2147483647
H00009770 8M18V87OMLOS Steel PL, Poland 73079290 0.112, KG 12 1/2" M18x1,5 13/16-16 10 9 24 19 20 37 23 41.56 EUR Not in stock
Minimum 10
 2147483647
H00009771 8M18V87OMLOSS Stainless steel KG 12 1/2" M18x1,5 13/16-16 10 9 24 19 20 37 23 Not in stock 2147483647
H00009772 10M22V87OMLOS Steel KG 14, 15, 16 5/8" M22x1,5 1-14 13 12 27 27 23 43 29 Not in stock 2147483647
H00009773 10M22V87OMLOSS Stainless steel KG 14, 15, 16 5/8" M22x1,5 1-14 13 12 27 27 23 43 29 Not in stock 2147483647
H00009774 12M27V87OMLOS Steel PL, Poland 73079290 KG 18, 20 3/4" M27x2 1 3/16-12 16 15 32 30 26 50 32 Not in stock 2147483647
H00009775 12M27V87OMLOSS Stainless steel KG 18, 20 3/4" M27x2 1 3/16-12 16 15 32 30 26 50 32 Not in stock 2147483647
H00009776 16M33V87OMLOS Steel DE, Germany 73079290 0.5963, KG 22, 25 1 M33x2 1 7/16-12 21 20 41 36 30 52 34 Not in stock 2147483647
H00009777 16M33V87OMLOSS Stainless steel KG 22, 25 1 M33x2 1 7/16-12 21 20 41 36 30 52 34 Not in stock 2147483647
H00009778 20M42V87OMLOS Steel KG 28, 30, 32 1 1/4 M42x2 1 11/16-12 26 26 50 41 32 54 35 Not in stock 2147483647
H00009779 20M42V87OMLOSS Stainless steel KG 28, 30, 32 1 1/4 M42x2 1 11/16-12 26 26 50 41 32 54 35 Not in stock 2147483647
H00009780 24M48V87OMLOS Steel KG 35, 38 1 1/2 M48x2 2.12 32 32 55 50 37 56 35 Not in stock 2147483647
