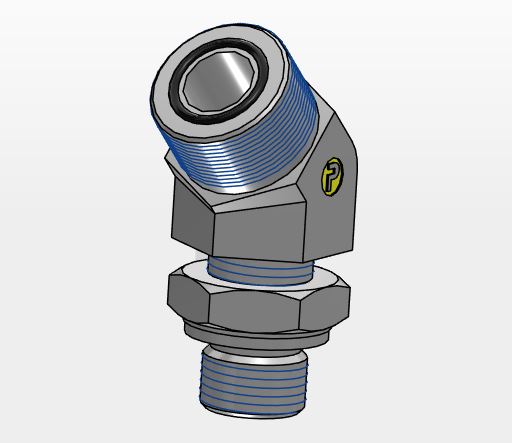

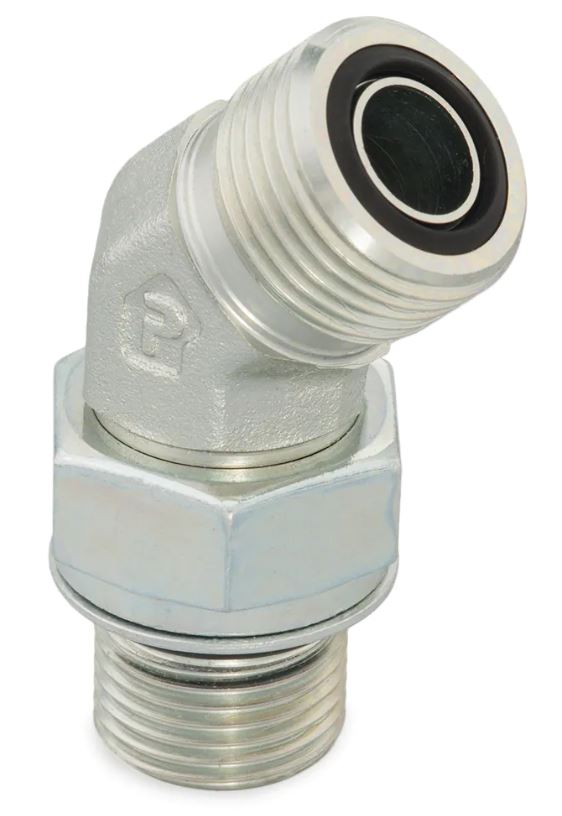

45° Male Stud Elbow - O-Lok® ORFS tube end / Male metric thread – O-ring + retaining ring

Datasheets
V8OMLO O Lok
Fitting ends
# End type group End form Thread Sealing
1 ORFS Male UNF Flat Seat
2 Metric Male Metric O-ring
Fitting data
Shape Elbow 45°

Materials (Prod. Summary) Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Tube-To-Male Thread
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program ORFS / OLok / Flatface
Show fullscreen image

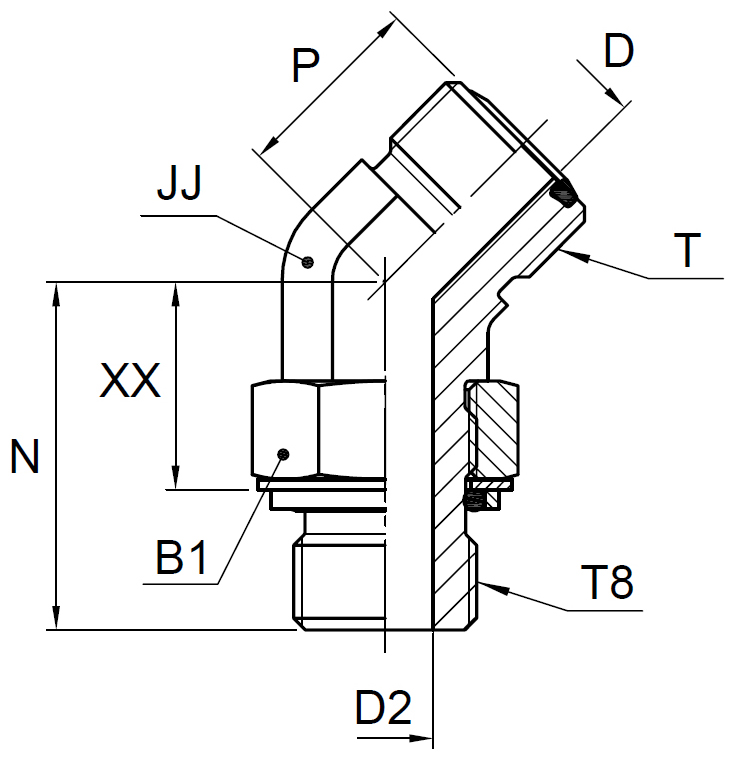

Hymatik number Supplier Item Number Availability
Material
ROHRAD
Country of origin
TariffNumber
Weight
ROHRADZ
T8
T
D
D2
B1
JJ
P
Q
XX
Unit price
Stock status
Favorite Sort Order
H00009838 4M12V8OMLOS Steel 6 1/4" M12x1,5 9/16-18 5 4 17 14 16 30 20 Not in stock 2147483647
H00009839 6M16V8OMLOS Steel 10 3/8" M16x1,5 11/16-16 7 7 19 19 19 33 22 Not in stock 2147483647
H00009840 8M14V8OMLOS Steel 12 PL, Poland 73079290 0.0806, KG 1/2" M14x1,5 13/16-16 10 6 17 19 20 31 20 49.43 EUR Not in stock
Minimum 40
 2147483647
H00009841 8M18V8OMLOS Steel 12 PL, Poland 73079290 0.1056, KG 1/2" M18x1,5 13/16-16 10 9 22 19 20 37 25 37.76 EUR Not in stock
Minimum 5
 2147483647
H00009842 10M18V8OMLOS Steel 14,15,16 PL, Poland 73079290 0.1831, KG 5/8" M18x1,5 1-14 13 9 27 27 24 43 30 58.01 EUR Not in stock
Minimum 20
 2147483647
H00009843 10M22V8OMLOS Obsolete Steel 14,15,16 DE, Germany 73079290 0.2078, KG 5/8" M22x1,5 1-14 13 12 27 27 23 43 30 Not in stock 2147483647
H00009844 12M27V8OMLOS Steel 18, 20 DE, Germany 73079290 0.3133, KG 3/4" M27x2 1 3/16-12 16 15 32 30 26 50 34 Not in stock 2147483647
H00009845 16M33V8OMLOS Steel 22, 25 KG 1 M33x2 1 7/16-12 21 20 38 36 30 52 36 Not in stock 2147483647
H00009846 20M42V8OMLOS Steel 28, 30, 32 KG 1 1/4 M42x2 1 11/16-12 26 26 50 41 32 54 37 Not in stock 2147483647
H00009847 24M48V8OMLOS Steel 35, 38 KG 1 1/2 M48x2 2.12 32 32 55 50 37 56 37 Not in stock 2147483647
