Viking Extreme EXTD 22mm Solenoid directed operated control valve 5/2 EL-SP

Datasheets
2345

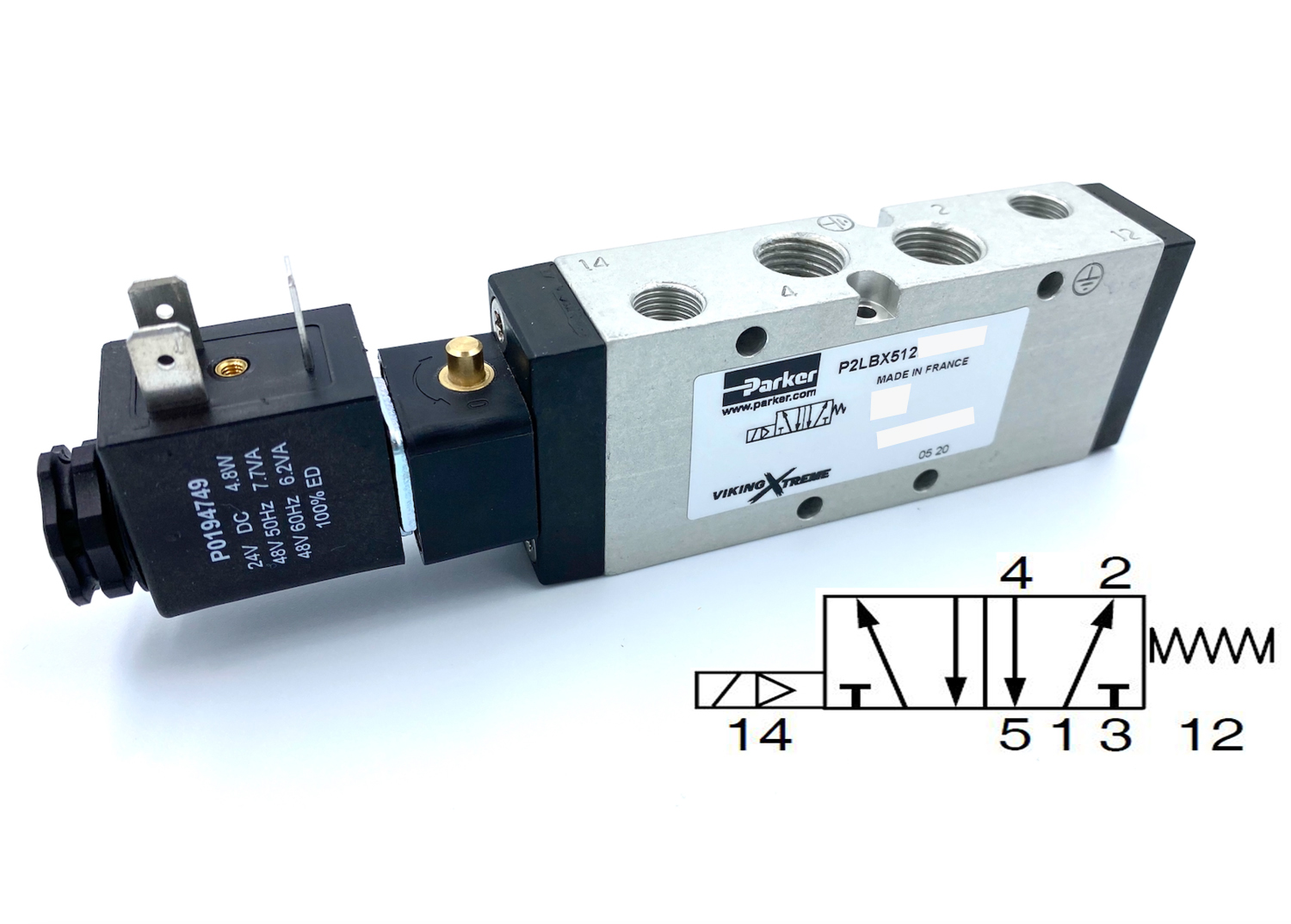

Viking inline valve. Xtreme duty spool


Product Classification Pneumatics
Product Category Valves
Product Group Pneumatic/Air Valves
Product Program Directional Control Valve
Product Subprogram Directional Control Valve 5/2
Show fullscreen image
Hymatik number Supplier Item Number
Port Size
Thread Type
Changeover time (ms)
Valve Type Function
Pilot main actuator/return
Note
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Valve Port Size
Country of origin
TariffNumber
Weight
Unit price
Stock status
Favorite Sort Order
H00090686 P2LAX511ESHDDN G1/8” BSPP 15/45 5/2 valve Spring (return only) Coils and plug/connectors to be ordered separately. Vented 22mm Solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Female FR, France 84812090 0.202, KG 114.78 EUR At central warehouse
2147483647
H00090687 P2LBX512ESHDDN G1/4” BSPP 20/55 5/2 valve Spring (return only) Coils and plug/connectors to be ordered separately. Vented 22mm Solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Female FR, France 84812090 0.22, KG 119.00 EUR At central warehouse
2147483647
H00090688 P2LCX513ESHDDN G3/8” BSPP 25/85 5/2 valve Spring (return only) Coils and plug/connectors to be ordered separately. Vented 22mm Solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Female FR, France 84812090 0.8149, KG 182.08 EUR Not in stock
2147483647
H00090689 P2LDX514ESHDDN G1/2” BSPP 25/85 5/2 valve Spring (return only) Coils and plug/connectors to be ordered separately. Vented 22mm Solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Female FR, France 84812090 0.7889, KG 190.02 EUR Not in stock
2147483647

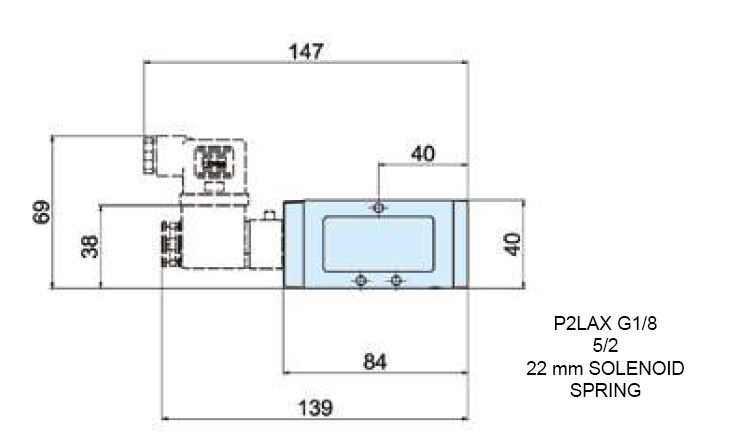

H00090658 P2LAX511ESHDDB49 G1/8” BSPP 15/45 5/2 valve Spring (return only) Connector/cable plugs to be ordered separately. Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/8BsppFem, 1/8" BSPP Female FR, France 84812090 0.26, KG 133.02 EUR At central warehouse
2147483647

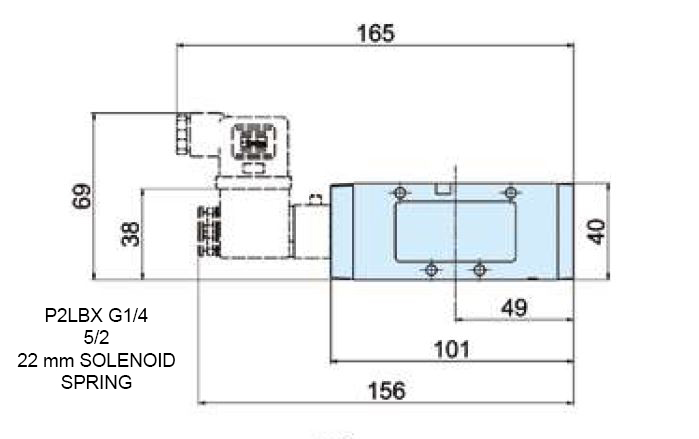

H00090659 P2LBX512ESHDDB49 G1/4” BSPP 20/55 5/2 valve Spring (return only) Connector/cable plugs to be ordered separately. Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/4BsppFem, 1/4" BSPP Female FR, France 84812090 0.28, KG 155.51 EUR At central warehouse
2147483647

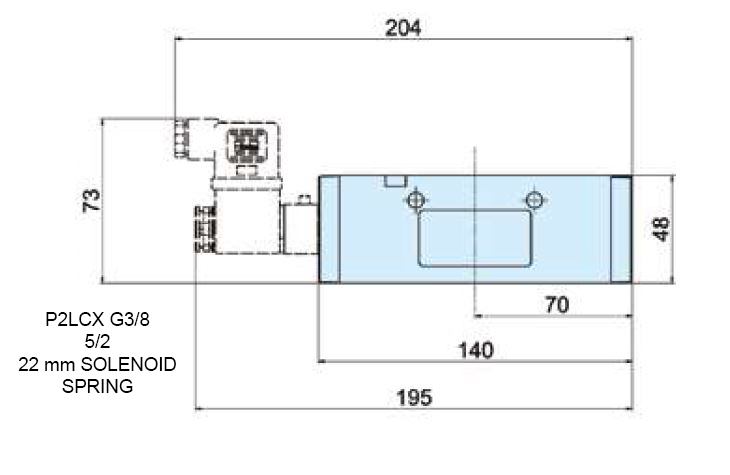

H00090660 P2LCX513ESHDDB49 G3/8” BSPP 25/85 5/2 valve Spring (return only) Connector/cable plugs to be ordered separately. Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 3/8BsppFem, 3/8" BSPP Female FR, France 84812090 0.8676, KG 200.41 EUR Not in stock
2147483647

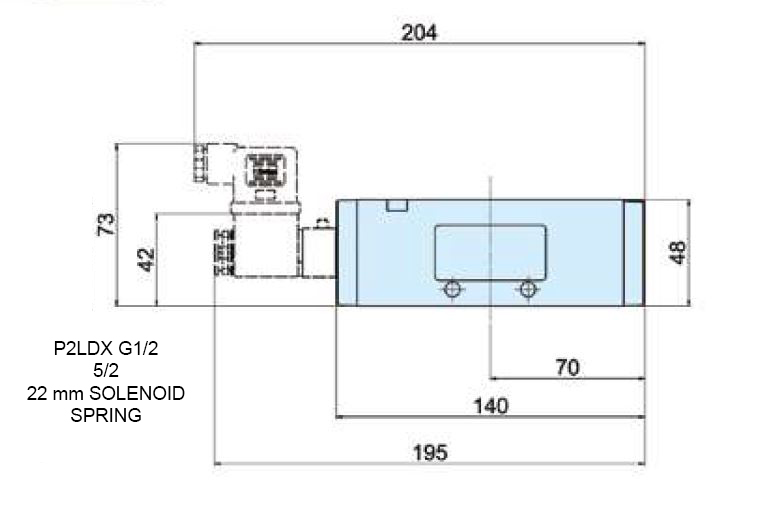

H00090661 P2LDX514ESHDDB49 G1/2” BSPP 25/85 5/2 valve Spring (return only) Connector/cable plugs to be ordered separately. Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/2BsppFem, 1/2" BSPP Female FR, France 84812090 0.8417, KG 208.28 EUR Not in stock
2147483647
