Thermal Valves

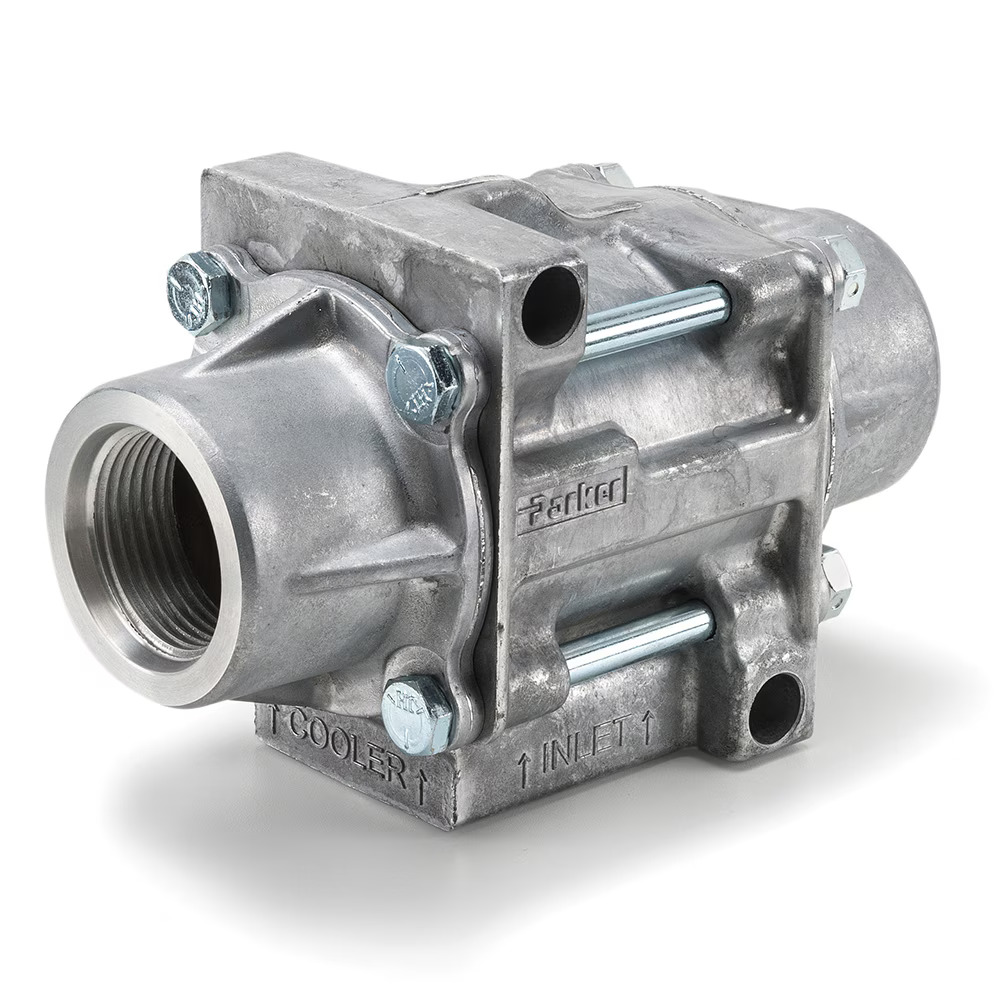

Temperature responsive bypass valve to modulate return line oil between tank and oil cooler. Available in 5 shift temperatures, 38°C to 82°C. Integral relief valve to dump excessive inlet pressures to the reservoir. Relief pressure settings available from 0,34 to 6,0 bar. 17 bar maximum operating pressure. Up to 227 l/m flow rates.

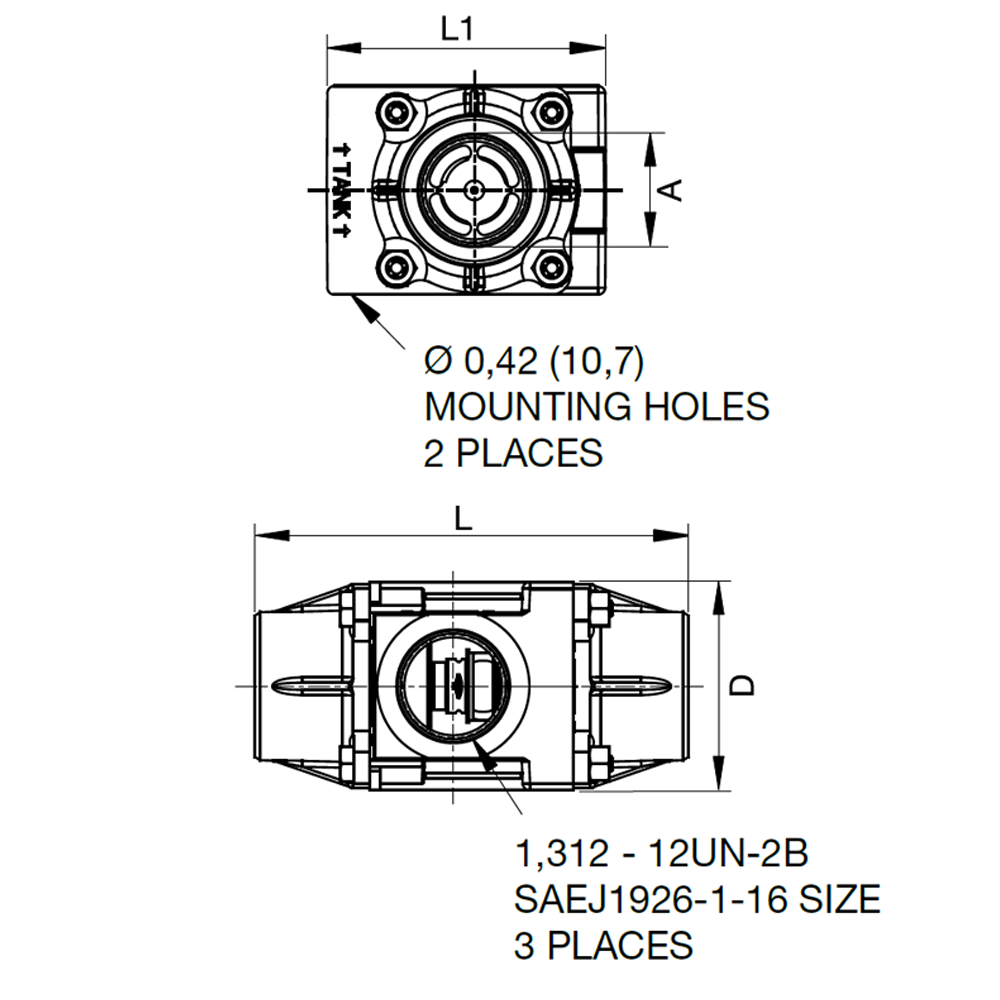

Modulates fluid temperature either by shifting return line flow through the cooler, or by passing directly to the reservoir. Compact construction. 2 mounting holes, each of Ø 10,6 mm. Aluminium die-cast housing. 3 threaded ports for easy tubing. A built-in pressure relief function automatically relieves excess pressure to the reservoir, should the cooler become restricted and the resultant pressure drop become too high for the cooler circuit.

QCProductCategory	Thermal Valve
Product Classification	Hydraulics
Product Category	Quick Couplings, Valves
Product Group	Hydraulic Quick Couplings
Product Program	Thermal Valves
Product Subprogram	Thermal Valves

Catalogue

Hydraulic Quick Couplings 3800 HYD UK 2017 1
(21.56 mb) Hydraulic Quick Couplings 3800 UK 2021 11
(19.41 mb) Process Quick Couplings 4220 US 2008 4
(1.62 mb) Schrader Quick Couplings
(0.71 mb) Snaptite Quick Couplings Full Catalogue
(11.48 mb) Snaptite Repair Kit Serie 71
(0.07 mb) Pneumtic Quick Couplings 3800 PNEU UK 2017
(35.49 mb) Mould Couplings CAT 3800 MOLD UK Feb 2018
(10.71 mb) Thermal Management Quick Connect Solutions For Tempering & Cooling BUL3800-1 01 2021
(4.40 mb)

Web Article

Snap-tite 71

Show fullscreen image

Hymatik number	Supplier Item Number	QCConnectionA	QCBodySize	Weight	L (mm)	D (mm)	Weight Gr	L1 (mm)	Shift Degrees Celsius	Cracking Pressure Bar	Country of origin	TariffNumber	Unit price	Stock status	Sort Order
H00031457	TH-1000-16FO-01	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	0.35				Not in stock	2147483647
H00031458	TH-1000-16FO-02	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	0.70				Not in stock	2147483647
H00031459	TH-1000-16FO-03	1 5/16-12 UN	1"	0.956, KG	138.20	66.50	907	89.20	38	1.05	US, USA	84812010		Not in stock	2147483647
H00031460	TH-1000-16FO-04	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	1.40				Not in stock	2147483647
H00031461	TH-1000-16FO-05	1 5/16-12 UN	1"	0.995, KG	138.20	66.50	907	89.20	38	1.70	US, USA	84812010		Not in stock	2147483647
H00031462	TH-1000-16FO-06	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	2.10				Not in stock	2147483647
H00031463	TH-1000-16FO-07	1 5/16-12 UN	1"		138.20	66.50	907	89.20	38	2.40				Not in stock	2147483647
H00031464	TH-1000-16FO-08	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	2.75				Not in stock	2147483647
H00031465	TH-1000-16FO-09	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	3.10				Not in stock	2147483647
H00031466	TH-1000-16FO-10	1 5/16-12 UN	1"	0.8925, KG	138.20	66.50	907	89.20	38	3.45	US, USA	84812010		Not in stock	2147483647
H00031467	TH-1000-16FO-11	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	3.80				Not in stock	2147483647
H00031468	TH-1000-16FO-12	1 5/16-12 UN	1"		138.20	66.50	907	89.20	38	4.15				At central warehouse	2147483647
H00031469	TH-1000-16FO-13	1 5/16-12 UN	1"		138.20	66.50	907	89.20	38	4.50				At central warehouse	2147483647
H00031470	TH-1000-16FO-14	1 5/16-12 UN	1"	0.9605, KG	138.20	66.50	907	89.20	38	4.85	US, USA	84812010		Not in stock	2147483647
H00031471	TH-1000-16FO-15	1 5/16-12 UN	1"	0.9118, KG	138.20	66.50	907	89.20	38	5.20	US, USA	84812010		Not in stock	2147483647
H00031472	TH-1000-16FO-16	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	38	5.50				Not in stock	2147483647
H00031473	TH-1000-16FO-17	1 5/16-12 UN	1"	0.98, KG	138.20	66.50	907	89.20	38	5.85	US, USA	84812010		Not in stock	2147483647
H00031474	TH-1000-16FO-21	1 5/16-12 UN	1"		138.20	66.50	907	89.20	49	0.35				Not in stock	2147483647
H00031475	TH-1000-16FO-22	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	49	0.70				Not in stock	2147483647
H00031476	TH-1000-16FO-23	1 5/16-12 UN	1"	0.86, KG	138.20	66.50	907	89.20	49	1.05	US, USA	84812010		At central warehouse	2147483647
H00031477	TH-1000-16FO-24	1 5/16-12 UN	1"	0.92, KG	138.20	66.50	907	89.20	49	1.40	US, USA	84812010		Not in stock	2147483647
H00031478	TH-1000-16FO-25	1 5/16-12 UN	1"		138.20	66.50	907	89.20	49	1.70				Not in stock	2147483647
H00031479	TH-1000-16FO-26	1 5/16-12 UN	1"	0.8837, KG	138.20	66.50	907	89.20	49	2.10	US, USA	84812010		At central warehouse	2147483647
H00031480	TH-1000-16FO-27	1 5/16-12 UN	1"	0.7, KG	138.20	66.50	907	89.20	49	2.40	US, USA	84812010		Not in stock	2147483647
H00031481	TH-1000-16FO-28	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	49	2.75				Not in stock	2147483647
H00031482	TH-1000-16FO-29	1 5/16-12 UN	1"	0.9083, KG	138.20	66.50	907	89.20	49	3.10	US, USA	84812010		Not in stock	2147483647
H00031483	TH-1000-16FO-30	1 5/16-12 UN	1"	0.91, KG	138.20	66.50	907	89.20	49	3.45	US, USA	84812010		Not in stock	2147483647
H00031484	TH-1000-16FO-31	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	49	3.80				Not in stock	2147483647
H00031485	TH-1000-16FO-32	1 5/16-12 UN	1"	0.932, KG	138.20	66.50	907	89.20	49	4.15	US, USA	84812010		Not in stock	2147483647
H00031486	TH-1000-16FO-33	1 5/16-12 UN	1"		138.20	66.50	907	89.20	49	4.50				Not in stock	2147483647
H00031487	TH-1000-16FO-34	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	49	4.85				Not in stock	2147483647
H00031488	TH-1000-16FO-35	1 5/16-12 UN	1"	0.9166, KG	138.20	66.50	907	89.20	49	5.20	US, USA	84812010		At central warehouse	2147483647
H00031489	TH-1000-16FO-36	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	49	5.50				Not in stock	2147483647
H00031490	TH-1000-16FO-37	1 5/16-12 UN	1"	0.8937, KG	138.20	66.50	907	89.20	49	5.85	US, USA	84812010		Not in stock	2147483647
H00031491	TH-1000-16FO-41	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	0.35				Not in stock	2147483647
H00031492	TH-1000-16FO-42	1 5/16-12 UN	1"		138.20	66.50	907	89.20	60	0.70				Not in stock	2147483647
H00031493	TH-1000-16FO-43	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	1.05				Not in stock	2147483647
H00031494	TH-1000-16FO-44	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	1.40				Not in stock	2147483647
H00031495	TH-1000-16FO-45	1 5/16-12 UN	1"	0.923, KG	138.20	66.50	907	89.20	60	1.70	US, USA	84812010		Not in stock	2147483647
H00031496	TH-1000-16FO-46	1 5/16-12 UN	1"		138.20	66.50	907	89.20	60	2.10				Not in stock	2147483647
H00031497	TH-1000-16FO-47	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	2.40				Not in stock	2147483647
H00031498	TH-1000-16FO-48	1 5/16-12 UN	1"	0.8862, KG	138.20	66.50	907	89.20	60	2.75	US, USA	84812010		Not in stock	2147483647
H00031499	TH-1000-16FO-49	1 5/16-12 UN	1"	1, KG	138.20	66.50	907	89.20	60	3.10	US, USA	84812010		Not in stock	2147483647
H00031500	TH-1000-16FO-50	1 5/16-12 UN	1"	0.905, KG	138.20	66.50	907	89.20	60	3.45	US, USA	84812010		Not in stock	2147483647
H00031501	TH-1000-16FO-51	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	3.80				Not in stock	2147483647
H00031502	TH-1000-16FO-52	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	4.15				Not in stock	2147483647
H00031503	TH-1000-16FO-53	1 5/16-12 UN	1"	920, GM	138.20	66.50	907	89.20	60	4.50	US, USA	84812010		At central warehouse	2147483647
H00031504	TH-1000-16FO-54	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	4.85				Not in stock	2147483647
H00031505	TH-1000-16FO-55	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	5.20				Not in stock	2147483647
H00031506	TH-1000-16FO-56	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	60	5.50				Not in stock	2147483647
H00031507	TH-1000-16FO-57	1 5/16-12 UN	1"	1, KG	138.20	66.50	907	89.20	60	5.85	US, USA	84812010		Not in stock	2147483647
H00031508	TH-1000-16FO-61	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	0.35				Not in stock	2147483647
H00031509	TH-1000-16FO-62	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	0.70				Not in stock	2147483647
H00031510	TH-1000-16FO-63	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	1.05				Not in stock	2147483647
H00031511	TH-1000-16FO-64	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	1.40				Not in stock	2147483647
H00031512	TH-1000-16FO-65	1 5/16-12 UN	1"		138.20	66.50	907	89.20	71	1.70				At central warehouse	2147483647
H00031513	TH-1000-16FO-66	1 5/16-12 UN	1"	0.909, KG	138.20	66.50	907	89.20	71	2.10	US, USA	84812010		Not in stock	2147483647
H00031514	TH-1000-16FO-67	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	2.40				Not in stock	2147483647
H00031515	TH-1000-16FO-68	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	2.75				Not in stock	2147483647
H00031516	TH-1000-16FO-69	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	3.10				Not in stock	2147483647
H00031517	TH-1000-16FO-70	1 5/16-12 UN	1"	0.922, KG	138.20	66.50	907	89.20	71	3.45	US, USA	84812010	237.26 EUR	Not in stock	2147483647
H00031518	TH-1000-16FO-71	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	3.80				Not in stock	2147483647
H00031519	TH-1000-16FO-72	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	4.15				Not in stock	2147483647
H00031520	TH-1000-16FO-73	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	4.50				Not in stock	2147483647
H00031521	TH-1000-16FO-74	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	4.85				Not in stock	2147483647
H00031522	TH-1000-16FO-75	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	5.20				Not in stock	2147483647
H00031523	TH-1000-16FO-76	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	71	5.50				Not in stock	2147483647
H00031524	TH-1000-16FO-77	1 5/16-12 UN	1"	0.8875, KG	138.20	66.50	907	89.20	71	5.85	US, USA	84812010		Not in stock	2147483647
H00031525	TH-1000-16FO-81	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	0.35				Not in stock	2147483647
H00031526	TH-1000-16FO-82	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	0.70				Not in stock	2147483647
H00031527	TH-1000-16FO-83	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	1.05				Not in stock	2147483647
H00031528	TH-1000-16FO-84	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	1.40				Not in stock	2147483647
H00031529	TH-1000-16FO-85	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	1.70				Not in stock	2147483647
H00031530	TH-1000-16FO-86	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	2.10				Not in stock	2147483647
H00031531	TH-1000-16FO-87	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	2.40				Not in stock	2147483647
H00031532	TH-1000-16FO-88	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	2.75				Not in stock	2147483647
H00031533	TH-1000-16FO-89	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	3.10				Not in stock	2147483647
H00031534	TH-1000-16FO-90	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	3.45				Not in stock	2147483647
H00031535	TH-1000-16FO-91	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	3.80				Not in stock	2147483647
H00031536	TH-1000-16FO-92	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	4.15				Not in stock	2147483647
H00031537	TH-1000-16FO-93	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	4.50				Not in stock	2147483647
H00031538	TH-1000-16FO-94	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	4.85				Not in stock	2147483647
H00031539	TH-1000-16FO-95	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	5.20				Not in stock	2147483647
H00031540	TH-1000-16FO-96	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	5.50				Not in stock	2147483647
H00031541	TH-1000-16FO-97	1 5/16-12 UN	1"	KG	138.20	66.50	907	89.20	82	5.85				Not in stock	2147483647
