Test Point Pressure Gauge Connector With Pin-Lock

Datasheets
MAV MA1
Fitting ends
# End type group End form Thread Sealing
1 Test Point Male Pin Lock Cone w/O-ring
2 BSP Female (Rigid) BSPP Sealing Ring DIN 16258
Fitting data
Shape Straight

Materials (Prod. Summary) Steel
Size Range (mm) 62 - 72 mm
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program Analytical Fittings

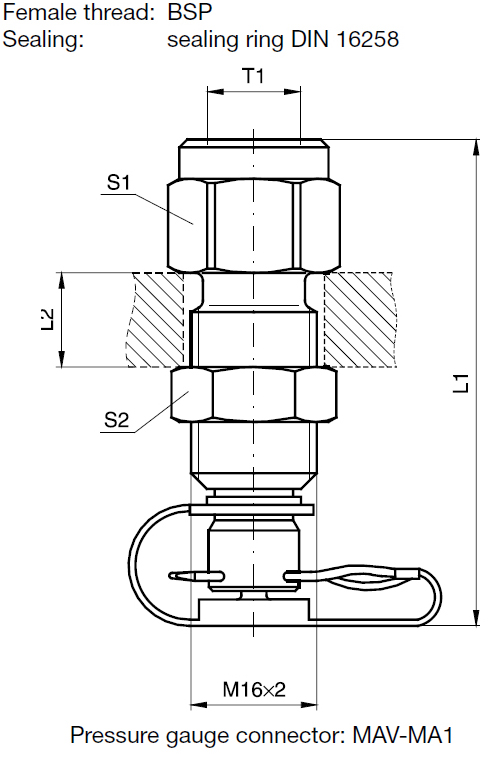

Show fullscreen image
Hymatik number Supplier Item Number
Material
Country of origin
TariffNumber
Weight
T1
S1
S2
L1
L2 MAX
L2
Unit price
Stock status
Favorite Sort Order
H00019401 MAV1/4MA1CF Steel DE, Germany 73079910 0.0808, KG G 1/4 19 19 61.50 12 12 53.23 EUR Not in stock
Minimum 5
 2147483647
7290413403 MAV1/2MA1CF Steel DE, Germany 73079910 0.1398, KG G 1/2 27 19 72 12 12 62.56 EUR Not in stock
Minimum 5
 2147483647

Loading variant data
