Test Point Fitting With Pin-Lock For Cones - Series 1 - With 24° cone swivel nut connection

Datasheets
VKA1
Fitting ends
# End type group End form Thread Sealing
1 Test Point Male Pin Lock Cone w/O-ring
2 DIN - Metric Female Swivel Metric Cone
Fitting data
Shape Straight

Materials (Prod. Summary) Steel
Pressure Series (prod. summary) L, S
Size Range (mm) 6 - 20 mm
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program Analytical Fittings, DIN Metric

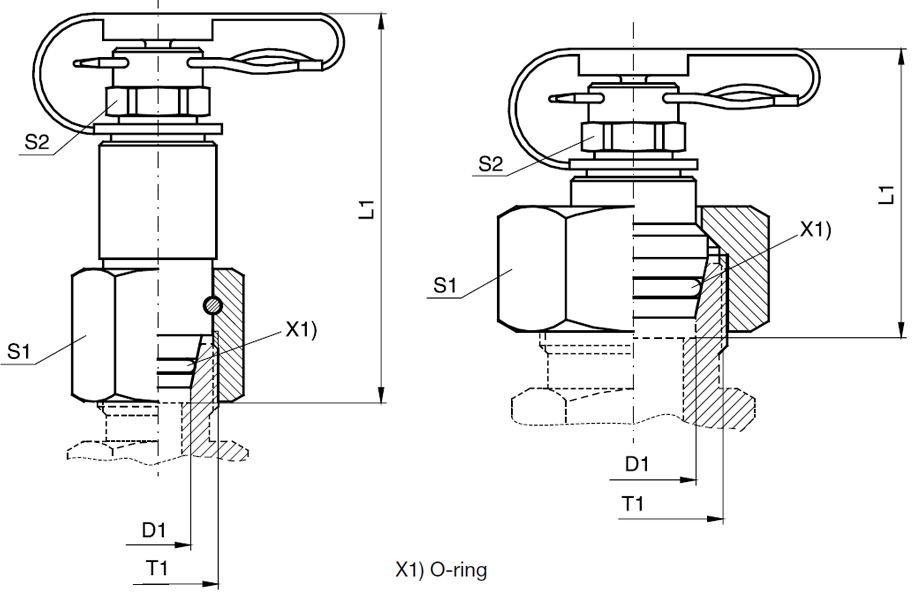

Show fullscreen image
Hymatik number Supplier Item Number
Material
Pressure Series
Country of origin
TariffNumber
Weight
D1
T1
S1
S2
L1
FORM
Unit price
Stock status
Favorite Sort Order
H00019411 VKA1/06LCF Steel L DE, Germany 73079910 0.047, KG 6 M12x1,5 14 12 48 A 53.09 EUR Not in stock
Minimum 10
 2147483647
H00019412 VKA1/08LCF Steel L DE, Germany 73079910 0.058, KG 8 M14x1,5 17 12 49 A 58.61 EUR Not in stock
Minimum 10
 2147483647
H00019413 VKA1/10LCF Steel L DE, Germany 73079910 0.068, KG 10 M16x1,5 19 12 50 A 61.09 EUR Not in stock
Minimum 10
 2147483647
H00019414 VKA1/12LCF Steel L DE, Germany 73079910 0.081, KG 12 M18x1,5 22 12 51 A 63.49 EUR Not in stock
Minimum 10
 2147483647
H00019415 VKA1/15LCF Steel L DE, Germany 73079910 0.0856, KG 15 M22x1,5 27 12 39 B 57.68 EUR Not in stock
Minimum 5
 2147483647
H00019416 VKA1/18LCF Steel L DE, Germany 73079910 0.1011, KG 18 M26x1,5 32 12 38 B 57.68 EUR Not in stock
Minimum 5
 2147483647
H00019417 VKA1/06SCF Steel S DE, Germany 73079910 0.0531, KG 6 M14x1,5 17 12 48 A 56.79 EUR Not in stock
Minimum 10
 2147483647
H00019418 VKA1/08SCF Steel S DE, Germany 73079910 0.064, KG 8 M16x1,5 19 12 50 A 56.71 EUR Not in stock
Minimum 10
 2147483647
H00019419 VKA1/10SCF Steel S DE, Germany 73079910 0.081, KG 10 M18x1,5 22 12 50 A Not in stock 2147483647
H00019420 VKA1/12SCF Steel S DE, Germany 73079910 0.098, KG 12 M20x1,5 24 12 51 A 58.42 EUR Not in stock
Minimum 10
 2147483647
H00019421 VKA1/14SCF Steel S 14 M22x1,5 27 12 39 B Not in stock 2147483647
H00019422 VKA1/16SCF Steel S DE, Germany 73079910 0.1082, KG 16 M24x1,5 30 12 37 B 54.95 EUR Not in stock
Minimum 5
 2147483647
H00019423 VKA1/20SCF Steel S DE, Germany 73079910 0.1807, KG 20 M30x2 36 12 44 B 67.54 EUR Not in stock
Minimum 5
 2147483647
