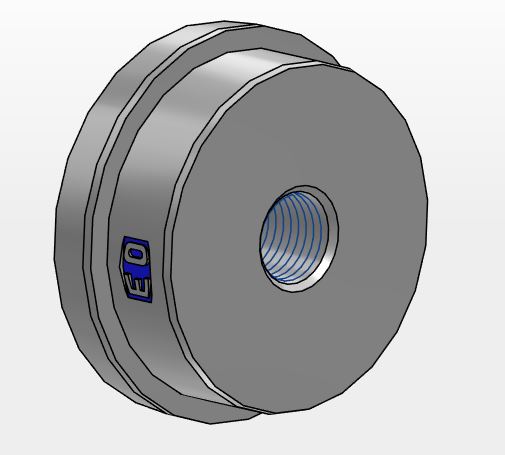

Test Point Connector - O-Lok® ORFS swivel female end / Female BSPP thread for EMA3 test point

ISO 1179-1

O-Lok
Datasheet
Fitting ends
# End type group End form Thread Sealing
1 ORFS Female Swivel UNF Flat Seat
2 Test Point Female (Rigid) BSPP Seal from male part
Fitting data
Shape Straight

Materials (Prod. Summary) Stainless steel, Steel
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program ORFS / OLok / Flatface, Analytical Fittings
Product Subprogram Component
Item number Supplier item numbers Alternative item numbers
H00010107 4TT4MLS A9B00026391
P0496991 6TT4MLS A9B00012429
H00010108 8TT4MLS A9B00026393
H00010109 10TT4LS A9B00026394
H00010110 12TT4LS A9B00026396
H00010111 16TT4LS A9B00026397
H00010112 20TT4LS A9B00026398
H00010113 24TT4LS A9B00026399
Show fullscreen image
Info Hymatik Part Number Supplier Item Number
End 1 - End form
End 1 - End Type Group
End 1 Tube Sizes
End 1 Thread Size
End 1 Thread Type
End 1 - Sealing
End 2 - End form
End 2 - End Type Group
End 2 Thread Size
End 2 Thread Type
End 2 - Sealing
Material
Connection Combination
Country of origin
TariffNumber
Weight

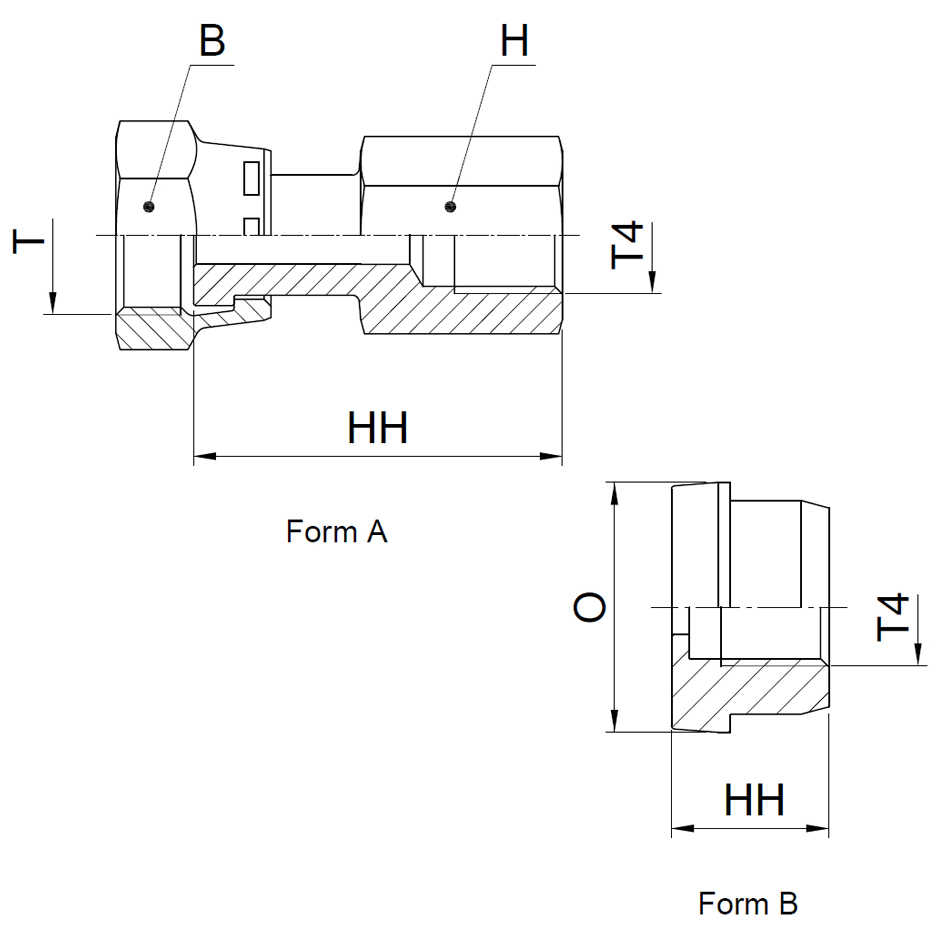

T
T4
H
FORM
Unit price          Favorite    Sort Order
