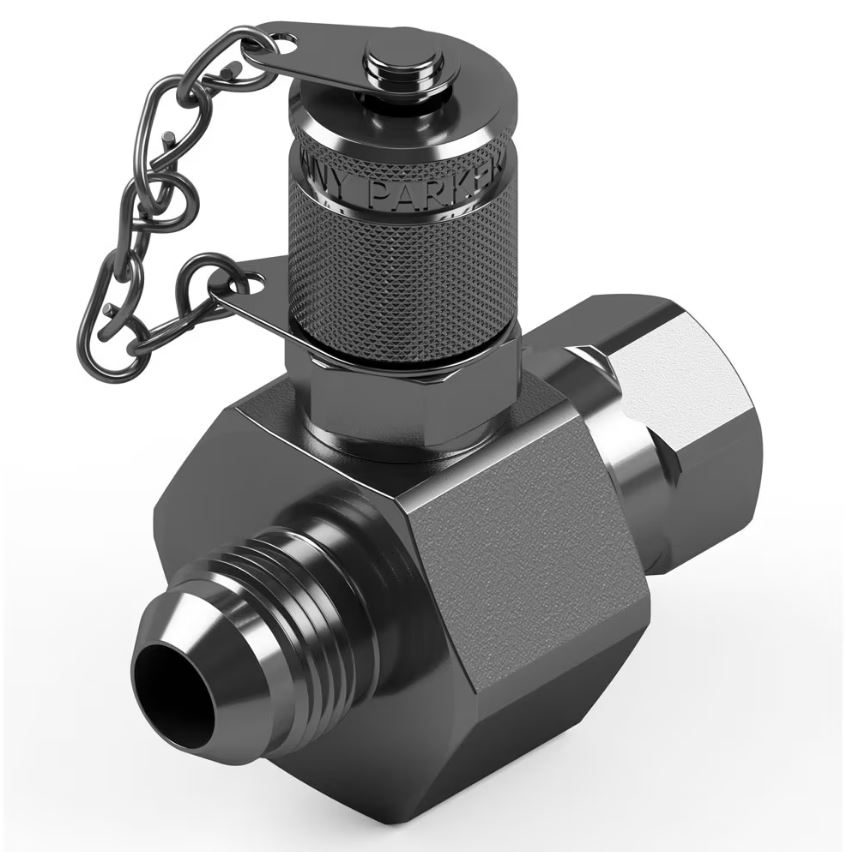

Test Point Connector - Male / Female swivel 37° flare end / EMA3 test point

Datasheets

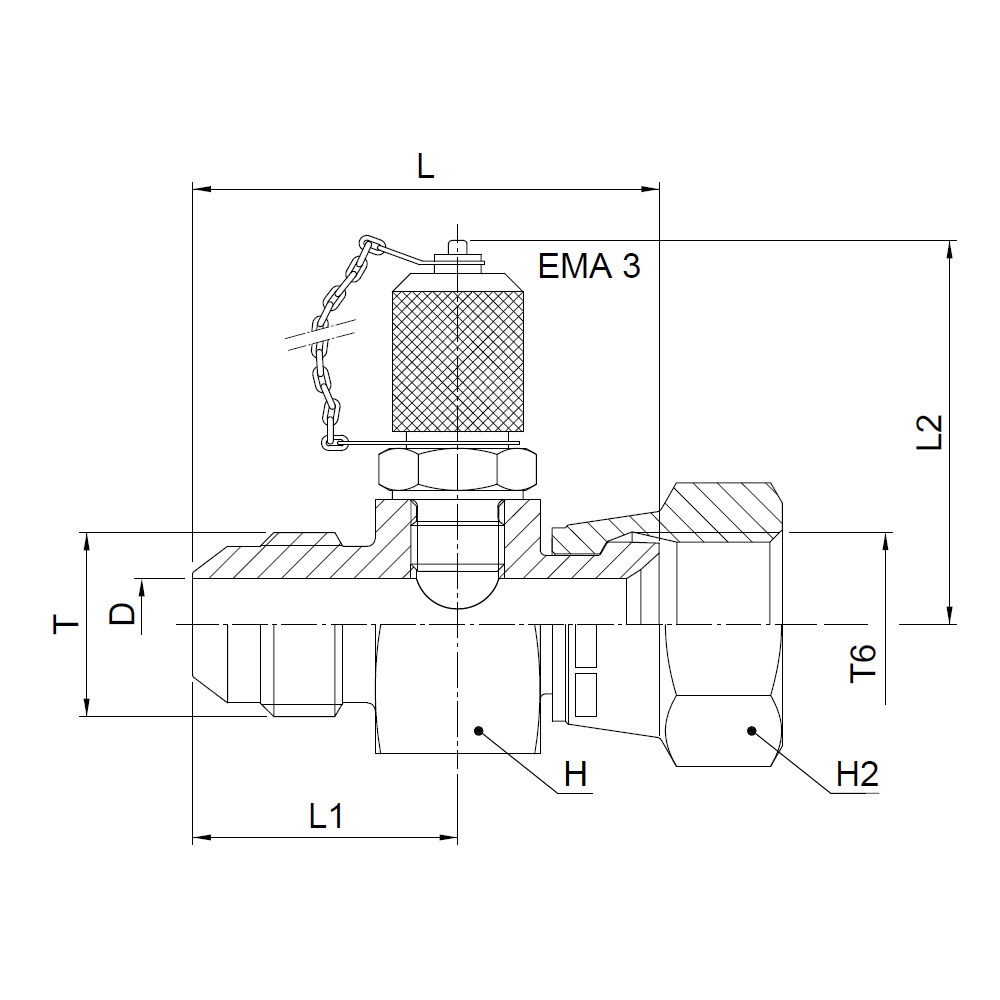

R6P4MX Triple Lok
Fitting ends
# End type group End form Thread Sealing
1 JIC Male UNF Cone
2 JIC Female Swivel UNF Flare
3 Test Point Male Metric O-ring
Fitting data
Shape TEE

Materials (Prod. Summary) Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program JIC / Triple-Lok, Analytical Fittings
Show fullscreen image
Hymatik number Supplier Item Number
Material
Country of origin
TariffNumber
Weight
AD
OD
GEWT6
H
H2
L
L1
Unit price
Stock status
Favorite Sort Order
H00012288 4-4R6P4MXS Steel PL, Poland 73079910 0.3, KG 6 1/4" 7/16-20 36 16 45 26 178.04 EUR Not in stock
2147483647
H00012289 5-4R6P4MXS Steel PL, Poland 73079910 0.2891, KG 8 5/16" 1/2-20 36 17 46 26 178.04 EUR Not in stock
Minimum 2
 2147483647
H00012290 6-4R6P4MXS Steel PL, Poland 73079910 0.312, KG 10 3/8" 9/16-18 36 19 47 26 178.04 EUR Not in stock
2147483647
H00012291 8-4R6P4MXS Steel PL, Poland 73079910 0.32, KG 12 1/2" 3/4-16 36 22 50 28 178.04 EUR Not in stock
2147483647
H00012292 10-4R6P4MXS Steel PL, Poland 73079910 0.35, KG 14,15,16 5/8" 7/8-14 36 27 54 31 176.80 EUR At central warehouse
Minimum 2
 2147483647
H00012293 12-4R6P4MXS Steel PL, Poland 73079910 0.4266, KG 18.20 3/4" 1 1/16-12 41 32 56 34 230.28 EUR Not in stock
2147483647
H00012294 16-4R6P4MXS Steel PL, Poland 73079910 0.5335, KG 25 1 1 5/16-12 46 38 60 35 237.06 EUR Not in stock
2147483647
H00012295 20-4R6P4MXS Steel PL, Poland 73079910 0.74, KG 28,30,32 1 1/4 1 5/8-12 50 50 64 36 263.89 EUR At central warehouse
2147483647
H00012296 24-4R6P4MXS Steel PL, Poland 73079910 1.04, KG 35.38 1 1/2 1 7/8-12 60 60 69 39 424.44 EUR Not in stock
2147483647
