Test Point Connector - 37° Flare female end / Female BSPP thread for EMA3 test point

ISO 1179-1

Datasheet
Fitting ends
# End type group End form Thread Sealing
1 JIC Female Swivel UNF Flare
2 Ultra High Pressure Female (Rigid) BSPP Seal from male part
Fitting data
Shape Straight

Materials (Prod. Summary) Steel, Stainless steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program JIC / Triple-Lok, Analytical Fittings
Item number Supplier item numbers Alternative item numbers
H00012313 10TT4MXS A9B00026121

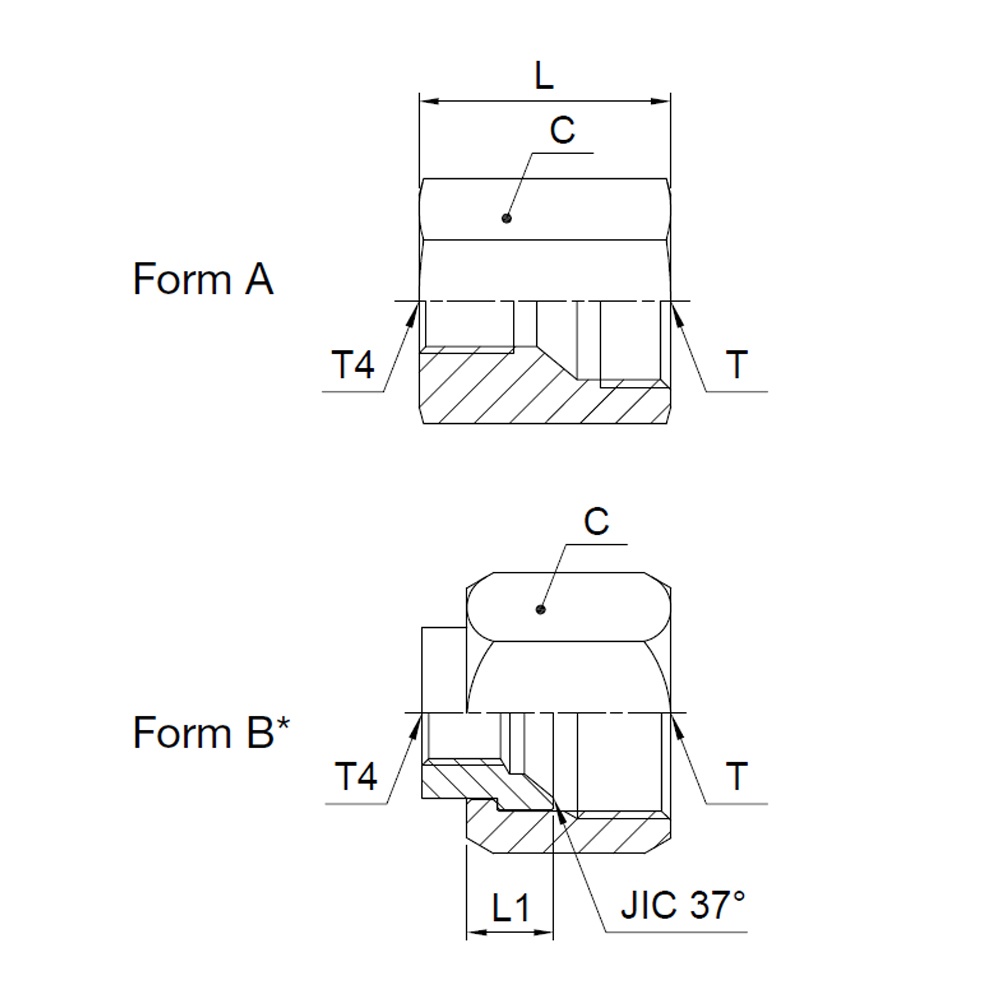

Show fullscreen image
Info Hymatik Part Number Supplier Item Number
End 1 - End form
End 1 - End Type Group
End 1 Tube Sizes
End 1 Thread Size
End 1 Thread Type
End 1 - Sealing
End 2 - End form
End 2 - End Type Group
End 2 Thread Size
End 2 Thread Type
End 2 - Sealing
Material
Connection Combination
Country of origin
TariffNumber
Weight
AD
OD
GEW
GEWT
FORM
C
L
L1
