Test Point Connection - 37° Flare female end / EMA3 test point

Datasheets

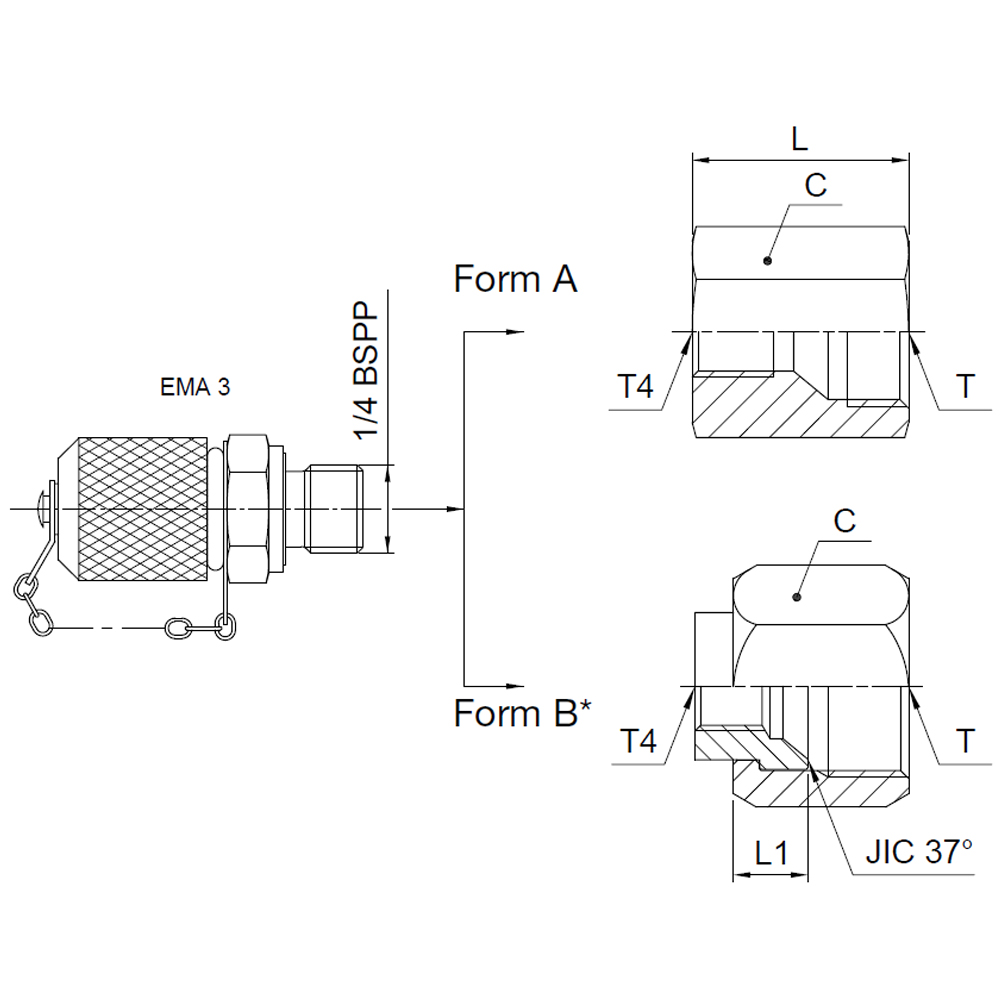

TTP4MX Triple Lok
Fitting ends
# End type group End form Thread Sealing
1 JIC Female Swivel UNF Cone
2 Test Point Female (Rigid) Metric Seal from male part
Fitting data
Shape Straight

Materials (Prod. Summary) Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Testpoint-To-Other Connection
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program JIC / Triple-Lok, Analytical Fittings
Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
Country of origin
TariffNumber
Weight
AD
OD
GEW
GEWT
FORM
C
L
L1
Unit price
Stock status
Favorite Sort Order
7290553790 4TTP4MXS Discontinued from standard assortment when sold out Steel PL, Poland 73079910 0.1332, KG 6 1/4" 1/4-19 7/16-20 A 19 29 0 49.53 EUR In stock
2147483647
H00012297 5TTP4MXS Steel PL, Poland 73079910 0.132, KG 8 5/16" 1/4-19 1/2-20 A 19 29 0 49.27 EUR Not in stock
Minimum 5
 2147483647
7290553805 6TTP4MXS Steel PL, Poland 73079910 0.1301, KG 10 3/8" 1/4-19 9/16-18 A 19 29 0 47.32 EUR In stock
2147483647
7290553810 8TTP4MXS Steel PL, Poland 73079910 0.1494, KG 12 1/2" 1/4-19 3/4-16 A 22 32 0 51.58 EUR In stock
2147483647
7290553815 10TTP4MXS Steel PL, Poland 73079910 0.1881, KG 14,15,16 5/8" 1/4-19 7/8-14 A 27 32 0 49.38 EUR In stock
2147483647
7290553819 12TTP4XS Steel PL, Poland 73079910 0.1929, KG 18.20 3/4" 1/4-19 1 1/16-12 B 32 0 13 52.71 EUR In stock
2147483647
H00012298 16TTP4XS Steel PL, Poland 73079910 0.28, KG 25 1 1/4-19 1 5/16-12 B 41 0 13 67.91 EUR Not in stock
Minimum 5
 2147483647
H00012299 20TTP4XS Steel 28,30,32 1 1/4 1/4-19 1 5/8-12 B 50 0 15 Not in stock 2147483647
H00012300 24TTP4XS Steel 35.38 1 1/2 1/4-19 1 7/8-12 B 60 0 18 Not in stock 2147483647
