Straight Test Point With Threaded Connection M 16×2 - Series 3

Datasheets
GMA3
Fitting ends
# End type group End form Thread Sealing
1 DIN - Metric Male Metric Flare
2 DIN - Metric Male Metric Flare
3 Test Point Male Metric M16x2 Cone w/O-ring
Fitting data
Shape TEE

Materials (Prod. Summary) Stainless steel, Steel
Pressure Series (prod. summary) L, S
Size Range (mm) 6 - 42 mm
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program Analytical Fittings, DIN Metric

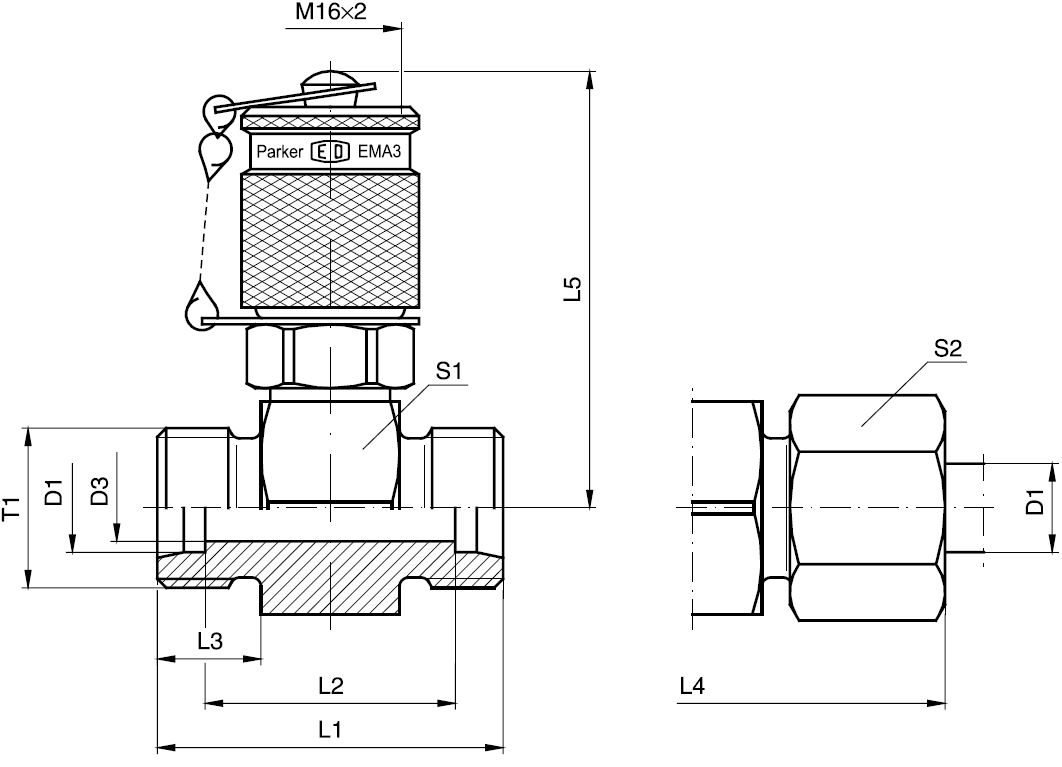

Show fullscreen image
Hymatik number Supplier Item Number Availability Substitute item
Material
Pressure Series
Country of origin
TariffNumber
Weight
D1
FittingCompleteness
T1
D3
S1
S2
L1
L2
L3
L4
L5
Unit price
Stock status
Favorite Sort Order
H00019442 GMA3/06ZLCF Obsolete H00019443
Steel L PL, Poland 73079910 0.1486, KG 6 M12x1,5 4 24 14 35 21 10 51 49 Not in stock 2147483647
H00019443 GMA3/06LCF Steel L PL, Poland 73079910 0.1519, KG 6 M12x1,5 4 24 14 35 21 10 51 49 71.60 EUR Not in stock
Minimum 5
 2147483647
7290620100 GMA3/06LOMDCF Discontinued from standard assortment when sold out Steel L PL, Poland 73079910 0.1265, KG 6 Body only M12x1,5 4 24 14 35 21 10 51 49 65.97 EUR In stock
2147483647
H00019444 GMA3/06L71 Stainless steel L 6 M12x1,5 4 24 14 35 21 10 51 49 Not in stock 2147483647
H00019445 GMA3/06LOMD71 Stainless steel L PL, Poland 73072910 0.153, KG 6 Body only M12x1,5 4 24 14 35 21 10 51 49 326.41 EUR Not in stock
Minimum 5
 2147483647
H00019446 GMA3/08ZLCF Obsolete 7290413462
Steel L PL, Poland 73079910 0.1607, KG 8 M14x1,5 6 24 17 35 21 10 51 49 Not in stock 2147483647
7290413462 GMA3/08LCF Steel L PL, Poland 73079910 0.16, KG 8 M14x1,5 6 24 17 35 21 10 51 49 63.96 EUR Not in stock
Minimum 5
 2147483647
7290620105 GMA3/08LOMDCF Steel L PL, Poland 73079910 0.126, KG 8 Body only M14x1,5 6 24 17 35 21 10 51 49 55.71 EUR At central warehouse
Minimum 5
 2147483647
H00019447 GMA3/08L71 Stainless steel L PL, Poland 73072910 0.1823, KG 8 M14x1,5 6 24 17 35 21 10 51 49 344.04 EUR Not in stock
Minimum 5
 2147483647
H00019448 GMA3/08LOMD71 Stainless steel L PL, Poland 73072910 0.148, KG 8 Body only M14x1,5 6 24 17 35 21 10 51 49 333.63 EUR Not in stock
Minimum 5
 2147483647
H00019449 GMA3/10ZLCF Steel L PL, Poland 73079910 0.1807, KG 10 M16x1,5 7 24 19 37 23 11 53 49 107.13 EUR Not in stock
Minimum 3
 2147483647
7290413463 GMA3/10LCF Steel L PL, Poland 73079910 0.1757, KG 10 M16x1,5 7 24 19 37 23 11 53 49 70.14 EUR Not in stock
Minimum 5
 2147483647
7290620110 GMA3/10LOMDCF Discontinued from standard assortment when sold out Steel L PL, Poland 73079910 0.1333, KG 10 Body only M16x1,5 7 24 19 37 23 11 53 49 60.37 EUR In stock
2147483647
H00019450 GMA3/10L71 Stainless steel L PL, Poland 73072910 0.2, KG 10 M16x1,5 7 24 19 37 23 11 53 49 367.21 EUR Not in stock
Minimum 5
 2147483647
H00019451 GMA3/10LOMD71 Stainless steel L PL, Poland 73072910 0.1378, KG 10 Body only M16x1,5 7 24 19 37 23 11 53 49 355.12 EUR At central warehouse
Minimum 5
 2147483647
H00019452 GMA3/12ZLCF Steel L PL, Poland 73079910 0.1871, KG 12 M18x1,5 10 27 22 37 23 11 53 50 93.03 EUR Not in stock
Minimum 5
 2147483647
H00019453 GMA3/12LCF Steel L PL, Poland 73079910 0.1933, KG 12 M18x1,5 10 27 22 37 23 11 53 50 66.76 EUR At central warehouse
Minimum 3
 2147483647
7290620115 GMA3/12LOMDCF Discontinued from standard assortment when sold out Steel L PL, Poland 73079910 0.1363, KG 12 Body only M18x1,5 10 27 22 37 23 11 53 50 63.17 EUR In stock
2147483647
H00019454 GMA3/12L71 Stainless steel L PL, Poland 73072910 0.209, KG 12 M18x1,5 10 27 22 37 23 11 53 50 369.91 EUR Not in stock
Minimum 5
 2147483647
H00019455 GMA3/12LOMD71 Stainless steel L PL, Poland 73072910 0.142, KG 12 Body only M18x1,5 10 27 22 37 23 11 53 50 308.74 EUR Not in stock
Minimum 5
 2147483647
H00019456 GMA3/15ZLCF Steel L PL, Poland 73079910 0.2701, KG 15 M22x1,5 12 30 27 39 25 12 55 52 123.73 EUR Not in stock
Minimum 5
 2147483647
H00019457 GMA3/15LCF Steel L PL, Poland 73079910 0.266, KG 15 M22x1,5 12 30 27 39 25 12 55 52 76.92 EUR Not in stock
Minimum 5
 2147483647
7290620120 GMA3/15LOMDCF Discontinued from standard assortment when sold out Steel L PL, Poland 73079910 0.18, KG 15 Body only M22x1,5 12 30 27 39 25 12 55 52 67.02 EUR In stock
2147483647
H00019458 GMA3/15L71 Stainless steel L PL, Poland 73072910 0.3, KG 15 M22x1,5 12 30 27 39 25 12 55 52 431.64 EUR Not in stock
Minimum 5
 2147483647
H00019459 GMA3/15LOMD71 Stainless steel L PL, Poland 73072910 0.185, KG 15 Body only M22x1,5 12 30 27 39 25 12 55 52 418.77 EUR Not in stock
Minimum 5
 2147483647
H00019460 GMA3/18ZLCF Steel L PL, Poland 73079910 0.1378, KG 18 M26x1,5 15 32 32 39 24 12 57 53 141.17 EUR Not in stock
Minimum 2
 2147483647
7290413466 GMA3/18LCF Steel L PL, Poland 73079910 0.3425, KG 18 M26x1,5 15 32 32 39 24 12 57 53 86.91 EUR Not in stock
Minimum 2
 2147483647
7290620125 GMA3/18LOMDCF Discontinued from standard assortment when sold out Steel L PL, Poland 73079910 0.21, KG 18 Body only M26x1,5 15 32 32 39 24 12 57 53 65.13 EUR In stock
2147483647
H00019461 GMA3/18L71 Stainless steel L PL, Poland 73072910 0.3586, KG 18 M26x1,5 15 32 32 39 24 12 57 53 Not in stock 2147483647
H00019462 GMA3/18LOMD71 Stainless steel L PL, Poland 73072910 0.214, KG 18 Body only M26x1,5 15 32 32 39 24 12 57 53 380.12 EUR Not in stock
Minimum 2
 2147483647
H00019463 GMA3/22ZLCF Steel L PL, Poland 73079910 0.4057, KG 22 M30x2 19 36 36 43 28 14 61 55 176.24 EUR Not in stock
Minimum 2
 2147483647
H00019464 GMA3/22LCF Steel L PL, Poland 73079910 0.42, KG 22 M30x2 19 36 36 43 28 14 61 55 93.03 EUR Not in stock
Minimum 2
 2147483647
7290620130 GMA3/22LOMDCF Steel L PL, Poland 73079910 0.2288, KG 22 Body only M30x2 19 36 36 43 28 14 61 55 73.49 EUR Not in stock
Minimum 2
 2147483647
H00019465 GMA3/22L71 Stainless steel L PL, Poland 73072910 0.4496, KG 22 M30x2 19 36 36 43 28 14 61 55 590.56 EUR Not in stock
Minimum 2
 2147483647
H00019466 GMA3/22LOMD71 Stainless steel L PL, Poland 73072910 0.2497, KG 22 Body only M30x2 19 36 36 43 28 14 61 55 526.14 EUR Not in stock
Minimum 2
 2147483647
H00019467 GMA3/28ZLCF Obsolete H00019468
Steel L PL, Poland 73079910 0.4849, KG 28 M36x2 24 41 41 43 28 14 61 57 Not in stock 2147483647
H00019468 GMA3/28LCF Steel L PL, Poland 73079910 0.4785, KG 28 M36x2 24 41 41 43 28 14 61 57 132.37 EUR Not in stock
Minimum 2
 2147483647
7290620135 GMA3/28LOMDCF Steel L PL, Poland 73079910 0.2784, KG 28 Body only M36x2 24 41 41 43 28 14 61 57 95.69 EUR Not in stock
Minimum 2
 2147483647
H00019469 GMA3/28L71 Stainless steel L PL, Poland 73072910 0.5, KG 28 M36x2 24 41 41 43 28 14 61 57 818.55 EUR Not in stock
Minimum 2
 2147483647
H00019470 GMA3/28LOMD71 Stainless steel L PL, Poland 73072910 0.306, KG 28 Body only M36x2 24 41 41 43 28 14 61 57 423.18 EUR Not in stock
Minimum 2
 2147483647
H00019471 GMA3/35ZLCF Obsolete H00019472
Steel L PL, Poland 73079910 0.6614, KG 35 M45x2 29 46 50 47 26 16 69 60 Not in stock 2147483647
H00019472 GMA3/35LCF Steel L PL, Poland 73079910 0.679, KG 35 M45x2 29 46 50 47 26 16 69 60 161.32 EUR Not in stock
Minimum 2
 2147483647
7290620140 GMA3/35LOMDCF Steel L PL, Poland 73079910 0.3465, KG 35 Body only M45x2 29 46 50 47 26 16 69 60 121.55 EUR Not in stock
Minimum 2
 2147483647
H00019473 GMA3/35L71 Stainless steel L 35 M45x2 29 46 50 47 26 16 69 60 Not in stock 2147483647
H00019474 GMA3/35LOMD71 Stainless steel L PL, Poland 73072910 0.3521, KG 35 Body only M45x2 29 46 50 47 26 16 69 60 562.80 EUR Not in stock
Minimum 2
 2147483647
H00019475 GMA3/42ZLCF Steel L 42 M52x2 36 55 60 47 25 16 71 64 Not in stock 2147483647
H00019476 GMA3/42LCF Steel L PL, Poland 73079910 0.9116, KG 42 M52x2 36 55 60 47 25 16 71 64 195.73 EUR Not in stock
Minimum 2
 2147483647
7290620145 GMA3/42LOMDCF Steel L PL, Poland 73079910 0.4182, KG 42 Body only M52x2 36 55 60 47 25 16 71 64 151.91 EUR Not in stock
Minimum 2
 2147483647
H00019477 GMA3/42L71 Stainless steel L 42 M52x2 36 55 60 47 25 16 71 64 Not in stock 2147483647
H00019478 GMA3/42LOMD71 Stainless steel L PL, Poland 73072910 0.444, KG 42 Body only M52x2 36 55 60 47 25 16 71 64 Not in stock 2147483647
H00019479 GMA3/06ZSCF Obsolete H00019480
Steel S PL, Poland 73079910 0.1233, KG 6 M14x1,5 4 24 17 39 25 12 55 49 Not in stock 2147483647
H00019480 GMA3/06SCF Steel S PL, Poland 73079910 0.1669, KG 6 M14x1,5 4 24 17 39 25 12 55 49 74.63 EUR Not in stock
Minimum 5
 2147483647
7290620150 GMA3/06SOMDCF Steel S PL, Poland 73079910 0.1351, KG 6 Body only M14x1,5 4 24 17 39 25 12 55 49 71.60 EUR Not in stock
Minimum 5
 2147483647
H00019481 GMA3/06S71 Stainless steel S 6 M14x1,5 4 24 17 39 25 12 55 49 Not in stock 2147483647
H00019482 GMA3/06SOMD71 Stainless steel S 6 Body only M14x1,5 4 24 17 39 25 12 55 49 Not in stock 2147483647
H00019483 GMA3/08ZSCF Steel S 8 M16x1,5 5 24 19 39 25 12 55 49 Not in stock 2147483647
H00019484 GMA3/08SCF Steel S PL, Poland 73079910 0.188, KG 8 M16x1,5 5 24 19 39 25 12 55 49 71.10 EUR Not in stock
Minimum 5
 2147483647
7290620155 GMA3/08SOMDCF Discontinued from standard assortment when sold out Steel S PL, Poland 73079910 0.1388, KG 8 Body only M16x1,5 5 24 19 39 25 12 55 49 63.41 EUR In stock
2147483647
H00019485 GMA3/08S71 Stainless steel S 8 M16x1,5 5 24 19 39 25 12 55 49 Not in stock 2147483647
H00019486 GMA3/08SOMD71 Stainless steel S PL, Poland 73072910 0.1402, KG 8 Body only M16x1,5 5 24 19 39 25 12 55 49 446.71 EUR Not in stock
Minimum 5
 2147483647
H00019487 GMA3/10ZSCF Steel S PL, Poland 73079910 0.216, KG 10 M18x1,5 7 24 22 39 24 12 57 49 98.16 EUR Not in stock
Minimum 5
 2147483647
H00019488 GMA3/10SCF Steel S PL, Poland 73079910 0.2116, KG 10 M18x1,5 7 24 22 39 24 12 57 49 70.10 EUR Not in stock
Minimum 5
 2147483647
7290620160 GMA3/10SOMDCF Steel S PL, Poland 73079910 0.144, KG 10 Body only M18x1,5 7 24 22 39 24 12 57 49 65.42 EUR Not in stock
Minimum 5
 2147483647
H00019489 GMA3/10S71 Stainless steel S 10 M18x1,5 7 24 22 39 24 12 57 49 Not in stock 2147483647
H00019490 GMA3/10SOMD71 Stainless steel S 10 Body only M18x1,5 7 24 22 39 24 12 57 49 Not in stock 2147483647
H00019491 GMA3/12ZSCF Steel S PL, Poland 73079910 0.235, KG 12 M20x1,5 7 24 24 39 24 12 57 49 126.83 EUR Not in stock
Minimum 5
 2147483647
H00019492 GMA3/12SCF Steel S PL, Poland 73079910 0.2333, KG 12 M20x1,5 7 24 24 39 24 12 57 49 77.72 EUR Not in stock
Minimum 5
 2147483647
7290620165 GMA3/12SOMDCF Steel S PL, Poland 73079910 0.1495, KG 12 Body only M20x1,5 7 24 24 39 24 12 57 49 62.32 EUR Not in stock
Minimum 5
 2147483647
H00019493 GMA3/12S71 Stainless steel S PL, Poland 73072910 0.24, KG 12 M20x1,5 7 24 24 39 24 12 57 49 489.80 EUR Not in stock
Minimum 5
 2147483647
H00019494 GMA3/12SOMD71 Stainless steel S PL, Poland 73072910 0.1556, KG 12 Body only M20x1,5 7 24 24 39 24 12 57 49 448.90 EUR Not in stock
Minimum 5
 2147483647
H00019495 GMA3/14ZSCF Steel S 14 M22x1,5 10 27 27 43 27 14 63 50 Not in stock 2147483647
H00019496 GMA3/14SCF Steel S PL, Poland 73079910 0.276, KG 14 M22x1,5 10 27 27 43 27 14 63 50 80.73 EUR Not in stock
Minimum 5
 2147483647
7290620170 GMA3/14SOMDCF Steel S PL, Poland 73079910 0.1774, KG 14 Body only M22x1,5 10 27 27 43 27 14 63 50 74.63 EUR Not in stock
Minimum 5
 2147483647
H00019497 GMA3/14S71 Stainless steel S 14 M22x1,5 10 27 27 43 27 14 63 50 Not in stock 2147483647
H00019498 GMA3/14SOMD71 Stainless steel S 14 Body only M22x1,5 10 27 27 43 27 14 63 50 Not in stock 2147483647
H00019499 GMA3/16ZSCF Steel S PL, Poland 73079910 0.33, KG 16 M24x1,5 12 30 30 43 26 14 63 52 164.58 EUR Not in stock
Minimum 2
 2147483647
H00019500 GMA3/16SCF Steel S PL, Poland 73079910 0.3512, KG 16 M24x1,5 12 30 30 43 26 14 63 52 80.15 EUR Not in stock
Minimum 2
 2147483647
7290620175 GMA3/16SOMDCF Steel S PL, Poland 73079910 0.1976, KG 16 Body only M24x1,5 12 30 30 43 26 14 63 52 65.13 EUR Not in stock
Minimum 5
 2147483647
H00019501 GMA3/16S71 Stainless steel S PL, Poland 73072910 0.36, KG 16 M24x1,5 12 30 30 43 26 14 63 52 473.05 EUR Not in stock
Minimum 2
 2147483647
H00019502 GMA3/16SOMD71 Stainless steel S PL, Poland 73072910 0.213, KG 16 Body only M24x1,5 12 30 30 43 26 14 63 52 473.94 EUR Not in stock
Minimum 2
 2147483647
H00019503 GMA3/20ZSCF Steel S 20 M30x2 16 36 36 47 26 16 69 55 Not in stock 2147483647
H00019504 GMA3/20SCF Steel S PL, Poland 73079910 0.5024, KG 20 M30x2 16 36 36 47 26 16 69 55 99.15 EUR Not in stock
Minimum 2
 2147483647
7290620180 GMA3/20SOMDCF Steel S PL, Poland 73079910 0.2598, KG 20 Body only M30x2 16 36 36 47 26 16 69 55 73.49 EUR At central warehouse
Minimum 2
 2147483647
H00019505 GMA3/20S71 Stainless steel S PL, Poland 73072910 0.5225, KG 20 M30x2 16 36 36 47 26 16 69 55 642.27 EUR Not in stock
Minimum 2
 2147483647
H00019506 GMA3/20SOMD71 Stainless steel S PL, Poland 73072910 0.27, KG 20 Body only M30x2 16 36 36 47 26 16 69 55 502.51 EUR Not in stock
Minimum 2
 2147483647
H00019507 GMA3/25ZSCF Steel S 25 M36x2 20 41 46 51 27 18 75 57 Not in stock 2147483647
H00019508 GMA3/25SCF Steel S PL, Poland 73079910 0.7785, KG 25 M36x2 20 41 46 51 27 18 75 57 138.96 EUR Not in stock
Minimum 2
 2147483647
7290620185 GMA3/25SOMDCF Steel S PL, Poland 73079910 0.3368, KG 25 Body only M36x2 20 41 46 51 27 18 75 57 87.63 EUR Not in stock
Minimum 2
 2147483647
H00019509 GMA3/25S71 Stainless steel S 25 M36x2 20 41 46 51 27 18 75 57 Not in stock 2147483647
H00019510 GMA3/25SOMD71 Stainless steel S PL, Poland 73072910 0.347, KG 25 Body only M36x2 20 41 46 51 27 18 75 57 657.23 EUR At central warehouse
Minimum 2
 2147483647
H00019511 GMA3/30ZSCF Steel S PL, Poland 73079910 0.923, KG 30 M42x2 25 46 50 55 28 20 81 60 266.79 EUR Not in stock
Minimum 2
 2147483647
H00019512 GMA3/30SCF Steel S PL, Poland 73079910 0.8816, KG 30 M42x2 25 46 50 55 28 20 81 60 147.12 EUR Not in stock
Minimum 2
 2147483647
7290620190 GMA3/30SOMDCF Steel S PL, Poland 73079910 0.4203, KG 30 Body only M42x2 25 46 50 55 28 20 81 60 115.78 EUR Not in stock
Minimum 2
 2147483647
H00019513 GMA3/30S71 Stainless steel S KG 30 M42x2 25 46 50 55 28 20 81 60 Not in stock 2147483647
H00019514 GMA3/30SOMD71 Stainless steel S PL, Poland 73072910 0.43, KG 30 Body only M42x2 25 46 50 55 28 20 81 60 565.95 EUR Not in stock
Minimum 2
 2147483647
H00019515 GMA3/38ZSCF Steel S PL, Poland 73079910 1.3982, KG 38 M52x2 32 55 60 61 29 22 91 64 Not in stock 2147483647
H00019516 GMA3/38SCF Steel S PL, Poland 73079910 1.36, KG 38 M52x2 32 55 60 61 29 22 91 64 207.42 EUR Not in stock
Minimum 2
 2147483647
7290620195 GMA3/38SOMDCF Steel S PL, Poland 73079910 0.63, KG 38 Body only M52x2 32 55 60 61 29 22 91 64 152.53 EUR Not in stock
Minimum 2
 2147483647
H00019517 GMA3/38S71 Stainless steel S 38 M52x2 32 55 60 61 29 22 91 64 Not in stock 2147483647
H00019518 GMA3/38SOMD71 Stainless steel S PL, Poland 73072910 0.653, KG 38 Body only M52x2 32 55 60 61 29 22 91 64 668.05 EUR Not in stock
Minimum 2
 2147483647
