Straight Test Point Fitting With Pin-Lock - Series 1

Datasheets

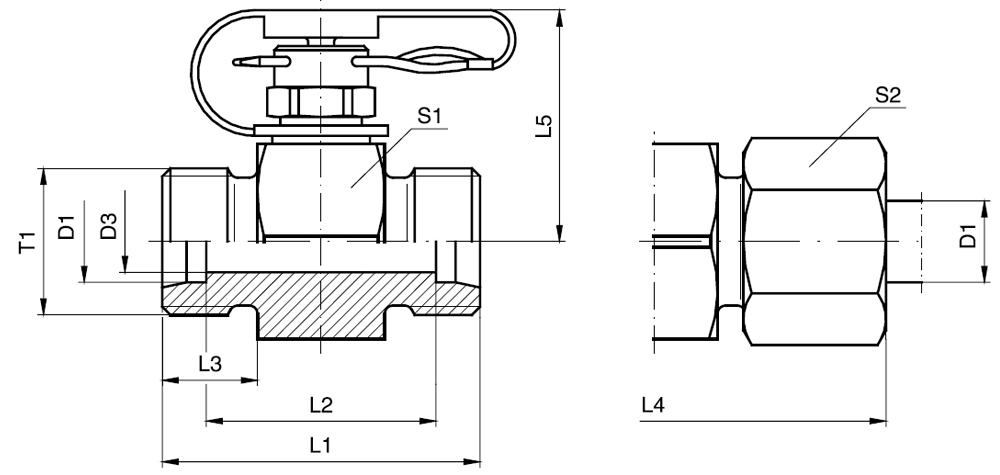

GMA1
Fitting ends
# End type group End form Thread Sealing
1 DIN - Metric Male Metric Flare
2 DIN - Metric Male Metric Flare
3 Test Point Male Pin Lock Cone w/O-ring
Fitting data
Shape TEE

Materials (Prod. Summary) Steel
Pressure Series (prod. summary) L, S
Size Range (mm) 6 - 22 mm
Product Classification Hydraulics
Product Category Fittings, Measurering and tests equipment
Product Group Hydraulic Fittings, Test Fittings And Adaptors
Product Program Analytical Fittings, DIN Metric
Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
Pressure Series
Weight
D1
FittingCompleteness
Country of origin
TariffNumber
T1
D3
S1
S2
L1
L2
L3
L4
L5
Unit price
Stock status
Favorite Sort Order
H00019359 GMA1/06ZLCF Steel L KG 6 M12x1,5 4 24 14 35 21 10 51 29 Not in stock 2147483647
H00019360 GMA1/06LCF Steel L 6 M12x1,5 4 24 14 35 21 10 51 29 Not in stock 2147483647
H00019361 GMA1/06LOMDCF Steel L KG 6 Body only M12x1,5 4 24 14 35 21 10 51 29 Not in stock 2147483647
H00019362 GMA1/08ZLCF Steel L KG 8 M14x1,5 6 24 17 35 21 10 51 29 Not in stock 2147483647
H00019363 GMA1/08LCF Steel L 8 M14x1,5 6 24 17 35 21 10 51 29 Not in stock 2147483647
H00019364 GMA1/08LOMDCF Steel L 8 Body only M14x1,5 6 24 17 35 21 10 51 29 Not in stock 2147483647
H00019365 GMA1/10ZLCF Steel L KG 10 M16x1,5 7 24 19 37 23 11 53 29 Not in stock 2147483647
H00019366 GMA1/10LCF Steel L 10 M16x1,5 7 24 19 37 23 11 53 29 Not in stock 2147483647
H00019367 GMA1/10LOMDCF Obsolete Steel L 0.061, KG 10 Body only PL, Poland 73079910 M16x1,5 7 24 19 37 23 11 53 29 Not in stock 2147483647
H00019368 GMA1/12ZLCF Steel L KG 12 M18x1,5 10 27 22 37 23 11 53 30.50 Not in stock 2147483647
H00019369 GMA1/12LCF Steel L 12 M18x1,5 10 27 22 37 23 11 53 30.50 Not in stock 2147483647
H00019370 GMA1/12LOMDCF Steel L 12 Body only M18x1,5 10 27 22 37 23 11 53 30.50 Not in stock 2147483647
H00019371 GMA1/15ZLCF Steel L KG 15 M22x1,5 12 30 27 39 25 12 55 32 Not in stock 2147483647
H00019372 GMA1/15LCF Steel L 15 M22x1,5 12 30 27 39 25 12 55 32 Not in stock 2147483647
H00019373 GMA1/15LOMDCF Steel L 15 Body only M22x1,5 12 30 27 39 25 12 55 32 Not in stock 2147483647
H00019374 GMA1/18ZLCF Steel L KG 18 M26x1,5 15 32 32 39 24 12 57 33 Not in stock 2147483647
H00019375 GMA1/18LCF Steel L 18 M26x1,5 15 32 32 39 24 12 57 33 Not in stock 2147483647
H00019376 GMA1/18LOMDCF Steel L KG 18 Body only M26x1,5 15 32 32 39 24 12 57 33 Not in stock 2147483647
H00019377 GMA1/22ZLCF Steel L KG 22 M30x2 19 36 36 43 28 14 61 35 Not in stock 2147483647
H00019378 GMA1/22LCF Steel L 22 M30x2 19 36 36 43 28 14 61 35 Not in stock 2147483647
H00019379 GMA1/22LOMDCF Steel L KG 22 Body only M30x2 19 36 36 43 28 14 61 35 Not in stock 2147483647
H00019380 GMA1/06SLCF Steel S KG 6 M14x1,5 4 24 17 39 25 12 55 29 Not in stock 2147483647
H00019381 GMA1/06SCF Steel S 6 M14x1,5 4 24 17 39 25 12 55 29 Not in stock 2147483647
H00019382 GMA1/06SOMDCF Steel S KG 6 Body only M14x1,5 4 24 17 39 25 12 55 29 Not in stock 2147483647
H00019383 GMA1/08SLCF Steel S KG 8 M16x1,5 5 24 19 39 25 12 55 29 Not in stock 2147483647
H00019384 GMA1/08SCF Steel S 8 M16x1,5 5 24 19 39 25 12 55 29 Not in stock 2147483647
H00019385 GMA1/08SOMDCF Steel S KG 8 Body only M16x1,5 5 24 19 39 25 12 55 29 Not in stock 2147483647
H00019386 GMA1/10SLCF Steel S KG 10 M18x1,5 7 24 22 39 24 12 57 29 Not in stock 2147483647
H00019387 GMA1/10SCF Steel S 10 M18x1,5 7 24 22 39 24 12 57 29 Not in stock 2147483647
H00019388 GMA1/10SOMDCF Steel S 10 Body only M18x1,5 7 24 22 39 24 12 57 29 Not in stock 2147483647
H00019389 GMA1/12SLCF Steel S KG 12 M20x1,5 7 24 24 39 24 12 57 29 Not in stock 2147483647
H00019390 GMA1/12SCF Steel S 12 M20x1,5 7 24 24 39 24 12 57 29 Not in stock 2147483647
H00019391 GMA1/12SOMDCF Steel S 0.102, KG 12 Body only PL, Poland 73079910 M20x1,5 7 24 24 39 24 12 57 29 Not in stock 2147483647
H00019392 GMA1/14SLCF Steel S KG 14 M22x1,5 10 27 27 43 27 14 63 30.50 Not in stock 2147483647
H00019393 GMA1/14SCF Steel S KG 14 M22x1,5 10 27 27 43 27 14 63 30.50 Not in stock 2147483647
H00019394 GMA1/14SOMDCF Steel S KG 14 Body only M22x1,5 10 27 27 43 27 14 63 30.50 Not in stock 2147483647
H00019395 GMA1/16SLCF Steel S KG 16 M24x1,5 12 30 30 43 26 14 63 32 Not in stock 2147483647
H00019396 GMA1/16SCF Steel S 16 M24x1,5 12 30 30 43 26 14 63 32 Not in stock 2147483647
H00019397 GMA1/16SOMDCF Steel S 16 Body only M24x1,5 12 30 30 43 26 14 63 32 Not in stock 2147483647
H00019398 GMA1/20SLCF Steel S KG 20 M30x2 16 36 36 47 26 16 69 35 Not in stock 2147483647
H00019399 GMA1/20SCF Steel S 20 M30x2 16 36 36 47 26 16 69 35 Not in stock 2147483647
H00019400 GMA1/20SOMDCF Steel S KG 20 Body only M30x2 16 36 36 47 26 16 69 35 Not in stock 2147483647
