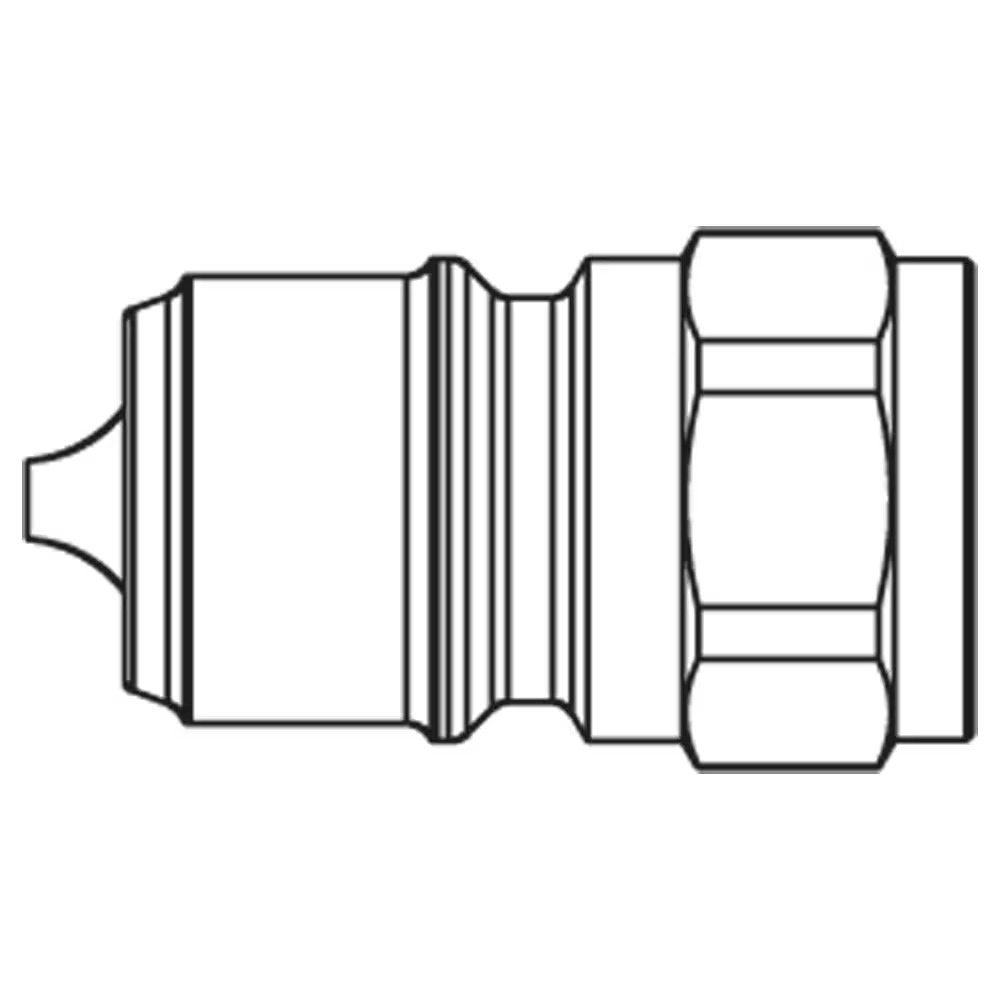

Series T Plug - Brass/Steel - Female Thread - Pressure Eliminator

Datasheets
T

The TEMA Standard Series is characterised by a low pressure drop and maximum flow capacity. The coupling system is available as double shut-off or straight through version. The 2500 can be used also as a single shut-off version.

High operating pressure. Compact dimension. Due to the Pressure Eliminator version for coupling and plug the connection is possible up to the operating pressure. Double safety through a double O-ring seal. A safety locking sleeve prevents unintentional disconnection (except series 2300).

Working Temperature (celsius)
-30°C up to +100°C (NBR)
-25°C up to +200°C (FKM)
Depending on the medium. Special seals are available on request.


QC Profile Tema Profile
QCProductCategory Plug
QCVersion Pressure Eliminator
Product Classification Hydraulics
Product Category Quick Couplings
Product Group Hydraulic Quick Couplings
Product Program Tema Profile
Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
QCConnectionA
QCBodySize
QCVersion
Country of origin
TariffNumber
Weight
Hex (mm)
L (mm)
D (mm)
Working Pressure Connected Bar
Valve
Seal
Working Pressure Note
Note
Unit price
Stock status
Favorite Sort Order
P0456026 3821 Discontinued from standard assortment when sold out Brass G 3/8 3/8" Pressure Eliminator SE, Sweden 8481201090 0.06, KG 22 43 24 350 with NBR 32.56 EUR In stock
2147483647
H00030255 3821 V Brass G 3/8 3/8" Pressure Eliminator SE, Sweden 8481201090 0.06, KG 22 43 24 350 with FKM 40.35 EUR Not in stock
Minimum 10
 2147483647
P0476658 5021-QC Brass G 1/2 1/2" Pressure Eliminator SE, Sweden 8481201090 0.091, KG 27 47 30 320 with NBR 35.44 EUR In stock
2147483647
H00030256 5021 V Brass G 1/2 1/2" Pressure Eliminator SE, Sweden 8481201090 0.091, KG 27 47 30 320 with FKM 42.66 EUR Not in stock
Minimum 10
 2147483647
7290422325 7521-QC Brass G 3/4 3/4" Pressure Eliminator SE, Sweden 8481201090 0.185, KG 36 53 39 300 with NBR 47.33 EUR In stock
2147483647
H00030257 7521 V Brass G 3/4 3/4" Pressure Eliminator SE, Sweden 8481201090 0.185, KG 36 53 39 300 with FKM 58.25 EUR Not in stock
Minimum 10
 2147483647
H00070220 10021 Discontinued from standard assortment when sold out Brass G 1 1" Pressure Eliminator SE, Sweden 8481201090 0.325, KG 46 61 49 280 with NBR 69.45 EUR In stock
2147483647
H00030259 10021 V Brass G 1 1" Pressure Eliminator SE, Sweden 8481201090 0.34, KG 46 61 49 280 with FKM 81.89 EUR Not in stock
Minimum 10
 2147483647
H00030260 15021 Brass G 1 1/2 1 1/2" Pressure Eliminator SE, Sweden 8481201090 1.125, KG 60 107 67 200 with NBR 400.35 EUR Not in stock
2147483647
H00030261 15021 V Brass G 1 1/2 1 1/2" Pressure Eliminator SE, Sweden 8481201090 1.125, KG 60 107 67 200 with FKM 433.06 EUR Not in stock
2147483647
P0456029 3821 RV Brass G 3/8 3/8" Pressure Eliminator SE, Sweden 8481201090 0.059, KG 22 43 24 350 with FKM For pulsating pressure, the pressure must not exceed 50% of the given value 124.37 EUR Not in stock
2147483647
P0456028 3821 RFV Brass G 3/8 3/8" Pressure Eliminator SE, Sweden 8481201090 0.059, KG 22 43 24 350 with FKM For pulsating pressure, the pressure must not exceed 50% of the given value Valve made of brass 81.77 EUR Not in stock
2147483647
P0476656 5021 RV Brass G 1/2 1/2" Pressure Eliminator SE, Sweden 8481201090 0.095, KG 27 47 30 300 with FKM For pulsating pressure, the pressure must not exceed 50% of the given value 151.65 EUR Not in stock
2147483647
H00030262 5021 RFV Brass G 1/2 1/2" Pressure Eliminator SE, Sweden 8481201090 0.093, KG 27 47 30 300 with FKM For pulsating pressure, the pressure must not exceed 50% of the given value Valve made of brass 104.49 EUR Not in stock
2147483647
P0517097 7521 RV Brass G 3/4 3/4" Pressure Eliminator SE, Sweden 8481201090 0.185, KG 36 53 39 250 with FKM For pulsating pressure, the pressure must not exceed 50% of the given value 224.39 EUR In stock
2147483647
H00030263 7521 RFV Brass G 3/4 3/4" Pressure Eliminator SE, Sweden 8481201090 0.19, KG 36 53 39 250 with FKM For pulsating pressure, the pressure must not exceed 50% of the given value Valve made of brass 165.78 EUR Not in stock
2147483647
H00030264 10021 RV Brass G 1 1" Pressure Eliminator SE, Sweden 8481201090 0.325, KG 46 61 49 250 with NBR For pulsating pressure, the pressure must not exceed 50% of the given value 324.59 EUR Not in stock
2147483647
H00030265 10021 RFV Brass G 1 1" Pressure Eliminator SE, Sweden 8481201090 0.338, KG 46 61 49 250 with FKM For pulsating pressure, the pressure must not exceed 50% of the given value Valve made of brass 259.25 EUR Not in stock
2147483647
