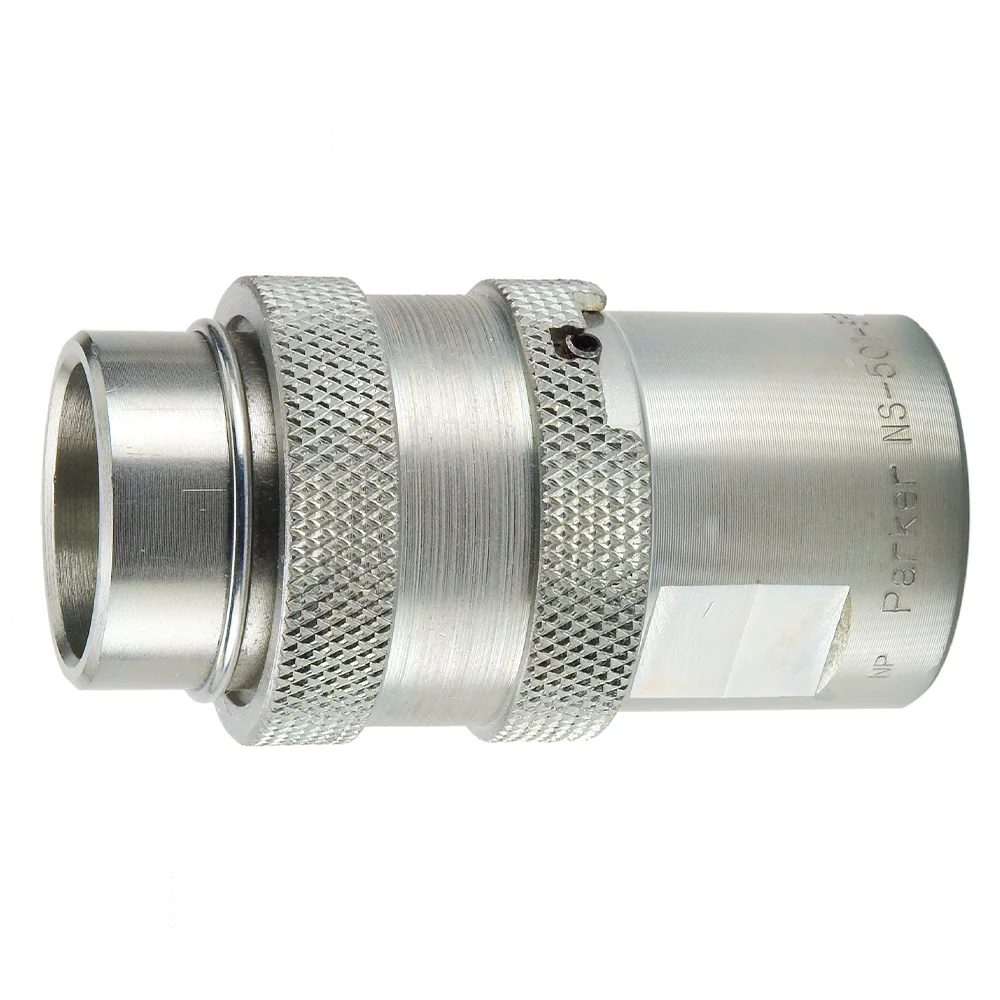

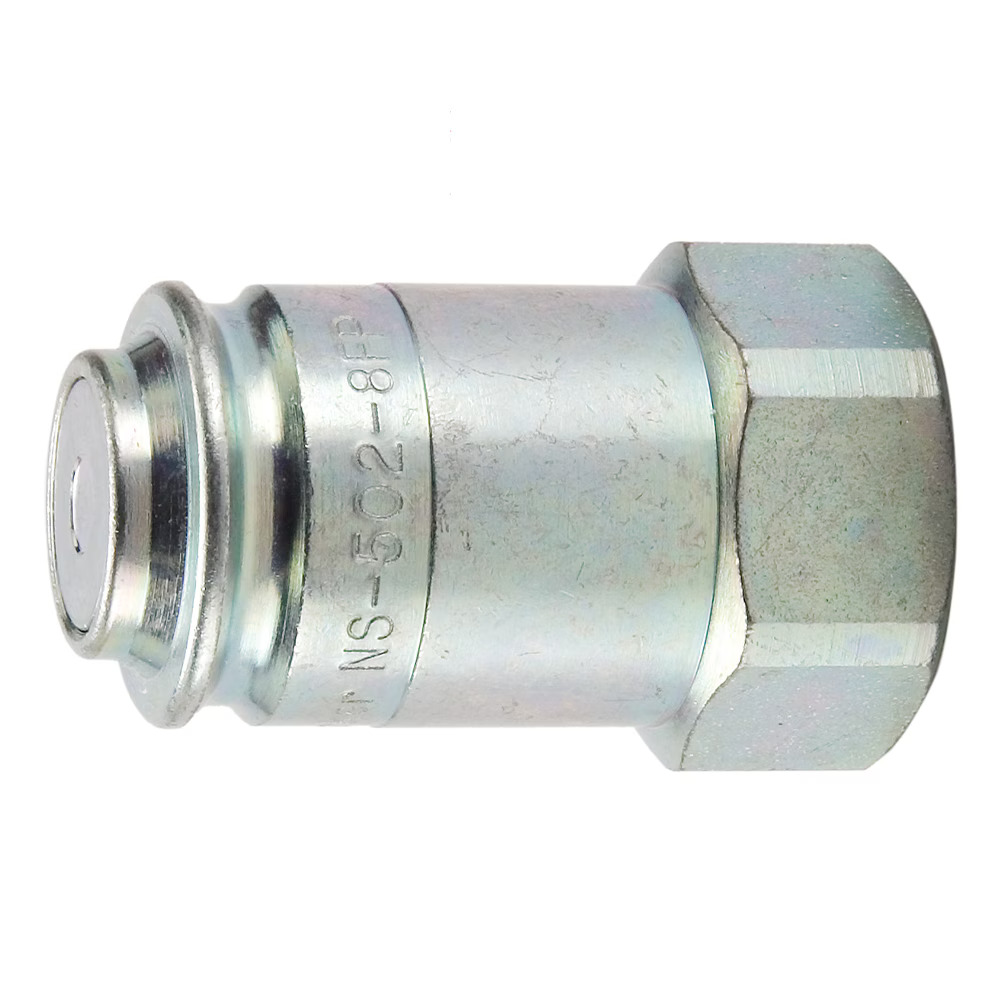

Series NS Coupling
The NS series is unique among non spill types in having a recess on the female side to help locate the male during connection, making the process easy even in „blind“ conditions. Minimal fluid loss during disconnection. NS couplings have minimal pressure drop and minimal inclusion of air or dust during connection.
Push to connect system: Push on the male tip to connect. Flush-faced poppet valve for reduced spillage during connection/disconnection. The seal is crimped to prevent seal washout at high flow rates. Solid steel barstock construction: induction-hardened for a quality coupling with maximum resistance to damage from hydraulic and mechanical shock and brinelling. A safety sleeve lock prevents accidental disconnection. Sleeve is rotated to the stop to engage the lock.
Working Temperature (celsius)
-40°C up to +110°C
Depending on the medium. Special seals are available on request.
QC Profile | Parker Profile |
---|---|
QCProductCategory | Coupling |
Product Classification | Hydraulics |
Product Category | Quick Couplings |
Product Group | Hydraulic Quick Couplings |
Product Program | Flatface coupler |
