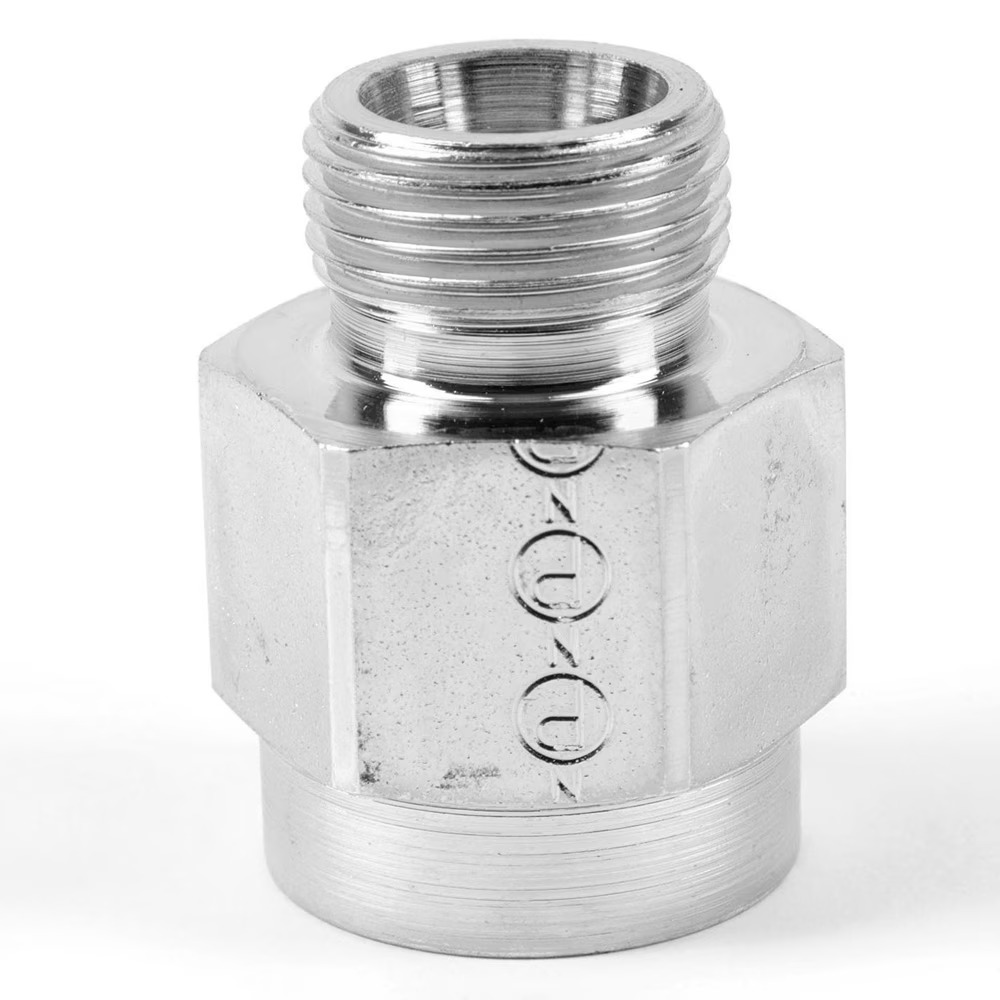

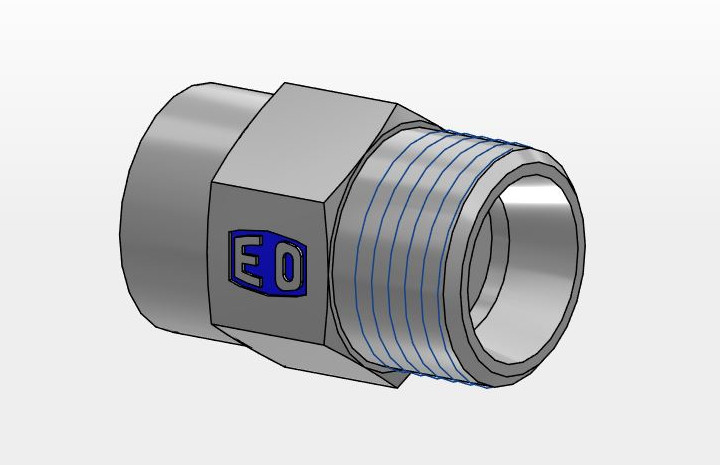

Pressure Gauge Connector - Female BSPP thread

Datasheets

MAV EO

Fitting ends

#	End type group	End form	Thread	Sealing

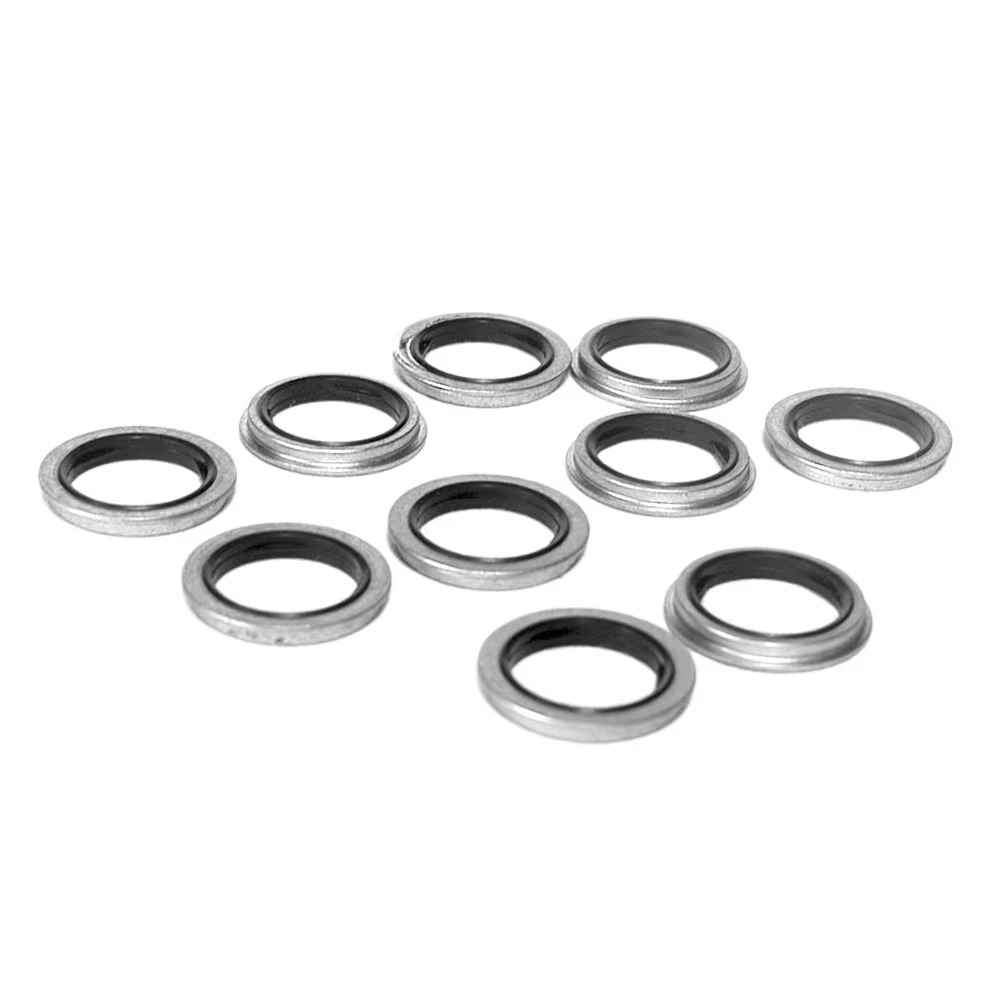

1	BSP	Female (Rigid)	BSPP	Sealing Ring DKI
2	DIN - Metric	Female Swivel	Metric	Flare

Fitting data

Shape	Straight

Materials (Prod. Summary)	Brass, Stainless steel, Steel
Pressure Series (prod. summary)	LL, L, S
Size Range (mm)	4 - 12 mm
Connection Combination	Swivel-To-Thread
Product Classification	Hydraulics
Product Category	Fittings
Product Group	Hydraulic Fittings
Product Program	DIN Metric

Catalogue

Parker Ermeto Hydraulic Tube Fittings 4100 UK 2022 01
(63.48 mb) Parker Adapters
(4.03 mb) Parflange F37 CAT 4162 UK 2010 10
(42.59 mb)

Web Article

O-Lok
EO2
ORFS-fittings
Parflange F37
Triple-Lok

Show fullscreen image

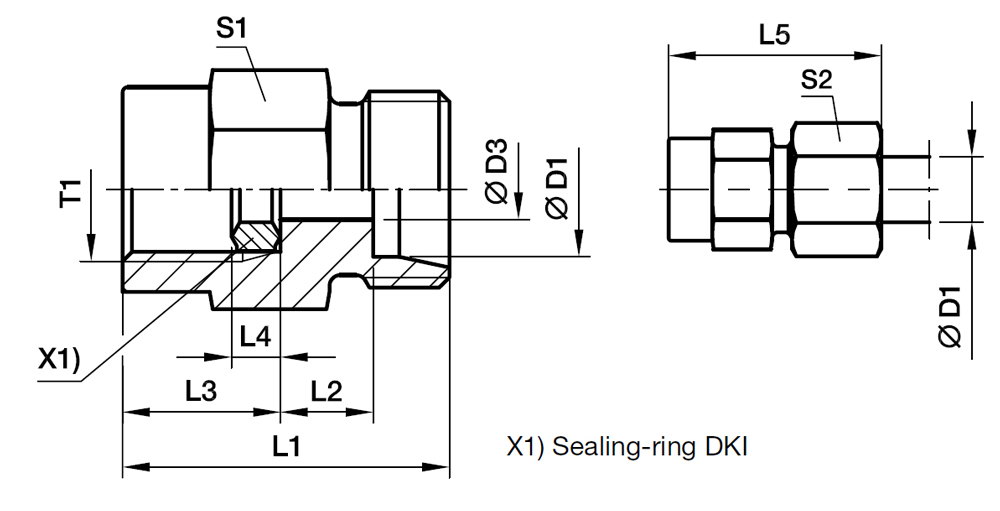

Hymatik number	Supplier Item Number	Availability	Material	Cutting Ring Type	FittingCompleteness	Country of origin	TariffNumber	Weight	Pressure Series	D1	T1	D3	S1	S2	L1	L2	L3	L4	L5	Unit price	Stock status		Sort Order
7290716092	MAV12LR1/271		Stainless steel	DPR	Complete	DE, Germany	73072910	0.1217, KG												82.09 EUR	Not in stock	Minimum 5	2147483647
P0114784	MAV12SR1/4OMDCF		Steel	PSR	Body only	DE, Germany	73079910	0.0714, KG												74.89 EUR	Not in stock	Minimum 15	2147483647
H00008519	MAV04ZLLRCF		Steel	EO2	Complete			KG	LL	4	G1/4	2.50	19	10	27	8.50	14.50	4.50	33		Not in stock		2147483647
H00008520	MAV04LLRCF		Steel	D	Complete	DE, Germany	73079910	0.0404, KG	LL	4	G1/4	2.50	19	10	27	8.50	14.50	4.50	33	25.06 EUR	Not in stock	Minimum 10	2147483647
H00008521	MAV04LLROMDCF		Steel	D	Body only	DE, Germany	73079910	0.0331, KG	LL	4	G1/4	2.50	19	10	27	8.50	14.50	4.50	33	23.25 EUR	Not in stock	Minimum 25	2147483647
H00008522	MAV04ZLLR71		Stainless steel	EO2	Complete			KG	LL	4	G1/4	2.50	19	10	27	8.50	14.50	4.50	33		Not in stock		2147483647
H00008523	MAV04LLR71		Stainless steel	D	Complete			KG	LL	4	G1/4	2.50	19	10	27	8.50	14.50	4.50	33		Not in stock		2147483647
H00008524	MAV04LLROMD71		Stainless steel	D	Body only			KG	LL	4	G1/4	2.50	19	10	27	8.50	14.50	4.50	33		Not in stock		2147483647
H00008525	MAV04LLRMS		Brass	D	Complete			KG	LL	4	G1/4	2.50	19	10	27	8.50	14.50	4.50	33		Not in stock		2147483647
H00008526	MAV06ZLRCF		Steel	EO2	Complete	PL, Poland	73079910	0.049, KG	L	6	G1/4	2.50	19	14	29	7.50	14.50	4.50	37	10.80 EUR	Not in stock	Minimum 25	2147483647
7290412200	MAV06LRCF		Steel	PSR	Complete	PL, Poland	73079910	0.0494, KG	L	6	G1/4	2.50	19	14	29	7.50	14.50	4.50	37	8.10 EUR	Not in stock	Minimum 25	2147483647
7290616800	MAV06LROMDCF		Steel	PSR	Body only	PL, Poland	73079910	0.0365, KG	L	6	G1/4	2.50	19	14	29	7.50	14.50	4.50	37	6.43 EUR	In stock		2147483647
H00008527	MAV06ZLR71		Stainless steel	EO2	Complete				L	6	G1/4	2.50	19	14	29	7.50	14.50	4.50	37		Not in stock		2147483647
H00008528	MAV06LR71		Stainless steel	DPR	Complete	DE, Germany	73072910	0.052, KG	L	6	G1/4	2.50	19	14	29	7.50	14.50	4.50	37	37.22 EUR	Not in stock	Minimum 5	2147483647
P0114667	MAV06LROMD71		Stainless steel	DPR	Body only	DE, Germany	73072910	0.0392, KG	L	6	G1/4	2.50	19	14	29	7.50	14.50	4.50	37	21.79 EUR	Not in stock	Minimum 5	2147483647
H00008529	MAV06LRMS		Brass	D	Complete	DE, Germany	74122000	0.0515, KG	L	6	G1/4	2.50	19	14	29	7.50	14.50	4.50	37	28.84 EUR	Not in stock	Minimum 15	2147483647
H00008530	MAV08ZLRCF		Steel	EO2	Complete	PL, Poland	73079910	0.0564, KG	L	8	G1/4	5.50	19	17	29	7.50	14.50	4.50	37	11.03 EUR	Not in stock	Minimum 25	2147483647
7290412205	MAV08LRCF		Steel	PSR	Complete	PL, Poland	73079910	0.0545, KG	L	8	G1/4	5.50	19	17	29	7.50	14.50	4.50	37	8.20 EUR	Not in stock	Minimum 25	2147483647
7290616805	MAV08LROMDCF		Steel	PSR	Body only	PL, Poland	73079910	0.0378, KG	L	8	G1/4	5.50	19	17	29	7.50	14.50	4.50	37	6.42 EUR	In stock		2147483647
H00008531	MAV08ZLR71		Stainless steel	EO2	Complete	DE, Germany	73072910	0.056, KG	L	8	G1/4	5.50	19	17	29	7.50	14.50	4.50	37	54.00 EUR	Not in stock	Minimum 5	2147483647
H00008532	MAV08LR71		Stainless steel	DPR	Complete	DE, Germany	73072910	0.06, KG	L	8	G1/4	5.50	19	17	29	7.50	14.50	4.50	37	38.21 EUR	Not in stock	Minimum 5	2147483647
H00008533	MAV08LROMD71		Stainless steel	DPR	Body only	DE, Germany	73072910	0.0397, KG	L	8	G1/4	5.50	19	17	29	7.50	14.50	4.50	37	27.25 EUR	Not in stock	Minimum 15	2147483647
H00008534	MAV08LRMS		Brass	D	Complete	DE, Germany	74122000	0.0601, KG	L	8	G1/4	5.50	19	17	29	7.50	14.50	4.50	37	55.24 EUR	Not in stock	Minimum 5	2147483647
H00008535	MAV10ZLRCF		Steel	EO2	Complete	PL, Poland	73079910	0.0623, KG	L	10	G1/4	5.50	19	19	30	8.50	14.50	4.50	38	12.72 EUR	Not in stock	Minimum 25	2147483647
7290412210	MAV10LRCF		Steel	PSR	Complete	PL, Poland	73079910	0.0632, KG	L	10	G1/4	5.50	19	19	30	8.50	14.50	4.50	38	9.15 EUR	Not in stock	Minimum 25	2147483647
7290616810	MAV10LROMDCF		Steel	PSR	Body only	PL, Poland	73079910	0.0405, KG	L	10	G1/4	5.50	19	19	30	8.50	14.50	4.50	38	7.11 EUR	In stock		2147483647
H00008536	MAV10ZLR71		Stainless steel	EO2	Complete	DE, Germany	73072910	0.0624, KG	L	10	G1/4	5.50	19	19	30	8.50	14.50	4.50	38	57.90 EUR	Not in stock	Minimum 15	2147483647
H00008537	MAV10LR71		Stainless steel	DPR	Complete	DE, Germany	73072910	0.064, KG	L	10	G1/4	5.50	19	19	30	8.50	14.50	4.50	38	39.47 EUR	Not in stock	Minimum 5	2147483647
H00008538	MAV10LROMD71		Stainless steel	DPR	Body only	DE, Germany	73072910	0.0424, KG	L	10	G1/4	5.50	19	19	30	8.50	14.50	4.50	38	28.09 EUR	Not in stock	Minimum 5	2147483647
H00008539	MAV10LRMS		Brass	D	Complete	DE, Germany	74122000	0.066, KG	L	10	G1/4	5.50	19	19	30	8.50	14.50	4.50	38	57.07 EUR	Not in stock	Minimum 5	2147483647
H00008540	MAV12ZLRCF		Steel	EO2	Complete	PL, Poland	73079910	0.0706, KG	L	12	G1/4	5.50	19	22	30	8.50	14.50	4.50	38	13.80 EUR	Not in stock	Minimum 25	2147483647
7290412215	MAV12LRCF		Steel	PSR	Complete	PL, Poland	73079910	0.072, KG	L	12	G1/4	5.50	19	22	30	8.50	14.50	4.50	38	10.06 EUR	Not in stock	Minimum 25	2147483647
7290616815	MAV12LROMDCF		Steel	PSR	Body only	PL, Poland	73079910	0.0427, KG	L	12	G1/4	5.50	19	22	30	8.50	14.50	4.50	38	7.55 EUR	In stock		2147483647
H00008541	MAV12ZLR71		Stainless steel	EO2	Complete	DE, Germany	73072910	0.0707, KG	L	12	G1/4	5.50	19	22	30	8.50	14.50	4.50	38	58.99 EUR	Not in stock	Minimum 5	2147483647
7290716090	MAV12LR71	Discontinued from standard assortment when sold out	Stainless steel	DPR	Complete	DE, Germany	73072910	0.076, KG	L	12	G1/4	5.50	19	22	30	8.50	14.50	4.50	38	40.69 EUR	In stock		2147483647
H00008542	MAV12LROMD71		Stainless steel	DPR	Body only	DE, Germany	73072910	0.0413, KG	L	12	G1/4	5.50	19	22	30	8.50	14.50	4.50	38	29.03 EUR	Not in stock	Minimum 5	2147483647
H00008543	MAV12LRMS		Brass	D	Complete	DE, Germany	74122000	0.0754, KG	L	12	G1/4	5.50	19	22	30	8.50	14.50	4.50	38		Not in stock		2147483647
H00008544	MAV06ZSRCF		Steel	EO2	Complete	DE, Germany	73079910	0.1063, KG	S	6	G1/2	3.50	27	17	38	11	20	5	46		Not in stock		2147483647
7290412240	MAV06SRCF		Steel	PSR	Complete	DE, Germany	73079910	0.107, KG	S	6	G1/2	3.50	27	17	38	11	20	5	46	14.65 EUR	Not in stock	Minimum 20	2147483647
7290616820	MAV06SROMDCF	Discontinued from standard assortment when sold out	Steel	PSR	Body only	DE, Germany	73079910	0.0862, KG	S	6	G1/2	3.50	27	17	38	11	20	5	46	12.87 EUR	In stock		2147483647
H00008545	MAV06ZSR71		Stainless steel	EO2	Complete				S	6	G1/2	3.50	27	17	38	11	20	5	46		Not in stock		2147483647
7290414750	MAV06SR71		Stainless steel	DPR	Complete	DE, Germany	73072910	0.1059, KG	S	6	G1/2	3.50	27	17	38	11	20	5	46	51.27 EUR	Not in stock	Minimum 5	2147483647
H00008546	MAV06SROMD71		Stainless steel	DPR	Body only	DE, Germany	73072910	0.0935, KG	S	6	G1/2	3.50	27	17	38	11	20	5	46	44.58 EUR	Not in stock	Minimum 5	2147483647
H00008547	MAV06SRMS		Brass	D	Complete	DE, Germany	74122000	0.113, KG	S	6	G1/2	3.50	27	17	38	11	20	5	46	53.67 EUR	Not in stock	Minimum 5	2147483647
H00008548	MAV08ZSRCF	Obsolete	Steel	EO2	Complete	PL, Poland	73079910	0.1092, KG	S	8	G1/2	3.50	27	19	38	11	20	5	46		Not in stock		2147483647
7290412245	MAV08SRCF		Steel	PSR	Complete	PL, Poland	73079910	0.1137, KG	S	8	G1/2	3.50	27	19	38	11	20	5	46	14.73 EUR	Not in stock	Minimum 20	2147483647
7290616825	MAV08SROMDCF		Steel	PSR	Body only	PL, Poland	73079910	0.091, KG	S	8	G1/2	3.50	27	19	38	11	20	5	46	12.77 EUR	In stock		2147483647
H00008549	MAV08ZSR71		Stainless steel	EO2	Complete	DE, Germany	73072910	0.12, KG	S	8	G1/2	3.50	27	19	38	11	20	5	46	75.03 EUR	Not in stock	Minimum 5	2147483647
H00008550	MAV08SR71		Stainless steel	DPR	Complete	DE, Germany	73072910	0.116, KG	S	8	G1/2	3.50	27	19	38	11	20	5	46	51.79 EUR	Not in stock	Minimum 5	2147483647
H00008551	MAV08SROMD71		Stainless steel	DPR	Body only	DE, Germany	73072910	0.0937, KG	S	8	G1/2	3.50	27	19	38	11	20	5	46	41.53 EUR	Not in stock	Minimum 5	2147483647
H00008552	MAV08SRMS		Brass	D	Complete				S	8	G1/2	3.50	27	19	38	11	20	5	46		Not in stock		2147483647
H00008553	MAV10ZSRCF		Steel	EO2	Complete	PL, Poland	73079910	0.1243, KG	S	10	G1/2	7.50	27	22	38	10.50	20	5	47	18.65 EUR	Not in stock	Minimum 10	2147483647
7290412250	MAV10SRCF		Steel	PSR	Complete	PL, Poland	73079910	0.126, KG	S	10	G1/2	7.50	27	22	38	10.50	20	5	47	15.34 EUR	Not in stock	Minimum 20	2147483647
7290616830	MAV10SROMDCF	Discontinued from standard assortment when sold out	Steel	PSR	Body only	PL, Poland	73079910	0.0878, KG	S	10	G1/2	7.50	27	22	38	10.50	20	5	47	12.91 EUR	In stock		2147483647
H00008554	MAV10ZSR71		Stainless steel	EO2	Complete	DE, Germany	73072910	0.1314, KG	S	10	G1/2	7.50	27	22	38	10.50	20	5	47	76.29 EUR	Not in stock	Minimum 5	2147483647
H00008555	MAV10SR71		Stainless steel	DPR	Complete	DE, Germany	73072910	0.1262, KG	S	10	G1/2	7.50	27	22	38	10.50	20	5	47	57.32 EUR	Not in stock	Minimum 5	2147483647
H00008556	MAV10SROMD71		Stainless steel	DPR	Body only	DE, Germany	73072910	0.0942, KG	S	10	G1/2	7.50	27	22	38	10.50	20	5	47	40.86 EUR	Not in stock	Minimum 5	2147483647
H00008557	MAV10SRMS		Brass	D	Complete	DE, Germany	74122000	0.134, KG	S	10	G1/2	7.50	27	22	38	10.50	20	5	47	43.50 EUR	Not in stock	Minimum 15	2147483647
H00008558	MAV12ZSRCF		Steel	EO2	Complete	PL, Poland	73079910	0.1321, KG	S	12	G1/2	7.50	27	24	38	10.50	20	5	47	20.07 EUR	Not in stock	Minimum 10	2147483647
7290412255	MAV12SRCF		Steel	PSR	Complete	PL, Poland	73079910	0.135, KG	S	12	G1/2	7.50	27	24	38	10.50	20	5	47	15.78 EUR	Not in stock	Minimum 20	2147483647
7290616835	MAV12SROMDCF	Discontinued from standard assortment when sold out	Steel	PSR	Body only	PL, Poland	73079910	0.0928, KG	S	12	G1/2	7.50	27	24	38	10.50	20	5	47	12.93 EUR	In stock		2147483647
H00008559	MAV12ZSR71		Stainless steel	EO2	Complete	DE, Germany	73072910	0.1358, KG	S	12	G1/2	7.50	27	24	38	10.50	20	5	47	85.48 EUR	Not in stock	Minimum 5	2147483647
H00008560	MAV12SR71		Stainless steel	DPR	Complete	DE, Germany	73072910	0.1342, KG	S	12	G1/2	7.50	27	24	38	10.50	20	5	47	53.40 EUR	At central warehouse	Minimum 5	2147483647
7290716111	MAV12SROMD71	Discontinued from standard assortment when sold out	Stainless steel	DPR	Body only	DE, Germany	73072910	0.098, KG	S	12	G1/2	7.50	27	24	38	10.50	20	5	47	45.83 EUR	In stock		2147483647
H00008561	MAV12SRMS		Brass	D	Complete	DE, Germany	74122000	0.1403, KG	S	12	G1/2	7.50	27	24	38	10.50	20	5	47	76.84 EUR	Not in stock	Minimum 5	2147483647
