NPT Thread to SAE Straight Thread Adapter For fractional tube

Datasheets

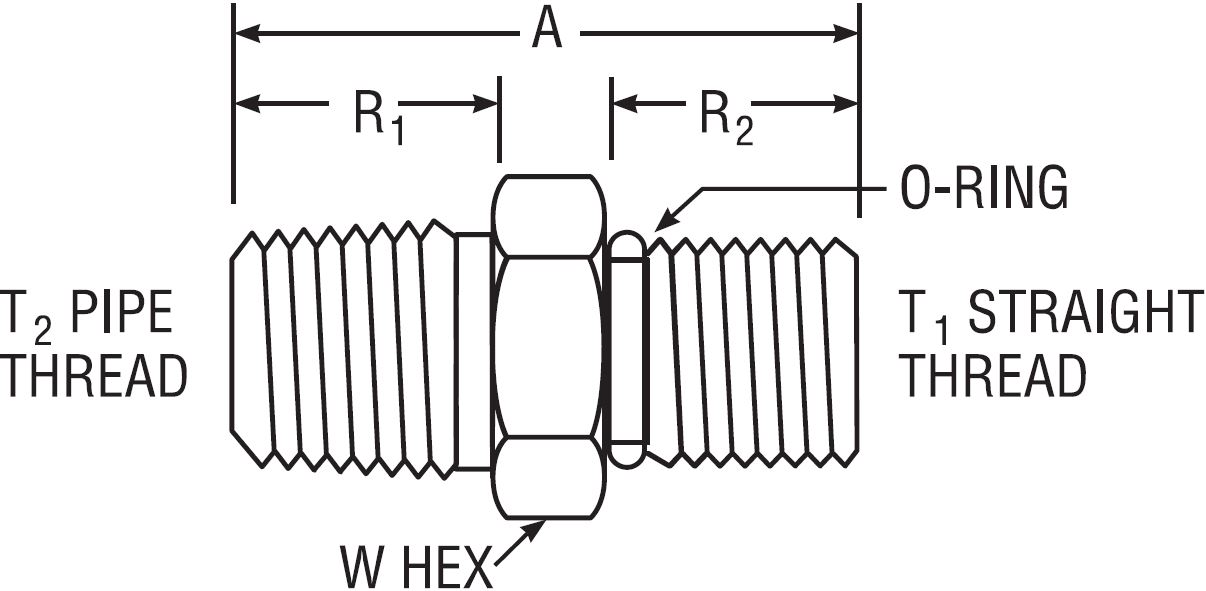

NPT Thread To SAE Straight Thread Adapter For Fractional Tube
Fitting ends
# End type group End form Thread Sealing
1 NPT Male NPT Thread
2 UNF/UN Male UNF O-ring
Fitting data
Shape Straight

Connection Combination Tube-To-Male Thread
Product Classification Process
Product Category Fittings
Product Group Process Fittings
Product Program Adaptors
Extra info Tube to O-Ring Seal, Tube to O-Ring Seal
Show fullscreen image
Hymatik number Supplier Item Number
Alok Fitting Options
Material
Weight
Inter Changes With
Material Standard/Grade
Country of origin
TariffNumber
T2 Npt Thread
T1 Sae Straight Thread
A Inches
R1 Inches
W Hex Inches
O Ring As Uniform Dash No
Unit price
Stock status
Favorite Sort Order
H00050820 4-4 FHOA-SS-C1 C1 Stainless steel KG 4-SAE-1-4 1/4-18 7/16-20 1.20 0.56 9/16 3-904 Not in stock 2147483647
H00050821 4-4 FHOA-SS-C3 C3 Stainless steel KG 4-SAE-1-4 1/4-18 7/16-20 1.20 0.56 9/16 3-904 Not in stock 2147483647
H00050822 4-4 FHOA-SS-NC NC Stainless steel KG 4-SAE-1-4 1/4-18 7/16-20 1.20 0.56 9/16 3-904 Not in stock 2147483647
H00050823 4-4 FHOA-6MO-C1 C1 Stainless steel KG 4-SAE-1-4 6MO 1/4-18 7/16-20 1.20 0.56 9/16 3-904 Not in stock 2147483647
H00050824 4-4 FHOA-6MO-C3 C3 Stainless steel KG 4-SAE-1-4 6MO 1/4-18 7/16-20 1.20 0.56 9/16 3-904 Not in stock 2147483647
H00050825 4-4 FHOA-6MO-NC NC Stainless steel KG 4-SAE-1-4 6MO 1/4-18 7/16-20 1.20 0.56 9/16 3-904 Not in stock 2147483647
H00050826 6-6 FHOA-SS-C1 C1 Stainless steel KG 6-SAE-1-6 3/8-18 9/16-18 1.26 0.56 11/16 3-906 Not in stock 2147483647
H00050827 6-6 FHOA-SS-C3 C3 Stainless steel KG 6-SAE-1-6 3/8-18 9/16-18 1.26 0.56 11/16 3-906 Not in stock 2147483647
H00050828 6-6 FHOA-SS-NC NC Stainless steel KG 6-SAE-1-6 3/8-18 9/16-18 1.26 0.56 11/16 3-906 Not in stock 2147483647
H00050829 6-6 FHOA-6MO-C1 C1 Stainless steel KG 6-SAE-1-6 6MO 3/8-18 9/16-18 1.26 0.56 11/16 3-906 Not in stock 2147483647
H00050830 6-6 FHOA-6MO-C3 C3 Stainless steel KG 6-SAE-1-6 6MO 3/8-18 9/16-18 1.26 0.56 11/16 3-906 Not in stock 2147483647
H00050831 6-6 FHOA-6MO-NC NC Stainless steel KG 6-SAE-1-6 6MO 3/8-18 9/16-18 1.26 0.56 11/16 3-906 Not in stock 2147483647
H00050832 8-8 FHOA-SS-C1 C1 Stainless steel KG 8-SAE-1-8 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 Not in stock 2147483647
H00050833 8-8 FHOA-SS-C3 C3 Stainless steel KG 8-SAE-1-8 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 Not in stock 2147483647
H00050834 8-8 FHOA-SS-NC NC Stainless steel KG 8-SAE-1-8 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 Not in stock 2147483647
H00050835 8-8 FHOA-6MO-C1 C1 Stainless steel KG 8-SAE-1-8 6MO 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 Not in stock 2147483647
H00050836 8-8 FHOA-6MO-C3 C3 Stainless steel KG 8-SAE-1-8 6MO 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 Not in stock 2147483647
H00050837 8-8 FHOA-6MO-NC NC Stainless steel KG 8-SAE-1-8 6MO 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 Not in stock 2147483647
H00050838 12-12 FHOA-SS-C1 C1 Stainless steel KG 12-SAE-1-12 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 Not in stock 2147483647
H00050839 12-12 FHOA-SS-C3 C3 Stainless steel KG 12-SAE-1-12 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 Not in stock 2147483647
H00050840 12-12 FHOA-SS-NC NC Stainless steel KG 12-SAE-1-12 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 Not in stock 2147483647
H00050841 12-12 FHOA-6MO-C1 C1 Stainless steel KG 12-SAE-1-12 6MO 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 Not in stock 2147483647
H00050842 12-12 FHOA-6MO-C3 C3 Stainless steel KG 12-SAE-1-12 6MO 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 Not in stock 2147483647
H00050843 12-12 FHOA-6MO-NC NC Stainless steel KG 12-SAE-1-12 6MO 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 Not in stock 2147483647
H00050844 16-16 FHOA-SS-C1 C1 Stainless steel KG 16-SAE-1-16 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
H00050845 16-16 FHOA-SS-C3 C3 Stainless steel KG 16-SAE-1-16 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
H00050846 16-16 FHOA-SS-NC NC Stainless steel KG 16-SAE-1-16 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
H00050847 16-16 FHOA-6MO-C1 C1 Stainless steel KG 16-SAE-1-16 6MO 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
H00050848 16-16 FHOA-6MO-C3 C3 Stainless steel KG 16-SAE-1-16 6MO 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
H00050849 16-16 FHOA-6MO-NC NC Stainless steel KG 16-SAE-1-16 6MO 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
H00068322 4-4 FHOA-SS Standard Stainless steel 0, KG 4-SAE-1-4 US, USA 73072910 1/4-18 7/16-20 1.20 0.56 9/16 3-904 139.39 EUR Not in stock
2147483647
H00068323 4-4 FHOA-6MO Standard Stainless steel KG 4-SAE-1-4 6MO 1/4-18 7/16-20 1.20 0.56 9/16 3-904 Not in stock 2147483647
H00068324 6-6 FHOA-SS Standard Stainless steel 0.038, KG 6-SAE-1-6 US, USA 73072910 3/8-18 9/16-18 1.26 0.56 11/16 3-906 64.10 EUR Not in stock
2147483647
H00068325 6-6 FHOA-6MO Standard Stainless steel KG 6-SAE-1-6 6MO 3/8-18 9/16-18 1.26 0.56 11/16 3-906 Not in stock 2147483647
H00068326 8-8 FHOA-SS Standard Stainless steel 0, KG 8-SAE-1-8 US, USA 73072910 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 41.34 EUR Not in stock
Minimum 10
 2147483647
H00068327 8-8 FHOA-6MO Standard Stainless steel 0, KG 8-SAE-1-8 6MO GB, Great Britain 73072980 1/2-14 3/4- 16 1.53 0.75 7/8 3-908 216.97 EUR Not in stock
2147483647
H00068328 12-12 FHOA-SS Standard Stainless steel 0, KG 12-SAE-1-12 US, USA 73072910 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 114.69 EUR Not in stock
2147483647
H00068329 12-12 FHOA-6MO Standard Stainless steel KG 12-SAE-1-12 6MO 3/4-14 1-1/16-12 1.75 0.75 1-1/4 3-912 Not in stock 2147483647
H00068330 16-16 FHOA-SS Standard Stainless steel 0.001, KG 16-SAE-1-16 US, USA 73072910 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
H00068331 16-16 FHOA-6MO Standard Stainless steel KG 16-SAE-1-16 6MO 1-11-1/2 1-5/16-12 2 0.94 1-1/2 3-916 Not in stock 2147483647
