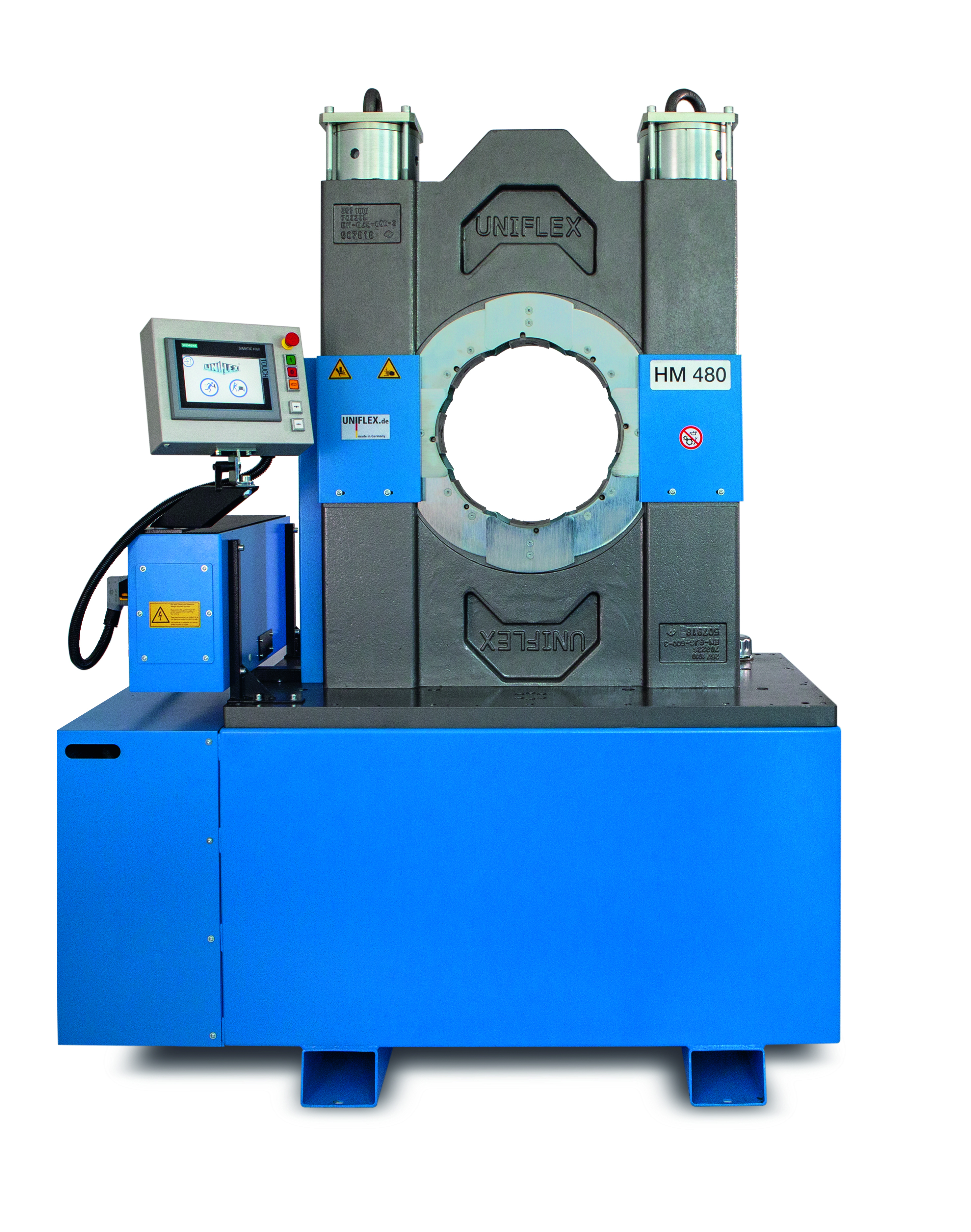

HM 480 - Production Crimper

Datasheet
HM 480 C.2_MVA Production hose crimper 480 Ton non greased tool with C.2 controller SAE R13/ 6 SP up to 3“ and Industrial up to 8“ Ansi 150 without taking dies out(12" pipe fittings) Opening travel + 150 mm (+ 5,90“) Master dies length 150 mm (5,90“) Opening without dies : 380 mm (14,96“) 3 Years...
Læs mere
Product Classification Hydraulics, Tools and Machines
Oil 300 L
Type of dies 245/237L/239-xx-Ø-yy
Speed (mm/sec) Crimp 1,3
SAE R 15/4SH 1 piece fitting 3"
Opening +150 mm
Max. Crimp range 310 mm
SAE R 15/4SH 2 piece fitting 3"
Industrial 8" (12"- pipe fittings without flange)
Crimp Force (kN/Ton) 4800/480
Speed (mm/sec) Close 18
90° Elbows 3"
Master dies length (mm) 150 mm
Opening without dies 380 mm
Speed (mm/sec) Open 20
Drive 5,5 kW 3 VAC
Item number Supplier item numbers Alternative item numbers
H01542675 HM 480_PFC_C.2_MVA Paket HM 480.3_PFC_C.2_MVA Paket
H01542737 HM 480 C.2_FD_MVA Paket HM 480.3_C.2_FD_MVA Paket
H01542739 HM 480 C.2_MVA Paket HM 480.3_C.2_MVA Paket
H01542817 HM 480_PFC_C.2_MVA HM 480.3_PFC_C.2_MVA
H01542837 HM 480 C.2_FD_MVA HM 480.3_C.2_FD_MVA
H01542883 HM 480 C.2_MVA HM 480.3_C.2_MVA
