Flange Elbow 45° Insert - Flange (Flat Seat)

Datasheets

16F73

Description
Technical specifications

Fitting ends

#	End type group	End form	Thread	Sealing
1	Flange	Flange		O-ring

Fitting data

Shape	Elbow 45°

End type	6F, 6F
Size Range (mm)	25 - 32 mm
Hose fitting type	1 Piece
Size Range (inch)	1" inches - 1 1/4" inches
Product Classification	Hydraulics
Product Category	Hose Fittings
Product Group	Crimp Fittings - One Piece
Product Program	Flange

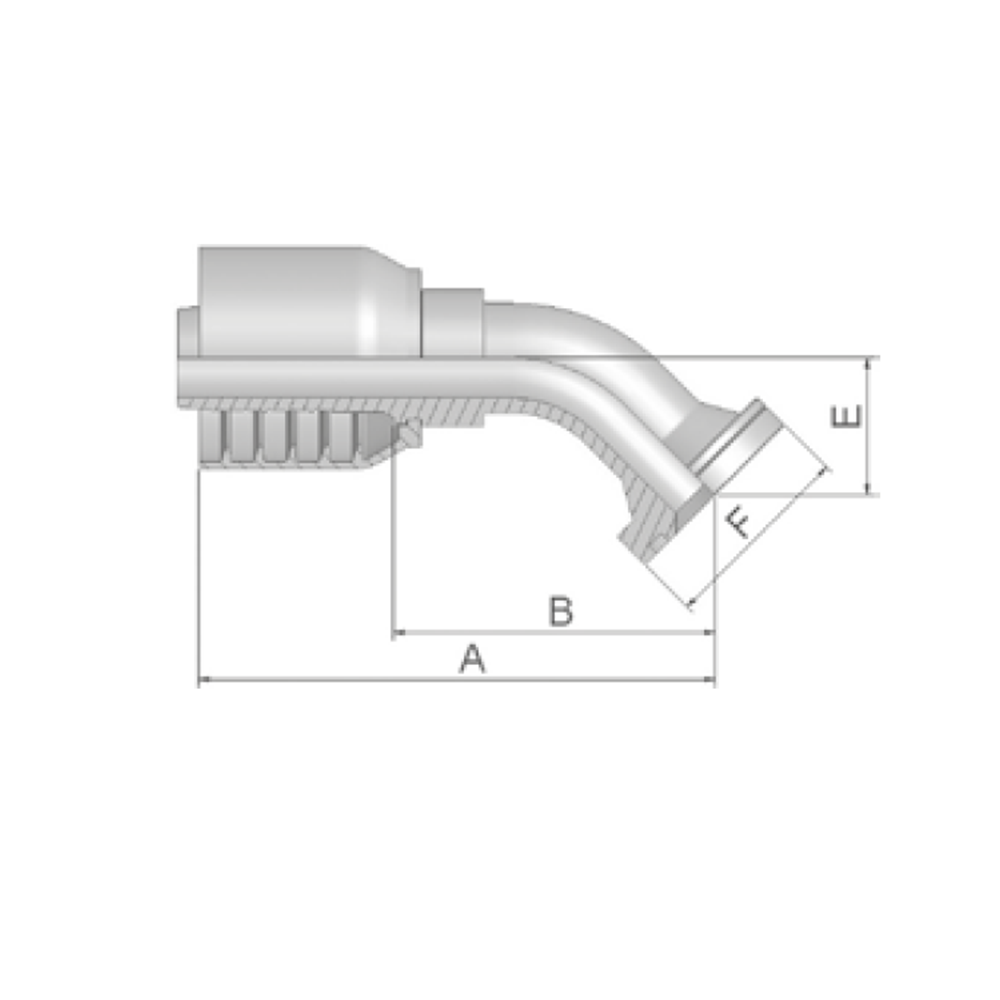

Show fullscreen image

Hymatik number	Supplier Item Number	Note	Material	End 1 Pressure Series	End 1 Flange Size	Hose Size	Weight	TariffNumber	Country of origin	Unit price	Stock status		Sort Order
7290750990	16F73-16-16	16F73 - 1" Insert 45° (ST) - 1" 6000 PSI Flange	Steel	6000 PSI	1"	1" \| 25 mm \| DN: 25					Not in stock		2147483647
H00024088	16F73-16-20	16F73 - 1-1/4" Insert 45° (ST) - 1" 6000 PSI Flange	Steel	6000 PSI	1"	1 1/4" \| 31.5 mm \| DN: 31					Not in stock		2147483647
7290751020	16F73-24-20	16F73 - 1-1/4" Insert 45° (ST) - 1 1/2" 6000 PSI Flange	Steel	6000 PSI	1 1/2"	1 1/4" \| 31.5 mm \| DN: 31	1.32, KG	73079980	DE, Germany	257.58 EUR	Not in stock	Minimum 4	2147483647
7290750980	16F73-12-12-1P	16F73-12-12-1P SAE 6000 45 KBL	Steel	6000 PSI	3/4"		0.415, KG	73079980	DE, Germany	113.42 EUR	In stock		2147483647
H00380343	16F73-12-12-1P-MP	SAE Code 62 - 45° elbow	Steel			3/4" \| 19 mm \| DN: 19	0.455, KG	73079980	DE, Germany		Not in stock		2147483647
7290750987	16F73-12-16-1P	SFS 45 DN25 E	Steel			1" \| 25 mm \| DN: 25	0.6136, KG	73079980	DE, Germany	251.32 EUR	Not in stock	Minimum 4	2147483647
7290750985	16F73-16-12-1P	SFS 45 DN20 E	Steel			3/4" \| 19 mm \| DN: 19	0.46, KG	73079980	DE, Germany	129.04 EUR	Not in stock	Minimum 4	2147483647
H00380346	16F73-16-16-1P	SAE Code 62 - 45° Elbow	Steel			1" \| 25 mm \| DN: 25	0.66, KG	73079980	DE, Germany	143.66 EUR	Not in stock	Minimum 4	2147483647
H00380347	16F73-16-16-1P-MP	SFS 45 DN25 E	Steel			1" \| 25 mm \| DN: 25	0.589, KG	73079980	DE, Germany		Not in stock		2147483647
H00380348	16F73-16-20-1P	SFS 45 DN32 E	Steel			1 1/4" \| 31.5 mm \| DN: 31	1.206, KG	73079980	DE, Germany	331.58 EUR	Not in stock	Minimum 4	2147483647
H00380349	16F73-20-12-1P	SAE Code 62 - 45° Elbow	Steel			3/4" \| 19 mm \| DN: 19	0.583, KG	73079980	DE, Germany		Not in stock		2147483647
7290751000	16F73-20-16-1P	SFS 45 DN25 E	Steel			1" \| 25 mm \| DN: 25	0.7, KG	73079980	DE, Germany	163.10 EUR	Not in stock	Minimum 4	2147483647
H00380351	16F73-20-16-1P-SL50	SAE Code 62 - 45° Elbow	Steel			1" \| 25 mm \| DN: 25					Not in stock		2147483647
7290751010	16F73-20-20-1P	SFS 45 DN32 E	Steel			1 1/4" \| 31.5 mm \| DN: 31	1.23, KG	73079980	DE, Germany	206.33 EUR	Not in stock	Minimum 4	2147483647
H00380353	16F73-20-20-1P-MP	SAE Code 62 - 45° elbow	Steel			1 1/4" \| 31.5 mm \| DN: 31	1.176, KG	73079980	DE, Germany	206.33 EUR	Not in stock	Minimum 10	2147483647
H00380354	16F73-20-24-1P	SFS 45 DN40 E	Steel			1 1/2" \| 38 mm \| DN: 38	1.403, KG	73079980	DE, Germany		Not in stock		2147483647
H00380356	16F73-24-24-1P	SAE Code 62 - 45° Elbow E	Steel			1 1/2" \| 38 mm \| DN: 38	1.741, KG	73079980	DE, Germany	304.01 EUR	Not in stock	Minimum 2	2147483647
H00380357	16F73-32-32-1P	SFS 45 DN50 E	Steel			2" \| 51 mm \| DN: 51	3.2, KG	73079980	DE, Germany	406.91 EUR	Not in stock	Minimum 2	2147483647
H00380358	16F73-8-12-1P	SFS 45 DN20 E	Steel			3/4" \| 19 mm \| DN: 19	0.3597, KG	73079980	DE, Germany	276.40 EUR	Not in stock	Minimum 4	2147483647
7290751030	16F73-24-24		Steel			1 1/2" \| 38 mm \| DN: 38					Not in stock		2147483647
H00403681	16F73-12-12		Steel			3/4" \| 19 mm \| DN: 19					Not in stock		2147483647
