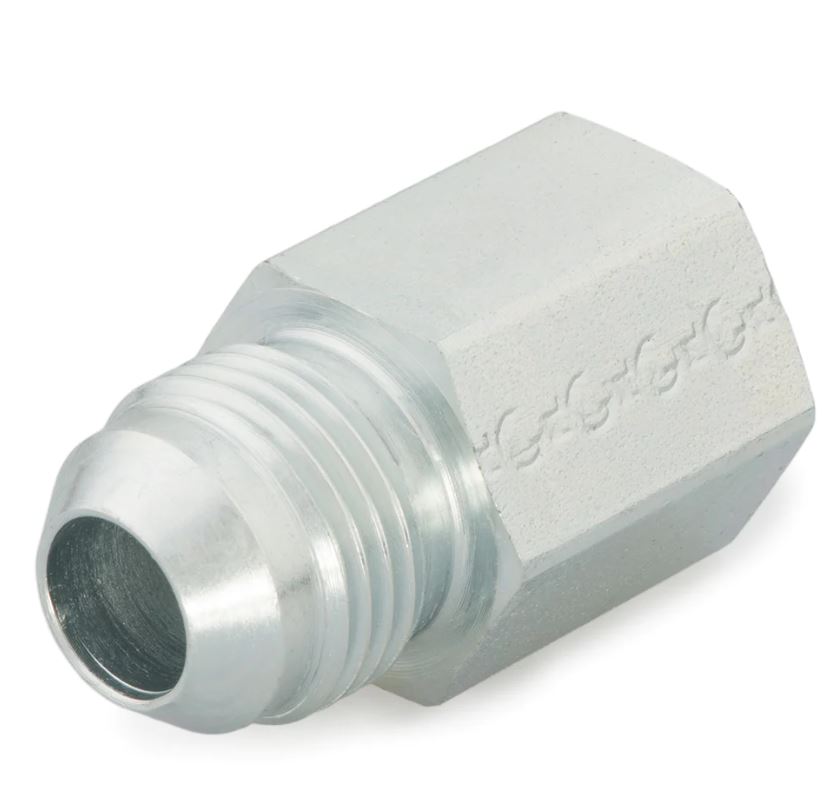

Female Connector - 37° Flare end / Female BSPP thread

Datasheets

G4MX Triple Lok

Fitting ends

#	End type group	End form	Thread	Sealing
1	JIC	Male	UNF	Cone
2	BSP	Female (Rigid)	BSPP	Seal from male part

Fitting data

Shape	Straight

Materials (Prod. Summary)	Stainless steel, Steel
Size Range (mm)	6 - 38 mm
Size Range (inch)	1/4" inches - 1 1/2" inches
Connection Combination	Tube-To-Female Thread
Product Classification	Hydraulics
Product Category	Fittings
Product Group	Hydraulic Fittings
Product Program	JIC / Triple-Lok

Catalogue

Parker Ermeto Hydraulic Tube Fittings 4100 UK 2022 01
(63.48 mb) Parker Adapters
(4.03 mb) Parflange F37 CAT 4162 UK 2010 10
(42.59 mb)

Web Article

O-Lok
EO2
ORFS-fittings
Parflange F37
Triple-Lok

Show fullscreen image

Hymatik number	Supplier Item Number	Availability	Material	Country of origin	TariffNumber	Weight	AD	OD	GEWT4	GEWT	D	C1	L2	Unit price	Stock status		Sort Order
H00012241	4G4MXS		Steel	GB, Great Britain	73079910	0.0362, KG	6	1/4"	1/8-8	7/16-20	4	16	30	15.67 EUR	Not in stock	Minimum 5	2147483647
H00012242	4G4MXSS		Stainless steel	DE, Germany	73072910	0.0352, KG	6	1/4"	1/8-8	7/16-20	4	16	30		Not in stock		2147483647
7290552605	4-4G4MXS	Discontinued from standard assortment when sold out	Steel	PL, Poland	73079910	0.0456, KG	6	1/4"	1/4-19	7/16-20	4	19	35	19.06 EUR	In stock		2147483647
H00012243	4-4G4MXSS		Stainless steel	DE, Germany	73072910	0.0442, KG	6	1/4"	1/4-19	7/16-20	4	19	35	118.65 EUR	Not in stock	Minimum 5	2147483647
H00012244	5G4MXS		Steel	GB, Great Britain	73079910	0.0326, KG	8	5/16"	1/8-8	1/2-20	6	16	30	23.58 EUR	Not in stock	Minimum 5	2147483647
H00012245	5G4MXSS		Stainless steel			KG	8	5/16"	1/8-8	1/2-20	6	16	30		Not in stock		2147483647
H00012246	5-4G4MXS		Steel	PL, Poland	73079910	0.0476, KG	8	5/16"	1/4-19	1/2-20	6	19	35	20.50 EUR	Not in stock	Minimum 5	2147483647
H00012247	5-4G4MXSS		Stainless steel			KG	8	5/16"	1/4-19	1/2-20	6	19	35		Not in stock		2147483647
7290552615	6G4MXS		Steel	CN, China	73079910	0.0504, KG	10	3/8"	1/4-19	9/16-18	8	19	36	19.48 EUR	In stock		2147483647
H00012248	6G4MXSS		Stainless steel	DE, Germany	73072910	0.04, KG	10	3/8"	1/4-19	9/16-18	8	19	36	227.10 EUR	Not in stock	Minimum 5	2147483647
7290552620	6-6G4MXS		Steel	PL, Poland	73079910	0.0602, KG	10	3/8"	3/8-19	9/16-18	8	22	37	19.03 EUR	In stock		2147483647
H00012249	6-6G4MXSS		Stainless steel	DE, Germany	73072910	0.059, KG	10	3/8"	3/8-19	9/16-18	8	22	37	223.76 EUR	Not in stock	Minimum 5	2147483647
7290552625	8G4MXS		Steel	PL, Poland	73079910	0.0688, KG	12	1/2"	3/8-19	3/4-16	10	22	40	30.02 EUR	In stock		2147483647
H00012250	8G4MXSS		Stainless steel	DE, Germany	73072910	0.0708, KG	12	1/2"	3/8-19	3/4-16	10	22	40	211.12 EUR	Not in stock	Minimum 15	2147483647
7290552630	8-8G4MXS		Steel	DE, Germany	73079910	0.1433, KG	12	1/2"	1/2-14	3/4-16	10	30	46	24.36 EUR	In stock		2147483647
H00012251	8-8G4MXSS		Stainless steel	DE, Germany	73072910	0.1464, KG	12	1/2"	1/2-14	3/4-16	10	30	46	189.07 EUR	Not in stock	Minimum 5	2147483647
H00012252	10G4MXS		Steel	PL, Poland	73079910	0.158, KG	14,15,16	5/8"	1/2-14	7/8-14	12	30	48	16.86 EUR	At central warehouse	Minimum 10	2147483647
H00012253	10G4MXSS		Stainless steel	DE, Germany	73072910	0.18, KG	14,15,16	5/8"	1/2-14	7/8-14	12	30	48	171.66 EUR	Not in stock		2147483647
7290552640	12G4MXS		Steel	PL, Poland	73079910	0.2216, KG	18.20	3/4"	3/4-14	1 1/16-12	16	36	52	46.12 EUR	Not in stock	Minimum 5	2147483647
H00012254	12G4MXSS		Stainless steel	DE, Germany	73072910	0.222, KG	18.20	3/4"	3/4-14	1 1/16-12	16	36	52	256.26 EUR	Not in stock	Minimum 5	2147483647
H00012255	16G4MXS		Steel	PL, Poland	73079910	0.419, KG	25	1	1-11	1 5/16-12	22	46	60	42.09 EUR	At central warehouse	Minimum 4	2147483647
H00012256	16G4MXSS		Stainless steel	DE, Germany	73072910	0.4317, KG	25	1	1-11	1 5/16-12	22	46	60	269.81 EUR	Not in stock		2147483647
7290552650	20G4MXS		Steel	PL, Poland	73079910	0.4374, KG	28,30,32	1 1/4	1 1/4-11	1 5/8-12	28	50	63	79.84 EUR	In stock		2147483647
H00012257	20G4MXSS		Stainless steel	DE, Germany	73072910	0.4481, KG	28,30,32	1 1/4	1 1/4-11	1 5/8-12	28	50	63		Not in stock		2147483647
H00012258	24G4MXS		Steel	PL, Poland	73079910	0.533, KG	35.38	1 1/2	1 1/2-11	1 7/8-12	33	55	67	143.96 EUR	Not in stock	Minimum 3	2147483647
H00012259	24G4MXSS		Stainless steel	DE, Germany	73072910	0.502, KG	35.38	1 1/2	1 1/2-11	1 7/8-12	33	55	67		Not in stock		2147483647
