CPI - 45° Positionable Male Elbow SAE/MS Straight Thread For fractional tube

Datasheets
45° Positionable Male Elbow SAE MS Straight Thread For Fractional Tube
Fitting ends
# End type group End form Thread Sealing
1 A-Lok Male UNF Compression - Single Ferrule
2 UNF/UN Male UNF O-ring
Fitting data
Shape Elbow 45°

Connection Combination Tube-To-Male Thread
Product Classification Process
Product Category Fittings
Product Group Process Fittings
Product Program Compression
Product Subprogram CPI - Single Ferrule
Extra info Tube to O-Ring Seal, Tube to O-Ring Seal

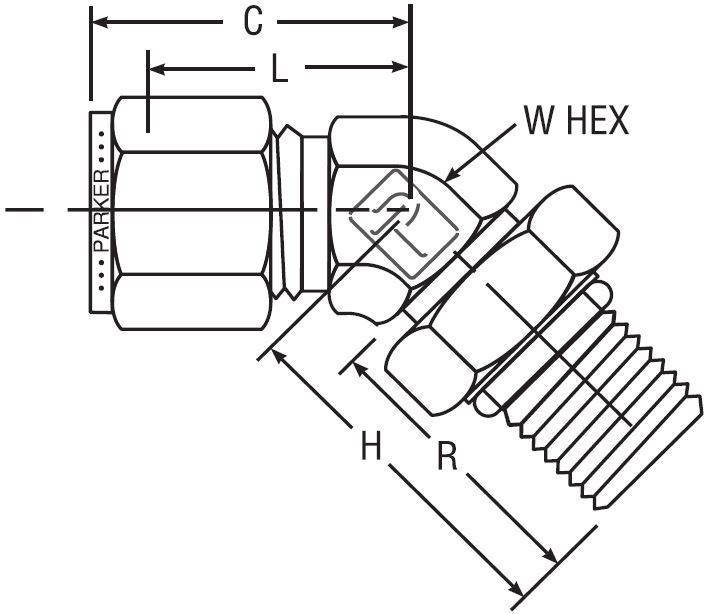

Show fullscreen image
Hymatik number Supplier Item Number
Alok Fitting Options
Material
Weight
Inter Changes With
Material Standard/Grade
Tube OD
Straight Thread Size
C Inches
H Inches
L Inches
R Inches
W Hex Inches
O Ring Arp Uniform Dash No
Unit price
Stock status
Favorite Sort Order
H00050088 4-4 V5BZ-SS-C1 C1 Stainless steel KG 400-5-4ST 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00050090 4-4 V5BZ-SS-C3 C3 Stainless steel KG 400-5-4ST 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00050092 4-4 V5BZ-SS-NC NC Stainless steel KG 400-5-4ST 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00050094 4-4 V5BZ-6MO-C1 C1 Stainless steel KG 400-5-4ST 6MO 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00050096 4-4 V5BZ-6MO-C3 C3 Stainless steel KG 400-5-4ST 6MO 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00050098 4-4 V5BZ-6MO-NC NC Stainless steel KG 400-5-4ST 6MO 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00050100 6-6 V5BZ-SS-C1 C1 Stainless steel KG 600-5-6ST 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00050102 6-6 V5BZ-SS-C3 C3 Stainless steel KG 600-5-6ST 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00050104 6-6 V5BZ-SS-NC NC Stainless steel KG 600-5-6ST 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00050106 6-6 V5BZ-6MO-C1 C1 Stainless steel KG 600-5-6ST 6MO 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00050108 6-6 V5BZ-6MO-C3 C3 Stainless steel KG 600-5-6ST 6MO 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00050110 6-6 V5BZ-6MO-NC NC Stainless steel KG 600-5-6ST 6MO 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00050112 8-8 V5BZ-SS-C1 C1 Stainless steel KG 810-5-8ST 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00050114 8-8 V5BZ-SS-C3 C3 Stainless steel KG 810-5-8ST 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00050116 8-8 V5BZ-SS-NC NC Stainless steel KG 810-5-8ST 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00050118 8-8 V5BZ-6MO-C1 C1 Stainless steel KG 810-5-8ST 6MO 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00050120 8-8 V5BZ-6MO-C3 C3 Stainless steel KG 810-5-8ST 6MO 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00050122 8-8 V5BZ-6MO-NC NC Stainless steel KG 810-5-8ST 6MO 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00050124 12-12 V5BZ-SS-C1 C1 Stainless steel KG 1210-5-12ST 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00050126 12-12 V5BZ-SS-C3 C3 Stainless steel KG 1210-5-12ST 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00050128 12-12 V5BZ-SS-NC NC Stainless steel KG 1210-5-12ST 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00050130 12-12 V5BZ-6MO-C1 C1 Stainless steel KG 1210-5-12ST 6MO 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00050132 12-12 V5BZ-6MO-C3 C3 Stainless steel KG 1210-5-12ST 6MO 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00050134 12-12 V5BZ-6MO-NC NC Stainless steel KG 1210-5-12ST 6MO 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00050136 16-16 V5BZ-SS-C1 C1 Stainless steel KG 1610-5-16ST 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
H00050138 16-16 V5BZ-SS-C3 C3 Stainless steel KG 1610-5-16ST 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
H00050140 16-16 V5BZ-SS-NC NC Stainless steel KG 1610-5-16ST 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
H00050142 16-16 V5BZ-6MO-C1 C1 Stainless steel KG 1610-5-16ST 6MO 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
H00050144 16-16 V5BZ-6MO-C3 C3 Stainless steel KG 1610-5-16ST 6MO 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
H00050146 16-16 V5BZ-6MO-NC NC Stainless steel KG 1610-5-16ST 6MO 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
H00068078 4-4 V5BZ-SS Standard Stainless steel KG 400-5-4ST 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00068080 4-4 V5BZ-6MO Standard Stainless steel KG 400-5-4ST 6MO 1/4 7/16-20 0.93 1.02 0.65 0.75 7/16 3-904 Not in stock 2147483647
H00068082 6-6 V5BZ-SS Standard Stainless steel KG 600-5-6ST 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00068084 6-6 V5BZ-6MO Standard Stainless steel KG 600-5-6ST 6MO 3/8 9/16-18 1.01 1.27 0.72 0.77 9/16 3-906 Not in stock 2147483647
H00068086 8-8 V5BZ-SS Standard Stainless steel KG 810-5-8ST 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00068088 8-8 V5BZ-6MO Standard Stainless steel KG 810-5-8ST 6MO 1/2 3/4-16 1.15 1.48 0.75 0.88 3/4 3-908 Not in stock 2147483647
H00068090 12-12 V5BZ-SS Standard Stainless steel KG 1210-5-12ST 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00068092 12-12 V5BZ-6MO Standard Stainless steel KG 1210-5-12ST 6MO 3/4 1-1/16-12 1.63 1.92 1.23 1.16 1-1/16 3-912 Not in stock 2147483647
H00068096 16-16 V5BZ-6MO Standard Stainless steel KG 1610-5-16ST 6MO 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
H00068094 16-16 V5BZ-SS Standard Stainless steel 1610-5-16ST 1 1-5/16-12 1.87 2.11 1.39 1.16 1-5/16 3-916 Not in stock 2147483647
