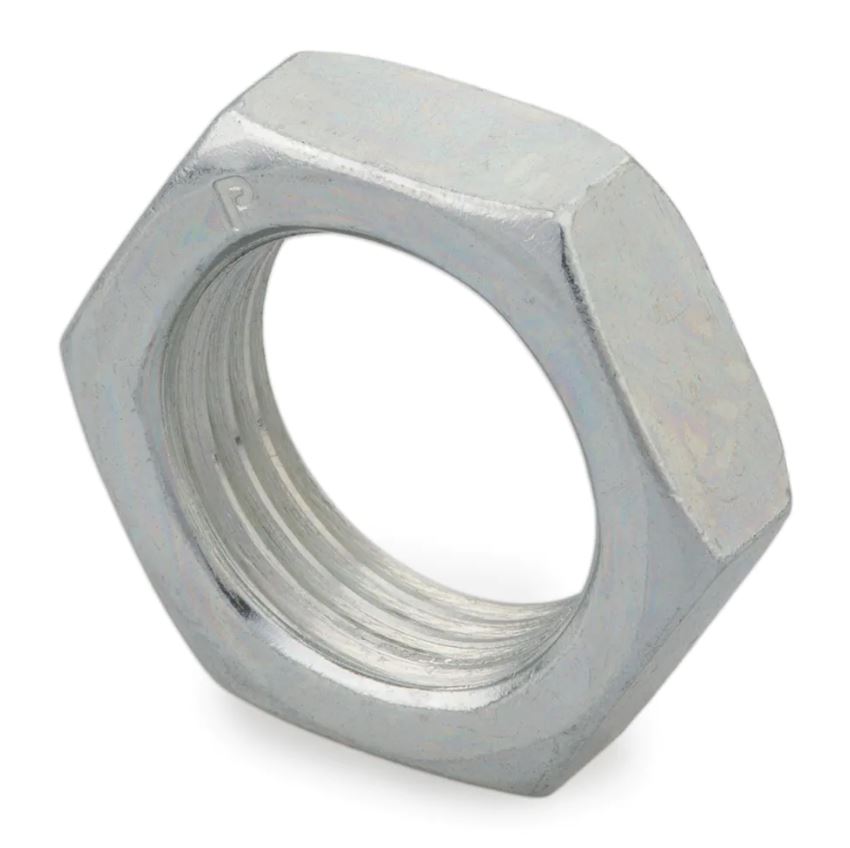

Bulkhead Locknut For fractional tube

Datasheets
Bulkhead Locknut For Fractional Tube (WLZ)
Fitting ends
# End type group End form Thread Sealing
1 A-Lok UNF
Fitting data
Shape Straight

Connection Combination Lock Nuts
Product Classification Process
Product Category Fittings
Product Group Process Fittings
Product Program Compression
Product Subprogram CPI - Single Ferrule, Component
Extra info Components, Components
Show fullscreen image
Hymatik number Supplier Item Number Availability
Alok Fitting Options
Material
Weight
Parker Part No
Material Standard/Grade
Country of origin
TariffNumber
Inter Changes With
A Lok Thread
Tube OD Inches
A Inches
W Inches
Unit price
Stock status
Favorite Sort Order
H00054120 1 WLZ-SS-C1 C1 Stainless steel KG 1 WLZ 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00054121 1 WLZ-SS-C3 C3 Stainless steel KG 1 WLZ 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00054122 1 WLZ-SS-NC NC Stainless steel KG 1 WLZ 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00054123 1 WLZ-6MO-C1 C1 Stainless steel KG 1 WLZ 6MO 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00054124 1 WLZ-6MO-C3 C3 Stainless steel KG 1 WLZ 6MO 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00054125 1 WLZ-6MO-NC NC Stainless steel KG 1 WLZ 6MO 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00054126 2 WLZ-SS-C1 C1 Stainless steel KG 2 WLZ 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00054127 2 WLZ-SS-C3 C3 Stainless steel KG 2 WLZ 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00054128 2 WLZ-SS-NC NC Stainless steel KG 2 WLZ 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00054129 2 WLZ-6MO-C1 C1 Stainless steel KG 2 WLZ 6MO 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00054130 2 WLZ-6MO-C3 C3 Stainless steel KG 2 WLZ 6MO 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00054131 2 WLZ-6MO-NC NC Stainless steel KG 2 WLZ 6MO 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00054132 3 WLZ-SS-C1 C1 Stainless steel KG 3 WLZ 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00054133 3 WLZ-SS-C3 C3 Stainless steel KG 3 WLZ 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00054134 3 WLZ-SS-NC NC Stainless steel KG 3 WLZ 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00054135 3 WLZ-6MO-C1 C1 Stainless steel KG 3 WLZ 6MO 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00054136 3 WLZ-6MO-C3 C3 Stainless steel KG 3 WLZ 6MO 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00054137 3 WLZ-6MO-NC NC Stainless steel KG 3 WLZ 6MO 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00054138 4 WLZ-SS-C1 C1 Stainless steel KG 4 WLZ 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00054139 4 WLZ-SS-C3 C3 Stainless steel KG 4 WLZ 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00054140 4 WLZ-SS-NC NC Stainless steel KG 4 WLZ 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00054141 4 WLZ-6MO-C1 C1 Stainless steel KG 4 WLZ 6MO 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00054142 4 WLZ-6MO-C3 C3 Stainless steel KG 4 WLZ 6MO 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00054143 4 WLZ-6MO-NC NC Stainless steel KG 4 WLZ 6MO 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00054144 5 WLZ-SS-C1 C1 Stainless steel KG 5 WLZ 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00054145 5 WLZ-SS-C3 C3 Stainless steel KG 5 WLZ 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00054146 5 WLZ-SS-NC NC Stainless steel KG 5 WLZ 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00054147 5 WLZ-6MO-C1 C1 Stainless steel KG 5 WLZ 6MO 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00054148 5 WLZ-6MO-C3 C3 Stainless steel KG 5 WLZ 6MO 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00054149 5 WLZ-6MO-NC NC Stainless steel KG 5 WLZ 6MO 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00054150 6 WLZ-SS-C1 C1 Stainless steel KG 6 WLZ 602-61 9/16-20 3/8 0.25 3/4 Not in stock 2147483647
H00054151 6 WLZ-SS-C3 C3 Stainless steel KG 6 WLZ 602-61 9/16-20 3/8 0.25 3/4 Not in stock 2147483647
H00054152 6 WLZ-SS-NC NC Stainless steel KG 6 WLZ 602-61 9/16-20 3/8 0.25 3/4 Not in stock 2147483647
H00054153 6 WLZ-6MO-C1 C1 Stainless steel KG 6 WLZ 6MO 602-61 9/16-20 3/8 0.25 3/4 Not in stock 2147483647
H00054154 6 WLZ-6MO-C3 C3 Stainless steel KG 6 WLZ 6MO 602-61 9/16-20 3/8 0.25 3/4 Not in stock 2147483647
H00054155 6 WLZ-6MO-NC NC Stainless steel KG 6 WLZ 6MO 602-61 9/16-20 3/8 0.25 3/4 Not in stock 2147483647
H00054156 8 WLZ-SS-C1 C1 Stainless steel KG 8 WLZ 812-61 3/4-20 1/2 0.28 15/16 Not in stock 2147483647
H00054157 8 WLZ-SS-C3 C3 Stainless steel KG 8 WLZ 812-61 3/4-20 1/2 0.28 15/16 Not in stock 2147483647
H00054158 8 WLZ-SS-NC NC Stainless steel KG 8 WLZ 812-61 3/4-20 1/2 0.28 15/16 Not in stock 2147483647
H00054159 8 WLZ-6MO-C1 C1 Stainless steel KG 8 WLZ 6MO 812-61 3/4-20 1/2 0.28 15/16 Not in stock 2147483647
H00054160 8 WLZ-6MO-C3 C3 Stainless steel KG 8 WLZ 6MO 812-61 3/4-20 1/2 0.28 15/16 Not in stock 2147483647
H00054161 8 WLZ-6MO-NC NC Stainless steel KG 8 WLZ 6MO 812-61 3/4-20 1/2 0.28 15/16 Not in stock 2147483647
H00054162 10 WLZ-SS-C1 C1 Stainless steel KG 10 WLZ 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00054163 10 WLZ-SS-C3 C3 Stainless steel KG 10 WLZ 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00054164 10 WLZ-SS-NC NC Stainless steel KG 10 WLZ 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00054165 10 WLZ-6MO-C1 C1 Stainless steel KG 10 WLZ 6MO 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00054166 10 WLZ-6MO-C3 C3 Stainless steel KG 10 WLZ 6MO 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00054167 10 WLZ-6MO-NC NC Stainless steel KG 10 WLZ 6MO 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00054168 12 WLZ-SS-C1 C1 Stainless steel KG 12 WLZ 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00054169 12 WLZ-SS-C3 C3 Stainless steel KG 12 WLZ 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00054170 12 WLZ-SS-NC NC Stainless steel KG 12 WLZ 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00054171 12 WLZ-6MO-C1 C1 Stainless steel KG 12 WLZ 6MO 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00054172 12 WLZ-6MO-C3 C3 Stainless steel KG 12 WLZ 6MO 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00054173 12 WLZ-6MO-NC NC Stainless steel KG 12 WLZ 6MO 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00054174 14 WLZ-SS-C1 C1 Stainless steel KG 14 WLZ 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00054175 14 WLZ-SS-C3 C3 Stainless steel KG 14 WLZ 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00054176 14 WLZ-SS-NC NC Stainless steel KG 14 WLZ 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00054177 14 WLZ-6MO-C1 C1 Stainless steel KG 14 WLZ 6MO 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00054178 14 WLZ-6MO-C3 C3 Stainless steel KG 14 WLZ 6MO 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00054179 14 WLZ-6MO-NC NC Stainless steel KG 14 WLZ 6MO 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00054180 16 WLZ-SS-C1 C1 Stainless steel KG 16 WLZ 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00054181 16 WLZ-SS-C3 C3 Stainless steel KG 16 WLZ 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00054182 16 WLZ-SS-NC NC Stainless steel KG 16 WLZ 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00054183 16 WLZ-6MO-C1 C1 Stainless steel KG 16 WLZ 6MO 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00054184 16 WLZ-6MO-C3 C3 Stainless steel KG 16 WLZ 6MO 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00054185 16 WLZ-6MO-NC NC Stainless steel KG 16 WLZ 6MO 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00054186 4 WLN-SS-C1 C1 Stainless steel KG 4 WLN 1/4 0.28 11/16 Not in stock 2147483647
H00054187 4 WLN-SS-C3 C3 Stainless steel KG 4 WLN 1/4 0.28 11/16 Not in stock 2147483647
H00054188 4 WLN-SS-NC NC Stainless steel KG 4 WLN 1/4 0.28 11/16 Not in stock 2147483647
H00054189 4 WLN-6MO-C1 C1 Stainless steel KG 4 WLN 6MO 1/4 0.28 11/16 Not in stock 2147483647
H00054190 4 WLN-6MO-C3 C3 Stainless steel KG 4 WLN 6MO 1/4 0.28 11/16 Not in stock 2147483647
H00054191 4 WLN-6MO-NC NC Stainless steel KG 4 WLN 6MO 1/4 0.28 11/16 Not in stock 2147483647
H00054192 6 WLN-SS-C1 C1 Stainless steel KG 6 WLN 3/8 0.27 13/16 Not in stock 2147483647
H00054193 6 WLN-SS-C3 C3 Stainless steel KG 6 WLN 3/8 0.27 13/16 Not in stock 2147483647
H00054194 6 WLN-SS-NC NC Stainless steel KG 6 WLN 3/8 0.27 13/16 Not in stock 2147483647
H00054195 6 WLN-6MO-C1 C1 Stainless steel KG 6 WLN 6MO 3/8 0.27 13/16 Not in stock 2147483647
H00054196 6 WLN-6MO-C3 C3 Stainless steel KG 6 WLN 6MO 3/8 0.27 13/16 Not in stock 2147483647
H00054197 6 WLN-6MO-NC NC Stainless steel KG 6 WLN 6MO 3/8 0.27 13/16 Not in stock 2147483647
H00054198 8 WLN-SS-C1 C1 Stainless steel KG 8 WLN 1/2 0.31 1 Not in stock 2147483647
H00054199 8 WLN-SS-C3 C3 Stainless steel KG 8 WLN 1/2 0.31 1 Not in stock 2147483647
H00054200 8 WLN-SS-NC NC Stainless steel KG 8 WLN 1/2 0.31 1 Not in stock 2147483647
H00054201 8 WLN-6MO-C1 C1 Stainless steel KG 8 WLN 6MO 1/2 0.31 1 Not in stock 2147483647
H00054202 8 WLN-6MO-C3 C3 Stainless steel KG 8 WLN 6MO 1/2 0.31 1 Not in stock 2147483647
H00054203 8 WLN-6MO-NC NC Stainless steel KG 8 WLN 6MO 1/2 0.31 1 Not in stock 2147483647
H00054204 12 WLN-SS-C1 C1 Stainless steel KG 12 WLN 3/4 0.41 1-3/8 Not in stock 2147483647
H00054205 12 WLN-SS-C3 C3 Stainless steel KG 12 WLN 3/4 0.41 1-3/8 Not in stock 2147483647
H00054206 12 WLN-SS-NC NC Stainless steel KG 12 WLN 3/4 0.41 1-3/8 Not in stock 2147483647
H00054207 12 WLN-6MO-C1 C1 Stainless steel KG 12 WLN 6MO 3/4 0.41 1-3/8 Not in stock 2147483647
H00054208 12 WLN-6MO-C3 C3 Stainless steel KG 12 WLN 6MO 3/4 0.41 1-3/8 Not in stock 2147483647
H00054209 12 WLN-6MO-NC NC Stainless steel KG 12 WLN 6MO 3/4 0.41 1-3/8 Not in stock 2147483647
H00054210 16 WLN-SS-C1 C1 Stainless steel KG 16 WLN 1 0.41 1-5/8 Not in stock 2147483647
H00054211 16 WLN-SS-C3 C3 Stainless steel KG 16 WLN 1 0.41 1-5/8 Not in stock 2147483647
H00054212 16 WLN-SS-NC NC Stainless steel KG 16 WLN 1 0.41 1-5/8 Not in stock 2147483647
H00054213 16 WLN-6MO-C1 C1 Stainless steel KG 16 WLN 6MO 1 0.41 1-5/8 Not in stock 2147483647
H00054214 16 WLN-6MO-C3 C3 Stainless steel KG 16 WLN 6MO 1 0.41 1-5/8 Not in stock 2147483647
H00054215 16 WLN-6MO-NC NC Stainless steel KG 16 WLN 6MO 1 0.41 1-5/8 Not in stock 2147483647
H00069092 1 WLZ-SS Standard Stainless steel KG 1 WLZ 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00069093 1 WLZ-6MO Standard Stainless steel KG 1 WLZ 6MO 102-61 10-32 1/16 0.13 5/16 Not in stock 2147483647
H00069094 2 WLZ-SS Standard Stainless steel 0.008, KG 2 WLZ GB, Great Britain 73072910 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00069095 2 WLZ-6MO Standard Stainless steel KG 2 WLZ 6MO 202-61 5/16-20 1/8 0.19 1/2 Not in stock 2147483647
H00069096 3 WLZ-SS Standard Stainless steel 0.011, KG 3 WLZ GB, Great Britain 73072910 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00069097 3 WLZ-6MO Standard Stainless steel KG 3 WLZ 6MO 302-61 3/8-20 3/16 0.22 9/16 Not in stock 2147483647
H00069098 4 WLZ-SS Standard Stainless steel 0.012, KG 4 WLZ GB, Great Britain 73072910 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00069099 4 WLZ-6MO Standard Stainless steel KG 4 WLZ 6MO 402-61 7/16-20 1/4 0.22 5/8 Not in stock 2147483647
H00069100 5 WLZ-SS Standard Stainless steel 0.015, KG 5 WLZ GB, Great Britain 73072910 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00069101 5 WLZ-6MO Standard Stainless steel KG 5 WLZ 6MO 502-61 1/2-20 5/16 0.23 11/16 Not in stock 2147483647
H00069102 6 WLZ-SS Standard Stainless steel 0, KG 6 WLZ GB, Great Britain 73072910 602-61 9/16-20 3/8 0.25 3/4 10.27 EUR Not in stock
2147483647
H00069103 6 WLZ-6MO Standard Stainless steel KG 6 WLZ 6MO 602-61 9/16-20 3/8 0.25 3/4 Not in stock 2147483647
H00069104 8 WLZ-SS Standard Stainless steel 0, KG 8 WLZ GB, Great Britain 73181639 812-61 3/4-20 1/2 0.28 15/16 10.28 EUR Not in stock
2147483647
H00069105 8 WLZ-6MO Standard Stainless steel KG 8 WLZ 6MO 812-61 3/4-20 1/2 0.28 15/16 Not in stock 2147483647
H00069106 10 WLZ-SS Standard Stainless steel 0.033, KG 10 WLZ GB, Great Britain 73072910 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00069107 10 WLZ-6MO Standard Stainless steel KG 10 WLZ 6MO 1012-61 7/8-20 5/8 0.31 1-1/16 Not in stock 2147483647
H00069108 12 WLZ-SS Standard Stainless steel 0.042, KG 12 WLZ GB, Great Britain 73181639 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00069109 12 WLZ-6MO Standard Stainless steel KG 12 WLZ 6MO 1212-61 1"-20 3/4 0.34 1-3/16 Not in stock 2147483647
H00069110 14 WLZ-SS Standard Stainless steel KG 14 WLZ 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00069111 14 WLZ-6MO Standard Stainless steel KG 14 WLZ 6MO 1412-61 1-1/8-20 7/8 0.38 1-3/8 Not in stock 2147483647
H00069112 16 WLZ-SS Standard Stainless steel 16 WLZ 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00069113 16 WLZ-6MO Standard Stainless steel KG 16 WLZ 6MO 1612-61 1-5/16-20 1 0.38 1-5/8 Not in stock 2147483647
H00069114 4 WLN-SS Obsolete Standard Stainless steel 4 WLN 1/4 0.28 11/16 Not in stock 2147483647
H00069115 4 WLN-6MO Standard Stainless steel KG 4 WLN 6MO 1/4 0.28 11/16 Not in stock 2147483647
H00069116 6 WLN-SS Standard Stainless steel 0.092, KG 6 WLN US, USA 73072910 3/8 0.27 13/16 Not in stock 2147483647
H00069117 6 WLN-6MO Standard Stainless steel KG 6 WLN 6MO 3/8 0.27 13/16 Not in stock 2147483647
H00069118 8 WLN-SS Standard Stainless steel 8 WLN 1/2 0.31 1 Not in stock 2147483647
H00069119 8 WLN-6MO Standard Stainless steel KG 8 WLN 6MO 1/2 0.31 1 Not in stock 2147483647
H00069120 12 WLN-SS Standard Stainless steel 0.046, KG 12 WLN US, USA 73181660 3/4 0.41 1-3/8 43.17 EUR Not in stock
Minimum 10
 2147483647
H00069121 12 WLN-6MO Standard Stainless steel KG 12 WLN 6MO 3/4 0.41 1-3/8 Not in stock 2147483647
H00069122 16 WLN-SS Standard Stainless steel KG 16 WLN 1 0.41 1-5/8 Not in stock 2147483647
H00069123 16 WLN-6MO Standard Stainless steel KG 16 WLN 6MO 1 0.41 1-5/8 Not in stock 2147483647
