Barbed Connector to Male Pipe For fractional tube

Datasheets
Barbed Connector To Male Pipe For Fractional Tube
Fitting ends
# End type group End form Thread Sealing
1 NPT Male NPT Thread
2 Other Standard Hose Nipple/barb
Fitting data
Shape Straight

Connection Combination Hose Nipple-To-Thread
Product Classification Process
Product Category Fittings
Product Group Process Fittings
Product Program Adaptors
Extra info Barbed Fittings, Barbed Fittings
Show fullscreen image
Hymatik number Supplier Item Number
Alok Fitting Options
Material
Country of origin
TariffNumber
Weight
Inter Changes With
Material Standard/Grade

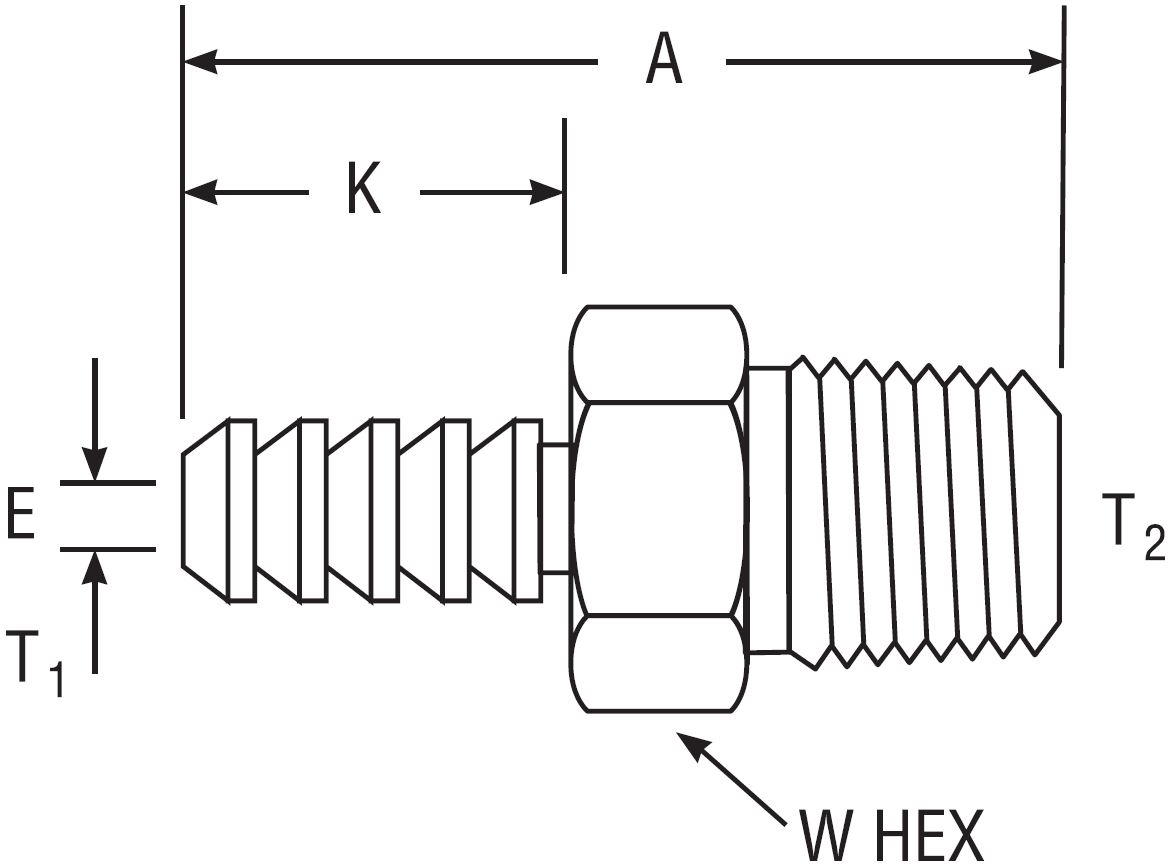

T Hose ID
T2 Male Pipe Size
A Inches
E Bore Inches
K Inches
W Hex Inches
Unit price
Stock status
Favorite Sort Order
H00067462 2-2 B2HF-SS Standard Stainless steel US, USA 73072910 0, KG 2-HC-1-2 1/8 1/8 1 0.08 0.41 7/16 18.26 EUR Not in stock
Minimum 10
 2147483647
H00067463 2-2 B2HF-6MO Standard Stainless steel KG 2-HC-1-2 6MO 1/8 1/8 1 0.08 0.41 7/16 Not in stock 2147483647
H00067464 2-4 B2HF-SS Standard Stainless steel US, USA 73072910 0.04, KG 2-HC-1-4 1/8 1/4 1.22 0.08 0.41 9/16 52.56 EUR Not in stock
Minimum 10
 2147483647
H00067465 2-4 B2HF-6MO Standard Stainless steel KG 2-HC-1-4 6MO 1/8 1/4 1.22 0.08 0.41 9/16 Not in stock 2147483647
H00067466 4-2 B2HF-SS Standard Stainless steel US, USA 73072910 0, KG 4-HC-1-2 1/4 1/8 1.41 0.19 0.75 7/16 20.69 EUR Not in stock
Minimum 10
 2147483647
H00067467 4-2 B2HF-6MO Standard Stainless steel KG 4-HC-1-2 6MO 1/4 1/8 1.41 0.19 0.75 7/16 Not in stock 2147483647
H00067468 4-4 B2HF-SS Standard Stainless steel US, USA 73072910 0.0259, KG 4-HC-1-4 1/4 1/4 1.59 0.19 0.78 9/16 22.77 EUR Not in stock
Minimum 10
 2147483647
H00067469 4-4 B2HF-6MO Standard Stainless steel KG 4-HC-1-4 6MO 1/4 1/4 1.59 0.19 0.78 9/16 Not in stock 2147483647
H00067470 5-2 B2HF-SS Standard Stainless steel US, USA 73072910 0, KG 5-HC-1-2 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00067471 5-2 B2HF-6MO Standard Stainless steel KG 5-HC-1-2 6MO 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00067472 5-4 B2HF-SS Standard Stainless steel US, USA 73072910 0, KG 5-HC-1-4 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00067473 5-4 B2HF-6MO Standard Stainless steel KG 5-HC-1-4 6MO 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00067474 6-4 B2HF-SS Standard Stainless steel US, USA 73072910 0.0285, KG 6-HC-1-4 3/8 1/4 1.72 0.28 0.88 9/16 27.20 EUR Not in stock
Minimum 10
 2147483647
H00067475 6-4 B2HF-6MO Standard Stainless steel KG 6-HC-1-4 6MO 3/8 1/4 1.72 0.28 0.88 9/16 Not in stock 2147483647
H00067476 6-6 B2HF-SS Standard Stainless steel US, USA 73072910 0, KG 6-HC-1-6 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00067477 6-6 B2HF-6MO Standard Stainless steel KG 6-HC-1-6 6MO 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00067478 8-6 B2HF-SS Standard Stainless steel US, USA 73072910 0, KG 8-HC-1-6 1/2 3/8 1.81 0.38 0.94 3/4 32.24 EUR Not in stock
Minimum 10
 2147483647
H00067479 8-6 B2HF-6MO Standard Stainless steel KG 8-HC-1-6 6MO 1/2 3/8 1.81 0.38 0.94 3/4 Not in stock 2147483647
H00067480 8-8 B2HF-SS Standard Stainless steel US, USA 73072910 0.078, KG 8-HC-1-8 1/2 1/2 2 0.38 0.94 7/8 44.84 EUR Not in stock
2147483647
H00067481 8-8 B2HF-6MO Standard Stainless steel KG 8-HC-1-8 6MO 1/2 1/2 2 0.38 0.94 7/8 Not in stock 2147483647
H00067482 12-12 B2HF-SS Standard Stainless steel US, USA 73072910 0, KG 12-HC-1-12 3/4 3/4 2.13 0.63 1.03 1-1/16 109.59 EUR Not in stock
Minimum 10
 2147483647
H00067483 12-12 B2HF-6MO Standard Stainless steel KG 12-HC-1-12 6MO 3/4 3/4 2.13 0.63 1.03 1-1/16 Not in stock 2147483647
H00051990 2-2 B2HF-SS-C1 C1 Stainless steel KG 2-HC-1-2 1/8 1/8 1 0.08 0.41 7/16 Not in stock 2147483647
H00051991 2-2 B2HF-SS-C3 C3 Stainless steel KG 2-HC-1-2 1/8 1/8 1 0.08 0.41 7/16 Not in stock 2147483647
H00051992 2-2 B2HF-SS-NC NC Stainless steel KG 2-HC-1-2 1/8 1/8 1 0.08 0.41 7/16 Not in stock 2147483647
H00051993 2-2 B2HF-6MO-C1 C1 Stainless steel KG 2-HC-1-2 6MO 1/8 1/8 1 0.08 0.41 7/16 Not in stock 2147483647
H00051994 2-2 B2HF-6MO-C3 C3 Stainless steel KG 2-HC-1-2 6MO 1/8 1/8 1 0.08 0.41 7/16 Not in stock 2147483647
H00051995 2-2 B2HF-6MO-NC NC Stainless steel KG 2-HC-1-2 6MO 1/8 1/8 1 0.08 0.41 7/16 Not in stock 2147483647
H00051996 2-4 B2HF-SS-C1 C1 Stainless steel KG 2-HC-1-4 1/8 1/4 1.22 0.08 0.41 9/16 Not in stock 2147483647
H00051997 2-4 B2HF-SS-C3 C3 Stainless steel KG 2-HC-1-4 1/8 1/4 1.22 0.08 0.41 9/16 Not in stock 2147483647
H00051998 2-4 B2HF-SS-NC NC Stainless steel KG 2-HC-1-4 1/8 1/4 1.22 0.08 0.41 9/16 Not in stock 2147483647
H00051999 2-4 B2HF-6MO-C1 C1 Stainless steel KG 2-HC-1-4 6MO 1/8 1/4 1.22 0.08 0.41 9/16 Not in stock 2147483647
H00052000 2-4 B2HF-6MO-C3 C3 Stainless steel KG 2-HC-1-4 6MO 1/8 1/4 1.22 0.08 0.41 9/16 Not in stock 2147483647
H00052001 2-4 B2HF-6MO-NC NC Stainless steel KG 2-HC-1-4 6MO 1/8 1/4 1.22 0.08 0.41 9/16 Not in stock 2147483647
H00052002 4-2 B2HF-SS-C1 C1 Stainless steel KG 4-HC-1-2 1/4 1/8 1.41 0.19 0.75 7/16 Not in stock 2147483647
H00052003 4-2 B2HF-SS-C3 C3 Stainless steel US, USA 73072900 0, KG 4-HC-1-2 1/4 1/8 1.41 0.19 0.75 7/16 Not in stock 2147483647
H00052004 4-2 B2HF-SS-NC NC Stainless steel KG 4-HC-1-2 1/4 1/8 1.41 0.19 0.75 7/16 Not in stock 2147483647
H00052005 4-2 B2HF-6MO-C1 C1 Stainless steel KG 4-HC-1-2 6MO 1/4 1/8 1.41 0.19 0.75 7/16 Not in stock 2147483647
H00052006 4-2 B2HF-6MO-C3 C3 Stainless steel KG 4-HC-1-2 6MO 1/4 1/8 1.41 0.19 0.75 7/16 Not in stock 2147483647
H00052007 4-2 B2HF-6MO-NC NC Stainless steel KG 4-HC-1-2 6MO 1/4 1/8 1.41 0.19 0.75 7/16 Not in stock 2147483647
H00052008 4-4 B2HF-SS-C1 C1 Stainless steel KG 4-HC-1-4 1/4 1/4 1.59 0.19 0.78 9/16 Not in stock 2147483647
H00052009 4-4 B2HF-SS-C3 C3 Stainless steel KG 4-HC-1-4 1/4 1/4 1.59 0.19 0.78 9/16 Not in stock 2147483647
H00052010 4-4 B2HF-SS-NC NC Stainless steel KG 4-HC-1-4 1/4 1/4 1.59 0.19 0.78 9/16 Not in stock 2147483647
H00052011 4-4 B2HF-6MO-C1 C1 Stainless steel KG 4-HC-1-4 6MO 1/4 1/4 1.59 0.19 0.78 9/16 Not in stock 2147483647
H00052012 4-4 B2HF-6MO-C3 C3 Stainless steel KG 4-HC-1-4 6MO 1/4 1/4 1.59 0.19 0.78 9/16 Not in stock 2147483647
H00052013 4-4 B2HF-6MO-NC NC Stainless steel KG 4-HC-1-4 6MO 1/4 1/4 1.59 0.19 0.78 9/16 Not in stock 2147483647
H00052014 5-2 B2HF-SS-C1 C1 Stainless steel KG 5-HC-1-2 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00052015 5-2 B2HF-SS-C3 C3 Stainless steel KG 5-HC-1-2 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00052016 5-2 B2HF-SS-NC NC Stainless steel KG 5-HC-1-2 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00052017 5-2 B2HF-6MO-C1 C1 Stainless steel KG 5-HC-1-2 6MO 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00052018 5-2 B2HF-6MO-C3 C3 Stainless steel KG 5-HC-1-2 6MO 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00052019 5-2 B2HF-6MO-NC NC Stainless steel KG 5-HC-1-2 6MO 5/16 1/8 1.50 0.19 0.88 7/16 Not in stock 2147483647
H00052020 5-4 B2HF-SS-C1 C1 Stainless steel KG 5-HC-1-4 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00052021 5-4 B2HF-SS-C3 C3 Stainless steel KG 5-HC-1-4 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00052022 5-4 B2HF-SS-NC NC Stainless steel KG 5-HC-1-4 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00052023 5-4 B2HF-6MO-C1 C1 Stainless steel KG 5-HC-1-4 6MO 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00052024 5-4 B2HF-6MO-C3 C3 Stainless steel KG 5-HC-1-4 6MO 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00052025 5-4 B2HF-6MO-NC NC Stainless steel KG 5-HC-1-4 6MO 5/16 1/4 1.69 0.25 0.88 9/16 Not in stock 2147483647
H00052026 6-4 B2HF-SS-C1 C1 Stainless steel KG 6-HC-1-4 3/8 1/4 1.72 0.28 0.88 9/16 Not in stock 2147483647
H00052027 6-4 B2HF-SS-C3 C3 Stainless steel KG 6-HC-1-4 3/8 1/4 1.72 0.28 0.88 9/16 Not in stock 2147483647
H00052028 6-4 B2HF-SS-NC NC Stainless steel KG 6-HC-1-4 3/8 1/4 1.72 0.28 0.88 9/16 Not in stock 2147483647
H00052029 6-4 B2HF-6MO-C1 C1 Stainless steel KG 6-HC-1-4 6MO 3/8 1/4 1.72 0.28 0.88 9/16 Not in stock 2147483647
H00052030 6-4 B2HF-6MO-C3 C3 Stainless steel KG 6-HC-1-4 6MO 3/8 1/4 1.72 0.28 0.88 9/16 Not in stock 2147483647
H00052031 6-4 B2HF-6MO-NC NC Stainless steel KG 6-HC-1-4 6MO 3/8 1/4 1.72 0.28 0.88 9/16 Not in stock 2147483647
H00052032 6-6 B2HF-SS-C1 C1 Stainless steel KG 6-HC-1-6 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00052033 6-6 B2HF-SS-C3 C3 Stainless steel KG 6-HC-1-6 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00052034 6-6 B2HF-SS-NC NC Stainless steel KG 6-HC-1-6 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00052035 6-6 B2HF-6MO-C1 C1 Stainless steel KG 6-HC-1-6 6MO 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00052036 6-6 B2HF-6MO-C3 C3 Stainless steel KG 6-HC-1-6 6MO 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00052037 6-6 B2HF-6MO-NC NC Stainless steel KG 6-HC-1-6 6MO 3/8 3/8 1.72 0.30 0.88 11/16 Not in stock 2147483647
H00052038 8-6 B2HF-SS-C1 C1 Stainless steel KG 8-HC-1-6 1/2 3/8 1.81 0.38 0.94 3/4 Not in stock 2147483647
H00052039 8-6 B2HF-SS-C3 C3 Stainless steel KG 8-HC-1-6 1/2 3/8 1.81 0.38 0.94 3/4 Not in stock 2147483647
H00052040 8-6 B2HF-SS-NC NC Stainless steel KG 8-HC-1-6 1/2 3/8 1.81 0.38 0.94 3/4 Not in stock 2147483647
H00052041 8-6 B2HF-6MO-C1 C1 Stainless steel KG 8-HC-1-6 6MO 1/2 3/8 1.81 0.38 0.94 3/4 Not in stock 2147483647
H00052042 8-6 B2HF-6MO-C3 C3 Stainless steel KG 8-HC-1-6 6MO 1/2 3/8 1.81 0.38 0.94 3/4 Not in stock 2147483647
H00052043 8-6 B2HF-6MO-NC NC Stainless steel KG 8-HC-1-6 6MO 1/2 3/8 1.81 0.38 0.94 3/4 Not in stock 2147483647
H00052044 8-8 B2HF-SS-C1 C1 Stainless steel KG 8-HC-1-8 1/2 1/2 2 0.38 0.94 7/8 Not in stock 2147483647
H00052045 8-8 B2HF-SS-C3 C3 Stainless steel KG 8-HC-1-8 1/2 1/2 2 0.38 0.94 7/8 Not in stock 2147483647
H00052046 8-8 B2HF-SS-NC NC Stainless steel KG 8-HC-1-8 1/2 1/2 2 0.38 0.94 7/8 Not in stock 2147483647
H00052047 8-8 B2HF-6MO-C1 C1 Stainless steel KG 8-HC-1-8 6MO 1/2 1/2 2 0.38 0.94 7/8 Not in stock 2147483647
H00052048 8-8 B2HF-6MO-C3 C3 Stainless steel KG 8-HC-1-8 6MO 1/2 1/2 2 0.38 0.94 7/8 Not in stock 2147483647
H00052049 8-8 B2HF-6MO-NC NC Stainless steel KG 8-HC-1-8 6MO 1/2 1/2 2 0.38 0.94 7/8 Not in stock 2147483647
H00052050 12-12 B2HF-SS-C1 C1 Stainless steel KG 12-HC-1-12 3/4 3/4 2.13 0.63 1.03 1-1/16 Not in stock 2147483647
H00052051 12-12 B2HF-SS-C3 C3 Stainless steel KG 12-HC-1-12 3/4 3/4 2.13 0.63 1.03 1-1/16 Not in stock 2147483647
H00052052 12-12 B2HF-SS-NC NC Stainless steel KG 12-HC-1-12 3/4 3/4 2.13 0.63 1.03 1-1/16 Not in stock 2147483647
H00052053 12-12 B2HF-6MO-C1 C1 Stainless steel KG 12-HC-1-12 6MO 3/4 3/4 2.13 0.63 1.03 1-1/16 Not in stock 2147483647
H00052054 12-12 B2HF-6MO-C3 C3 Stainless steel KG 12-HC-1-12 6MO 3/4 3/4 2.13 0.63 1.03 1-1/16 Not in stock 2147483647
H00052055 12-12 B2HF-6MO-NC NC Stainless steel KG 12-HC-1-12 6MO 3/4 3/4 2.13 0.63 1.03 1-1/16 Not in stock 2147483647
