Ball Valve - 3-Way Subsea Series (3/16” Orifice)

Datasheets
Ball Valve 3 Way Subsea Series (3 16” Orifice)
Product Classification Process
Product Category Valves
Product Group High Pressure AE Valves
Product Program Ball Valves
Product Subprogram Ball Valves 3-Way
Show fullscreen image
Hymatik number Supplier Item Number
Country of origin
TariffNumber
Weight

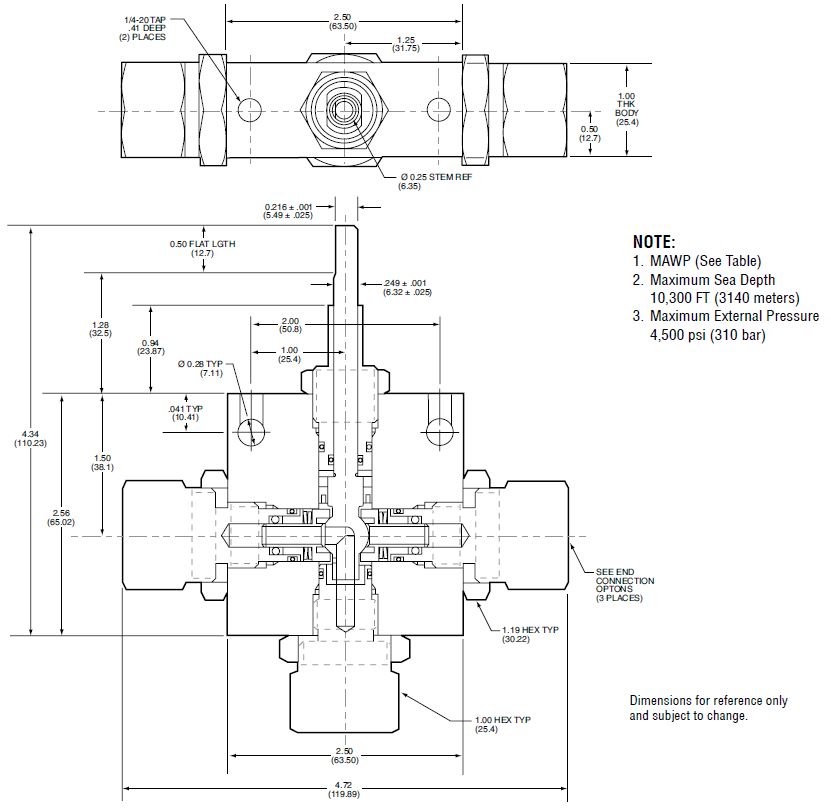

Valve Model
A Inch
A (mm)
B Inch
B (mm)
C Inch
C (mm)
D Inch
D (mm)
E Inch
E (mm)
F Inch
F (mm)
G Inch
G (mm)
H Inch
H (mm)
J Inch
J (mm)
K Inch
K (mm)
L Inch
L (mm)
M Inch
M (mm)
Block Thickness Inch
Block Thickness (mm)
End Connection Number
Connection
Mawp Room Temperature Psi
Mawp Room Temperature Bar
Seat Dland Hex Inch
Seat Dland Hex (mm)
Unit price
Stock status
Favorite Sort Order
H00058272 S3B3S15M4 US, USA 73072910 0, KG 3B3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 M4 SF250CX20 15000 1034 1 25.40 2066.57 EUR Not in stock
2147483647
H00058273 S3BD3S20M4 KG 3BD3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 M4 SF250CX20 20000 1379 1 25.40 Not in stock 2147483647
H00058274 S3B3S15M6 US, USA 7307291090 2.1, KG 3B3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 M6 SF375CX20 15000 1034 1 25.40 Not in stock 2147483647
H00058275 S3BD3S20M6 KG 3BD3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 M6 SF375CX20 20000 1379 1 25.40 Not in stock 2147483647
H00058276 S3B3S15M9 KG 3B3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 M9 SF562CX20 15000 1034 1 25.40 Not in stock 2147483647
H00058277 S3BD3S20M9 KG 3BD3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 M9 SF562CX20 20000 1379 1 25.40 Not in stock 2147483647
H00058278 S3B3S15H4 KG 3B3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 H4 F250C 15000 1034 1 25.40 Not in stock 2147483647
H00058279 S3BD3S20H4 KG 3BD3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 H4 F250C 20000 1379 1 25.40 Not in stock 2147483647
H00058280 S3B3S15H6 KG 3B3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 H6 F375C 15000 1034 1 25.40 Not in stock 2147483647
H00058281 S3BD3S20H6 KG 3BD3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 H6 F375C 20000 1379 1 25.40 Not in stock 2147483647
H00058282 S3B3S15P4 US, USA 84818081 0, KG 3B3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 P4 1/4” NPT 15000 1034 1 25.40 4355.46 EUR Not in stock
2147483647
H00058283 S3BD3S15P4 IE, Ireland 7307291090 1.2, KG 3BD3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 P4 1/4” NPT 15000 1034 1 25.40 Not in stock 2147483647
H00058284 S3B3S15P6 US, USA 84818099 0, KG 3B3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 P6 3/8” NPT 15000 1034 1 25.40 Not in stock 2147483647
H00058285 S3BD3S15P6 US, USA 84818081 0, KG 3BD3S 5.64 143.35 4.72 119.94 2.50 63.50 3.37 85.55 3.90 99.02 1.13 28.58 1.50 38.10 0.75 19.05 0.43 10.92 0.28 7.11 2.25 57.15 0.97 24.64 1 25.40 P6 3/8” NPT 15000 1034 1 25.40 Not in stock 2147483647
