ALOK - Push-Lok to CPI™/ A-LOK® For fractional tube

Datasheets
Push Lok To CPI™ A LOK® For Fractional Tube
Fitting ends
# End type group End form Thread Sealing
1 A-Lok (Fractional) Female Swivel UNF Compression - D+S Ferrule
2 Push-Lok Standard Hose Nipple/barb Push-Lok design
Fitting data
Shape Straight

Connection Combination Hose Nipple-To-Swivel
Product Classification Process
Product Category Fittings
Product Group Process Fittings
Product Program Compression
Product Subprogram CPI - Single Ferrule
Extra info Port Connector, Port Connector
Show fullscreen image
Hymatik number Supplier Item Number
Alok Fitting Options
Material
Material Standard/Grade
Weight
Inter Changes With

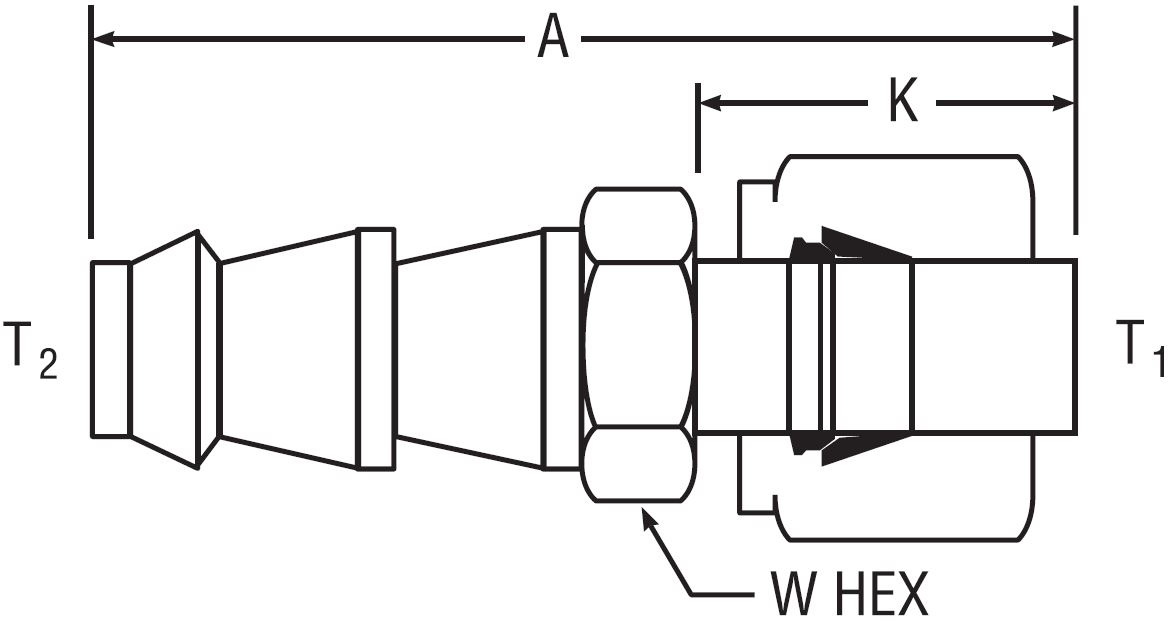

T1 Tube OD
T2 Hose Size
A Inches
K Inches
W Hex Inches
Unit price
Stock status
Favorite Sort Order
H00048889 4-4 P2LZ6-316-C1 C1 Stainless steel 316 KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00048891 4-4 P2LZ6-316-C3 C3 Stainless steel 316 KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00048893 4-4 P2LZ6-316-NC NC Stainless steel 316 KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00048895 4-4 P2LZ6-6MO-C1 C1 Stainless steel 6MO KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00048897 4-4 P2LZ6-6MO-C3 C3 Stainless steel 6MO KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00048899 4-4 P2LZ6-6MO-NC NC Stainless steel 6MO KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00048901 6-6 P2LZ6-316-C1 C1 Stainless steel 316 KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00048903 6-6 P2LZ6-316-C3 C3 Stainless steel 316 KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00048905 6-6 P2LZ6-316-NC NC Stainless steel 316 KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00048907 6-6 P2LZ6-6MO-C1 C1 Stainless steel 6MO KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00048909 6-6 P2LZ6-6MO-C3 C3 Stainless steel 6MO KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00048911 6-6 P2LZ6-6MO-NC NC Stainless steel 6MO KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00048913 8-8 P2LZ6-316-C1 C1 Stainless steel 316 KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
H00048915 8-8 P2LZ6-316-C3 C3 Stainless steel 316 KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
H00048917 8-8 P2LZ6-316-NC NC Stainless steel 316 KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
H00048919 8-8 P2LZ6-6MO-C1 C1 Stainless steel 6MO KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
H00048921 8-8 P2LZ6-6MO-C3 C3 Stainless steel 6MO KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
H00048923 8-8 P2LZ6-6MO-NC NC Stainless steel 6MO KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
H00066407 4-4 P2LZ6-316 Standard Stainless steel 316 KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00066409 4-4 P2LZ6-6MO Standard Stainless steel 6MO KG PB4-TA4 1/4 -4 1.77 0.72 7/16 Not in stock 2147483647
H00066411 6-6 P2LZ6-316 Standard Stainless steel 316 KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00066413 6-6 P2LZ6-6MO Standard Stainless steel 6MO KG PB6-TA6 3/8 -6 1.98 0.78 9/16 Not in stock 2147483647
H00066415 8-8 P2LZ6-316 Standard Stainless steel 316 KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
H00066417 8-8 P2LZ6-6MO Standard Stainless steel 6MO KG PB8-TA8 1/2 -8 2.42 1.03 11/16 Not in stock 2147483647
