ALOK - BSP Taper Female Adapter For metric tube

Datasheets

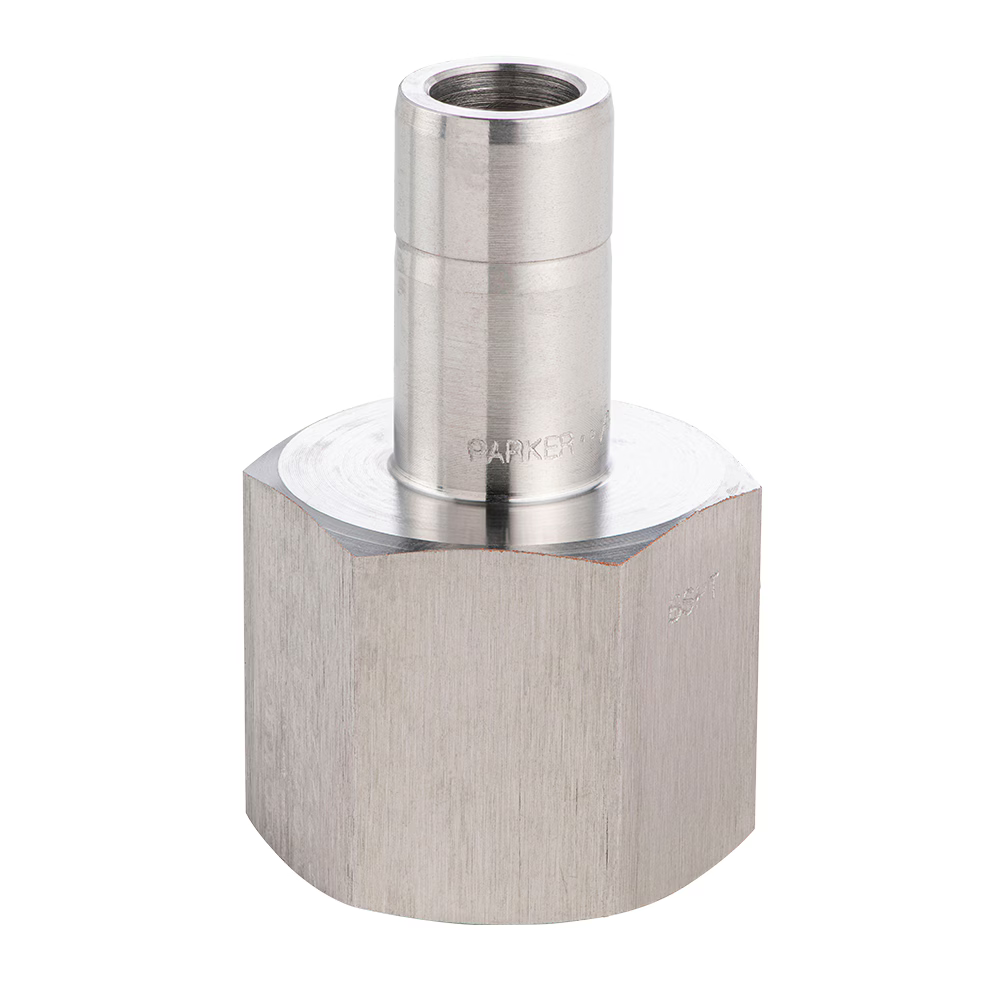

BSP Taper Female Adapter For Metric Tube
Fitting ends
# End type group End form Thread Sealing
1 A-Lok (Metric) Standpipe, Tube End Compression - Double Ferrule
2 BSP Female (Rigid) BSPT Thread
Fitting data
Shape Straight

Connection Combination Tube End-To-Thread
Product Classification Process
Product Category Fittings
Product Group Process Fittings
Product Program Compression
Product Subprogram A-Lok - Double Ferrule
Extra info Port Connector, Port Connector
Show fullscreen image
Hymatik number Supplier Item Number
Alok Fitting Options
Material
Material Standard/Grade
Weight
Inter Changes With
Country of origin
TariffNumber
Tube OD (mm)
Bspt Thread Inches

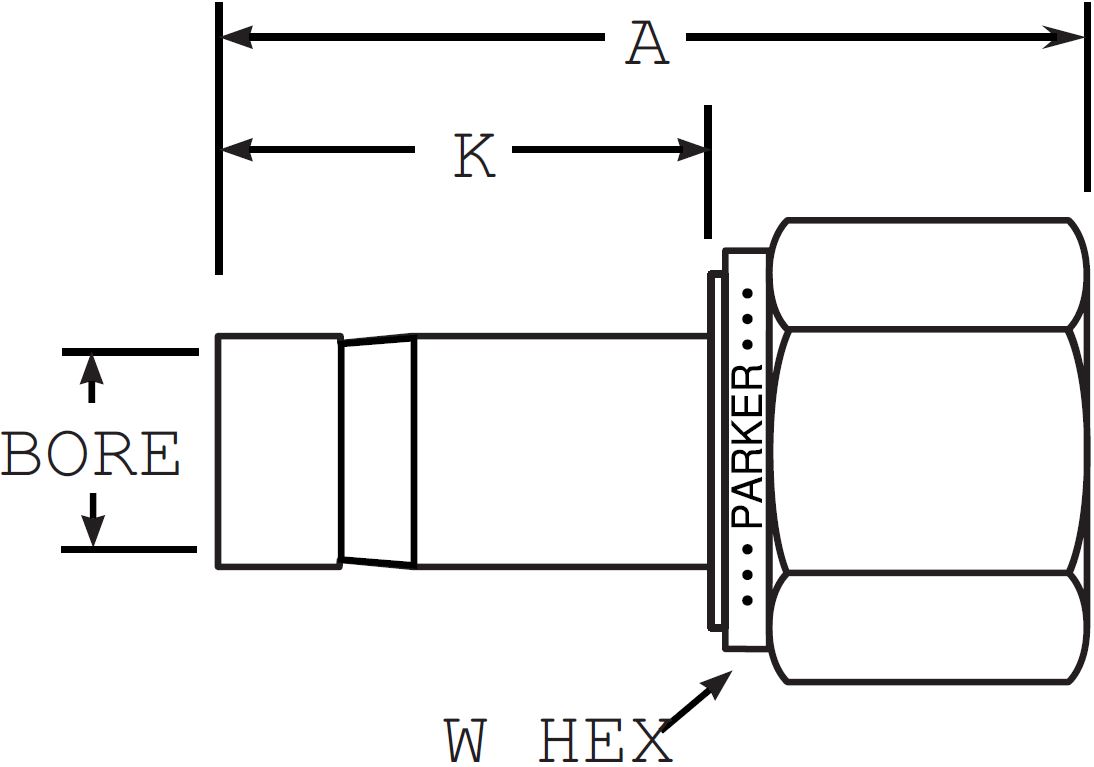

A (mm)
K (mm)
W Hex (mm)
Bore (mm)
Unit price
Stock status
Favorite Sort Order
H00048627 M25FA1K-6MO-C3 C3 Stainless steel 6MO KG 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00048629 M25FA1K-6MO-NC NC Stainless steel 6MO KG 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00048625 M25FA1K-6MO-C1 C1 Stainless steel 6MO KG 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00048623 M25FA1K-316-NC NC Stainless steel 316 KG 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00048621 M25FA1K-316-C3 C3 Stainless steel 316 KG 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00048619 M25FA1K-316-C1 C1 Stainless steel 316 KG 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00048617 M20FA3/4K-6MO-NC NC Stainless steel 6MO KG 20-MTA-7-12RT 20 3/4 52.40 25.40 32 15.10 Not in stock 2147483647
H00048615 M20FA3/4K-6MO-C3 C3 Stainless steel 6MO KG 20-MTA-7-12RT 20 3/4 52.40 25.40 32 15.10 Not in stock 2147483647
H00048613 M20FA3/4K-6MO-C1 C1 Stainless steel 6MO KG 20-MTA-7-12RT 20 3/4 52.40 25.40 32 15.10 Not in stock 2147483647
H00048611 M20FA3/4K-316-NC NC Stainless steel 316 KG 20-MTA-7-12RT 20 3/4 52.40 25.40 32 15.10 Not in stock 2147483647
H00048609 M20FA3/4K-316-C3 C3 Stainless steel 316 KG 20-MTA-7-12RT 20 3/4 52.40 25.40 32 15.10 Not in stock 2147483647
H00048607 M20FA3/4K-316-C1 C1 Stainless steel 316 KG 20-MTA-7-12RT 20 3/4 52.40 25.40 32 15.10 Not in stock 2147483647
H00048605 M18FA3/4K-6MO-NC NC Stainless steel 6MO KG 18-MTA-7-12RT 18 3/4 51.60 24.60 32 14 Not in stock 2147483647
H00048603 M18FA3/4K-6MO-C3 C3 Stainless steel 6MO KG 18-MTA-7-12RT 18 3/4 51.60 24.60 32 14 Not in stock 2147483647
H00048601 M18FA3/4K-6MO-C1 C1 Stainless steel 6MO KG 18-MTA-7-12RT 18 3/4 51.60 24.60 32 14 Not in stock 2147483647
H00048599 M18FA3/4K-316-NC NC Stainless steel 316 KG 18-MTA-7-12RT 18 3/4 51.60 24.60 32 14 Not in stock 2147483647
H00048597 M18FA3/4K-316-C3 C3 Stainless steel 316 KG 18-MTA-7-12RT 18 3/4 51.60 24.60 32 14 Not in stock 2147483647
H00048595 M18FA3/4K-316-C1 C1 Stainless steel 316 KG 18-MTA-7-12RT 18 3/4 51.60 24.60 32 14 Not in stock 2147483647
H00048593 M16FA1/2K-6MO-NC NC Stainless steel 6MO KG 16-MTA-7-8RT 16 1/2 48.40 24.60 27 12.70 Not in stock 2147483647
H00048591 M16FA1/2K-6MO-C3 C3 Stainless steel 6MO KG 16-MTA-7-8RT 16 1/2 48.40 24.60 27 12.70 Not in stock 2147483647
H00048589 M16FA1/2K-6MO-C1 C1 Stainless steel 6MO KG 16-MTA-7-8RT 16 1/2 48.40 24.60 27 12.70 Not in stock 2147483647
H00048587 M16FA1/2K-316-NC NC Stainless steel 316 KG 16-MTA-7-8RT 16 1/2 48.40 24.60 27 12.70 Not in stock 2147483647
H00048585 M16FA1/2K-316-C3 C3 Stainless steel 316 KG 16-MTA-7-8RT 16 1/2 48.40 24.60 27 12.70 Not in stock 2147483647
H00048583 M16FA1/2K-316-C1 C1 Stainless steel 316 KG 16-MTA-7-8RT 16 1/2 48.40 24.60 27 12.70 Not in stock 2147483647
H00048581 M12FA1/2K-6MO-NC NC Stainless steel 6MO KG 12-MTA-7-8RT 12 1/2 46.80 23 27 9.10 Not in stock 2147483647
H00048579 M12FA1/2K-6MO-C3 C3 Stainless steel 6MO KG 12-MTA-7-8RT 12 1/2 46.80 23 27 9.10 Not in stock 2147483647
H00048577 M12FA1/2K-6MO-C1 C1 Stainless steel 6MO KG 12-MTA-7-8RT 12 1/2 46.80 23 27 9.10 Not in stock 2147483647
H00048575 M12FA1/2K-316-NC NC Stainless steel 316 KG 12-MTA-7-8RT 12 1/2 46.80 23 27 9.10 Not in stock 2147483647
H00048573 M12FA1/2K-316-C3 C3 Stainless steel 316 KG 12-MTA-7-8RT 12 1/2 46.80 23 27 9.10 Not in stock 2147483647
H00048571 M12FA1/2K-316-C1 C1 Stainless steel 316 KG 12-MTA-7-8RT 12 1/2 46.80 23 27 9.10 Not in stock 2147483647
H00048569 M12FA3/8K-6MO-NC NC Stainless steel 6MO KG 12-MTA-7-6RT 12 3/8 43.70 23 22 9.10 Not in stock 2147483647
H00048567 M12FA3/8K-6MO-C3 C3 Stainless steel 6MO KG 12-MTA-7-6RT 12 3/8 43.70 23 22 9.10 Not in stock 2147483647
H00048565 M12FA3/8K-6MO-C1 C1 Stainless steel 6MO KG 12-MTA-7-6RT 12 3/8 43.70 23 22 9.10 Not in stock 2147483647
H00048563 M12FA3/8K-316-NC NC Stainless steel 316 KG 12-MTA-7-6RT 12 3/8 43.70 23 22 9.10 Not in stock 2147483647
H00048561 M12FA3/8K-316-C3 C3 Stainless steel 316 KG 12-MTA-7-6RT 12 3/8 43.70 23 22 9.10 Not in stock 2147483647
H00048559 M12FA3/8K-316-C1 C1 Stainless steel 316 KG 12-MTA-7-6RT 12 3/8 43.70 23 22 9.10 Not in stock 2147483647
H00048557 M12FA1/4K-6MO-NC NC Stainless steel 6MO KG 12-MTA-7-4RT 12 1/4 40.50 23 19 9.10 Not in stock 2147483647
H00048555 M12FA1/4K-6MO-C3 C3 Stainless steel 6MO KG 12-MTA-7-4RT 12 1/4 40.50 23 19 9.10 Not in stock 2147483647
H00048553 M12FA1/4K-6MO-C1 C1 Stainless steel 6MO KG 12-MTA-7-4RT 12 1/4 40.50 23 19 9.10 Not in stock 2147483647
H00048551 M12FA1/4K-316-NC NC Stainless steel 316 KG 12-MTA-7-4RT 12 1/4 40.50 23 19 9.10 Not in stock 2147483647
H00048549 M12FA1/4K-316-C3 C3 Stainless steel 316 KG 12-MTA-7-4RT 12 1/4 40.50 23 19 9.10 Not in stock 2147483647
H00048547 M12FA1/4K-316-C1 C1 Stainless steel 316 KG 12-MTA-7-4RT 12 1/4 40.50 23 19 9.10 Not in stock 2147483647
H00048545 M10FA1/2K-6MO-NC NC Stainless steel 6MO KG 10-MTA-7-8RT 10 1/2 41.30 17.50 27 7.50 Not in stock 2147483647
H00048543 M10FA1/2K-6MO-C3 C3 Stainless steel 6MO KG 10-MTA-7-8RT 10 1/2 41.30 17.50 27 7.50 Not in stock 2147483647
H00048541 M10FA1/2K-6MO-C1 C1 Stainless steel 6MO KG 10-MTA-7-8RT 10 1/2 41.30 17.50 27 7.50 Not in stock 2147483647
H00048539 M10FA1/2K-316-NC NC Stainless steel 316 KG 10-MTA-7-8RT 10 1/2 41.30 17.50 27 7.50 Not in stock 2147483647
H00048537 M10FA1/2K-316-C3 C3 Stainless steel 316 KG 10-MTA-7-8RT 10 1/2 41.30 17.50 27 7.50 Not in stock 2147483647
H00048535 M10FA1/2K-316-C1 C1 Stainless steel 316 KG 10-MTA-7-8RT 10 1/2 41.30 17.50 27 7.50 Not in stock 2147483647
H00048533 M10FA3/8K-6MO-NC NC Stainless steel 6MO KG 10-MTA-7-6RT 10 3/8 31.80 17.50 22 7.50 Not in stock 2147483647
H00048531 M10FA3/8K-6MO-C3 C3 Stainless steel 6MO KG 10-MTA-7-6RT 10 3/8 31.80 17.50 22 7.50 Not in stock 2147483647
H00048529 M10FA3/8K-6MO-C1 C1 Stainless steel 6MO KG 10-MTA-7-6RT 10 3/8 31.80 17.50 22 7.50 Not in stock 2147483647
H00048527 M10FA3/8K-316-NC NC Stainless steel 316 KG 10-MTA-7-6RT 10 3/8 31.80 17.50 22 7.50 Not in stock 2147483647
H00048525 M10FA3/8K-316-C3 C3 Stainless steel 316 KG 10-MTA-7-6RT 10 3/8 31.80 17.50 22 7.50 Not in stock 2147483647
H00048523 M10FA3/8K-316-C1 C1 Stainless steel 316 KG 10-MTA-7-6RT 10 3/8 31.80 17.50 22 7.50 Not in stock 2147483647
H00048521 M10FA1/4K-6MO-NC NC Stainless steel 6MO KG 10-MTA-7-4RT 10 1/4 36.50 17.50 19 7.50 Not in stock 2147483647
H00048519 M10FA1/4K-6MO-C3 C3 Stainless steel 6MO KG 10-MTA-7-4RT 10 1/4 36.50 17.50 19 7.50 Not in stock 2147483647
H00048517 M10FA1/4K-6MO-C1 C1 Stainless steel 6MO KG 10-MTA-7-4RT 10 1/4 36.50 17.50 19 7.50 Not in stock 2147483647
H00048515 M10FA1/4K-316-NC NC Stainless steel 316 KG 10-MTA-7-4RT 10 1/4 36.50 17.50 19 7.50 Not in stock 2147483647
H00048513 M10FA1/4K-316-C3 C3 Stainless steel 316 KG 10-MTA-7-4RT 10 1/4 36.50 17.50 19 7.50 Not in stock 2147483647
H00048511 M10FA1/4K-316-C1 C1 Stainless steel 316 KG 10-MTA-7-4RT 10 1/4 36.50 17.50 19 7.50 Not in stock 2147483647
H00048509 M8FA1/4K-6MO-NC NC Stainless steel 6MO KG 8-MTA-7-4RT 8 1/4 39.10 16.70 19 6.40 Not in stock 2147483647
H00048507 M8FA1/4K-6MO-C3 C3 Stainless steel 6MO KG 8-MTA-7-4RT 8 1/4 39.10 16.70 19 6.40 Not in stock 2147483647
H00048505 M8FA1/4K-6MO-C1 C1 Stainless steel 6MO KG 8-MTA-7-4RT 8 1/4 39.10 16.70 19 6.40 Not in stock 2147483647
H00048503 M8FA1/4K-316-NC NC Stainless steel 316 KG 8-MTA-7-4RT 8 1/4 39.10 16.70 19 6.40 Not in stock 2147483647
H00048501 M8FA1/4K-316-C3 C3 Stainless steel 316 KG 8-MTA-7-4RT 8 1/4 39.10 16.70 19 6.40 Not in stock 2147483647
H00048499 M8FA1/4K-316-C1 C1 Stainless steel 316 KG 8-MTA-7-4RT 8 1/4 39.10 16.70 19 6.40 Not in stock 2147483647
H00048497 M6FA1/8K-6MO-NC NC Stainless steel 6MO KG 6-MTA-7-2RT 6 1/8 30.20 15.90 14 4 Not in stock 2147483647
H00048495 M6FA1/8K-6MO-C3 C3 Stainless steel 6MO KG 6-MTA-7-2RT 6 1/8 30.20 15.90 14 4 Not in stock 2147483647
H00048493 M6FA1/8K-6MO-C1 C1 Stainless steel 6MO KG 6-MTA-7-2RT 6 1/8 30.20 15.90 14 4 Not in stock 2147483647
H00048491 M6FA1/8K-316-NC NC Stainless steel 316 KG 6-MTA-7-2RT 6 1/8 30.20 15.90 14 4 Not in stock 2147483647
H00048489 M6FA1/8K-316-C3 C3 Stainless steel 316 KG 6-MTA-7-2RT 6 1/8 30.20 15.90 14 4 Not in stock 2147483647
H00048487 M6FA1/8K-316-C1 C1 Stainless steel 316 KG 6-MTA-7-2RT 6 1/8 30.20 15.90 14 4 Not in stock 2147483647
H00048485 M4FA1/8K-6MO-NC NC Stainless steel 6MO KG 4-MTA-7-2RT 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00048483 M4FA1/8K-6MO-C3 C3 Stainless steel 6MO KG 4-MTA-7-2RT 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00048481 M4FA1/8K-6MO-C1 C1 Stainless steel 6MO KG 4-MTA-7-2RT 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00048479 M4FA1/8K-316-NC NC Stainless steel 316 KG 4-MTA-7-2RT 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00048477 M4FA1/8K-316-C3 C3 Stainless steel 316 KG 4-MTA-7-2RT 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00048475 M4FA1/8K-316-C1 C1 Stainless steel 316 KG 4-MTA-7-2RT 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00048473 M3FA1/8K-6MO-NC NC Stainless steel 6MO KG 3-MTA-7-2RT 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
H00048471 M3FA1/8K-6MO-C3 C3 Stainless steel 6MO KG 3-MTA-7-2RT 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
H00048469 M3FA1/8K-6MO-C1 C1 Stainless steel 6MO KG 3-MTA-7-2RT 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
H00048467 M3FA1/8K-316-NC NC Stainless steel 316 KG 3-MTA-7-2RT 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
H00048465 M3FA1/8K-316-C3 C3 Stainless steel 316 KG 3-MTA-7-2RT 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
H00048463 M3FA1/8K-316-C1 C1 Stainless steel 316 KG 3-MTA-7-2RT 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
H00066319 M25FA1K-6MO Standard Stainless steel 6MO KG 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00066317 M25FA1K-316 Standard Stainless steel 316 25-MTA-7-16RT 25 1 66.70 31.80 41 19.80 Not in stock 2147483647
H00066315 M20FA3/4K-6MO Standard Stainless steel 6MO 0.06, KG 20-MTA-7-12RT GB, Great Britain 73072910 20 3/4 52.40 25.40 32 15.10 Not in stock 2147483647
H00066313 M20FA3/4K-316 Standard Stainless steel 316 0, KG 20-MTA-7-12RT GB, Great Britain 73072910 20 3/4 52.40 25.40 32 15.10 156.61 EUR Not in stock
Minimum 5
 2147483647
H00066311 M18FA3/4K-6MO Standard Stainless steel 6MO KG 18-MTA-7-12RT 18 3/4 51.60 24.60 32 14 Not in stock 2147483647
H00066309 M18FA3/4K-316 Standard Stainless steel 316 0.174, KG 18-MTA-7-12RT GB, Great Britain 73072910 18 3/4 51.60 24.60 32 14 170.19 EUR Not in stock
Minimum 5
 2147483647
H00066307 M16FA1/2K-6MO Standard Stainless steel 6MO KG 16-MTA-7-8RT 16 1/2 48.40 24.60 27 12.70 Not in stock 2147483647
H00066305 M16FA1/2K-316 Standard Stainless steel 316 0, KG 16-MTA-7-8RT GB, Great Britain 73072910 16 1/2 48.40 24.60 27 12.70 154.35 EUR Not in stock
Minimum 5
 2147483647
H00066303 M12FA1/2K-6MO Standard Stainless steel 6MO KG 12-MTA-7-8RT 12 1/2 46.80 23 27 9.10 Not in stock 2147483647
H00066301 M12FA1/2K-316 Standard Stainless steel 316 0.1028, KG 12-MTA-7-8RT GB, Great Britain 73072910 12 1/2 46.80 23 27 9.10 56.48 EUR Not in stock
Minimum 5
 2147483647
H00066299 M12FA3/8K-6MO Standard Stainless steel 6MO KG 12-MTA-7-6RT 12 3/8 43.70 23 22 9.10 Not in stock 2147483647
H00066297 M12FA3/8K-316 Standard Stainless steel 316 0, KG 12-MTA-7-6RT GB, Great Britain 73072910 12 3/8 43.70 23 22 9.10 66.47 EUR Not in stock
Minimum 5
 2147483647
H00066295 M12FA1/4K-6MO Standard Stainless steel 6MO KG 12-MTA-7-4RT 12 1/4 40.50 23 19 9.10 Not in stock 2147483647
H00066293 M12FA1/4K-316 Standard Stainless steel 316 0.047, KG 12-MTA-7-4RT GB, Great Britain 73072910 12 1/4 40.50 23 19 9.10 44.47 EUR Not in stock
Minimum 5
 2147483647
H00066291 M10FA1/2K-6MO Standard Stainless steel 6MO KG 10-MTA-7-8RT 10 1/2 41.30 17.50 27 7.50 Not in stock 2147483647
H00066289 M10FA1/2K-316 Standard Stainless steel 316 0.11, KG 10-MTA-7-8RT GB, Great Britain 73072910 10 1/2 41.30 17.50 27 7.50 44.57 EUR Not in stock
Minimum 5
 2147483647
H00066287 M10FA3/8K-6MO Standard Stainless steel 6MO KG 10-MTA-7-6RT 10 3/8 31.80 17.50 22 7.50 Not in stock 2147483647
H00066285 M10FA3/8K-316 Standard Stainless steel 316 0, KG 10-MTA-7-6RT GB, Great Britain 73072910 10 3/8 31.80 17.50 22 7.50 37.61 EUR Not in stock
Minimum 5
 2147483647
H00066283 M10FA1/4K-6MO Standard Stainless steel 6MO KG 10-MTA-7-4RT 10 1/4 36.50 17.50 19 7.50 Not in stock 2147483647
H00066281 M10FA1/4K-316 Standard Stainless steel 316 0.0428, KG 10-MTA-7-4RT GB, Great Britain 73072910 10 1/4 36.50 17.50 19 7.50 34.47 EUR Not in stock
Minimum 5
 2147483647
H00066279 M8FA1/4K-6MO Standard Stainless steel 6MO KG 8-MTA-7-4RT 8 1/4 39.10 16.70 19 6.40 Not in stock 2147483647
H00066277 M8FA1/4K-316 Standard Stainless steel 316 0, KG 8-MTA-7-4RT GB, Great Britain 73072910 8 1/4 39.10 16.70 19 6.40 38.38 EUR Not in stock
Minimum 5
 2147483647
H00066275 M6FA1/8K-6MO Standard Stainless steel 6MO KG 6-MTA-7-2RT 6 1/8 30.20 15.90 14 4 Not in stock 2147483647
H00066273 M6FA1/8K-316 Standard Stainless steel 316 0, KG 6-MTA-7-2RT GB, Great Britain 73072910 6 1/8 30.20 15.90 14 4 33.35 EUR Not in stock
Minimum 5
 2147483647
H00066271 M4FA1/8K-6MO Standard Stainless steel 6MO KG 4-MTA-7-2RT 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00066269 M4FA1/8K-316 Standard Stainless steel 316 0.23, KG 4-MTA-7-2RT GB, Great Britain 73072910 4 1/8 28.60 14.30 14 2 Not in stock 2147483647
H00066267 M3FA1/8K-6MO Standard Stainless steel 6MO KG 3-MTA-7-2RT 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
H00066265 M3FA1/8K-316 Standard Stainless steel 316 0.05, KG 3-MTA-7-2RT GB, Great Britain 73072910 3 1/8 27.80 13.50 14 1.80 Not in stock 2147483647
