  6. 45° Male Stud Elbow - Triple-Lok® 37° Flare end / Male UNF thread O-ring

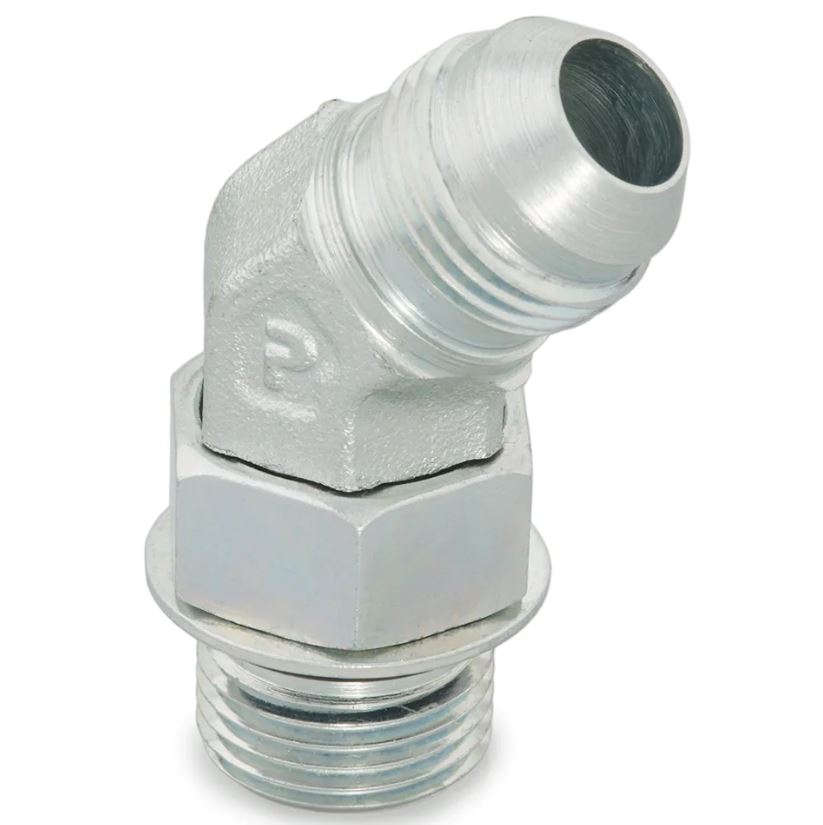

45° Male Stud Elbow - Triple-Lok® 37° Flare end / Male UNF thread O-ring

ISO 11926, SAE 070320, MS51528

Datasheets
V5OMX Triple Lok
Fitting ends
# End type group End form Thread Sealing
1 JIC Male UNF Cone
2 UNF/UN Male UNF O-ring
Fitting data
Shape Elbow 45°

Materials (Prod. Summary) Stainless steel, Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Tube-To-Male Thread
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program JIC / Triple-Lok
Show fullscreen image
Hymatik number Supplier Item Number Availability
Material
Country of origin
TariffNumber
Weight
AD
OD

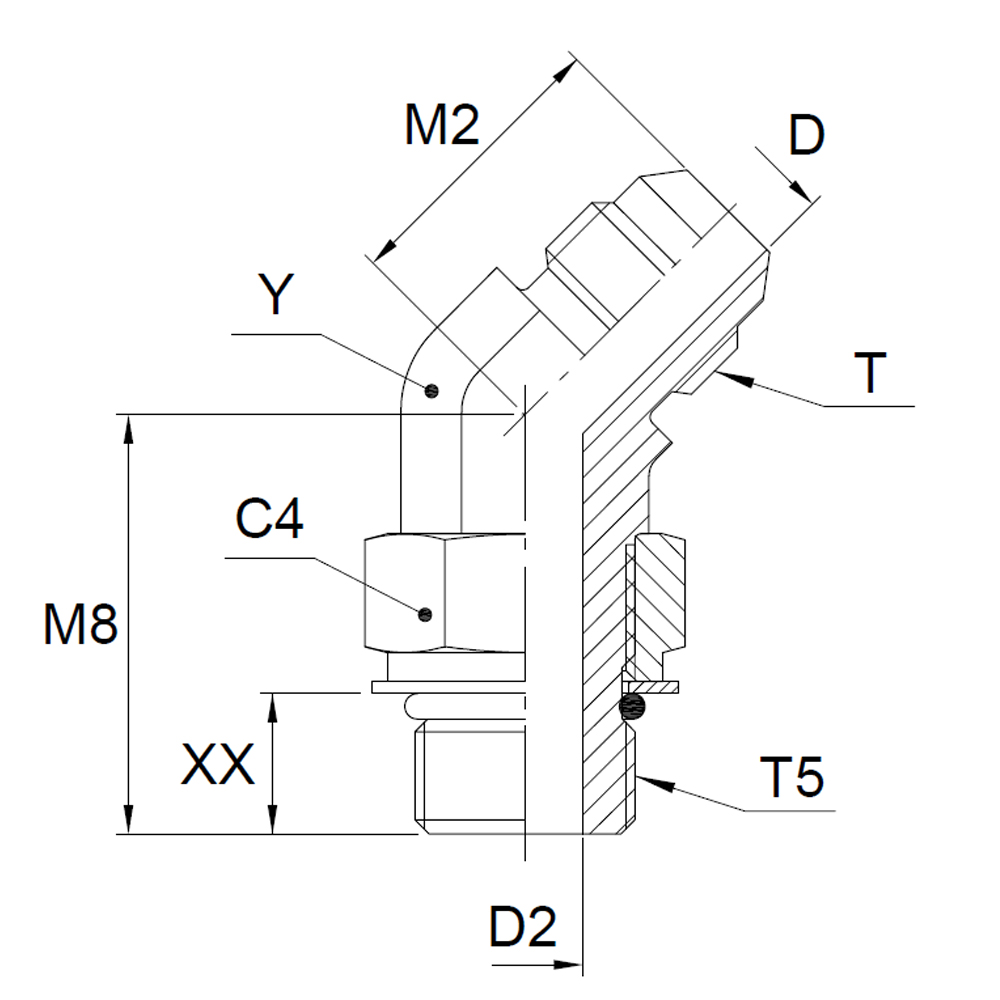

GEWT5
GEWT
D
D2
C4
Y
M2
M8
Unit price
Stock status
Favorite Sort Order
H00011792 5 V5OX-S Steel US, USA 73079290 0.0513, KG 8 5/16" 1/2-20 1/2-20 6 6 16 13 20 27 37.83 EUR Not in stock
Minimum 5
 2147483647
H00011793 6V5OMXS Steel CN, China 73079290 0.053, KG 10 3/8" 9/16-18 9/16-18 8 8 17 14 21 29 27.67 EUR Not in stock
Minimum 10
 2147483647
H00011794 6-8 V5OX-S Steel CN, China 73079290 0.0929, KG 10 3/8" 3/4-16 9/16-18 8 10 22 19 22 33 41.94 EUR Not in stock
Minimum 5
 2147483647
H00011795 8 V5OX-S Steel MX, Mexico 73079290 0.1, KG 12 1/2" 3/4-16 3/4-16 10 10 22 19 25 33 31.98 EUR Not in stock
Minimum 15
 2147483647
H00011796 8-6 V5OX-S Steel CN, China 73079290 0.07, KG 12 1/2" 9/16-18 3/4-16 10 8 17 19 25 30 45.92 EUR Not in stock
Minimum 5
 2147483647
H00011797 8-10 V5OX-S Steel CN, China 73079290 0.1414, KG 12 1/2" 7/8-14 3/4-16 10 12 25 22 25 39 45.45 EUR Not in stock
Minimum 5
 2147483647
H00011798 10 V5OX-S Steel CN, China 73079290 0.1427, KG 14, 15, 16 5/8" 7/8-14 7/8-14 12 13 27 22 28 39 45.87 EUR Not in stock
Minimum 10
 2147483647
H00011799 10-8 V5OX-S Steel KG 14, 15, 16 5/8" 3/4-16 7/8-14 12 10 22 22 28 35 Not in stock 2147483647
H00011800 12 V5OX-S Steel CN, China 73079290 0.248, KG 18, 20 3/4" 1 1/16-12 1 1/16-12 16 16 32 27 33 44 68.59 EUR Not in stock
Minimum 10
 2147483647
H00011801 12-10 V5OX-S Steel US, USA 73079290 0.192, KG 18, 20 3/4" 7/8-14 1 1/16-12 16 12 25 27 33 40 86.78 EUR Not in stock
Minimum 10
 2147483647
H00011802 14 V5OX-S Steel KG 22 7/8" 1 3/16-12 1 3/16-12 18 18 35 33 37 47 Not in stock 2147483647
H00011803 16 V5OX-S Steel CN, China 73079290 0.356, KG 25 1 1 5/16-12 1 5/16-12 22 22 38 33 37 47 102.43 EUR Not in stock
Minimum 5
 2147483647
H00011804 20 V5OX-S Steel CN, China 73079290 0.5562, KG 28, 30, 32 1 1/4 1 5/8-12 1 5/8-12 28 28 48 41 40 49 132.75 EUR Not in stock
Minimum 20
 2147483647
H00011805 24 V5OX-S Steel US, USA 73079290 0.724, KG 35, 38 1 1/2 1 7/8-12 1 7/8-12 33 33 54 48 45 49 165.71 EUR Not in stock
Minimum 5
 2147483647
H00011806 4 V5OX-SS Stainless steel US, USA 73072290 0.034, KG 6 1/4" 7/16-20 7/16-20 4 5 14 11 18 27 200.56 EUR Not in stock
Minimum 20
 2147483647
H00011807 5 V5OX-SS Stainless steel KG 8 5/16" 1/2-20 1/2-20 6 6 16 13 20 27 Not in stock 2147483647
H00011808 6 V5OX-SS Stainless steel US, USA 73072290 0.05, KG 10 3/8" 9/16-18 9/16-18 8 8 17 14 21 29 205.51 EUR Not in stock
Minimum 5
 2147483647
H00011809 6-8 V5OX-SS Stainless steel KG 10 3/8" 3/4-16 9/16-18 8 10 22 19 22 33 Not in stock 2147483647
H00011810 8 V5OX-SS Stainless steel US, USA 73072290 0.108, KG 12 1/2" 3/4-16 3/4-16 10 10 22 19 25 33 155.92 EUR Not in stock
Minimum 5
 2147483647
H00011811 8-6 V5OX-SS Stainless steel KG 12 1/2" 9/16-18 3/4-16 10 8 17 19 25 30 Not in stock 2147483647
H00011812 8-10 V5OX-SS Stainless steel KG 12 1/2" 7/8-14 3/4-16 10 12 25 22 25 39 Not in stock 2147483647
H00011813 10 V5OX-SS Stainless steel KG 14, 15, 16 5/8" 7/8-14 7/8-14 12 13 27 22 28 39 Not in stock 2147483647
H00011814 10-8 V5OX-SS Stainless steel KG 14, 15, 16 5/8" 3/4-16 7/8-14 12 10 22 22 28 35 Not in stock 2147483647
H00011815 12 V5OX-SS Stainless steel US, USA 73072290 0.2409, KG 18, 20 3/4" 1 1/16-12 1 1/16-12 16 16 32 27 33 44 721.07 EUR Not in stock
Minimum 5
 2147483647
H00011816 12-10 V5OX-SS Stainless steel KG 18, 20 3/4" 7/8-14 1 1/16-12 16 12 25 27 33 40 Not in stock 2147483647
H00011817 16 V5OX-SS Stainless steel 25 1 1 5/16-12 1 5/16-12 22 22 38 33 37 47 Not in stock 2147483647
H00011818 20 V5OX-SS Stainless steel KG 28, 30, 32 1 1/4 1 5/8-12 1 5/8-12 28 28 48 41 40 49 Not in stock 2147483647
H00011819 24 V5OX-SS Stainless steel KG 35, 38 1 1/2 1 7/8-12 1 7/8-12 33 33 54 48 45 49 Not in stock 2147483647
7290552050 4 V5OX-S Discontinued from Hymatik's standard stocked assortment when current stock is sold out Steel MX, Mexico 73079290 0.0319, KG 39.76 EUR In stock
2147483647
H01706289 16-12 V5OX-S Steel US, USA 73079290 0.342, KG 25 1 1 5/16-12 1 5/16-12 22 22 38 33 37 47 143.82 EUR Not in stock
Minimum 5
 2147483647
