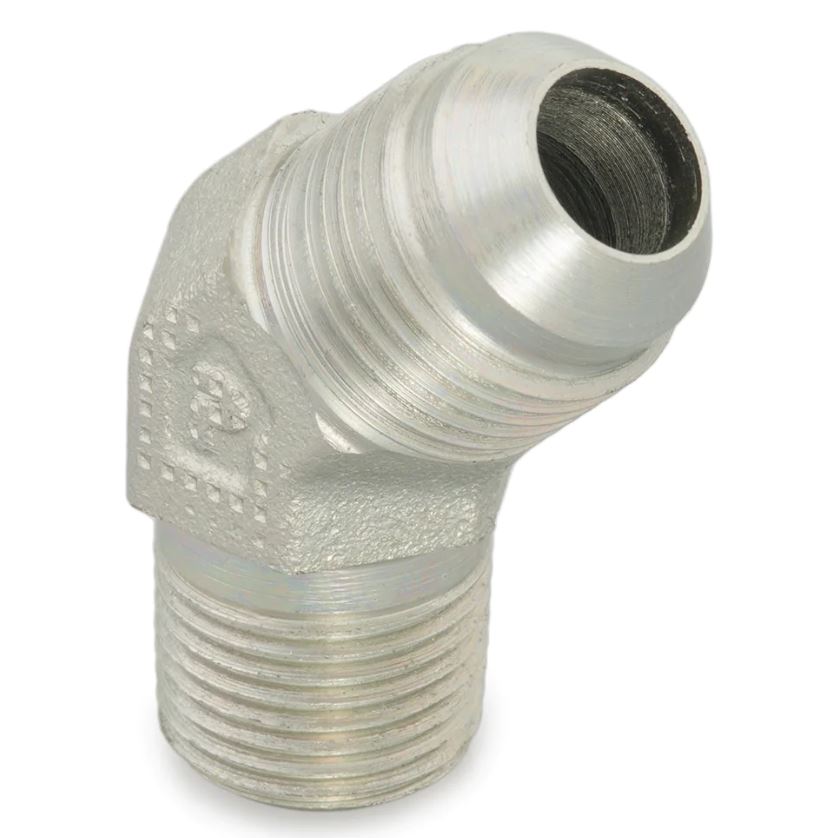

45° Male Stud Elbow - Triple-Lok® 37° Flare end / Male NPTF thread

SAE 476, SAE 070302, MS51508

Datasheets

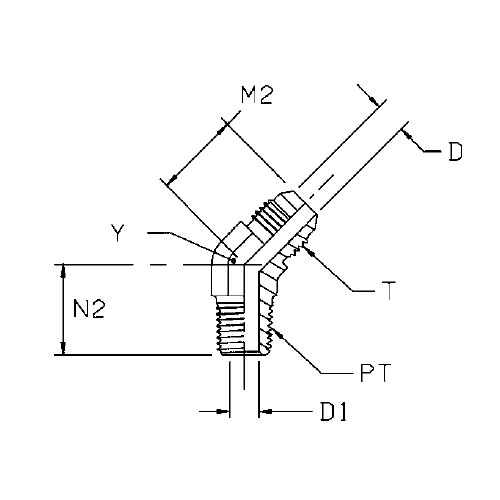

VMTX Triple Lok
Fitting ends
# End type group End form Thread Sealing
1 JIC Male UNF Cone
2 NPT Male NPTF Thread
Fitting data
Shape Elbow 45°

Materials (Prod. Summary) Brass, Stainless steel, Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 2" inches
Connection Combination Tube-To-Male Thread
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program JIC / Triple-Lok
Show fullscreen image
Hymatik number Supplier Item Number
Material
Weight
AD
Country of origin
TariffNumber
OD
GEWPT
GEWT
D
D1
Y
M2
N2
Unit price
Stock status
Favorite Sort Order
H00011186 3 VTX-S Steel 3/16" 1/8-27 3/8-24 3 5 11 18 14 Not in stock 2147483647
H00011187 4VMTXS Steel KG 6 1/4" 1/8-27 7/16-20 4 5 11 18 16 Not in stock 2147483647
H00011188 4-4VMTXS Steel KG 6 1/4" 1/4-18 7/16-20 4 7 14 21 22 Not in stock 2147483647
H00011189 5VMTXS Steel KG 8 5/16" 1/8-27 1/2-20 6 5 13 20 16 Not in stock 2147483647
H00011190 5-4VMTXS Steel KG 8 5/16" 1/4-18 1/2-20 6 7 14 21 22 Not in stock 2147483647
H00011191 6VMTXS Steel KG 10 3/8" 1/4-16 9/16-18 8 7 14 21 22 Not in stock 2147483647
H00011192 6-2VTX-S Steel KG 10 3/8" 1/8-27 9/16-18 8 5 14 21 17 Not in stock 2147483647
H00011193 6-6 VTX-S Steel 0.0566, KG 10 CN, China 73079290 3/8" 3/8-18 9/16-18 8 10 19 22 24 46.27 EUR Not in stock
Minimum 25
 2147483647
H00011194 6-8VMTXS Steel KG 10 3/8" 1/2-14 9/16-18 8 14 22 22 30 Not in stock 2147483647
H00011195 8-4 VTX-S Steel 0.062, KG 12 US, USA 73079290 1/2" 1/4-16 3/4-16 10 7 19 25 24 54.37 EUR Not in stock
Minimum 10
 2147483647
H00011196 8 VTX-S Steel 0.0652, KG 12 CN, China 73079290 1/2" 3/8-18 3/4-16 10 10 19 25 24 45.32 EUR Not in stock
Minimum 25
 2147483647
H00011197 8-8VMTXS Steel KG 12 1/2" 1/2-14 3/4-16 10 14 22 25 30 Not in stock 2147483647
H00011198 8-12 VTX-S Steel 0.1282, KG 12 US, USA 73079290 1/2" 3/4-14 3/4-16 10 18 27 26 31 54.08 EUR Not in stock
Minimum 10
 2147483647
H00011199 10VMTXS Steel KG 14, 15, 16 5/8" 1/2-14 7/8-14 12 14 22 28 30 Not in stock 2147483647
H00011200 10-6 VTX-S Steel 0.0920, KG 14, 15, 16 US, USA 73079290 5/8" 3/8-18 7/8-14 12 10 22 28 25 Not in stock 2147483647
H00011201 10-12VMTXS Steel KG 14, 15, 16 5/8" 3/4-14 7/8-14 12 18 27 30 31 Not in stock 2147483647
H00011202 12VMTXS Steel KG 18, 20 3/4" 3/4-14 1 1/16-12 16 18 27 33 31 Not in stock 2147483647
H00011203 12-8VMTXS Steel KG 18, 20 3/4" 1/2-14 1 1/16-12 16 14 27 36 31 Not in stock 2147483647
H00011204 12-16 VTX-S Steel 0.26, KG 18, 20 US, USA 73079290 3/4" 1-11 1/2 1 1/16-12 16 24 33 36 38 93.25 EUR Not in stock
Minimum 60
 2147483647
H00011205 14VTX-S Steel KG 22 7/8" 3/4-14 1 3/16-12 18 18 33 35 32 Not in stock 2147483647
H00011206 16VMTXS Steel KG 25 1 1-11 1/2 1 5/16-12 22 24 33 37 38 Not in stock 2147483647
H00011207 16-12 VTX-S Steel 0.2412, KG 25 US, USA 73079290 1 3/4-14 1 5/16-12 22 18 33 37 33 78.74 EUR Not in stock
Minimum 5
 2147483647
H00011208 20VMTXS Steel KG 28, 30, 32 1 1/4 1 1/4-11 1/2 1 5/8-12 28 32 41 40 42 Not in stock 2147483647
H00011209 24 VTX-S Steel 0.524, KG 35, 38 CN, China 73079290 1 1/2 1 1/2-11 1/2 1 7/8-12 33 38 48 45 45 161.86 EUR Not in stock
Minimum 5
 2147483647
H00011210 3VTX-SS Stainless steel KG 3/16" 1/8-27 3/8-24 3 5 11 18 14 Not in stock 2147483647
H00011211 4VTX-SS Stainless steel KG 6 1/4" 1/8-27 7/16-20 4 5 11 18 16 Not in stock 2147483647
H00011212 4-4 VTX-SS Stainless steel 0.0358, KG 6 US, USA 73072290 1/4" 1/4-18 7/16-20 4 7 14 21 22 95.52 EUR Not in stock
Minimum 10
 2147483647
H00011213 5VTX-SS Stainless steel KG 8 5/16" 1/8-27 1/2-20 6 5 13 20 16 Not in stock 2147483647
H00011214 5-4VTX-SS Stainless steel KG 8 5/16" 1/4-18 1/2-20 6 7 14 21 22 Not in stock 2147483647
H00011215 6VTX-SS Stainless steel KG 10 3/8" 1/4-16 9/16-18 8 7 14 21 22 Not in stock 2147483647
H00011216 6-2VTX-SS Stainless steel KG 10 3/8" 1/8-27 9/16-18 8 5 14 21 17 Not in stock 2147483647
H00011217 6-6VTX-SS Stainless steel KG 10 3/8" 3/8-18 9/16-18 8 10 19 22 24 Not in stock 2147483647
H00011218 6-8VTX-SS Stainless steel KG 10 3/8" 1/2-14 9/16-18 8 14 22 22 30 Not in stock 2147483647
H00011219 8-4VTX-SS Stainless steel KG 12 1/2" 1/4-16 3/4-16 10 7 19 25 24 Not in stock 2147483647
H00011220 8VTX-SS Stainless steel KG 12 1/2" 3/8-18 3/4-16 10 10 19 25 24 Not in stock 2147483647
H00011221 8-8 VTX-SS Stainless steel 0.1006, KG 12 US, USA 73072290 1/2" 1/2-14 3/4-16 10 14 22 25 30 273.22 EUR Not in stock
Minimum 5
 2147483647
H00011222 8-12VTX-SS Stainless steel KG 12 1/2" 3/4-14 3/4-16 10 18 27 26 31 Not in stock 2147483647
H00011223 10VTX-SS Stainless steel KG 14, 15, 16 5/8" 1/2-14 7/8-14 12 14 22 28 30 Not in stock 2147483647
H00011224 10-6VTX-SS Stainless steel KG 14, 15, 16 5/8" 3/8-18 7/8-14 12 10 22 28 25 Not in stock 2147483647
H00011225 10-12VTX-SS Stainless steel KG 14, 15, 16 5/8" 3/4-14 7/8-14 12 18 27 30 31 Not in stock 2147483647
H00011226 12VTX-SS Stainless steel KG 18, 20 3/4" 3/4-14 1 1/16-12 16 18 27 33 31 Not in stock 2147483647
H00011227 12-8VTX-SS Stainless steel KG 18, 20 3/4" 1/2-14 1 1/16-12 16 14 27 36 31 Not in stock 2147483647
H00011228 12-16VTX-SS Stainless steel KG 18, 20 3/4" 1-11 1/2 1 1/16-12 16 24 33 36 38 Not in stock 2147483647
H00011229 14VTX-SS Stainless steel KG 22 7/8" 3/4-14 1 3/16-12 18 18 33 35 32 Not in stock 2147483647
H00011230 16 VTX-SS Stainless steel 0.2832, KG 25 US, USA 73072290 1 1-11 1/2 1 5/16-12 22 24 33 37 38 787.41 EUR Not in stock
Minimum 15
 2147483647
H00011231 16-12VTX-SS Stainless steel KG 25 1 3/4-14 1 5/16-12 22 18 33 37 33 Not in stock 2147483647
H00011232 20VTX-SS Stainless steel KG 28, 30, 32 1 1/4 1 1/4-11 1/2 1 5/8-12 28 32 41 40 42 Not in stock 2147483647
H00011233 24 VTX-SS Stainless steel 0.62, KG 35, 38 US, USA 73072290 1 1/2 1 1/2-11 1/2 1 7/8-12 33 38 48 45 45 1109.02 EUR Not in stock
2147483647
H00011234 3VTX-B Brass KG 3/16" 1/8-27 3/8-24 3 5 11 18 14 Not in stock 2147483647
H00011235 4VTX-B Brass KG 6 1/4" 1/8-27 7/16-20 4 5 11 18 16 Not in stock 2147483647
H00011236 4-4VTX-B Brass KG 6 1/4" 1/4-18 7/16-20 4 7 14 21 22 Not in stock 2147483647
H00011237 5VTX-B Brass KG 8 5/16" 1/8-27 1/2-20 6 5 13 20 16 Not in stock 2147483647
H00011238 5-4VTX-B Brass KG 8 5/16" 1/4-18 1/2-20 6 7 14 21 22 Not in stock 2147483647
H00011239 6VTX-B Brass KG 10 3/8" 1/4-16 9/16-18 8 7 14 21 22 Not in stock 2147483647
H00011240 6-2VTX-B Brass KG 10 3/8" 1/8-27 9/16-18 8 5 14 21 17 Not in stock 2147483647
H00011241 6-6VTX-B Brass KG 10 3/8" 3/8-18 9/16-18 8 10 19 22 24 Not in stock 2147483647
H00011242 6-8VTX-B Brass KG 10 3/8" 1/2-14 9/16-18 8 14 22 22 30 Not in stock 2147483647
H00011243 8-4VTX-B Brass KG 12 1/2" 1/4-16 3/4-16 10 7 19 25 24 Not in stock 2147483647
H00011244 8VTX-B Brass KG 12 1/2" 3/8-18 3/4-16 10 10 19 25 24 Not in stock 2147483647
H00011245 8-8VTX-B Brass KG 12 1/2" 1/2-14 3/4-16 10 14 22 25 30 Not in stock 2147483647
H00011246 8-12VTX-B Brass KG 12 1/2" 3/4-14 3/4-16 10 18 27 26 31 Not in stock 2147483647
H00011247 10VTX-B Brass KG 14, 15, 16 5/8" 1/2-14 7/8-14 12 14 22 28 30 Not in stock 2147483647
H00011248 10-6VTX-B Brass KG 14, 15, 16 5/8" 3/8-18 7/8-14 12 10 22 28 25 Not in stock 2147483647
H00011249 12VTX-B Brass KG 18, 20 3/4" 3/4-14 1 1/16-12 16 18 27 33 31 Not in stock 2147483647
H00011250 12-8VTX-B Brass KG 18, 20 3/4" 1/2-14 1 1/16-12 16 14 27 36 31 Not in stock 2147483647
H00011251 12-16VTX-B Brass KG 18, 20 3/4" 1-11 1/2 1 1/16-12 16 24 33 36 38 Not in stock 2147483647
H00011252 16VTX-B Brass KG 25 1 1-11 1/2 1 5/16-12 22 24 33 37 38 Not in stock 2147483647
H00011253 16-12VTX-B Brass KG 25 1 3/4-14 1 5/16-12 22 18 33 37 33 Not in stock 2147483647
H00011254 20VTX-B Brass KG 28, 30, 32 1 1/4 1 1/4-11 1/2 1 5/8-12 28 32 41 40 42 Not in stock 2147483647
H00011255 24VTX-B Brass KG 35, 38 1 1/2 1 1/2-11 1/2 1 7/8-12 33 38 48 45 45 Not in stock 2147483647
