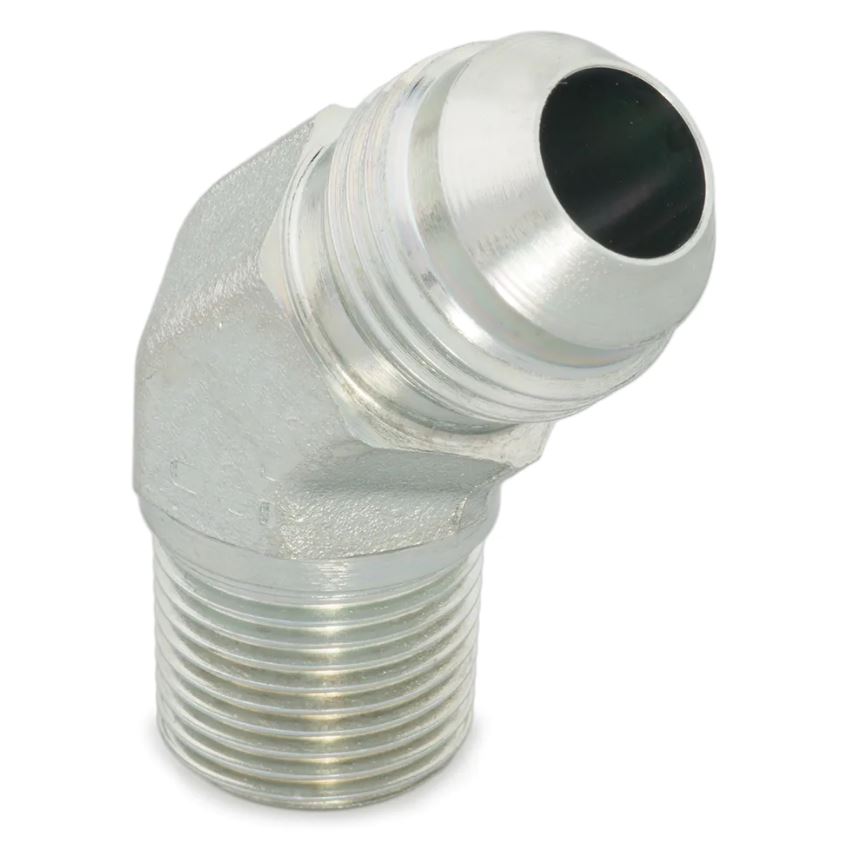

Male Stud Elbow - Triple-Lok® 37° Flare end / Male BSPT thread

ISO 7

Datasheet
Fitting ends
# End type group End form Thread Sealing
1 JIC Male UNF Cone
2 BSP Male BSPT Thread
Fitting data
Shape Elbow 45°

Materials (Prod. Summary) Steel
Size Range (mm) 6 - 38 mm
Size Range (inch) 1/4" inches - 1 1/2" inches
Connection Combination Tube-To-Male Thread
Product Classification Hydraulics
Product Category Fittings
Product Group Hydraulic Fittings
Product Program JIC / Triple-Lok
Show fullscreen image
Info Hymatik Part Number Supplier Item Number Availability
End 1 - End form
End 1 - End Type Group
End 1 Tube Sizes
End 1 Thread Size
End 1 Thread Type
End 1 - Sealing
End 2 - End form
End 2 - End Type Group
End 2 Thread Size
End 2 Thread Type
End 2 - Sealing
Material
Connection Combination
Country of origin
TariffNumber
Weight

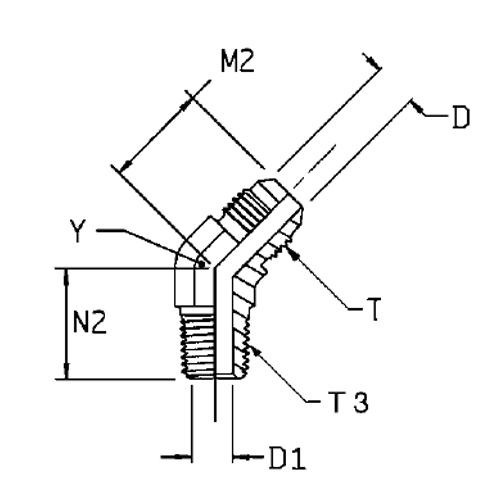

AD
OD
GEWT3
GEWT
D
D1
Y
M2
N2
Unit price          Favorite    Sort Order
