Nåleventil - MVBB - Block & Bleed

Needle Valve MVBB

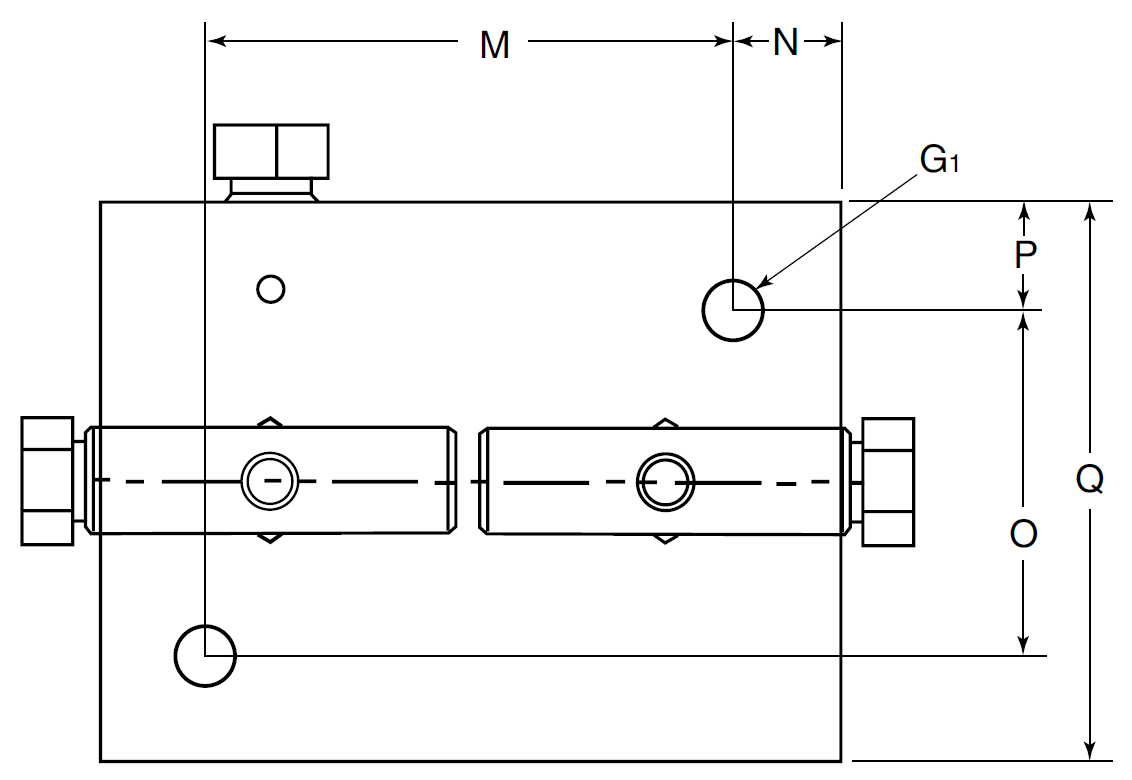

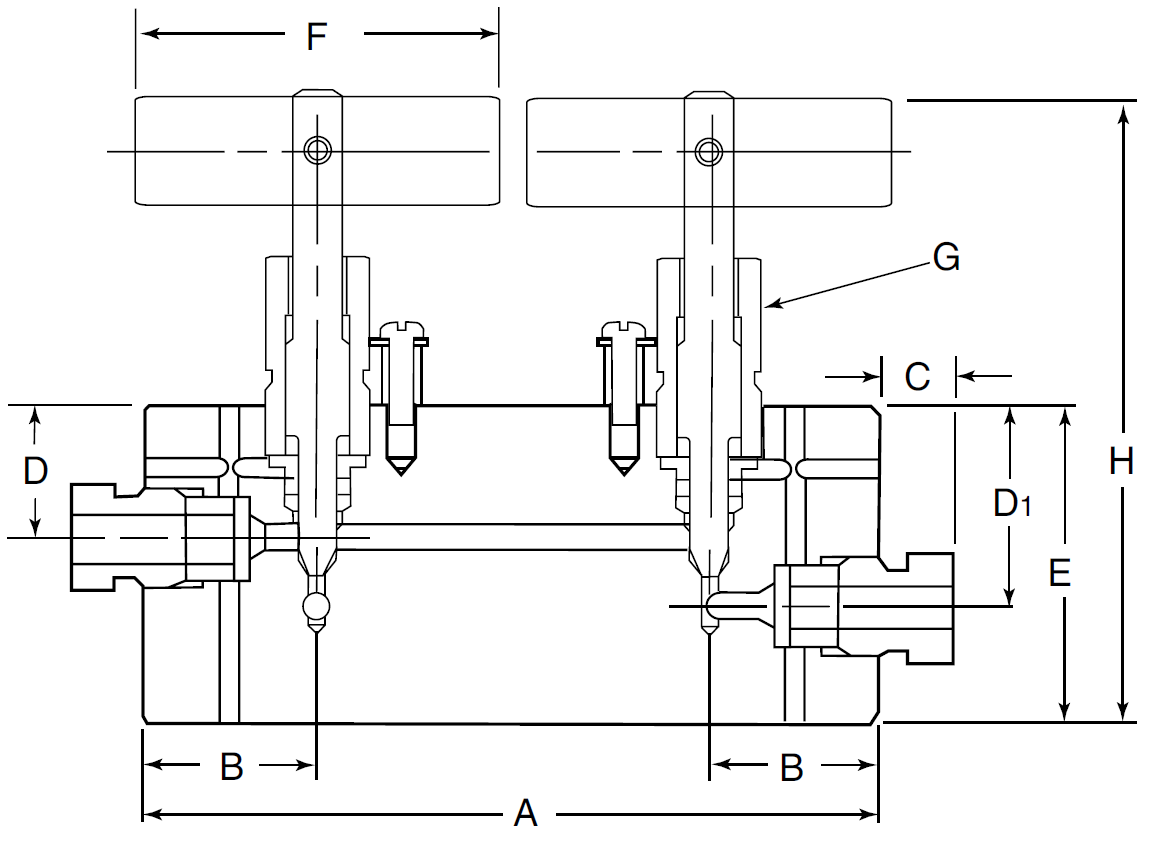

Hymatik varenr.	Leverandør varenr.	Vægt	A Inch	A (mm)	B Inch	B (mm)	Outside Diameter Tube Inch	Outside Diameter Tube (mm)	C Inch	C (mm)	D Inch	D (mm)	E Inch	E (mm)	F Inch	F (mm)	G Inch	G (mm)	Stem Type	Orifice Diameter Inch	Orifice Diameter (mm)	D1Inch	D1 (mm)	G1 Inch	G1 (mm)	H Inch	H (mm)	M Inch	M (mm)	N Inch	N (mm)	Rated CV	Pressure Rating Psi Room Temperature	Pressure Rating Bar Room Temperature	O Inch	O (mm)	P Inch	P (mm)	Q Inch	Q (mm)	Oprindelsesland	TariffNumber	Enhedspris	Lagerstatus	Sort Order
H00058954	20MVBB4	KG	3.50	88.90	0.81	20.65	1/4	6.35	0.38	9.65	0.63	15.88	1.50	38.10	1.75	44.45	0.56	14.27	VEE	0.09	2.39	0.94	23.83	0.28	7.14	2.94	74.68	2.50	63.50	0.49	12.32	0.20	20000	1379	1.63	41.40	0.50	12.70	2.63	66.68				Ikke på lager	2147483647
H00058955	20MVBB6	0,3, KG	3.88	98.60	1	25.40	3/8	9.53	0.44	11.10	0.63	15.88	1.50	38.10	1.75	44.45	0.56	14.27	VEE	0.09	2.39	0.94	23.83	0.28	7.14	2.94	74.68	2.88	73.15	0.50	12.70	0.20	20000	1379	1.63	41.40	0.50	12.70	2.63	66.68	IE, Irland	73072910	5783,51 DKK	Ikke på lager	2147483647
