Han-Hun Adaptor - JIC - JIC Til NPT

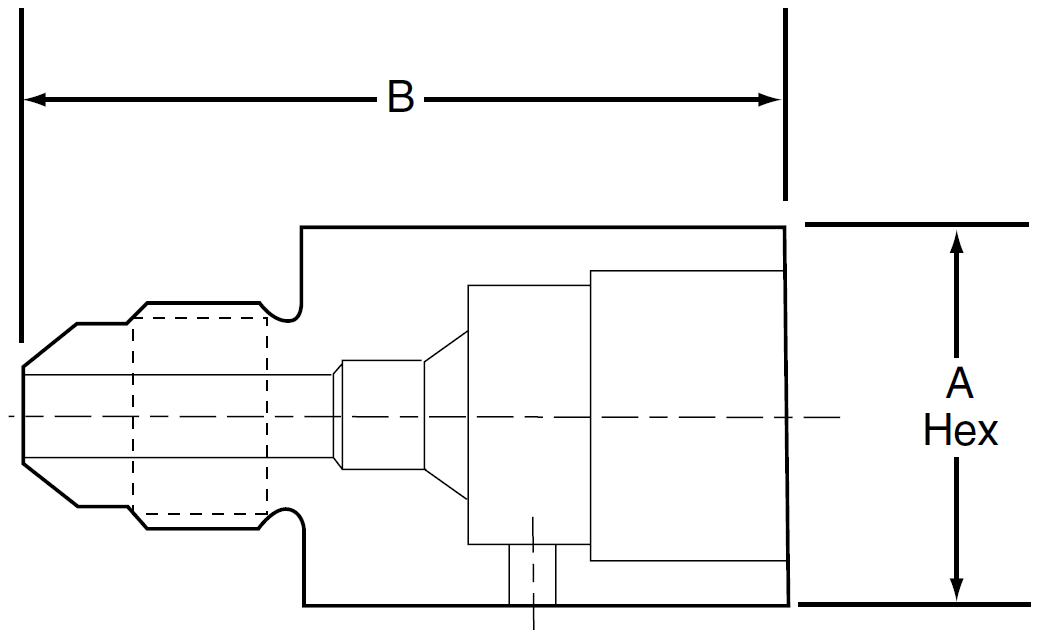

Datasheets
Male Female Adapters JIC
Fitting ends
# Endetype Endeform Gevind Tætning
1 JIC Han UNF Konus
2 NPT Hun (Fast) NPT Gevind
Fitting data
Form Lige

Produktklassifisering Proces
Produktkategori Fittings
Produktgruppe AE Autoclave Fittings
Produktprogram Adaptorer
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Male End Size
Vægt
Male Connector Type
Male Fitting Type
Female End Size
Female Connector Type
Female Fitting Type
Pressure Rating Psi
Pressure Rating Bar
A Hex Inch
A Hex (mm)
B Inch
B (mm)
Connection Combination
Enhedspris
Lagerstatus
Favorit Sort Order
H00060411 15MFAJ4P4 1/4" JIC4 JIC 1/4" NPT National Pipe Thread (NPT) 15000 1034.20 0.94 23.80 1.50 38.10 JIC to NPT Ikke på lager 2147483647
H00060412 15MFAJ4P4-OP 1/4" KG JIC4 JIC 1/4" NPT National Pipe Thread (NPT) 15000 1034.20 0.94 23.80 1.50 38.10 JIC to NPT Ikke på lager 2147483647
H00060413 15MFAJ4P8 1/4" KG JIC4 JIC 1/2" NPT National Pipe Thread (NPT) 15000 1034.20 1.19 30.10 1.88 47.80 JIC to NPT Ikke på lager 2147483647
H00060414 15MFAJ4P8-OP 1/4" KG JIC4 JIC 1/2" NPT National Pipe Thread (NPT) 15000 1034.20 1.19 30.10 1.88 47.80 JIC to NPT Ikke på lager 2147483647
