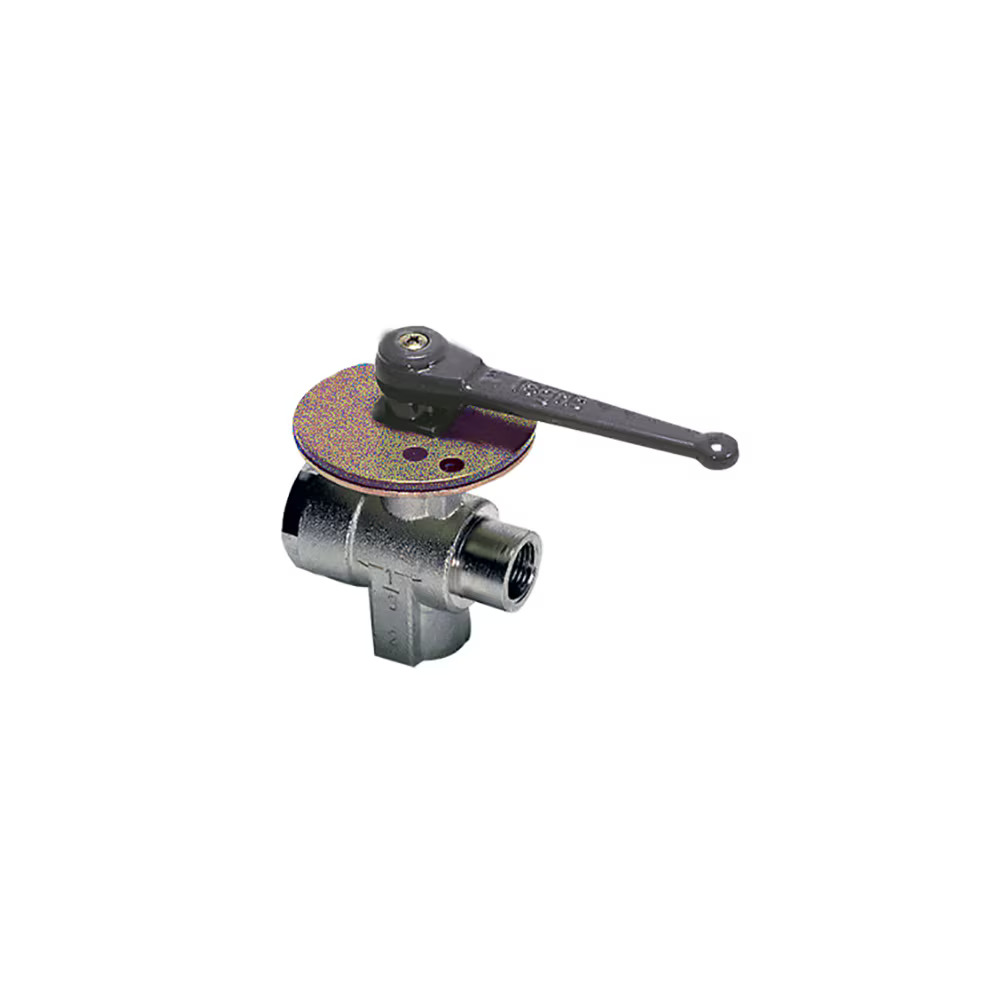

3/2 Højre-Vinklet 3-Point Låsbar Kugleventil , Indvendig BSPP Gevind

Datasheets
Universal Series Lockable
Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik & Medier
Produktprogram Kugleventiler
Produktunderprogram Kugleventiler 3-Vejs
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Oprindelsesland
TariffNumber
Vægt
Id
Kg
Note
Product Type
C
F
H
H1
L
DN
E
L1
J
Max Working Pressure
Enhedspris
Lagerstatus
Favorit Sort Order
2220438005 0438 09 17 FR, Frankrig 8481808190 0,97, KG 438 0.97 Fixed plate: zinc-plated steel, mobile plate: steel, grey epoxy-coated, Removable handle: where the handle is obstructed in its movement, it can be refitted opposite the original position, Universal Series, Lockable G3/8 38 76 34 73 9 12 35 39 20 bar 757,79 DKK Ikke på lager
Minimum 2
 2147483647
2220438010 0438 12 21 FR, Frankrig 8481808190 0,947, KG 438 0.95 Fixed plate: zinc-plated steel, mobile plate: steel, grey epoxy-coated, Removable handle: where the handle is obstructed in its movement, it can be refitted opposite the original position, Universal Series, Lockable G1/2 38 76 37 78 12 15 38 39 20 bar 794,34 DKK Ikke på lager
Minimum 2
 2147483647
2220438015 0438 18 27 FR, Frankrig 8481808190 0,905, KG 438 0.91 Fixed plate: zinc-plated steel, mobile plate: steel, grey epoxy-coated, Removable handle: where the handle is obstructed in its movement, it can be refitted opposite the original position, Universal Series, Lockable G3/4 38 76 40 80 18 16.50 40 39 20 bar 1075,21 DKK Ikke på lager
2147483647
2220438020 0438 23 34 FR, Frankrig 8481808190 1,294, KG 438 1.30 Fixed plate: zinc-plated steel, mobile plate: steel, grey epoxy-coated, Removable handle: where the handle is obstructed in its movement, it can be refitted opposite the original position, Universal Series, Lockable G1 46 80 47 94 23 19 47 48 20 bar 1325,94 DKK På centrallager
2147483647
